150w led panel light driver 12v transformer for led lights

SMT-012-150VW is DC 150w 12v transformer for led lights, high efficency deisgn 88%, work with Z lighting LED strip lights.


  • Size240×69×43 MM
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)150W
  • Input Voltage100-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeNon-dimming
  • Weight1250g
  • CertificationETL
  • Warranty3 Years

150w led panel light driver 12v transformer for led lights

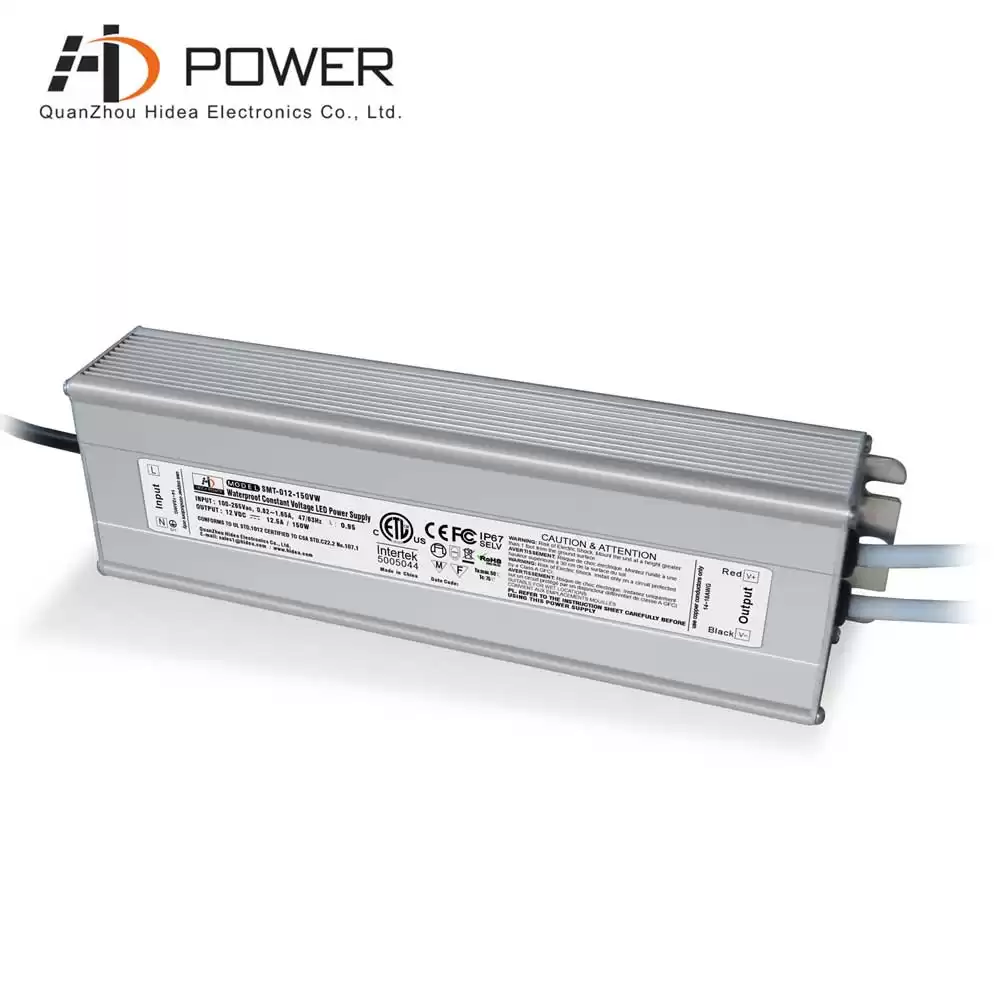

12v 150w led driver is aluminum IP67 case for indoor or outdoor installations, cooling by free air convection, compatitive than MEANWELL LPV series 150w.


  Specification

MODEL SMT-012-150VW SMT-024-150VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 12.5A 6.25A
CURRENT RANGE 0~12.5A 0~6.25A
RATED POWER 150W 150W
RIPPLE&NOISE(max) 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/110VAC, 220VAC
HOLD UP TIME(Typ.) 60ms/110VAC, 220VAC
INPUT VOLTAGE RANGE 90~135VAC / 170~265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥83% ﹥84%
AC CURRENT(Typ.) 1.85A/110VAC, 220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE ETL Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.


  Compatible Light Type

150w 12v transformer has feature of High PF>0.95 and High Efficiency>0.88, 100% full load burn-in test and compatible with AZOOGI led strips outdoor.




  Related Products

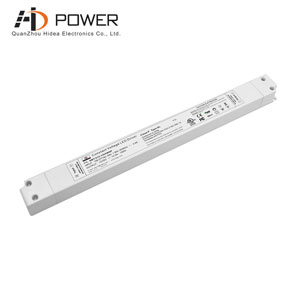

150w non dimming electronic led driver, slimline design with UL listed.


Mode:SMT-012-150VWSP

Dimming Mode : Non-Dimming

Output Power : 150W

intput voltage:100-277V AC

Size:368*30*22.5MM   (L*W*H)




Product Tags 150w led driver          12v transformer for led lights          led panel light driver
