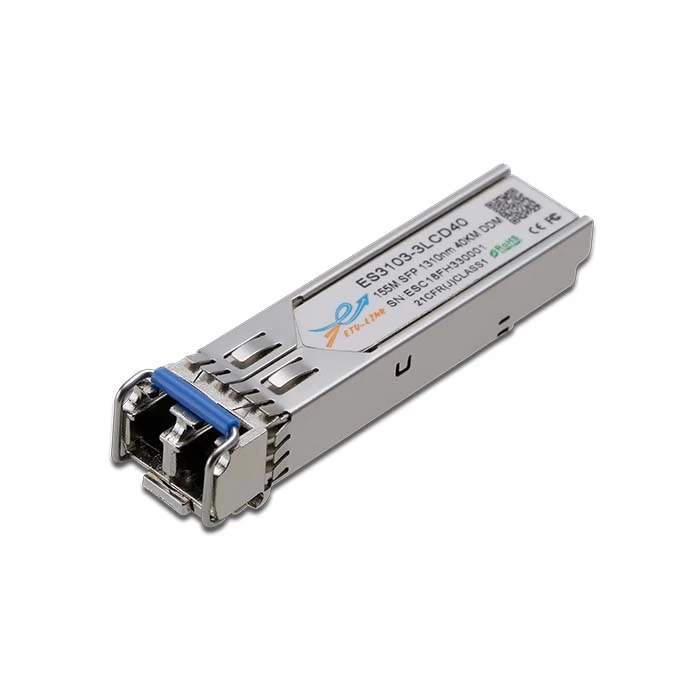

ES3103-3LCD40

155Mbps 40KM 1310nm SFP Optical Transceiver

Features

Transceiver unit with independent

1310nm FP Laser diode transmitter

InGaAs PIN photodiode receiver

Up to 155Mbps data rate operation

Duplex LC connector

Up to 40KM on 9/125μm SMF

Standard serial ID information compliant with SFP MSA

Digital Diagnostic Monitoring Optional

Very low EMI and excellent ESD protection

+3.3V single power supply

RoHS compliant

Case operating temperature 0°C to +70°C

Applications

Switch/Router

SAN/Server

Other optical transmission systems

Standard

SFP MSA (Version Sept.14 2000) compliant

SFF-8472 (Rev 9.3, Aug. 2002) Digital Diagnostic Monitoring Interface for Optical Transceivers

compliant

Telcordia GR-253-CORE Compliant

ITU-T G.957 and G.958 Compliant

Telcordia GR-468-CORE compliant

Description

ETU-LINK ES3103-3LCD40 optical transceivers are designed for optical interfaces for data communications with

Single mode fiber (SMF). The transceiver designs are optimized for high performance and cost effective to

supply customers the best solutions for telecom applications.
