Product Name

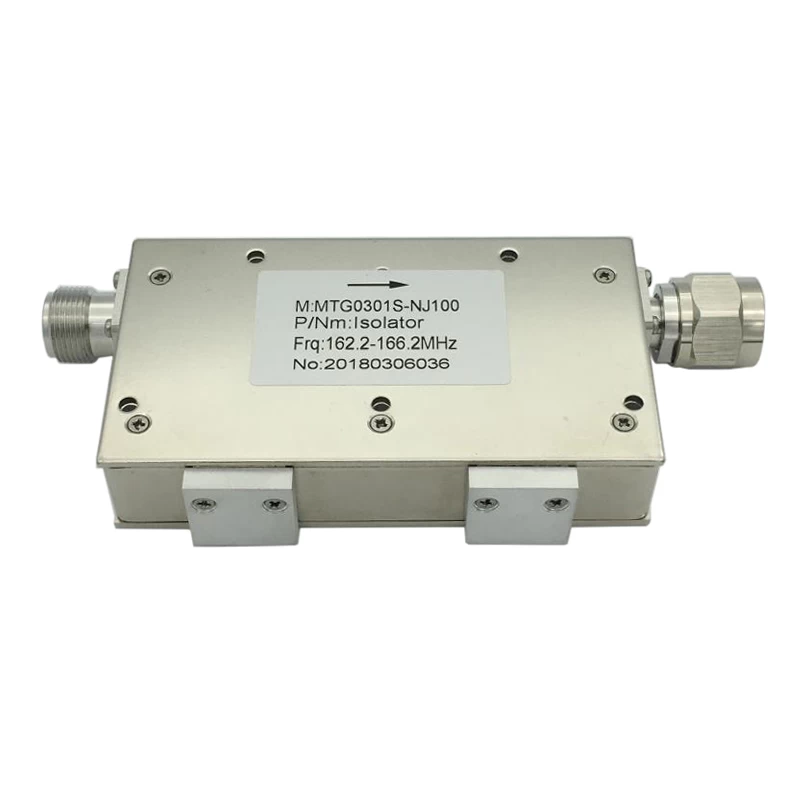

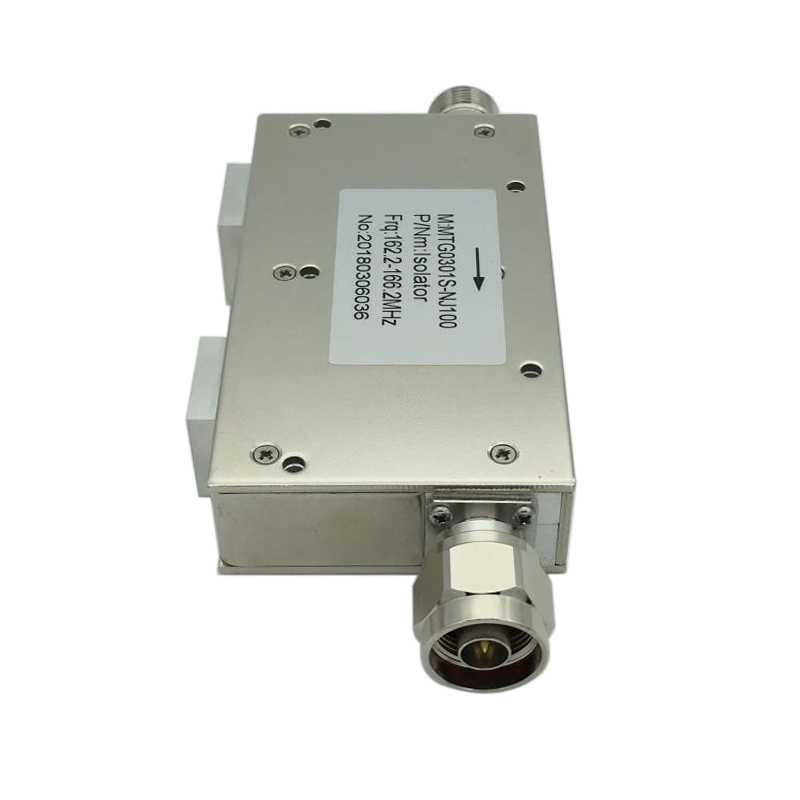

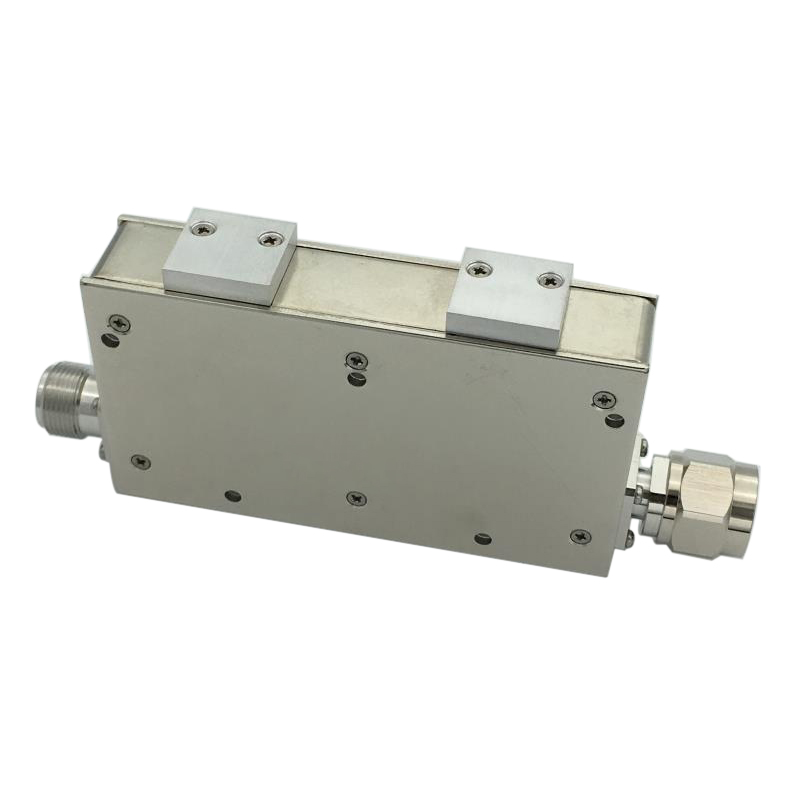

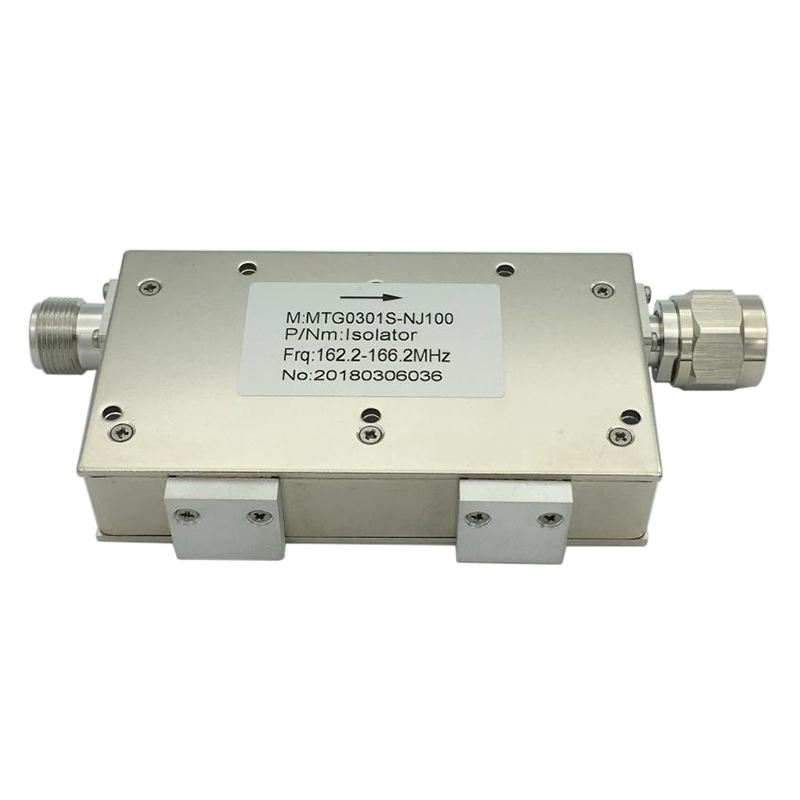

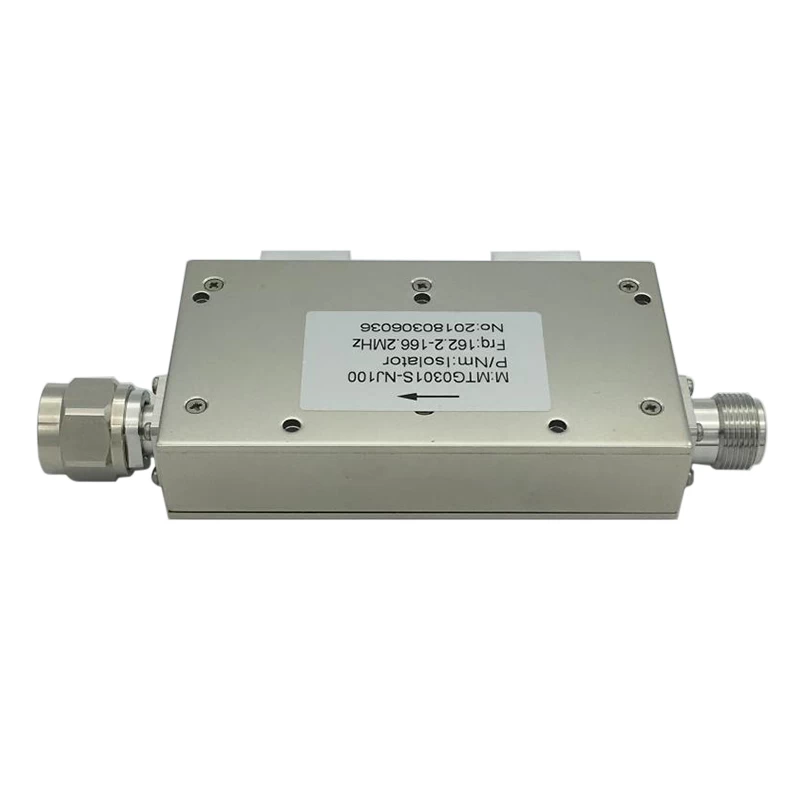

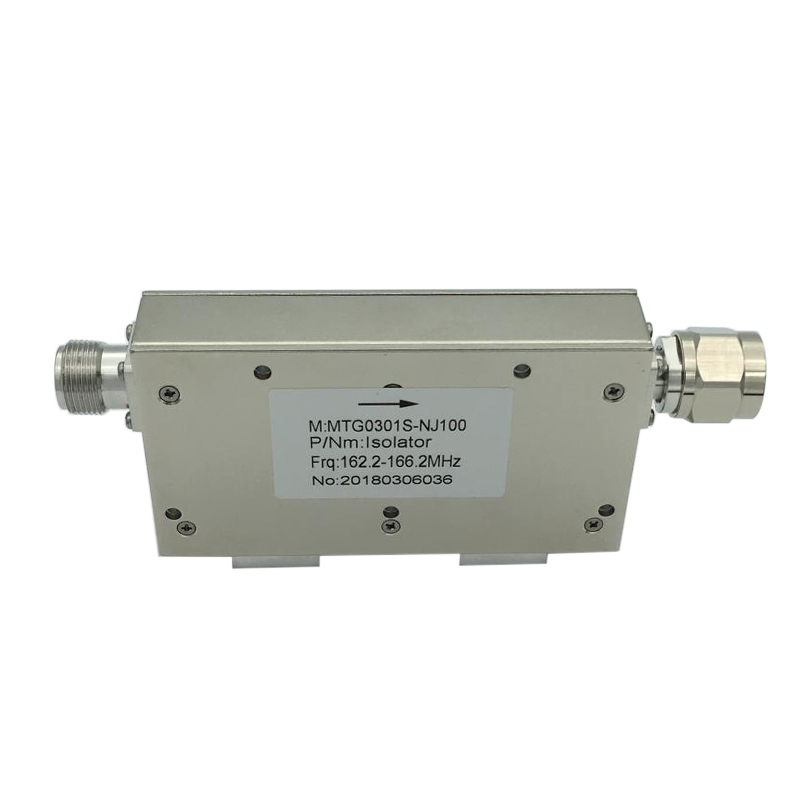

Coaxial Isolator(162.2-166.2MHz,N connector type,150W)
Product Features
VHF 162.2-166.2MHz Coaxial Isolator is Low VSWR,Low Insertion loss and High Isolation and 162.2-166.2MHz Coaxial Isolator is Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Frequncy range (频率)
|
162.2-166.2MHz
|
|
Bandwidth (带宽)
|
4MHz
|
|
Insertion Loss (损耗)
|
≤0.6dB
|
|
Isolation (隔离)
|
≥45dB
|
|
VSWR（驻波）
|
≤ 1.20
|
|
Power Rating（通过功率）
|
150W/CW
|
|
Operating Temp（温度范围）
|
-30~+70℃
|
|
Connector Type（连接方式）
|
N-Female/Male
|
|
Direction（方向）
|
Clockwise
|
|
Weight (重量)
|
----
|
|
Remark (备注)
|
----
|

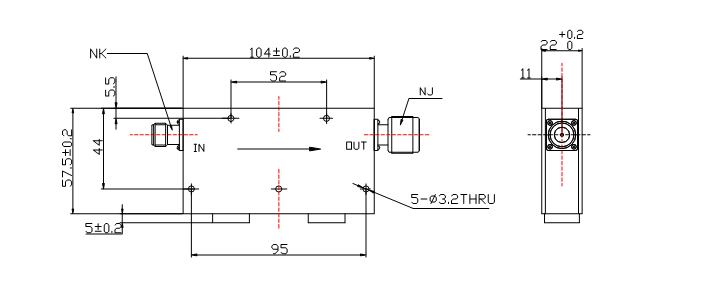

Mechanical Drawing (mm)
