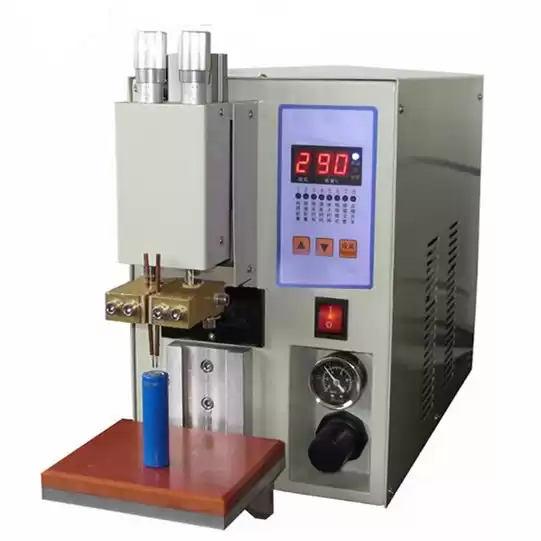

18650 Battery Spot Welding Machine
Microcomputer precision double pulse spot welding machine
This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.02-0.2 mm with good welding effect.
The Pneumatic model is with smaller volume and weight, easy for international shipping.
Sinlge point needle can be used for Ni tab weld with Stainless steel case.
1 Microcomputer control, CNC current adjust
2 High precision welding power
3 Digital tube display, keyboard control, welding parameters flash storage.
4 Double pulse welding, make welding more firmly.
5 Small welding sparks, solder joint uniform appearance, the surface is clean
6 Welding times can be set
7 Can set preloading time, the holding time, time to rest, the welding speed can be adjusted.
8 Large power, stable and reliable.
9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.
|
Model
|
TMAX-APR30
|
|
Controlmode
|
Pneumatic
|
|
Welding current
|
3000A
|
|
Welding power
|
0-99% adjustable
|
|
Welding method
|
Double pulse
|
|
Maximum output power
|
15KVA
|
|
Voltage supply
|
AC 220V±10% 50Hz±2Hz
|
|
Welding way
|
Ordinary welding and continuous automatic welding
|
|
Time setting
|
0-2.55s
|
|
Automatic counting function
|
yes
|
|
Weight
|
30kg
|
|
Dimensions
|
550*250*360mm
|
|
Package weight
|
40kg
|
|
Package size
|
630*330*430mm
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
