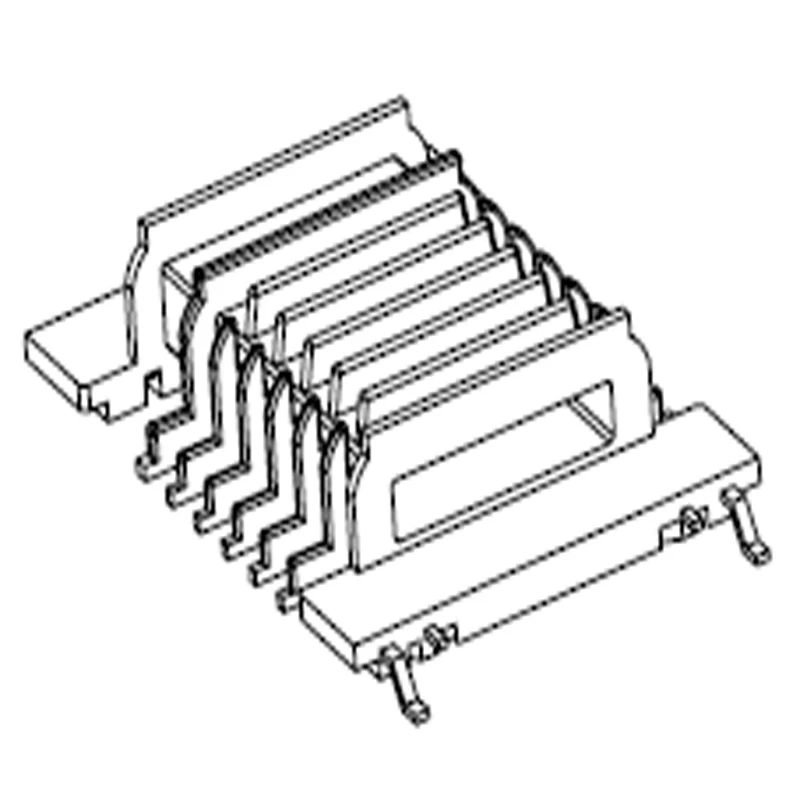

2+7 Pins EPC19 Transformer Bobbin Seven Slots SMD Coil Former

Seven slots EPC19 horizontal bobbin. 2+7 pins transformer bobbin. Pin Pitch1=2.5mm. Pin Pitch1=2.5mm. Bobbin Size=25mmX19mmX6.2mm. Bobbin material: LCP-E4008. Customized designs are accepted.



New design EPC19 SMD coil former, 2+7 pins horizontal transformer bobbin, seven slots coil bobbin made of  LCP-E4008 material. If you are looking for competitive price transformer bobbins, welcome to contact us.


Quick Details

Part No: MCT-SMD-EPC1904(H2+7P7F)

Brand Name: MCT

Material: LCP-E4008

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 2+7 Pins EPC19 Transformer Bobbin Seven Slots SMD Coil Former

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

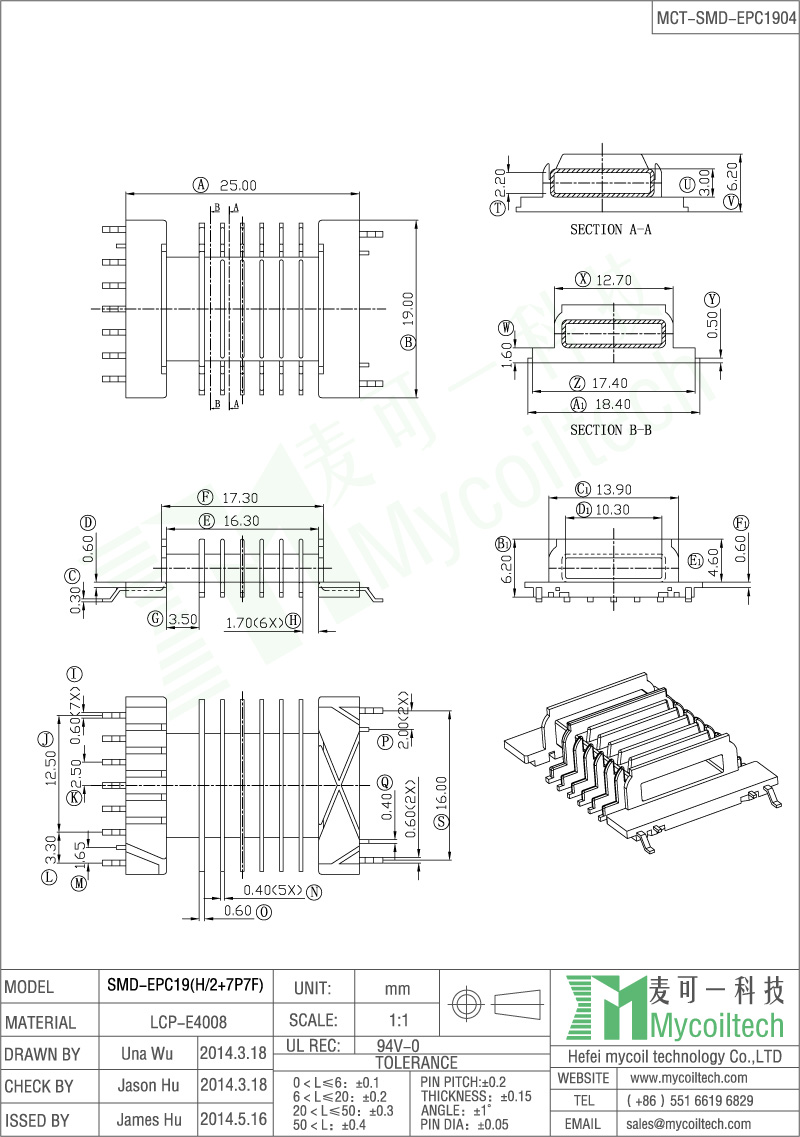

Product Specification

Seven slots transformer bobbin 2+7 pins SMD coil former
