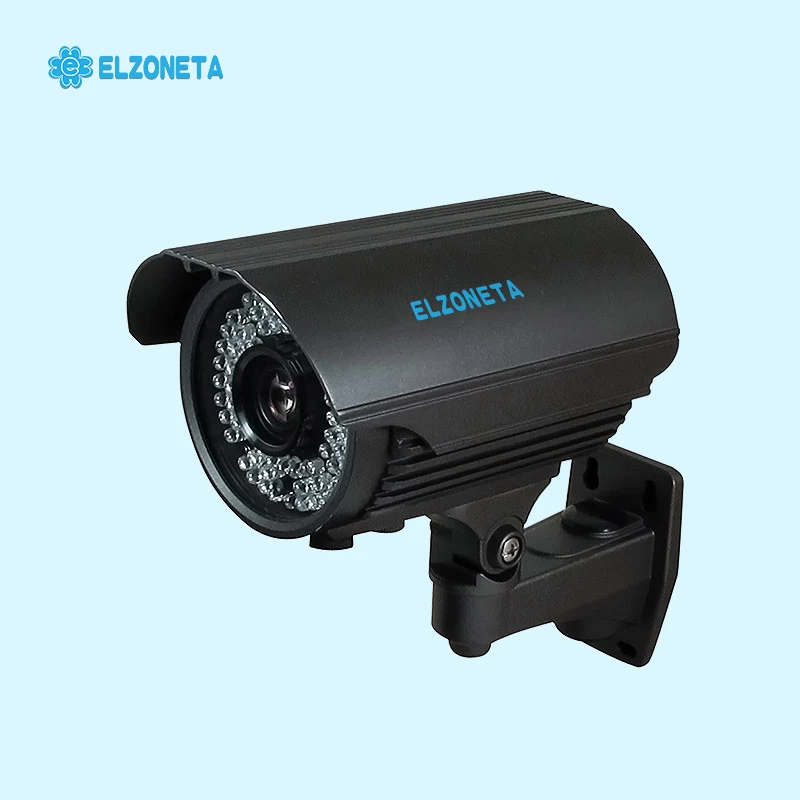

EC-G18 Vari Focal Lens IP Bullet Camera
Features:
1.) HD IP Weather-proof Camera
2.) Plug and play tech(P2P)
3.) H.264/H.265 video encoding
4.) Support ONVIF2.0
5.) Offer CMS and Mobile APP
6.) Lens: 2.8-12mm HD lens
7.) IR Leds: 72pcs IR leds
8.) IR Range: 60m IR Range
Specification:
|
Model
|
EC-G18
|
|
Type
|
HD IP Weather-proof Camera
|
|
Item No.
|
EC-G18T
|
EC-G18S
|
|
HorizontalResolution
|
3.0 Megapixel
Super Low Lux
|
2.0 Megapixel
Super Low Lux
|
|
ImageSensor
|
1/2.5"CMOS OV4689
|
1/2.7" Sony IMX322
|
|
Effective Pixels(HxV)
|
Main stream: 1920*1280
Deputy stream: 704*576
|
Main stream: 1920*1080
Deputy stream: 704*576
|
|
Mini illumination
|
0.01lux-sec
|
0.01lux-sec
|
|
Frame Rate
|
3.0MP@25FPS
|
2.0MP@25FPS
|
|
Network Port
|
1 RJ45 Ethernet interface, 10M/100M self-adaption
|
|
Network Protocol
|
TCP/UDP/HTTP/MULTICAST/UPnP/NTP/RTSP
|
|
ONVIF
|
Support Onvif 2.0
|
|
Lens
|
2.8-12mm HD lens
|
|
IR LEDs
|
72pcs IR leds
|
|
Night Vision
|
60Meter
|
|
Video Compression
|
H.264 / H.265 / JPEG
|
|
Mobile Phone Monitor
|
Support iPhone, Windows, Android mobile view
|
|
Motion Detect
|
YES
|
YES
|
|
POE
|
Optional
|
Optional
|
|
Operation Function
|
Offer free CMS, Support Web setting, OSD, real-time video transmission, support motion detection and IO alarm linkage for front end shortage/Capture/playback/download, Support Central remind and image linkage after motion detection and IO alarm linkage, support MJPEG capture, Support unit client-side remote management software
|
|
Operating Temperature
|
-10 ~ 50℃（relative humidity: max95%）
|
|
Power Voltage
|
DC12V±10% / POE (802.3af)
|
|
IP range
|
IP66
|
|
Material
|
Aluminum alloy
|
|
Weight
|
1.5kg
|
|
Dimension
|
270(L)*95(W)*205(H)
|
