Low bed semi trailer used to transport heavy vehicle (as tractor, and bus, and dedicated car,), and tracked vehicles, and mining machinery, forestry machinery, and engineering machinery (such as excavator, bulldozers, mount machine,paver, crane etc) and the other overload goods. The lower of gravity,the better stability and safety, more easy to transport high goods through overhead obstacles.

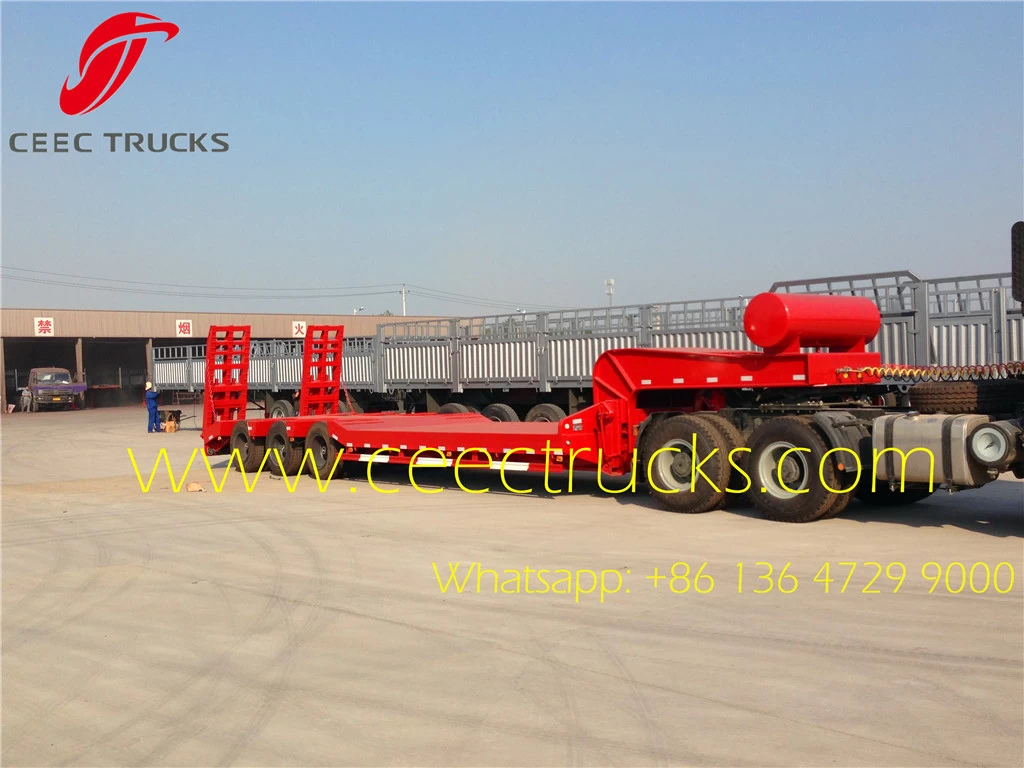

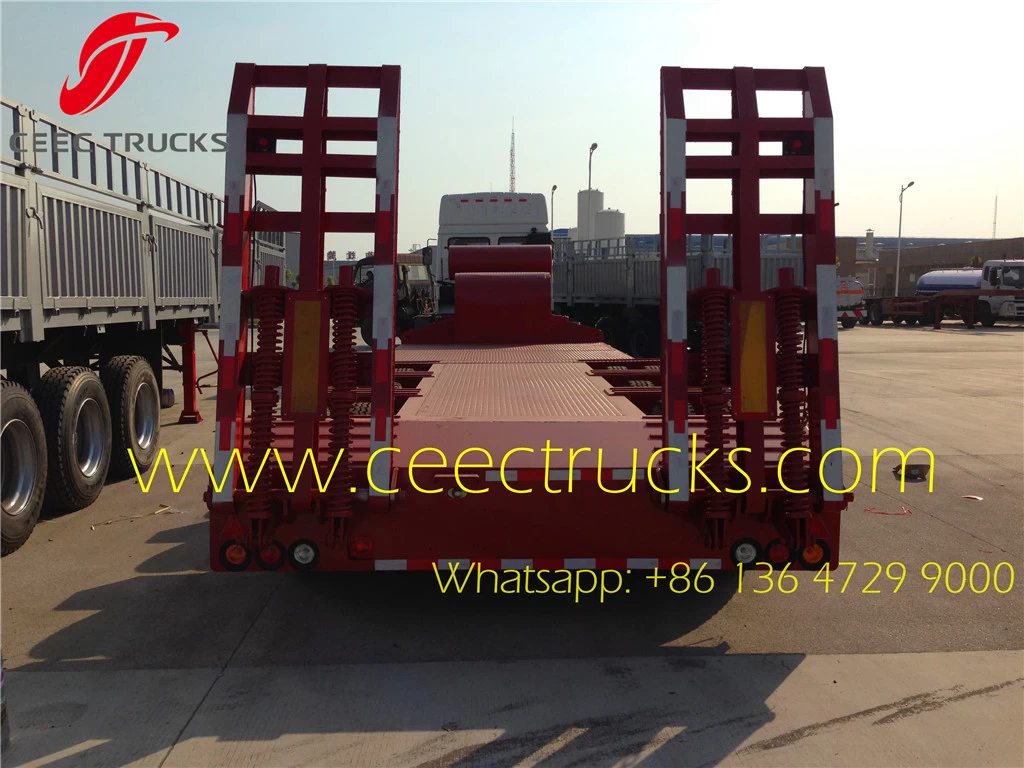

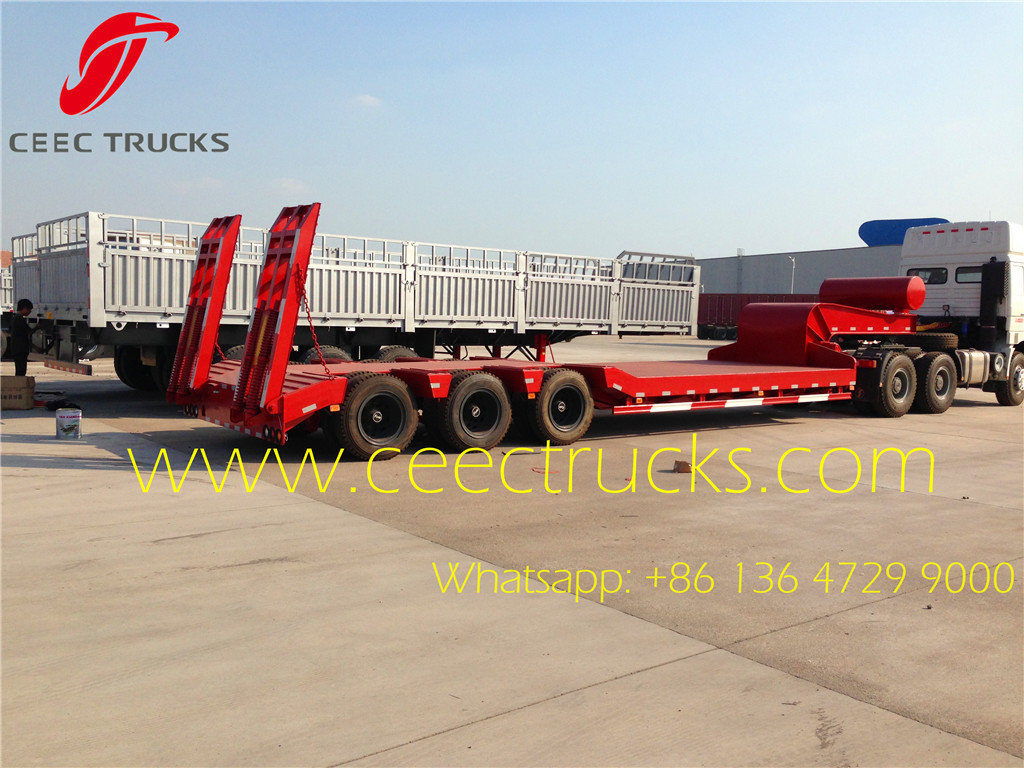

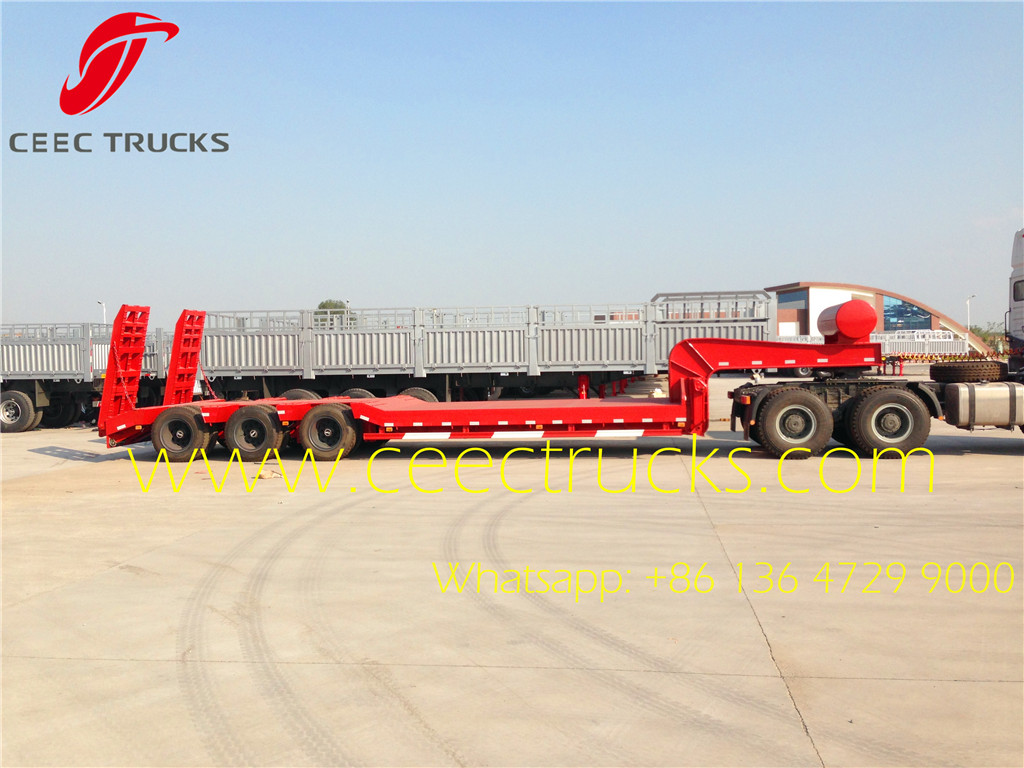

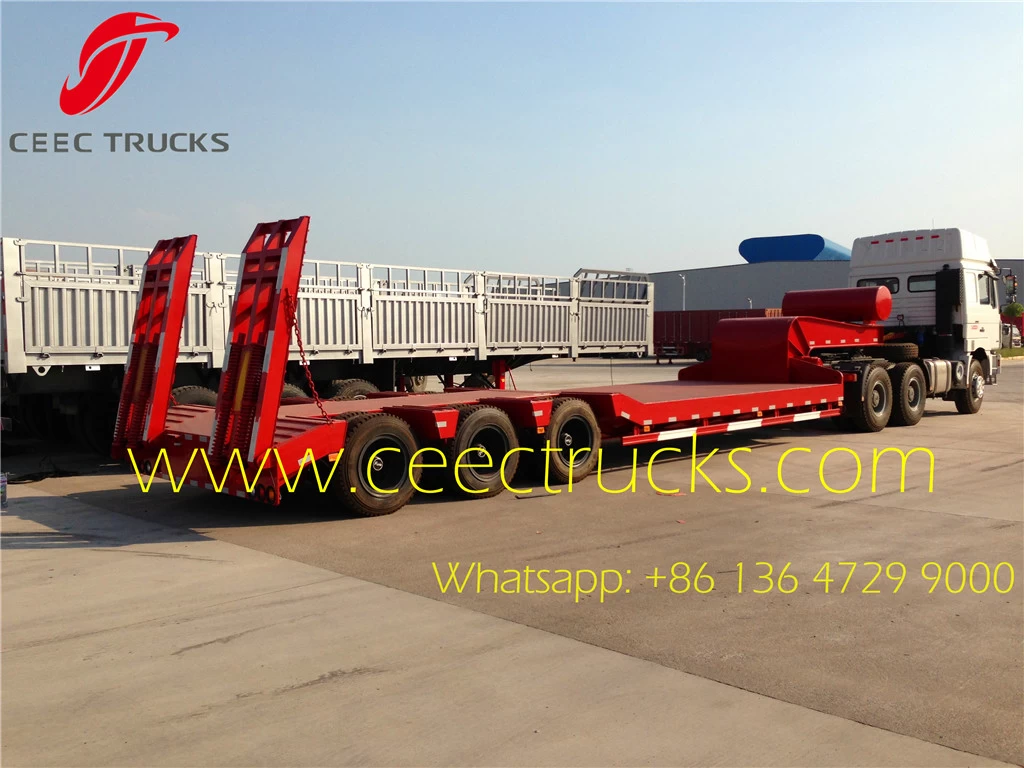

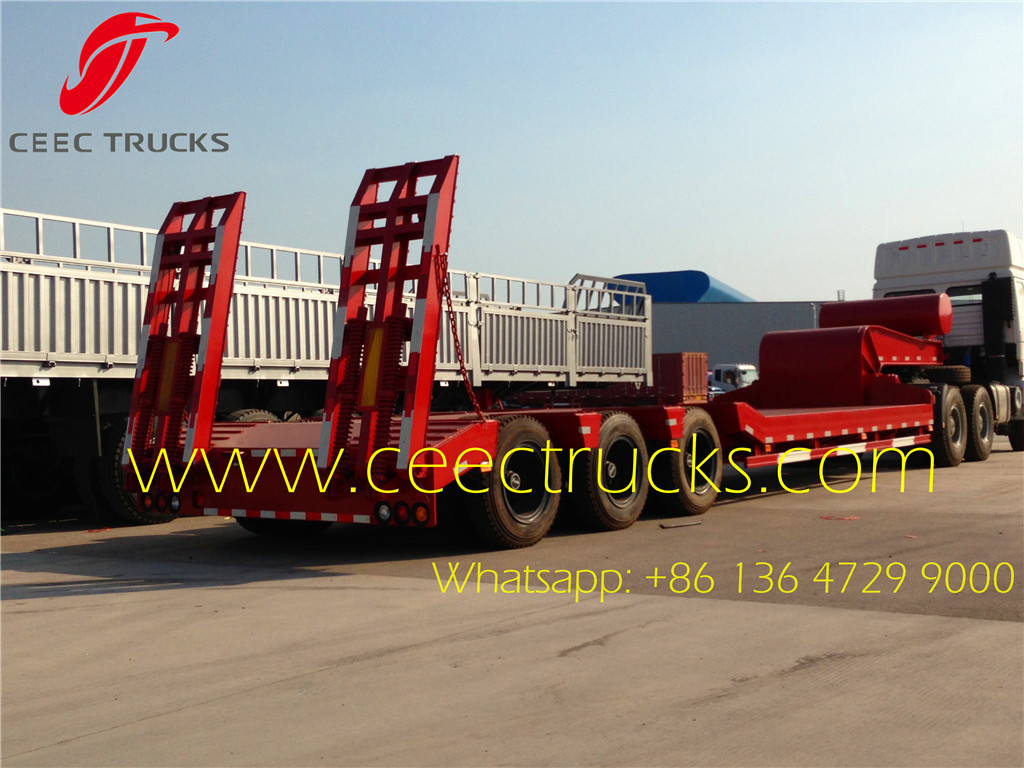

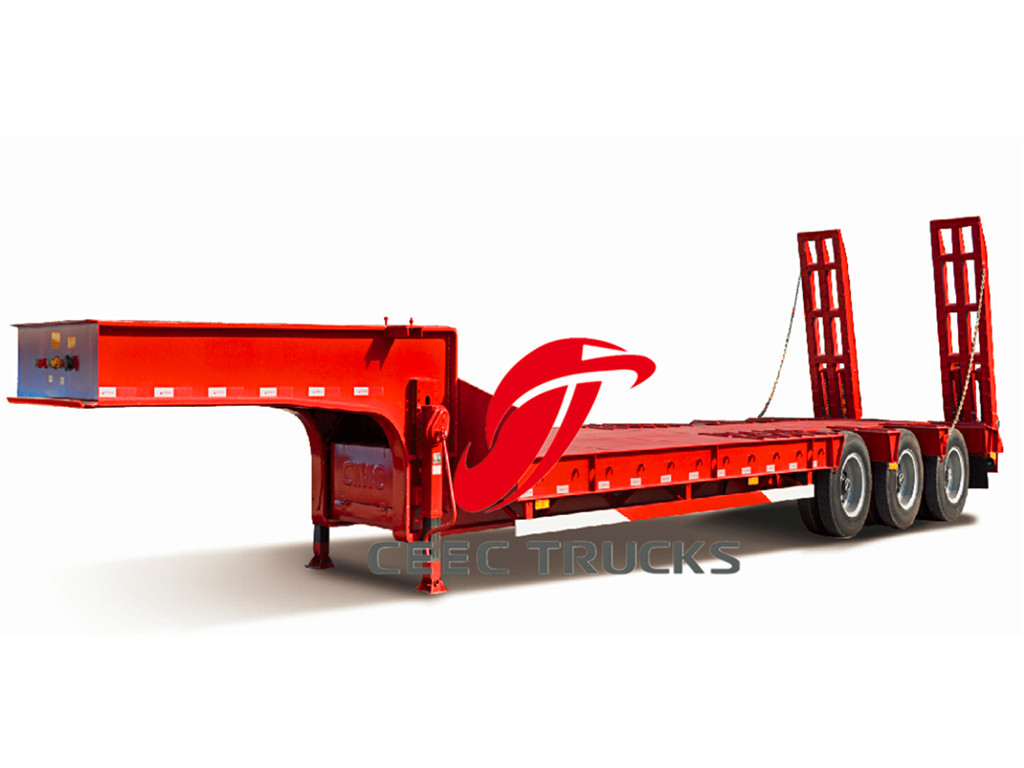

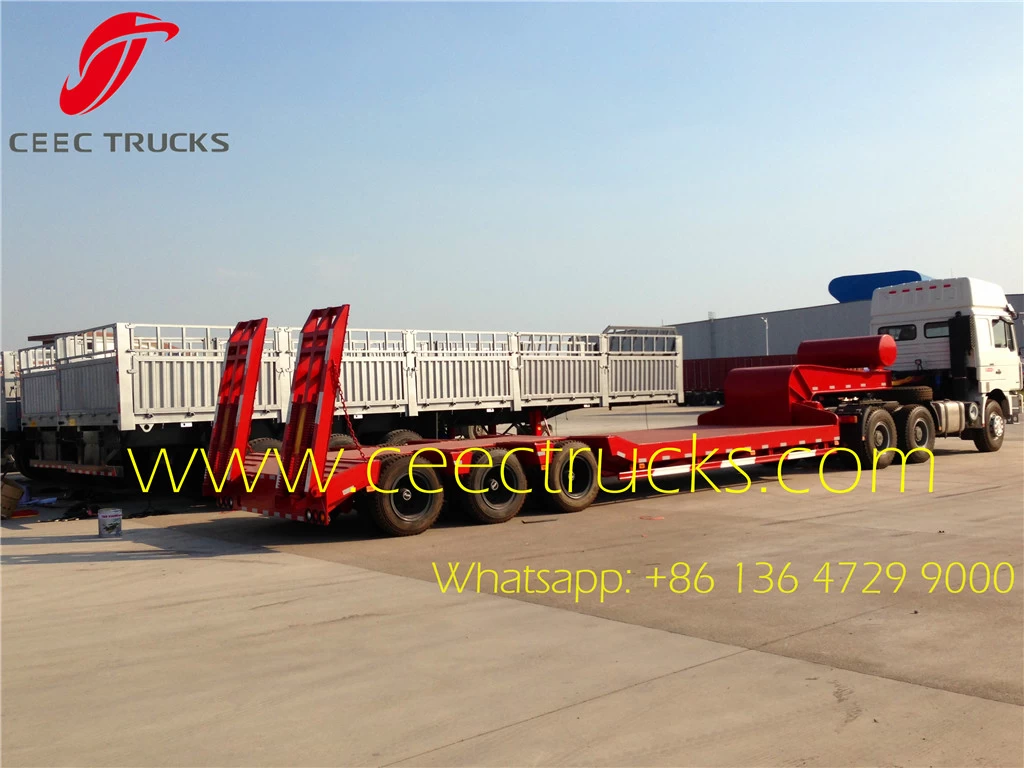

3-axle 60T Low bed semitrailer manufacturer
Zimbabwe customer choose 60 T heavy low bes semitrailer features:
★ High quality strength steel Q345B for I-beam
★ Axle: German BPW or American style from 12 tons to 20 tons
★ Suspension: Mechanical suspension, air suspension or bogie suspension.
★ Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
★ King pin: Optional for 2" or 3.5" Kingpin
★ Side wall height: Optional for 600mm, 800mm or 1000mm
★ Twist locks: Standard 4 sets and others for Optional
CEEC TRUCKS produced 2-axle low bed semi trailer, 3 axle low loader, 4 axle low bed semitrailers, and multi tires low bed semitrailer are widely export africa countries: Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
Similar Key Words: 60ton
Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton
container low loader truck trailer,70-90ton Detachable goose neck
trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4
axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.

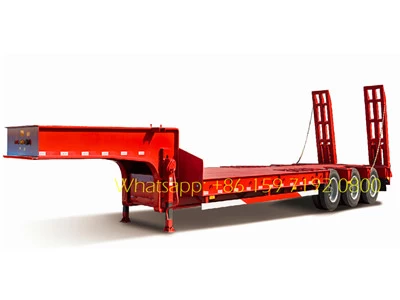

| 3 axle 60T low bed semi trailer
|
| Function
|
Big machine and cargo transport
|
| Overall dimension
|

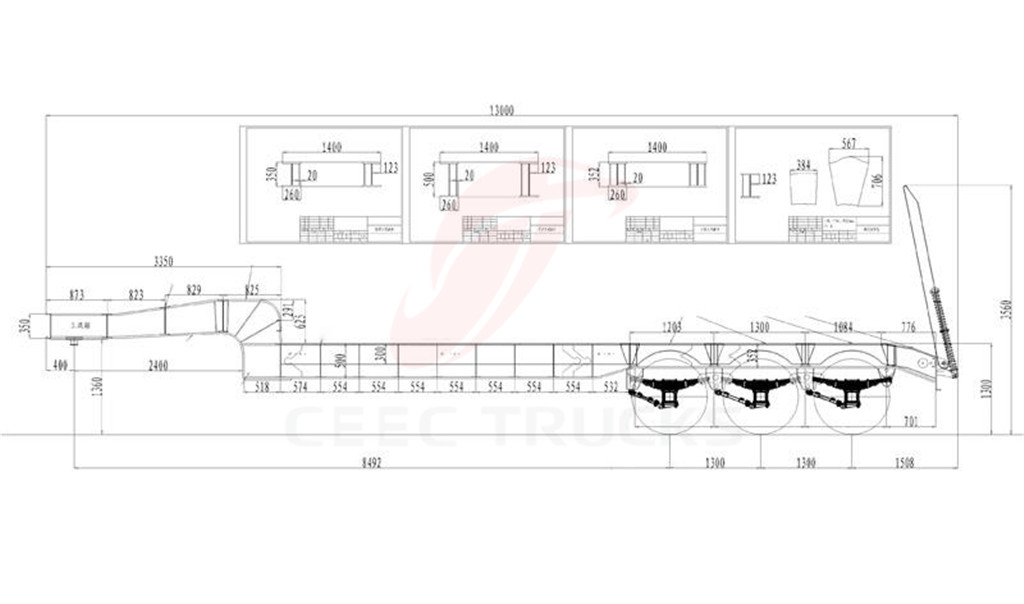

13000*3000*1650mm
|
| Working plate size
|
9000*3000mm*1650mm
|
| Curb weight
|
9000kgs
|
| Loading weight
|
60000kg
|
| Main beam
|
Carbon steel Q345B.The height 500 mm, upper plate 16mm,down plate 18mm,middle plate 10mm.
|
| Side beam
|
16mm channel steel
|
| Traction pin
|
2” (50mm) or 3.5’’(90mm) optional
|

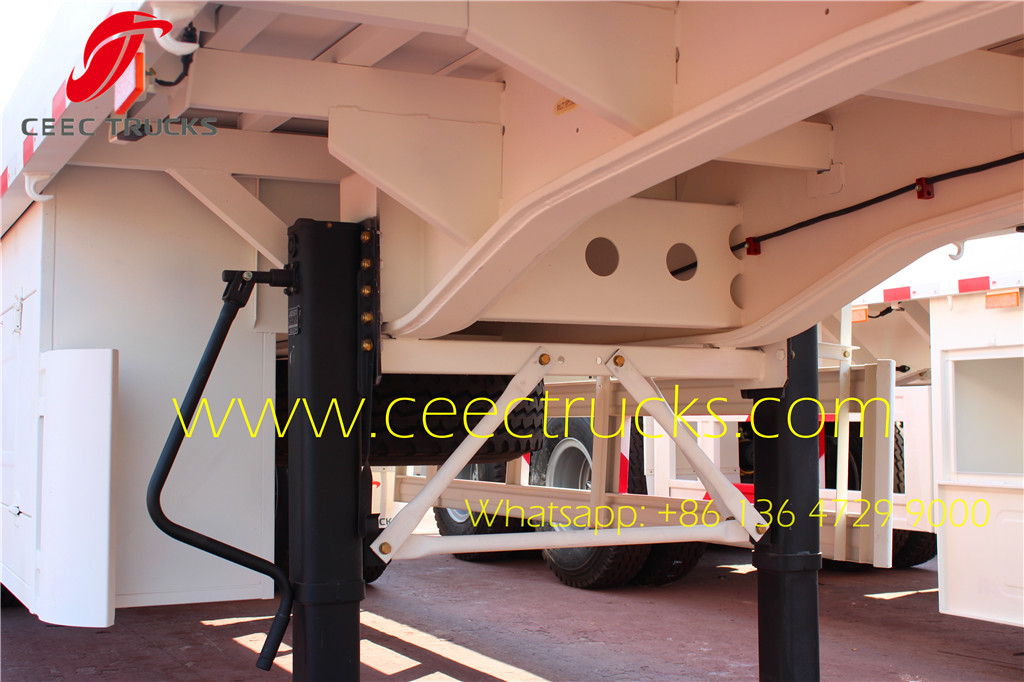

| Land gear
|
Standard 28ton
|
| Axle
|

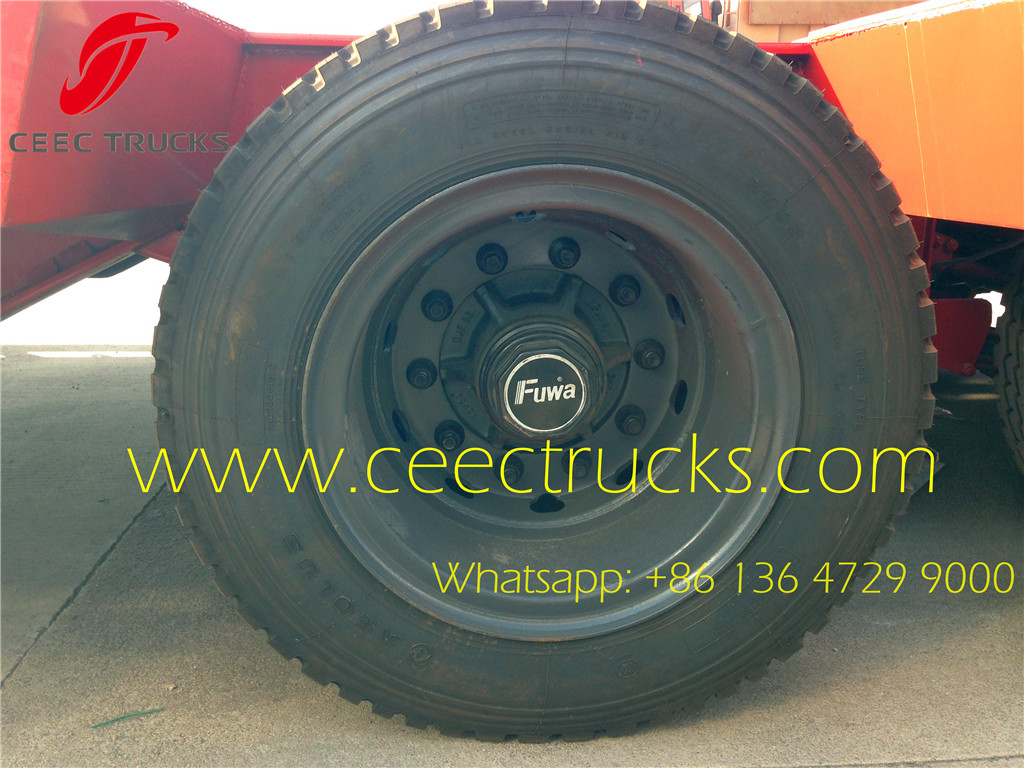

13ton * 3 axle Fuwa brand
|
| Wheelbase
|
8310+1310+1310mm
|
| suspension
|
Mechanical suspension / Air suspension customized
|
| Spring leaf
|
90mm*13mm*10pcs 10/10/10 leaf spring suspension
|
| Tire
|
Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5
|
| Tire quantity
|
12 units
|
| Rim
|
9.00-22.5 12pcs
|
| platform thickness
|

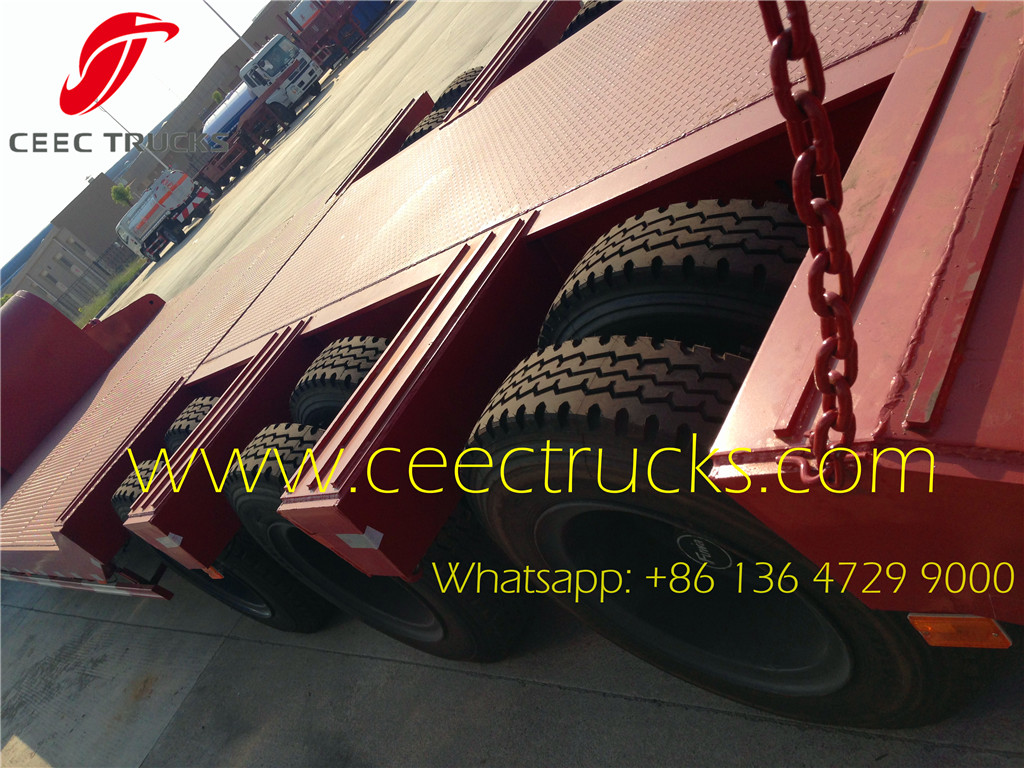

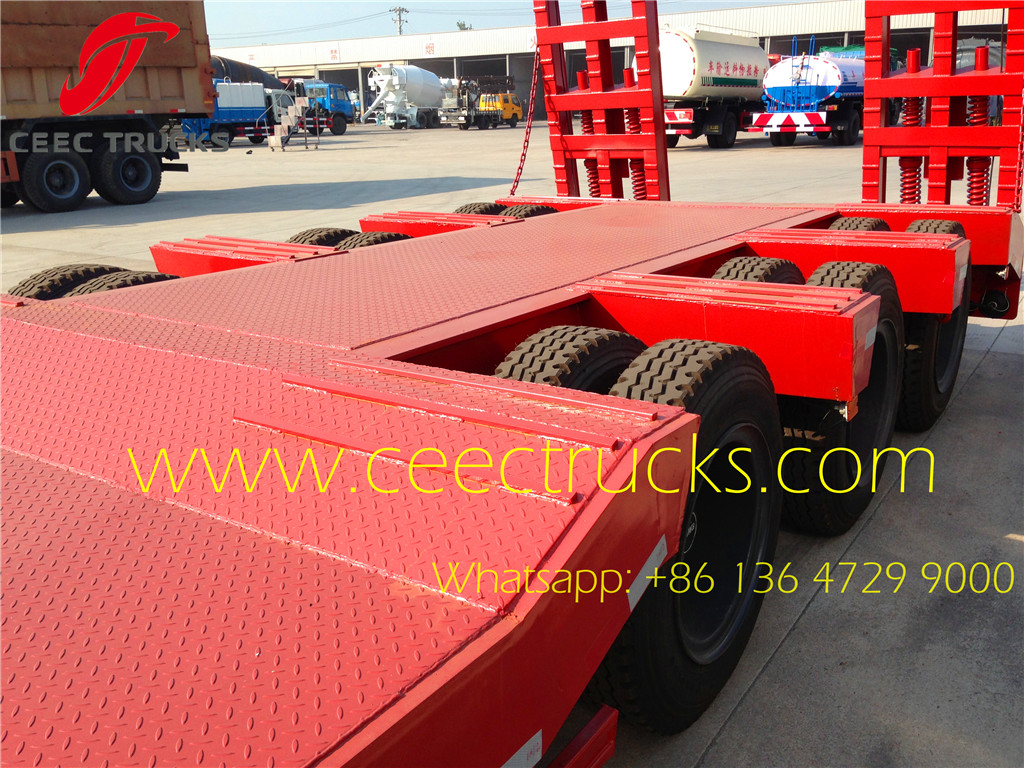

5mm Diamond plate
|
| valve
|
WABCO RE 6 relay valve
|
| Brake Chamber
|
T30/30+T30 6 brake chamber,one piece of 45L air tanks
|
| Tool box
|
1 unit 1m*0.5m*0.5m
|

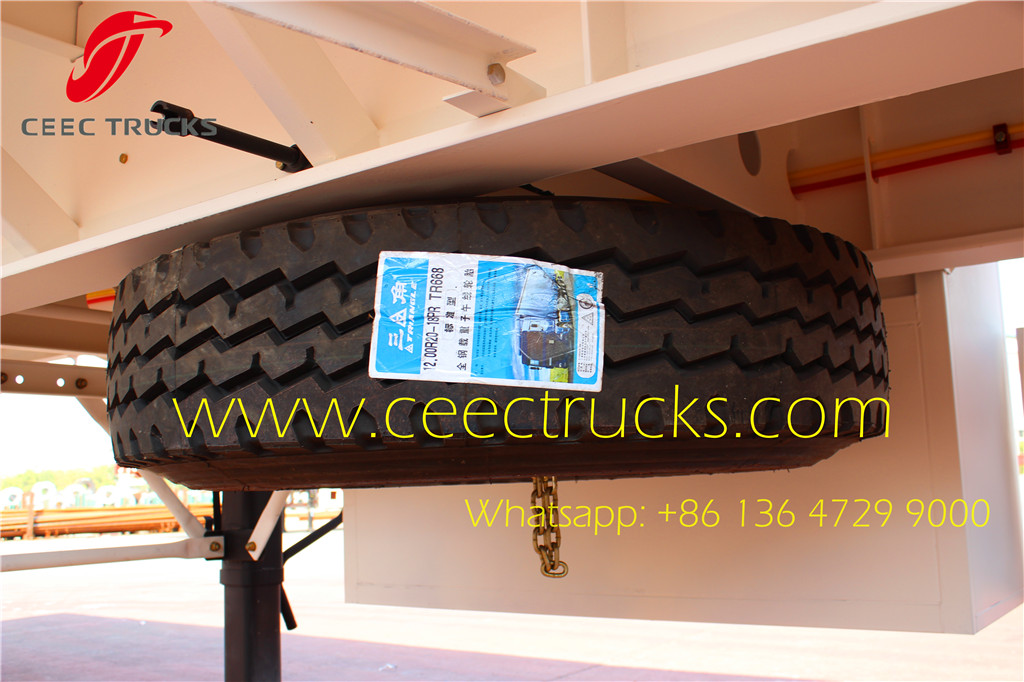

| Spare wheel carrier
|
2 units
|
| Marker lamp
|
LED type
|
| Voltage
|
24V
|
| Receptacle
|
7ways (7 wire harness)
|
| Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
