2-Bolt Flange Bearing Units SBFW2 SAFW2

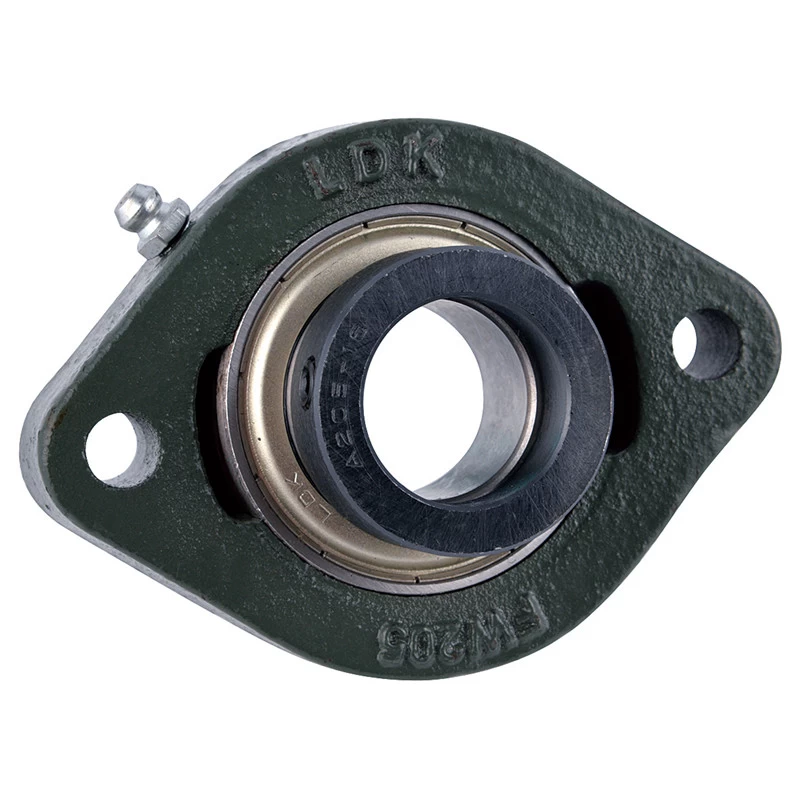

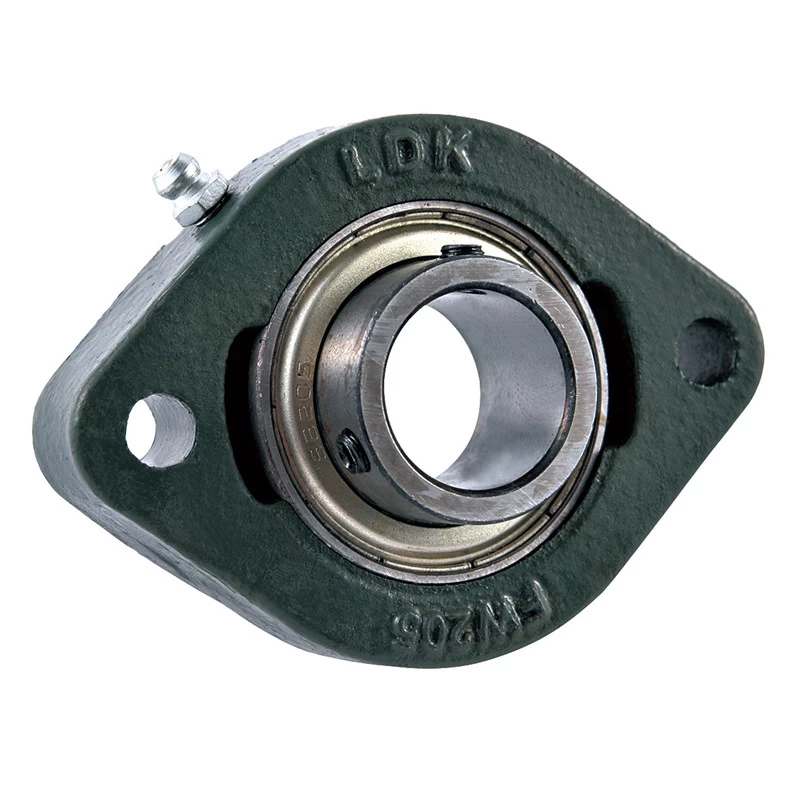

SBFW/SAFW Light duty, Setscrew/Eccentric locking,Housing slot on same side of setscrew or eccentric collar,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Description

SBFW207 2-Bolt Flange Units

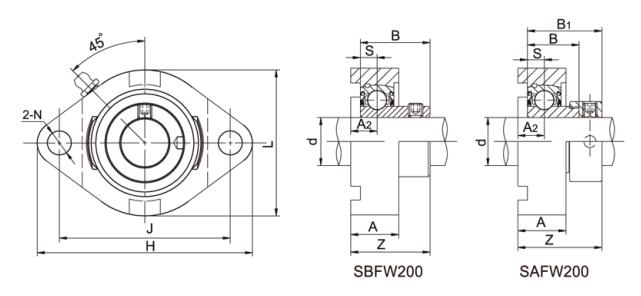

Unit No.	Shaft Dia		Dimensions) mm)									Bolt Size (mm)	Weight (kg)
	d		H	J	A2	A	N	L	B	S	z
	(in)	(mm)	H	J	A2	A	N	L	B	S	z
SBFW201		12	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.28
SBFW201-8	1/2		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.28
SBFW202		15	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFW202-9	9/16		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFW202-10	5/8		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.27
SBFW203		17	81	63.5	8.5	15	7	59	22	6	24.5	M6	0.26
SBFW203-11	11/16		81	63.5	8.5	15	7	59	22	6	24.5	M6	0.26
SBFW204		20	90	71	9.5	17	9	67	25	7	27.5	M8	0.37
SBFW204-12	3/4		90	71	9.5	17	9	67	25	7	27.5	M8	0.37
SBFW205		25	95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW205-14	7/8		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW205-15	15/16		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW205-16	1		95	76	9.5	17.5	9	71	27	7.5	29	M8	0.44
SBFW206		30	113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-17	1-1/16		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-18	1-1/8		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-19	1-3/16		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW206-20	1-1/4		113	90	12	20.5	12	84	30	8	34	M10	0.7
SBFW207		35	125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-20	1-1/4		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-21	1-5/16		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-22	1-3/8		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW207-23	1-7/16		125	100	12.5	22	12	93	32	8.5	36	M10	0.91
SBFW208		40	148	119	14.5	25	13.5	104	34	9	39.9	M12	1.2
SBFW208-24	1-1/2		148	119	14.5	25	13.5	104	34	9	39.9	M12	1.2
SBFW208-25	1-9/16		148	119	14.5	25	13.5	104	34	9	39.9	M12	1.2

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight (kg)
	d		H	J	A₂	A	N	L	B1	B	S	Z
	(in)	(mm)	H	J	A₂	A	N	L	B1	B	S	Z
SAFW201		12	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.28
SAFW201-8	1/2		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.28
SAFW202		15	81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFW202-9	9/16		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFW202-10	5/8		81	63.5	8.5	15	7	59	28.6	19.1	6	31.1	M6	0.27
SAFW203		17	81	63.5	8.5	15	7	59	28.6	22	6	31.1	M6	0.26
SAFW203-11	11/16		81	63.5	8.5	15	7	59	28.6	22	6	31.1	M6	0.26
SAFW204		20	90	71	9.5	17	9	67	31	21.5	7	33.5	M8	0.37
SAFW204-12	3/4		90	71	9.5	17	9	67	31	21.5	7	33.5	M8	0.37
SAFW205		25	95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW205-14	7/8		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW205-15	15/16		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW205-16	1		95	76	9.5	17.5	9	71	31.5	22	7.5	33.5	M8	0.44
SAFW206		30	113	90	12	20.5	12	84	35.7	23.8	8.0	39.7	M10	0.7
SAFW206-17	1-1/16		113	90	12	20.5	12	84	35.7	23.8	8.0	39.7	M10	0.7
SAFW206-18	1-1/8		113	90	12	20.5	12	84	35.7	23.8	8.0	39.7	M10	0.7
SAFW206-19	1-3/16		113	90	12	20.5	12	84	35.7	23.8	8.0	39.7	M10	0.7
SAFW206-20	1-1/4		113	90	12	20.5	12	84	35.7	23.8	8.0	39.7	M10	0.7
SAFW207		35	125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-20	1-1/4		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-21	1-5/16		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-22	1-3/8		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW207-23	1-7/16		125	100	12.5	22	12	93	38.9	25.4	8.5	42.9	M10	0.91
SAFW208		40	148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
SAFW208-24	1-1/2		148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
SAFW208-25	1-9/16		148	119	14.5	25	13.5	104	43.7	30.2	9	49.2	M12	1.2
