Unit No.
|
Shaft Dia
|

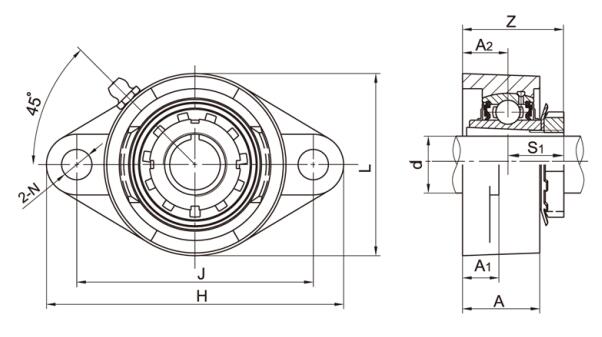

Dimensions (mm)
|
Bolt Size (mm)
|
Weight
|
|
d
|
H
|
J
|
A2
|
A1
|
A
|
N
|
L
|
S1
|
z
|
(kg)
|
|
(in)
|
(mm)
|
|
UKFL205+H2305
|
|
20
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
18.5
|
34.5
|
M14
|
0.6
|
|
UKFL205+HE2305
|
3/4
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
18.5
|
34.5
|
M14
|
0.6
|
|
UKFL206+H2306
|
|
25
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
20.5
|
38.5
|
M14
|
0.96
|
|
UKFL206+HS2306
|
7/8
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
20.5
|
38.5
|
M14
|
0.96
|
|
UKFL206+HA2306
|
15/16
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
20.5
|
38.5
|
M14
|
0.96
|
|
UKFL206+HE2306
|
1
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
20.5
|
38.5
|
M14
|
0.96
|
|
UKFL207+H2307
|
|
30
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
22.5
|
41.5
|
M14
|
1.3
|
|
UKFL207+HS2307
|
1-1/8
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
22.5
|
41.5
|
M14
|
1.3
|
|
UKFL207+HA2307
|
1-3/16
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
22.5
|
41.5
|
M14
|
1.3
|
|
UKFL208+H2308
|
|
35
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
24.5
|
45.5
|
M14
|
1.6
|
|
UKFL208+HE2308
|
1-1/4
|
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
24.5
|
45.5
|
M14
|
1.6
|
|
UKFL208+HS2308
|
1-3/8
|
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
24.5
|
45.5
|
M14
|
1.6
|
|
UKFL209+H2309
|
|
40
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
26
|
48
|
M16
|
2.0
|
|
UKFL209+HA2309
|
1-7/16
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
26
|
48
|
M16
|
2.0
|
|
UKFL209+HE2309
|
1-1/2
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
26
|
48
|
M16
|
2.0
|
|
UKFL210+H2310
|
|
45
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
27.5
|
49.5
|
M16
|
2.3
|
|
UKFL210+HS2310
|
1-5/8
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
27.5
|
49.5
|
M16
|
2.3
|
|
UKFL210+HA2310
|
1-11/16
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
27.5
|
49.5
|
M16
|
2.3
|
|
UKFL210+HE2310
|
1-3/4
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
27.5
|
49.5
|
M16
|
2.3
|
|
UKFL211+H2311
|
|
50
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
28.5
|
53.5
|
M16
|
3.3
|
|
UKFL211+HS2311
|
1-7/8
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
28.5
|
53.5
|
M16
|
3.3
|
|
UKFL211+HA2311
|
1-15/16
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
28.5
|
53.5
|
M16
|
3.3
|
|
UKFL211+HE2311
|
2
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
28.5
|
53.5
|
M16
|
3.3
|
|
UKFL212+H2312
|
|
55
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
31
|
60
|
M20
|
4.0
|
|
UKFL212+HS2312
|
2-1/8
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
31
|
60
|
M20
|
4.0
|
|
UKFL213+H2313
|
|
60
|
258
|
210
|
30
|
22
|
50
|
23
|
155
|
32
|
62
|
M20
|
5.1
|
|
UKFL213+HA2313
|
2-3/16
|
|
258
|
210
|
30
|
22
|
50
|
23
|
155
|
32
|
62
|
M20
|
5.1
|
|
UKFL213+HE2313
|
2-1/4
|
|
258
|
210
|
30
|
22
|
50
|
23
|
155
|
32
|
62
|
M20
|
5.1
|
|
UKFL213+HS2313
|
2-3/8
|
|
258
|
210
|
30
|
22
|
50
|
23
|
155
|
32
|
62
|
M20
|
5.1
|
|
UKFL215+H2315
|
|
65
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
35.5
|
69.5
|
M20
|
6.4
|
|
UKFL215+HA2315
|
2-7/16
|
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
35.5
|
69.5
|
M20
|
6.4
|
|
UKFL215+HE2315
|
2-1/2
|
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
35.5
|
69.5
|
M20
|
6.4
|
|
UKFL216+H2316
|
|
70
|
290
|
233
|
34
|
22
|
58
|
25
|
180
|
39
|
73
|
M22
|
8.0
|
|
UKFL216+HA2316
|
2-11/16
|
|
290
|
233
|
34
|
22
|
58
|
25
|
180
|
39
|
73
|
M22
|
8.0
|
|
UKFL216+HE2316
|
2-3/4
|
|
290
|
233
|
34
|
22
|
58
|
25
|
180
|
39
|
73
|
M22
|
8.0
|
Notes:Bearing housing solid base optional,add suffix SB as designation.
