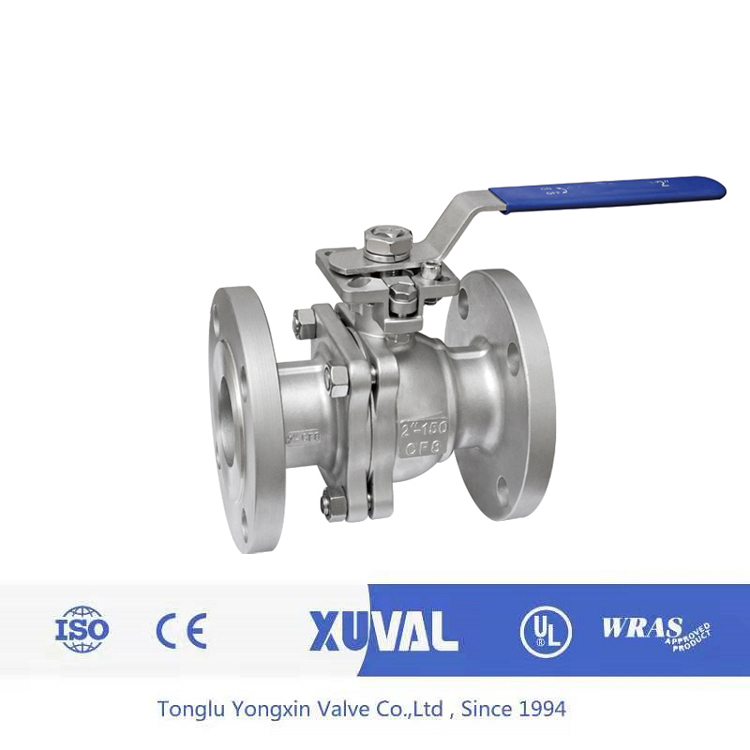

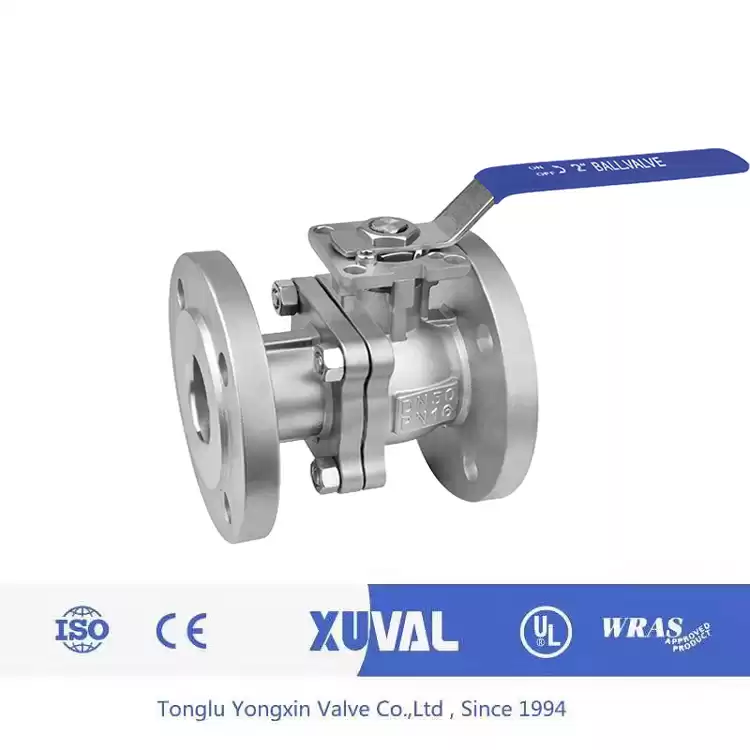

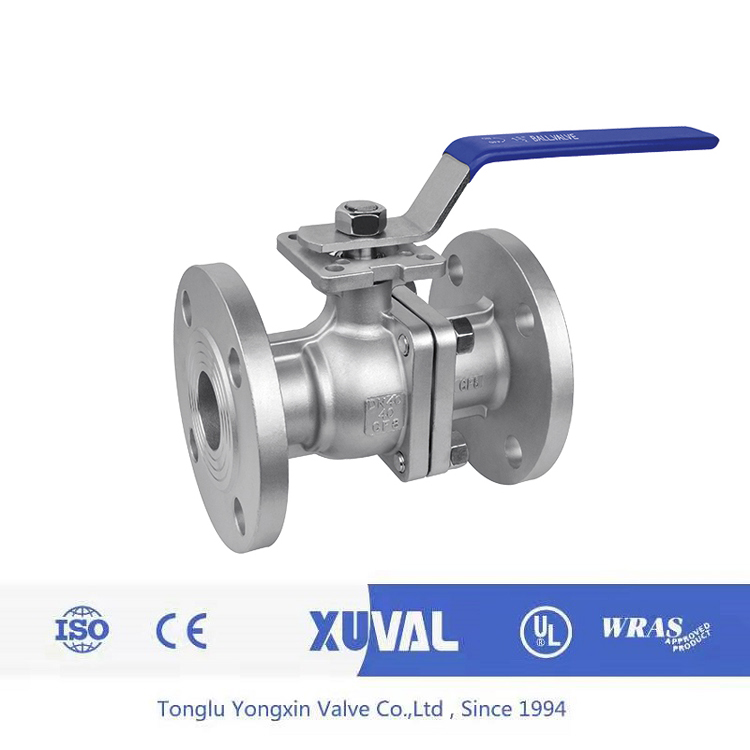

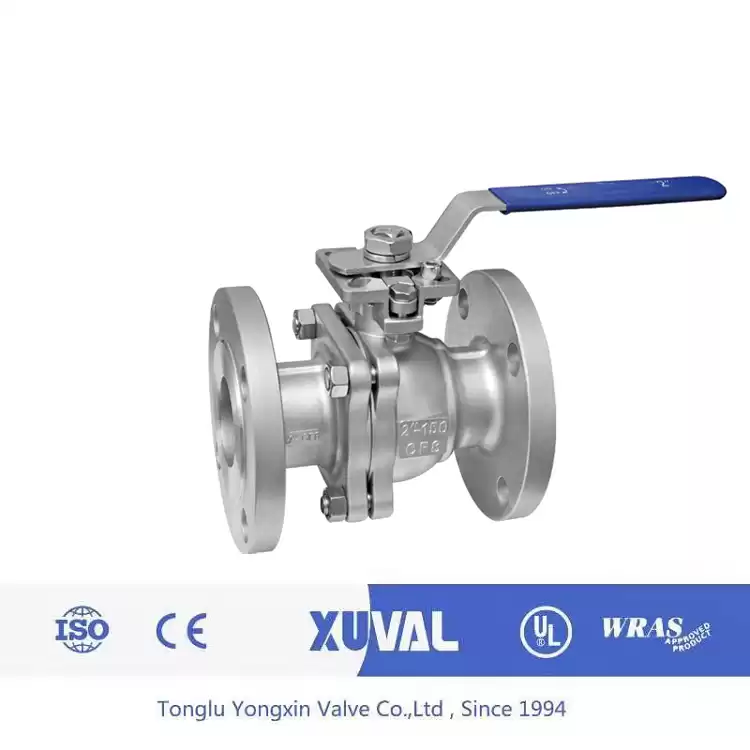

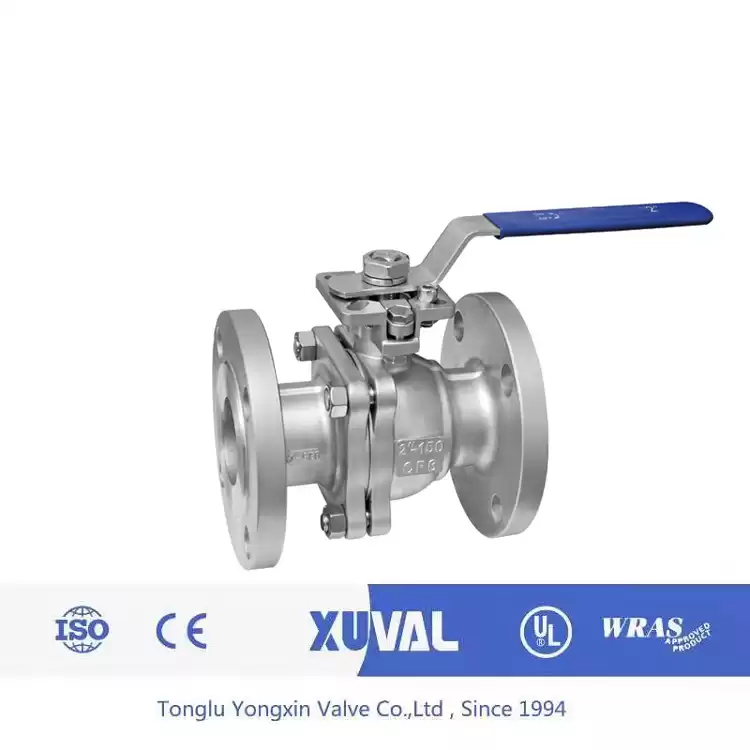

2 pieces ball valve flange end direct mounting pad


The high-platform 2 pieces ball valve and the flange gate valve belong to the same type of valve, the difference is in its closing part is a ball, the ball around the valve body center line for rotation to achieve opening, closing a valve. Ball valve in the pipeline is mainly used to cut, distribute and change the flow direction of the medium. Two-piece ball valve, three-piece ball valve, is widely used a new type of valve.


Points for attention:

1. keep the valve handle rotating position.

2. can not be used as throttling.

3. Ball valve with transmission mechanism shall be installed upright.


Advantages:

1. the fluid resistance is small, its resistance coefficient is equal to the pipe section of the same length.

2. structure is simple, small size and light weight.

3. Close and reliable the ball valve sealing surface materials are widely used plastic, good sealing, in the vacuum system has been widely used.

4. operation is convenient, open and close quickly, from full open to full close as long as rotating 90°, easy to remote control.

5. maintenance is convenient, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are more convenient.

6. when fully open or closed, the sealing surface of the ball and seat is isolated from the medium, and when the medium passes, it will not cause erosion of the valve sealing surface.

7. wide range of application, diameter from small to a few millimetres, large to a few meters, from high vacuum to high pressure can be applied. When the ball rotates 90 degrees, it should all present the sphere at the inlet and outlet, thus truncating the flow.


High platform ball valve is a new type of ball valve, it has its own unique structure of some advantages, such as switch without friction, sealing is not easy to wear, opening and closing torque is small. This reduces the specification of the actuator. With multi-turn electric actuator, the medium can be adjusted and cut off tightly. Widely used in petroleum, chemical industry, urban water supply and drainage and other strict cut off conditions.


Material List (5"-6")

No.
PARTS
MATERIAL
1
BODY WCB
CF8
CF8M
2 SEAT PTFE
3
BALL CF8 CF8 CF8M
4 O-RING FPM
5
GASKET PTFE
6
BONNET WCB CF8 CF8M
7 BOLT 304
8
NUT 304
9
STEM 304 304 316
10 STEM WASHER PTFE+25% GF
11
O-RING FPM
12
PACKING PTFE
13
WEAR WASHER PTFE+25% GF
14
GLAND 304
15 DISC SPRING 304
16 GLAND FLANGE CF8
17 STOPPER 304
18 TEE WCB/CF8
19 HANDLE Q235A
20
HEX SOCKET SET SCREW 304
21
BOLT 304
22 NUT 304


Material List (8"-12")

No.
PARTS
MATERIAL
1
BODY WCB
CF8
CF8M
2 GASKET PTFE
3
BALL CF8 CF8 CF8M
4 SEAT PTFE
5
BONNET WCB
CF8 CF8M
6
STEM 304 304 316
7 STEM WASHER PTFE+25% GF
8
BOLT 304
9
SPRING WASHER 304
10 NUT 304
11
O-RING FPM
12
PACKING PTFE
13
WEAR WASHER PTFE+25% GF
14
GLAND 304
15 DISC SPRING 304
16 GLAND FLANGE CF8
17 WORMGEAR ACTUATOR /
18 BOLT 304
19 SPRING WASHER 304
20
NUT 304
21
POSITIONING GASKET PTFE
22 PACKING
PTFE
23 POSITIONING SHAFT 304
304 316
24 NUT GLAND WCB
CF8 CF8M
25 NUT 304
26 HEX SOCKET BOLT
304
27 BOLT
304
28 NUT 304


                                     2 pieces ball valve


Unit:mm

Dimensions  GB PN16

Nominal

Diameter

L
d D2 D1
D
b f n-φd1
H h
H1
W
Ra
Rb A
B
KxK
125
5"
320
125 188 210 250 22 2 8-18 170 25 255 650 5.5 6.5 102 125 22X22
150 6" 360 150 212 240 285 22 2 8-22 192 30 277 800 5.5 6.5 102 125 27X27
200 8" 400 200 288 295 340 24 2 12-22 234 35 280 300 5.5 6.5 102 125 27X27
250 10" 533 250 320 355 405 26 2 12-26 282 45 338 500 6.5 8.5 125 140 36X36
300 12" 610 300 370 410 460 28 2 12-26 326 45 382 500 6.5 8.5 125 140 36X36





Unit:mm

Dimensions  ANSI CLASS 150

Nominal

Diameter

L
d D2 D1
D
b f n-φd1
H h
H1
W
Ra
Rb A
B
KxK
125
5"
356 125 185 216 255 24.3 2 8-22 170 25 255 650 5.5 6.5 102 125 22X22
150 6" 394 150 216 241.3 280 25.9 2 8-22 192 30 277 800 5.5 6.5 102 125 27X27
200 8" 457 200 270 298.5 345 27 2 8-22 234 35 280 300 5.5 6.5 102 125 27X27
250 10" 533 250 324 362 405 28.6 2 12-25 282 45 338 500 6.5 8.5 125 140 36X36
300 12" 610 300 381 431.8 485 30.2 2 12-25 326 45 382 500 6.5 8.5 125 140 36X36



Unit:mm

Dimensions  DIN PN 16

Nominal

Diameter

L
d D2 D1
D
b f n-φd1
H h
H1
W
Ra
Rb A
B
KxK
125
5"
325 125 188 210 250 22 3 8-18 170 25 255 650 5.5 6.5 102 125 22X22
150 6" 350 150 212 240 285 22 3 8-22 192 30 277 800 5.5 6.5 102 125 27X27
200 8" 400 200 268 295 340 24 3 12-22 234 35 280 300 5.5 6.5 102 125 27X27
250 10" 450 250 320 355 405 26 3 12-26 282 45 338 500 6.5 8.5 125 140 36X36
300 12" 500 300 370 410 460 28 3 12-26 326 45 382 500 6.5 8.5 125 140 36X36



Unit:mm

Dimensions  JIS 10K

Nominal

Diameter

L
d D2 D1
D
b f n-φd1
H h
H1
W
Ra
Rb A
B
KxK
125
5"
356 125 182 210 250 20 2 8-23 170 25 255 650 5.5 6.5 102 125 22X22
150 6" 394 150 212 240 280 22 2 8-23 192 30 277 800 5.5 6.5 102 125 27X27
200 8" 457 200 262 290 330 22 2 12-23 234 35 280 300 5.5 6.5 102 125 27X27
250 10" 533 250 324 355 400 24 2 12-25 282 45 338 500 6.5 8.5 125 140 36X36
300 12" 610 300 368 400 445 24 3 16-25 326 45 382 500 6.5 8.5 125 140 36X36


Packing & Delivery :

Packing Details  : all 2 pieces ball valve by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
