Our products, like 2000W High Power UV Curing Lamp for UV LED Curing System, are mercury free, safer and more environmentally friendly. High Power 2000W LED UV Curing System is simple equipment structure, occupied small place, easy installation. You don’t need to worry about its service life, reaches 20,000 hours.
Product Parametersof Hand-held UV Solidification Machine for Bongding :
|
Place of Origin
|
Guangdong, China (Mainland)
|
Brand Name
|
UV-LED CURING
|
|
Model Number
|
XYUV-4II
|
Rated Power
|
396w
|
|
Wavelength
|
365nm/375nm/385nm/395nm/405nm/415nm
|
Voltage
|
220V
|
|

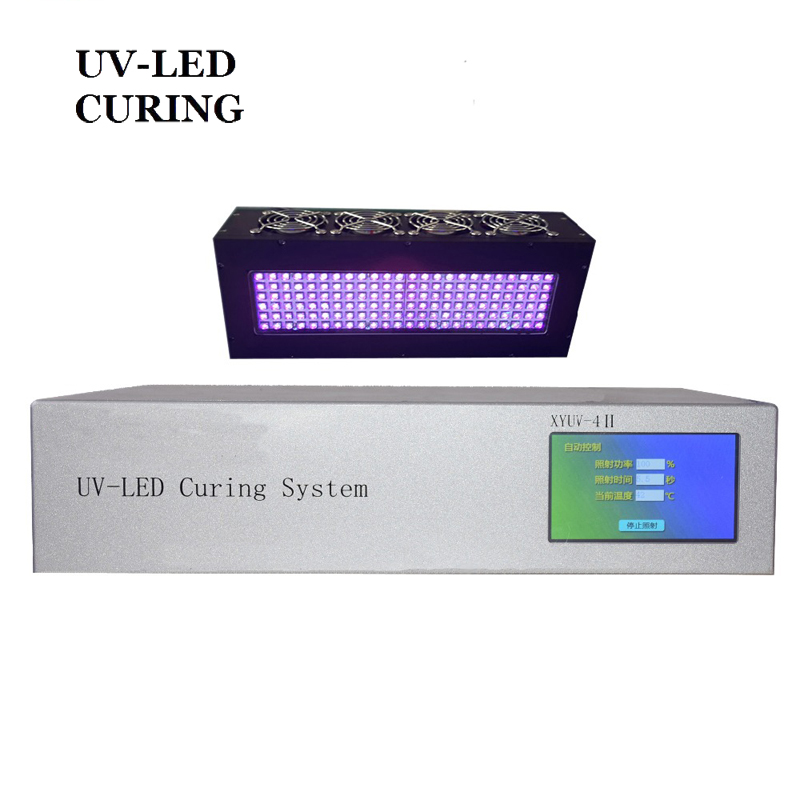

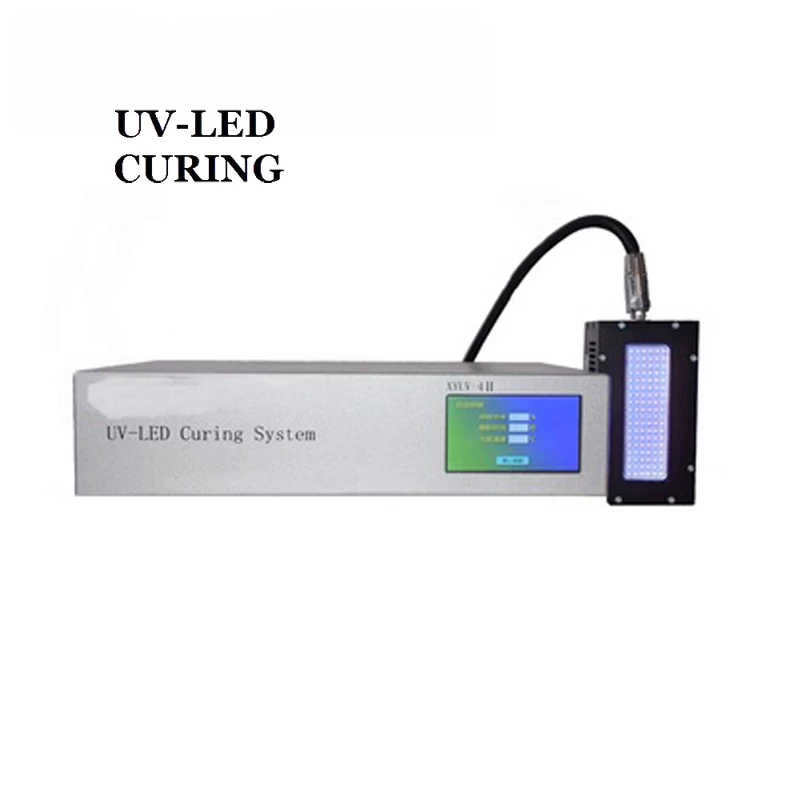

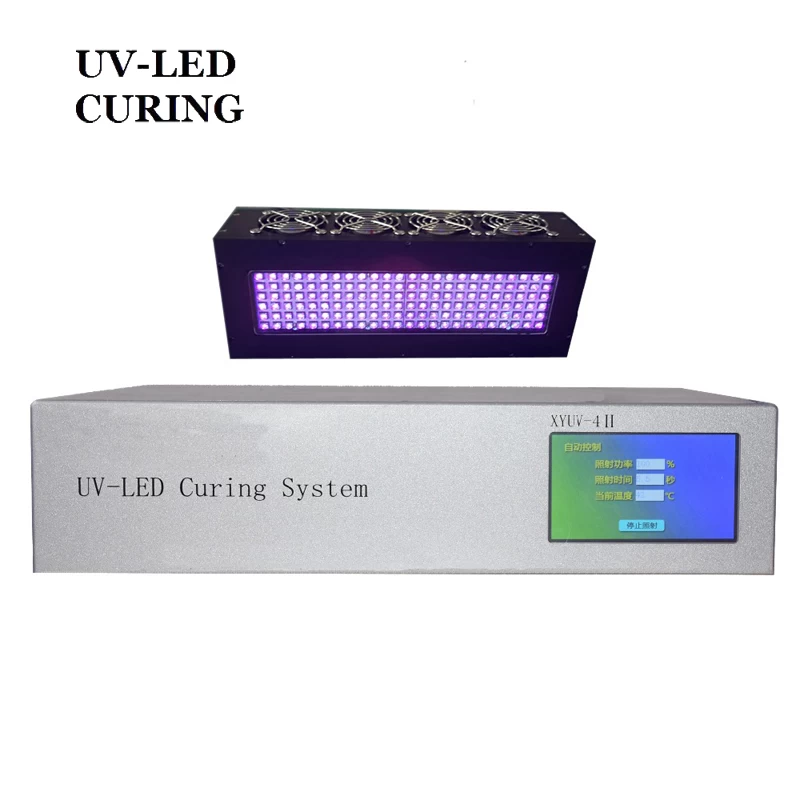

Technical Data of High Quality UV Curing Lamps Controller for Screen Adhesive：
|
|
Type
|
XYUV-4Ⅱ
|
|
Channel
|
1
|
|
The size of controller
|
L384*W284*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
Serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
|
|
Setting operation
|
Using the operating switch is set, Power key parameter switch, RS-232
|
|
External Control
|
External input
|
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
|
|
External output
|
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
|
|

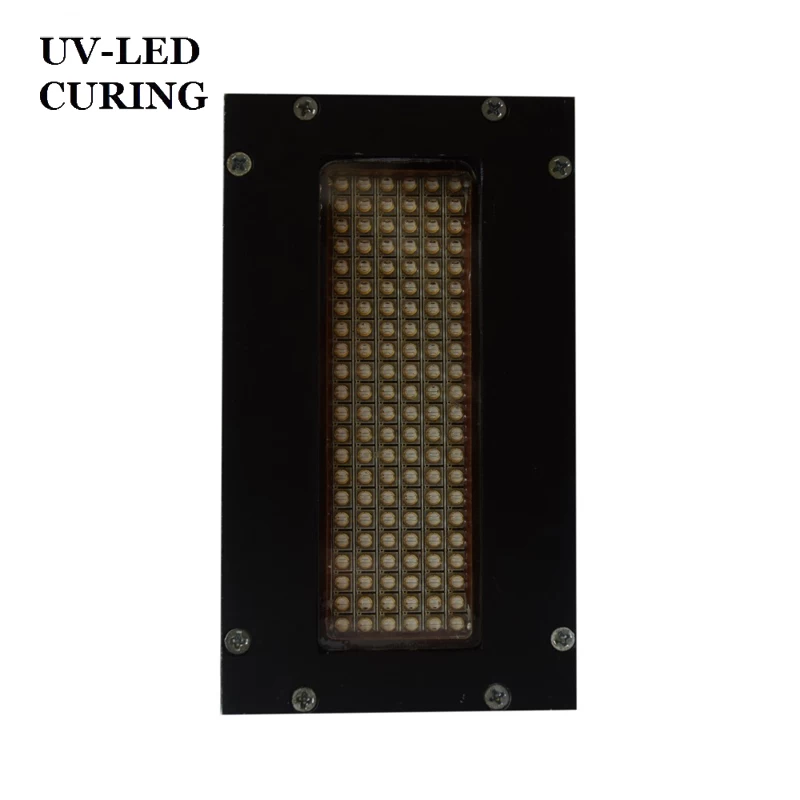

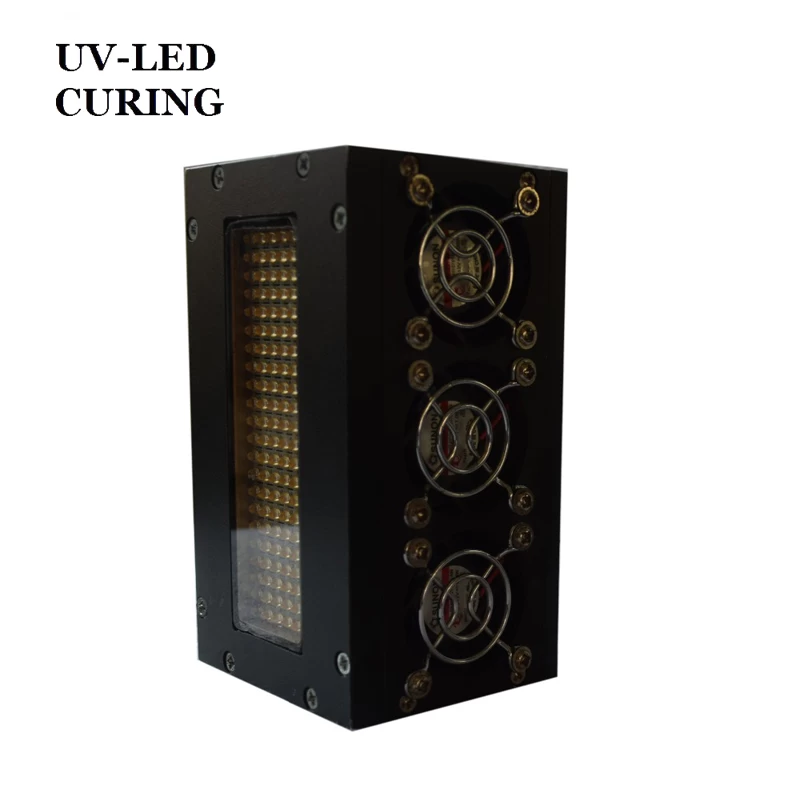

Technical data of Customized LED Light Source UV Lamp Without Ozone :
|
|
Product Model
|
Emitting Window Size
|
Wavelength
|
Cooling Method
|
Peak Irradiation
|
Irradiation Distance
|
|
UV-LED CURING
S132-30*100
|
30*100mm
|
395nm
|
Air Cooling
|
12000mw/cm2
|
10-20mm
|
