Customized 365nm LED UV Curing Coating Equipment, belong to Rec Area UV LED Curing, is used for side curing, crack curing, cracking bonding, etc.. Applicable to a variety of base materials: flexible or rigid, absorbable and non-absorbent materials.
Parameters of 365nm LED UV Light Source Curing Epoxy Resin :
|
Type
|
UV LED
|
Model Number
|
XYUV-4II
|
|
Brand Name
|
UV-LED CURING
|
Chip Material
|
AlGaInP
|
|
Certification
|
CE, RoHS
|
Power
|
0.1W
|
|
Place of Origin
|
Guangdong, China (Mainland)
|
Emitting Color
|
purple
|
|
Luminous Intensity
|
4w/cm2
|
Luminous Flux(lm)
|
30-40lm
|
|
Optical Attenuation(%)
|
10
|
Power Dissipation
|
768
|
|
Viewing Angle(°)
|
120
|
Color Rendering Index(Ra)
|
12
|
|
Storage Temperature(℃)
|
-10 - 50
|
Operating Temperature(℃)
|
-10 - 50
|
|
Wavelength
|
365nm/375nm/385nm/395nm/405nm/415nm
|
|

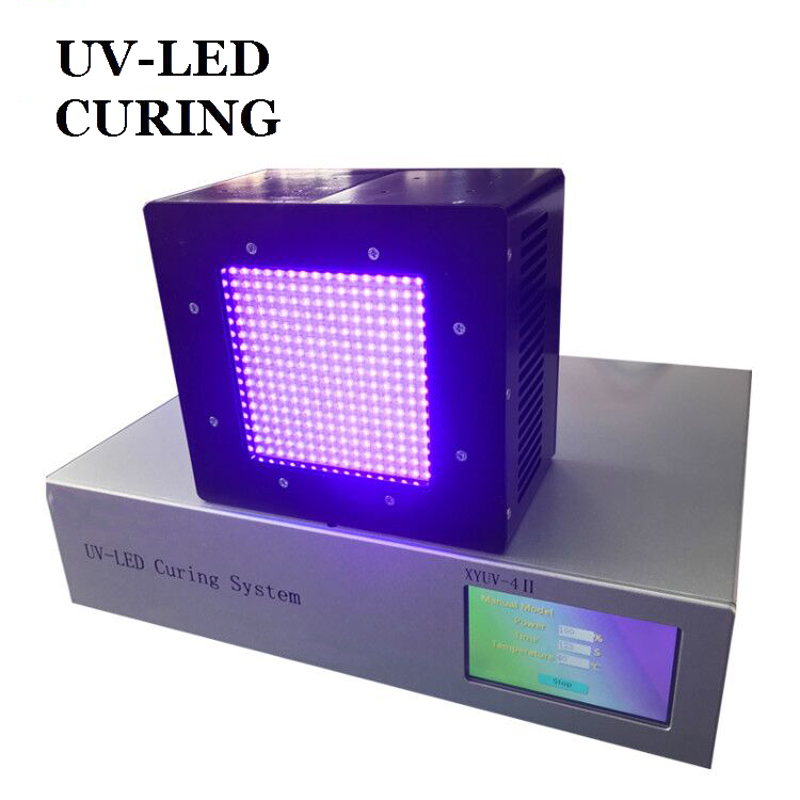

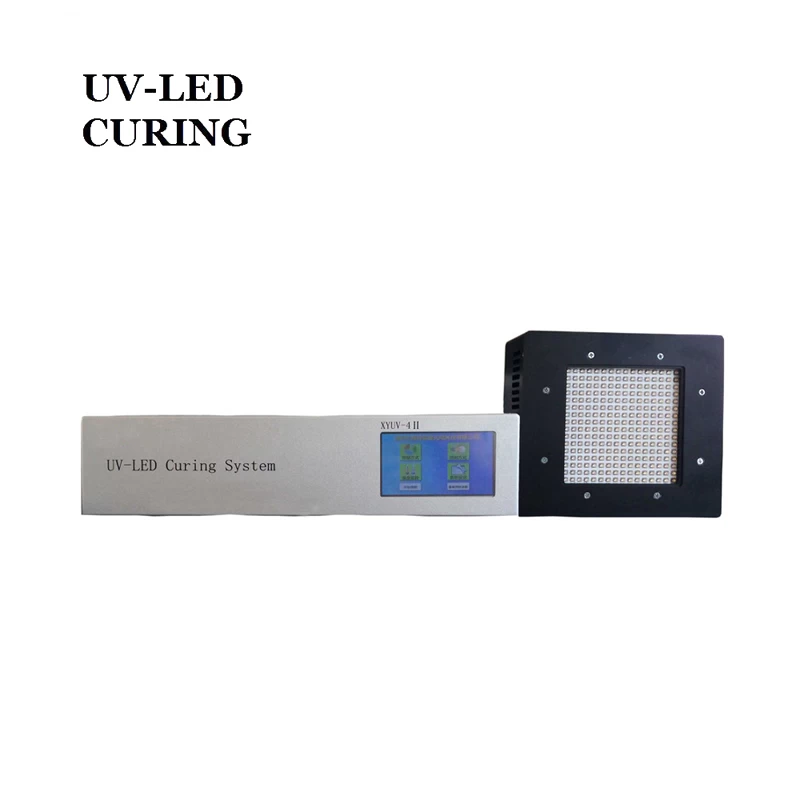

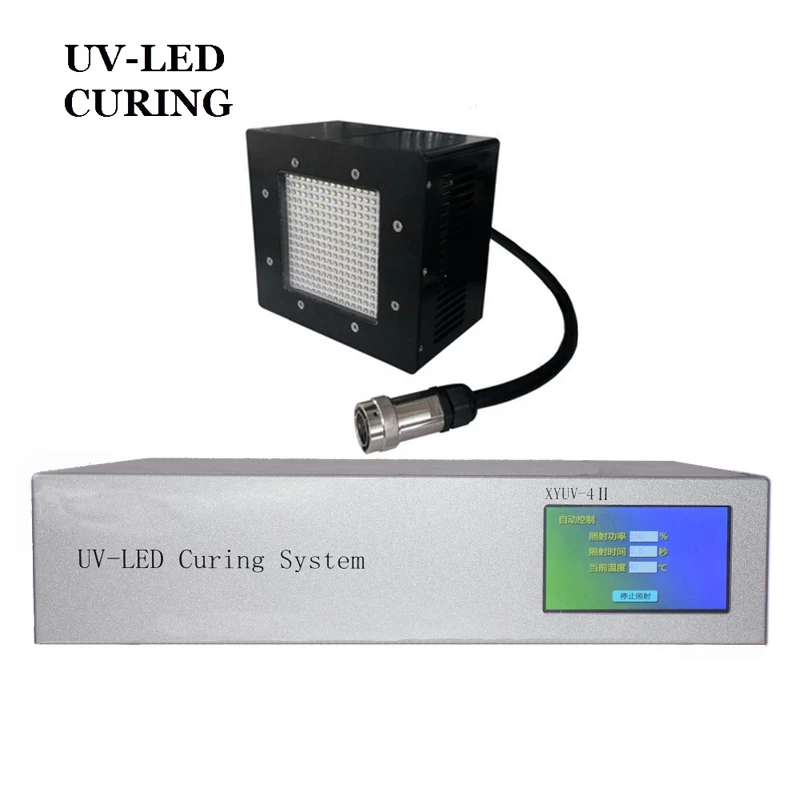

Technical Data of Portable 365nm UV LED Curing Lights Controller：
|
|
Type
|
XYUV - 4Ⅱ
|
|
Channel
|
1
|
|
The size of controller
|
L384*W304*H90mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
Serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
|
|
Setting operation
|
Using the operating switch is set, Power key parameter switch, RS-232
|
|
External Control
|
External input
|
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
|
|
External output
|
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
|
|

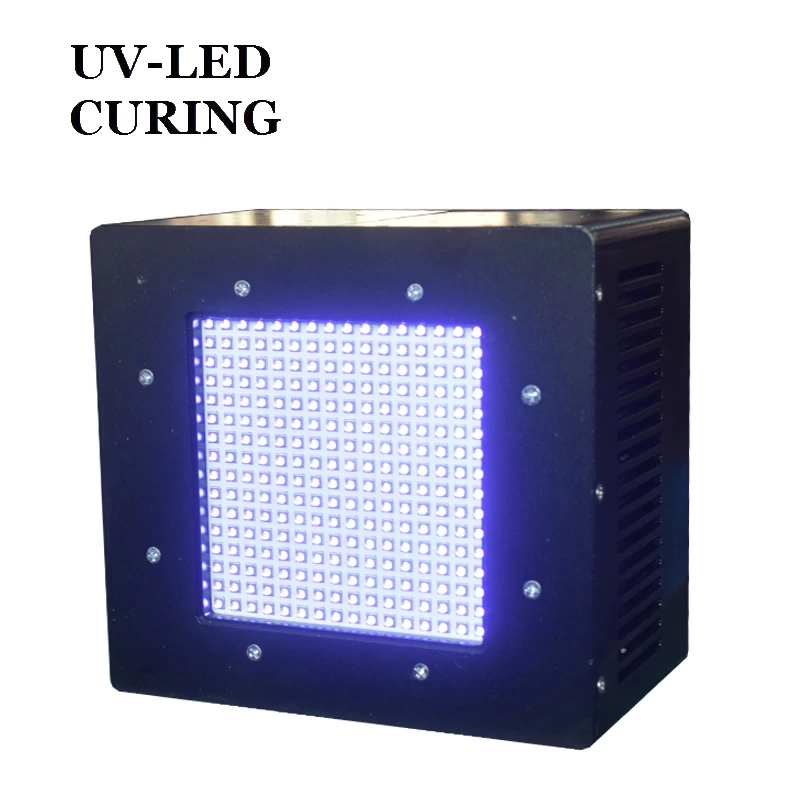

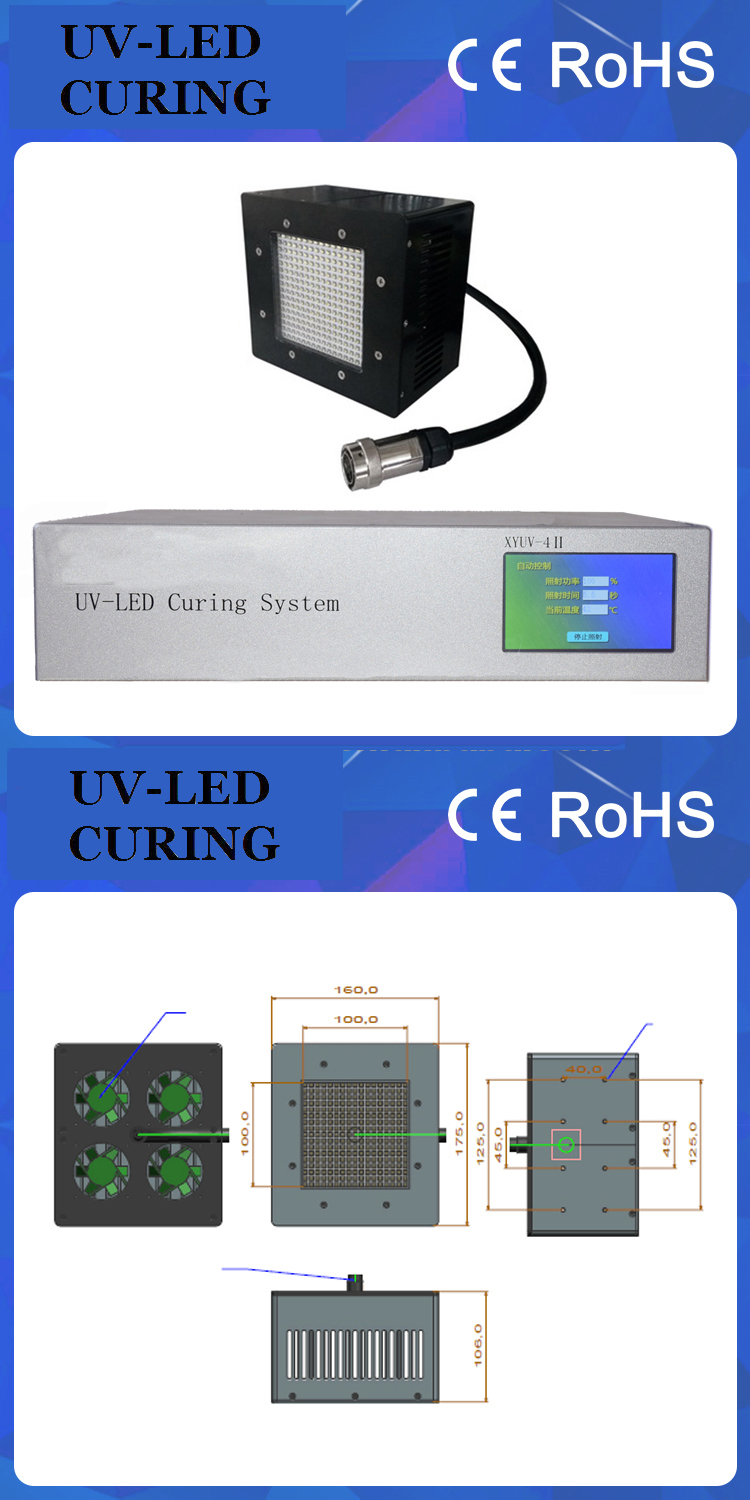

Technical data of Customized UV Coating Curing Equipment :
|
|
Product Model
|
Emitting Window Size
|
Wavelength
|
Cooling Method
|
Peak Irradiation
|
Irradiation Distance
|
|
UV-LED CURING
S256-100*100
|
100*100mm
|
365nm
|
Air Cooling
|
4000mw/cm2
|
10-20mm
|
Product Advantage of Low Temperature 365nm LED UV Drying Lamp Curing UV Glue :
1. Extra-long life: 25000h~30000h
2. Energy saving: save 80% electrical energy than Mercury lamp
3. UV output adjustable: from 1% to 100%
4. Multiple control modes: constant current, peal control, intelligent optical and manual modes
5. Photoelectric induction, instant on/off, no preheating required.
6. Low energy consumption, just 20% of the ordinary UV lamp.
7. No mercury, no Ozone, eco-friendly.
8. Cold light source, low temperature.
9. Stable output, high uniformity
