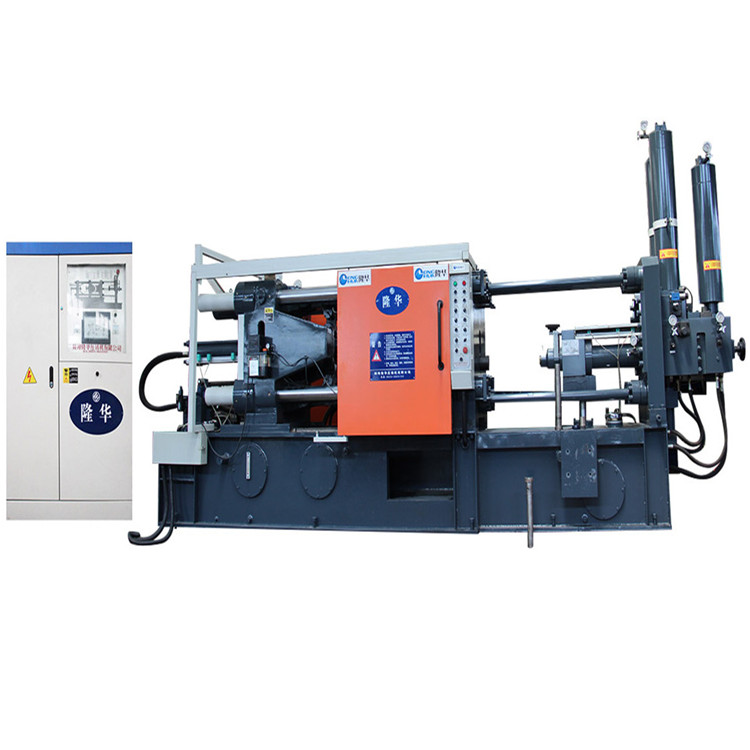

200T Magnesium Alloy Cold Chamber Die Casting Machine

Our machines have been recognized by the state quality supervision department for their high efficiency, energy saving, environmental protection and quality.



200T  Magnesium Alloy Cold Chamber Die Casting Machine

Magnesium Alloy Cold Chamber Die Casting Machine



Advantages of die casting machine:

1.High quality raw materials, with the rapid development of die casting industry, die-casting machine is widely used in all walks of life, the customer higher request on the performance of the die casting machine, more strict requirements on quality, to longhua company strict control in the production process, most of the technical engineers have more than 10 years of die casting workshop manufacturing experience, always adhere to the use high quality raw materials, for every parts finely crafted, continuously improve the manufacturing process, we firmly believe that good product is the result of the high quality raw materials and into the first technology formula


2.Strong after-sales service guarantee, the company set up a special after-sales service center, open a 24-hour repair phone, receive the repair phone, maintenance personnel will immediately arrange personnel to repair and provide system fault solutions for customers.Technical personnel to the scene to the user operation personnel on-site interpretation when debugging and on-site operation training, make the user operation personnel has the ability of independent operation, the company after-sales service personnel to review regularly or irregularly, and supplemented by "greeting" service, ensure smooth service system at any time free of charge for users to provide professional technology, equipment supporting consulting.


200T   Cold Chamber Die Casting Machine parameter:

         LH series of standard parameter table (200T)

Items

Unit

Specification

Hydraulic Working Pressure

MPa

14

Clamping Force

KN

2000

Space Between Tie Bars

mm

480*480

Tie Bar Diameter

mm

¢85

Die Opening Stroke

mm

380

Injecction Force(intensify)

KN

270

Plunger launch distance

mm

135

Injection position

mm

0  --  140

Plunger Diameter

mm

¢50----¢70

Injection Stroke

mm

350

Casting pressure (intensify)

MPa

112/78/57

Casting Fiange Protrusion

mm

10

Casting Fiange Diameter

mm

110

(40Mpa) Max Casting Area Under 40Mpa

CM2

450

lnjection Weight(Al)

Kg

2.4

Die Height(Min--Max)

mm

200~550

Ejector Force

KN

110

Ejector Steoke

mm

80

Motor Capacity

Kw

15

Machine Dimensions  (L*W*H)

m

5.32*1.5*2.35

Referential Machine Weight For Uplifting

T

7

Oil Tank Capacity

L

600

WE reserve the right to make any technical improvement without further notice


Our customers:

Longhua die-casting machine and oilfield equipment products are exported to: Brazil, Egypt, South Africa, Vietnam, Pakistan, Bangladesh, Uruguay, India, Russia, kazakhstan, kyrgyzstan, Ukraine, Iran, Iraq, north Korea, Japan, Ecuador, the United States, South Korea, Algeria, China Taiwan and other countries and regions.
