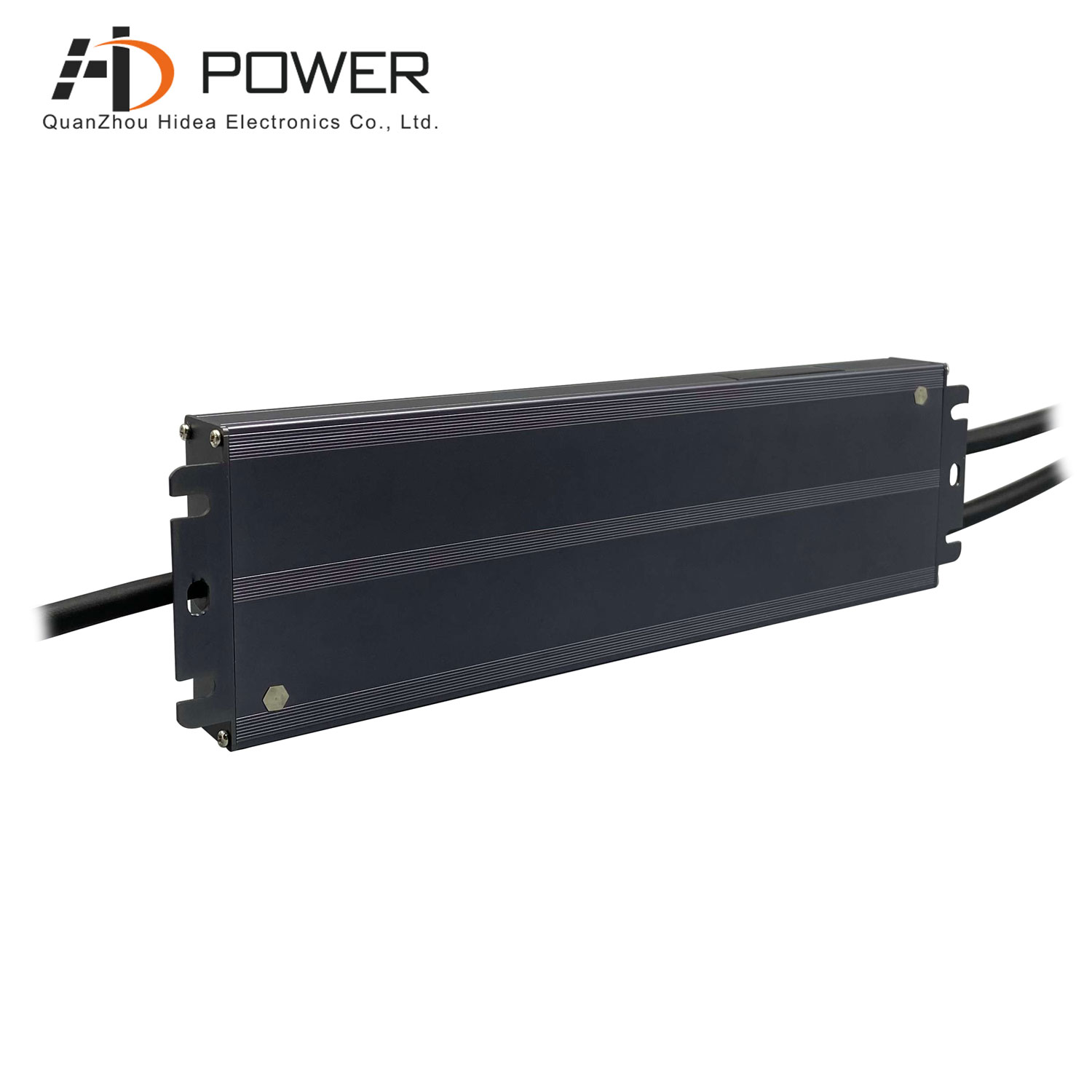

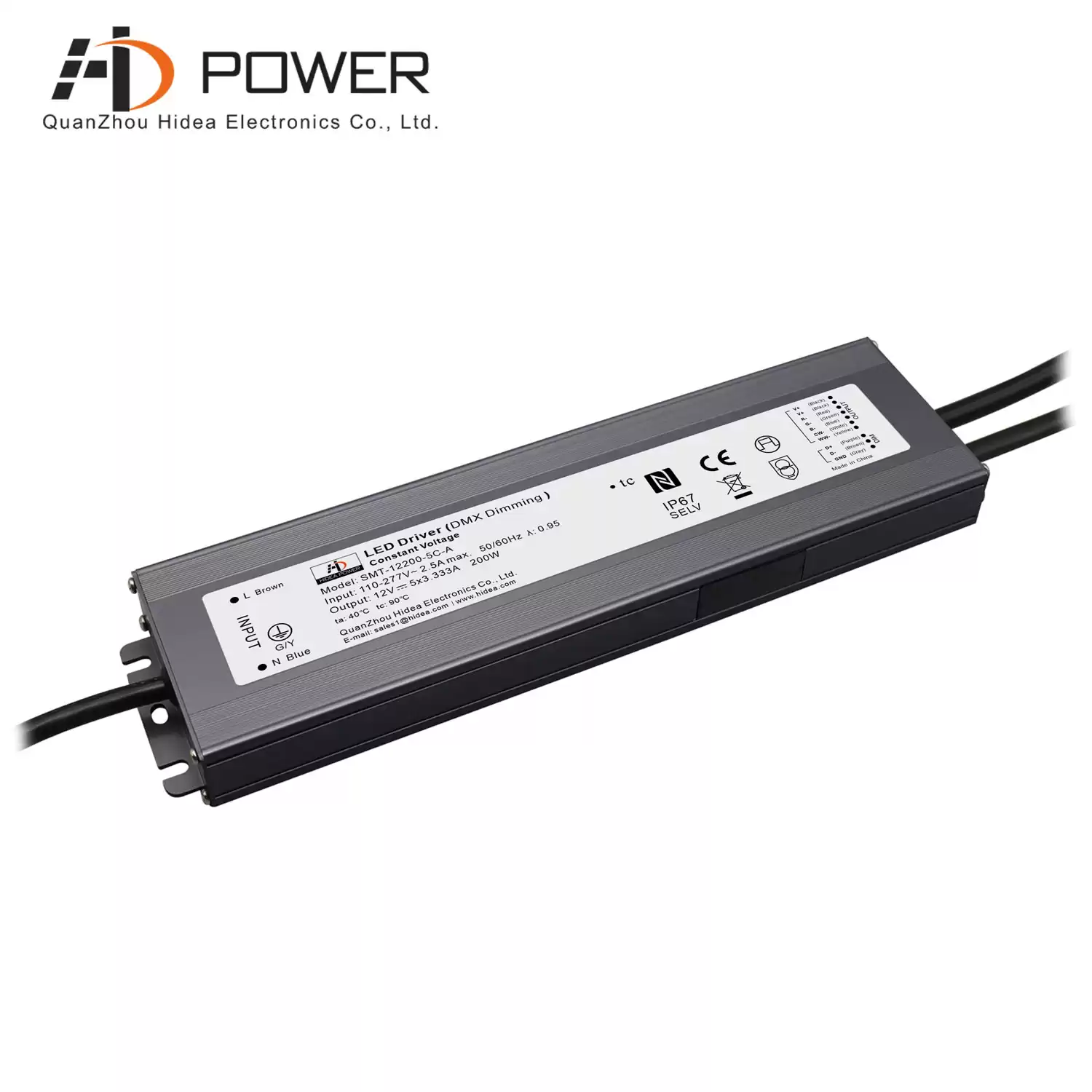

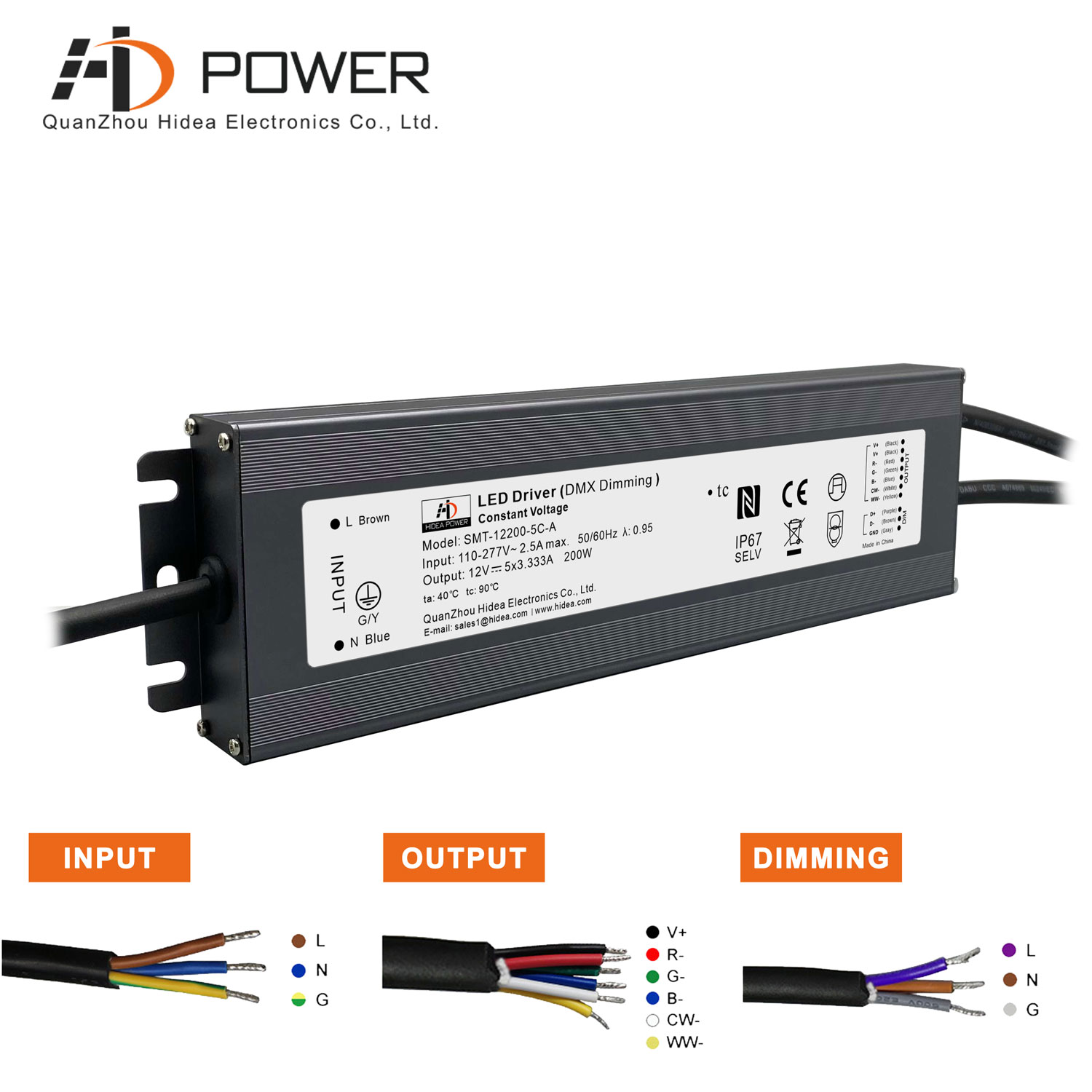

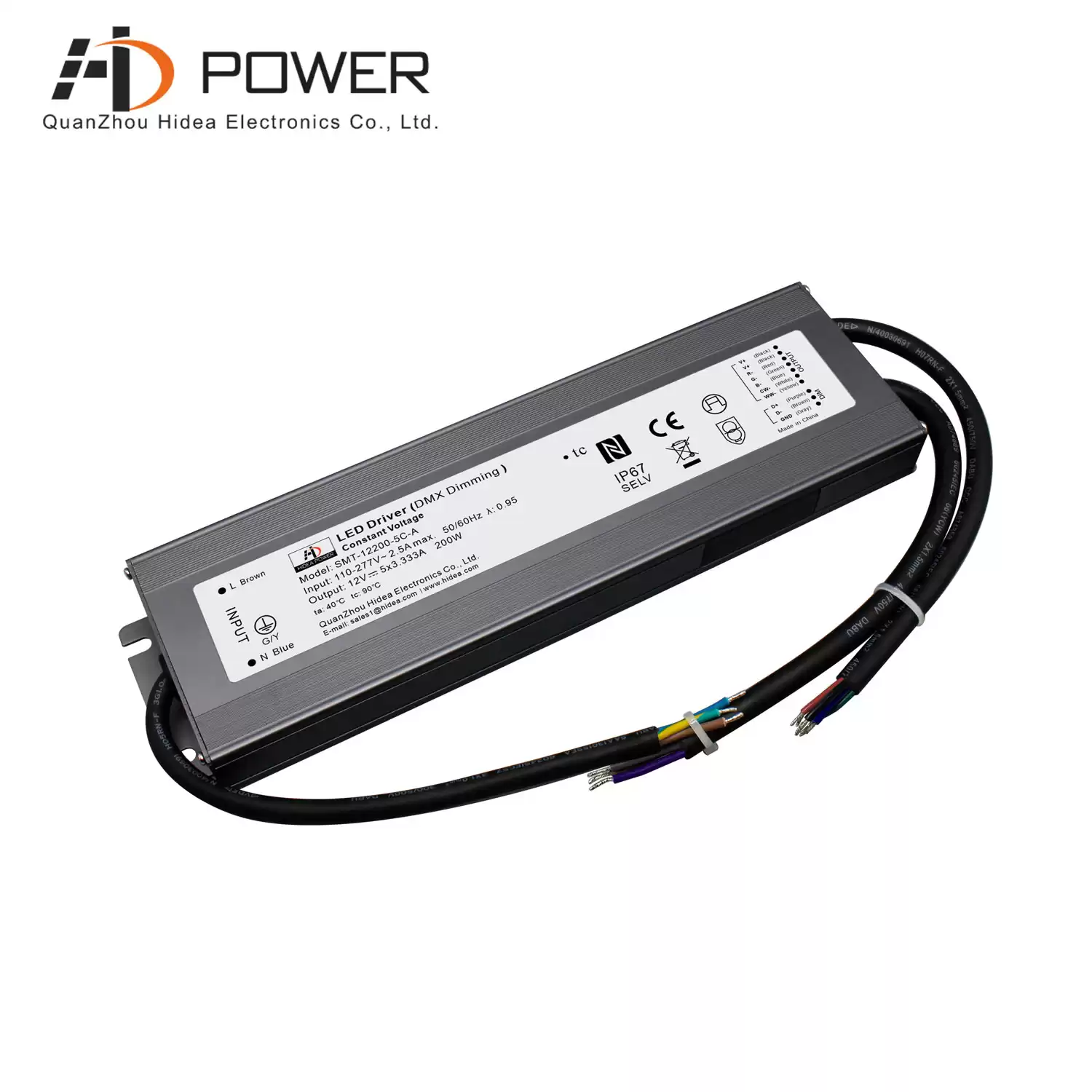

12 volt led DMX dimmable transformer
200-Watt universal dimming LED lighting driver
provides the utmost in performance, reliability,
economy and versatility, compatible with the
Armacost low-voltage 12-volt RGB LED lighting.
|
|
Specification
|
Model
|
SMT-12200-XC-A
|
SMT-24200-XC-A
|
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=16.66A
|
CH1+CH2+CH3+CH4+CH5=8.33A
|
|
Rated power
|
200W
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
PowerFactor(Typ.)@ full load
|
PF≥0.98@230VAC
|
|
THD(Typ.)@full load
|
≤10%
|
|
Efficiency(Typ.)@full load
|
91.5%@230VAC
|
93%@230VAC
|
|
AC Current(Max.)
|
2.5A
|
2.5A
|
|
InrushCurrent(Typ.)
|
48.5A (Twidth 164us measured at 50% I peak, COLD START, 230VAC)
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
StorageTEMP.Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 ,3-3 (EU) & FCC Part 15 B (US) (≥60% loading)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11, EN61547
|
|
Others
|
Net Weight
|
0.75KG
|
|
Dimension
|
277x78x25mm (LxWxH)
|
|
packing
|
10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
Marc LED 12VDC LED strip light or tape light comes with an easy to connect 20 AWG wire and premium 3M Sticky Tape for easy and quick installation, connecting LED strips with a comtable
12 volt led DMX dimmable transformer is a necessary process in projects.
