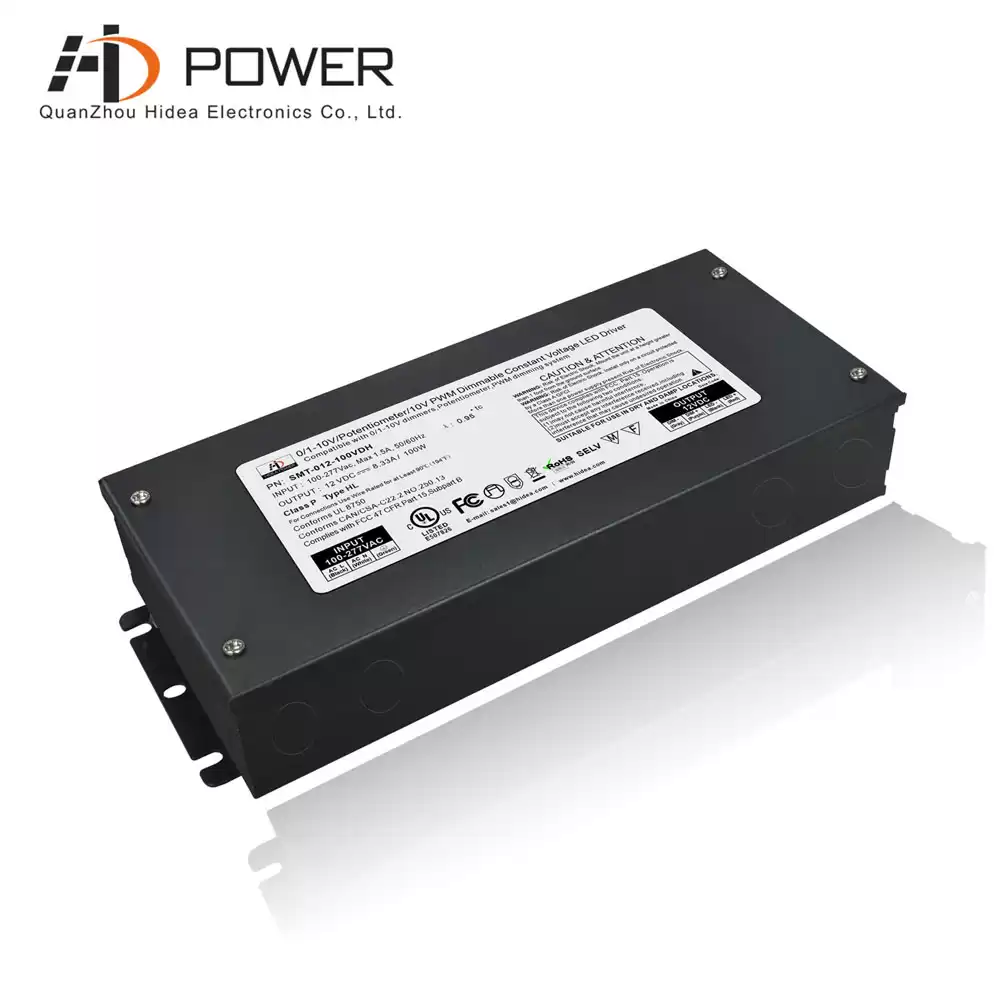

24v 100W 0 10v dimmable constant voltage led driver junction box for strip lights
277vac 0 10v dimmable led power supply is integrated with the junction box. It operates in constant voltage mode and has a working efficiency of up to 83%. It complies with global safety lighting regulations. It can be well connected with sunco lighting's 100W LED downlight to achieve smooth dimming.
Specification
|
model
|
SMT-012-100VDH (1.0 version)
SMT-012-100VDHV2 (2.0 version)
|
SMT-024-096VDH (1.0 version)
SMT-024-096VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.3A
|
4.0A (class 2 type)
|
|
Voltage Regulation
|
±0.5%
|
±0.5%
|
|
Load Regulation
|
±1%
|
±1%
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.37Kg (1.0 version)
|
|
Size
|
1.0version:220*94.5*40mm(L*W*H)/2.0version:220*94.5*40mm(L*W*H)
|
|
packing
|
298x240x220mm / 10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
With compact design, the 0 10v dimming driver are quite quitable for under-cabinet LED lighting, especially widely used in North American.The high power factor and efficiency makes it unique in the market. We suggest Birddog Lighting LED rope light for matching.
Related Products
|

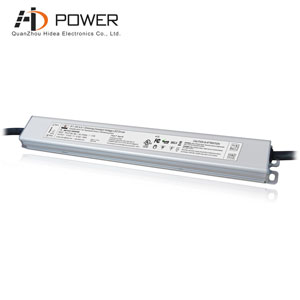

hideapowertech hot seller 100W 0 10V dimmable led driver slim size, waterproof grade ip67, suitable for outdoor dry/humid lighting projects, such as advertising light boxes
