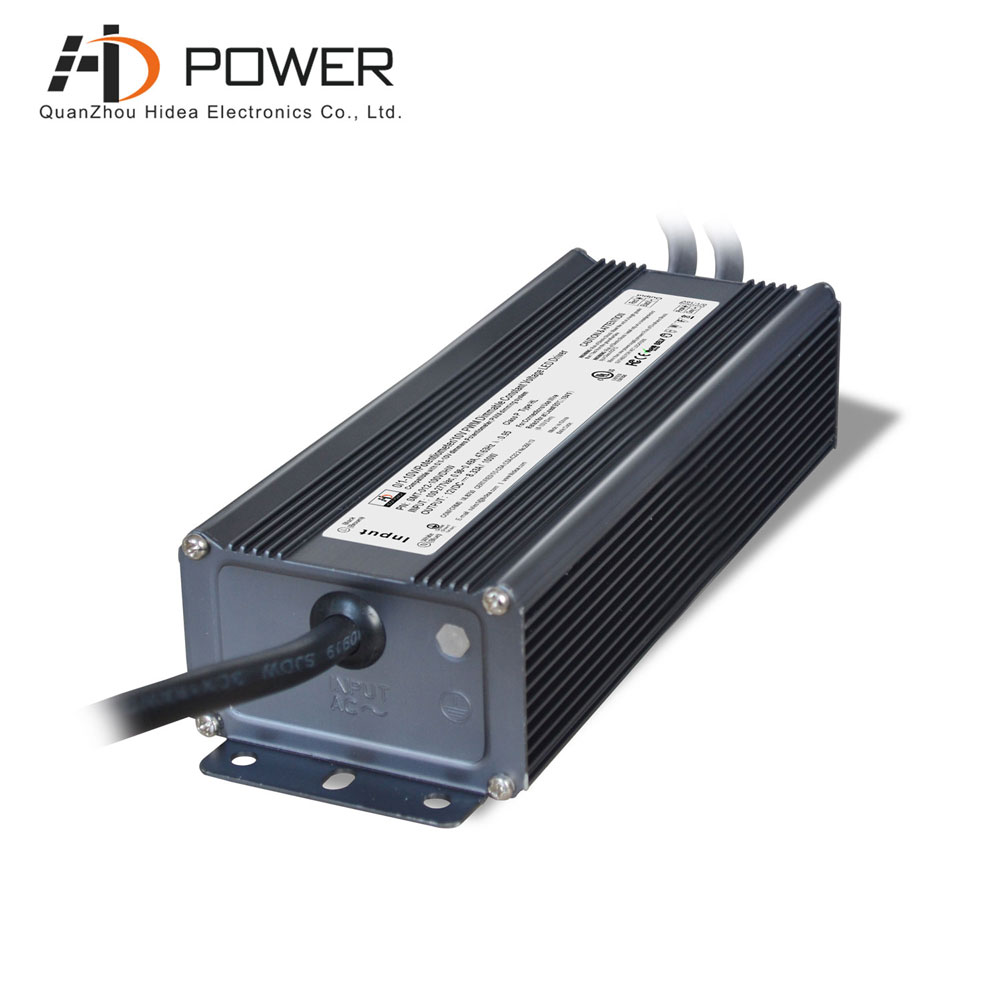

24v 96w 0 10V dimable best constant voltage led driver strip power supplies
0 10v dimmable 24v 96W constant voltage LED driver, working efficiency up to 88%, built-in overload/short circuit/overvoltage/overtemperature protection function, aluminum shell design, waterproof grade ip67, suitable for outdoor LED lighting projects
Specification
|
Model
|
SMT-012-100VDHW
|
SMT-024-096VDHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
8.33A
|
4.0A (Class 2 )
|
|
Rated power
|
100W
|
96W
|
|
Ripple&noise Max.
|
200mVp-p
|
250mVp-p
|
|
Input
|
Voltage Range
|
100~130VAC, 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
>0.90
|
>0.90
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
1.010A/120VAC 0.713A/170VAC 0.550A/220VAC 0.457A/277VAC
|
|
Leakage current
|
﹤0.25mA/110V,277VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
Class P, Type HL, EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)
|
|
Others
|
Weight
|
1.32Kg
|
|
Size
|
230*70*47mm(L*W*H)
|
|
packing
|
329*279*176mm/10pcs
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
277vac 100w waterproof led power supply 12v dimmable led driver provide your 7 years warranty,which could do 0-100% dimmable by connecting Led Lighting Whole Sale Inc Led Flat PanelIt application with indoor & outdoor illuminating lights.
Related Products
|

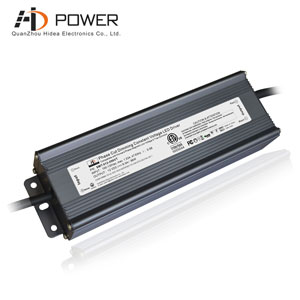

24v 96W triac dimmable led driver has passed UL certification, aluminum shell design, suitable for installation and use in outdoor lighting projects in North America
