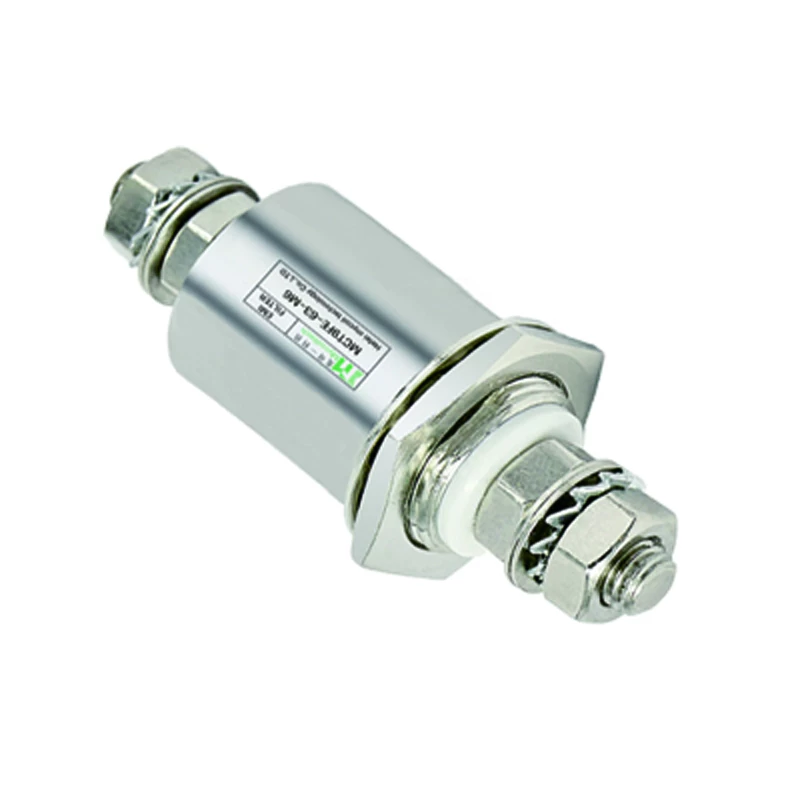

250VAC 100A Shielding Feedthrough Capacitors EMI Filter

Feedthrough EMI filter for shielded rooms. Feedthrough capacitors offer a high insertion loss across a broad band of frequencies from a few tens of kHz up to the GHz region. High quality and reliability. Mainly for power supplies, switching and cellular equipment, computer servers, etc.



AC power line filter for 250VAC power lines, DC power line filter for 48VDC battery power. We produce and design high quality shielding feedthrough EMI filters for switching power supply, the materials we used are environmental protected, customized specification or dual-versions on request.


Quick Details

Part No: Feedthrough EMI Filter

Brand name: MCT

Rated Voltage: 250VAC 80VDC~600VDC

Custom made: Available

Rated Current: 1A~250A

Logo: Can be customized

Operating Frequency: 50/60Hz

Packing: Carton, can custom

Temperature range : HPF 40/085/56

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available


Part Information

Product Name: 250VAC 100A Shielding Feedthrough Capacitors EMI Filter

Product features: (1)Very low internal series inductance. (2)Very high self-resonant frequency. (3)Through-bulkhead mounting and anti-twist protection. (4)Self-healing dielectric.

Applications: Power supplies, Switching and cellular equipment, Computer servers, UPS power supplies, Medical equipment, Shielded rooms. Increasing system and information security

Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Details

Shielding EMI EMC Filter Data250VAC AC/DC Feedthrough EMC Filter Feedthrough EMI Power Line Noise Filter 1A-250A


If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

QQ: 2783136957

Contact: Miss Lily Yu


Product Tags emi feedthrough filter          shielding feedthrough emi emc filter          feedthrough filter          ac dc feedthrough emi noise filter design          emi filter          emis filter          feedthrough          emi filter circuit          emi filter calculator
