25L Lab Vacuum Drying Oven DZF-6020 with High Quality Stainless Steel Frame

This vacuum drying oven DZF-6020 is mainly used for scientific research units, specialty universities, laboratories, industrial mining enterprises etc. and production field for materials drying and heat treatment under the vacuum state.



25L Vacuum Drying Oven for Lab Lithium Battery Raw Material and Electrode Baking


Introduction:

The Vacuum Drying Oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing vacuum embedding, and plating applications.

This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.


Features:

1. Vacuum environment greatly lowered the liquid’s boiling point which needs to be driven away; therefore the vacuum dry method can be applied into heat sensitivity material.

2. For the samples which can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may effectively reduce drying time.·

3. Various complex structures of machinery ministry or other porous sample process use vacuum dry method after washing will not leave any residue

4. Safety guarantee: whether under vacuum or inertia condition, the possibility of oxide explodes when is heated will completely be eliminated.

5. Compared with the normal drying method depended on air circulation, powder samples will not be blown or moved away by air.


Specifications:

Model

AOT-DZF-6020 Vacuum Drying Oven

Source voltage

AC220V/50HZ , 110V60Hz Customized

Power

300W

Warranty

One Year Limited Manufacture Warranty with Life Time Support

Working room material

Stainless steel

Temperature range

RT+10-200℃

Temperature fluctuation

0.1℃/±0.5℃

Vacuum degree

Less than 133Pa

Volume

25L

Inner box size(L*W*H)

300*300*275mm

Dimension(L*W*H)

605*490*450mm

Temperature controller

1 High precision microcomputer temperature controller, accurate temperature control

2 Working temperature can be set and working time can be set for 0-9999min.

3 When time reach, sound alarm, and when any error, also alarm. function

Inner box material

304 stainless steel

Outside shell material

High quality cold-rolled steel plate electrostatic spray

Box door

Toughened bulletproof double glass door

Safety device

With over temperature protection, grounding etc

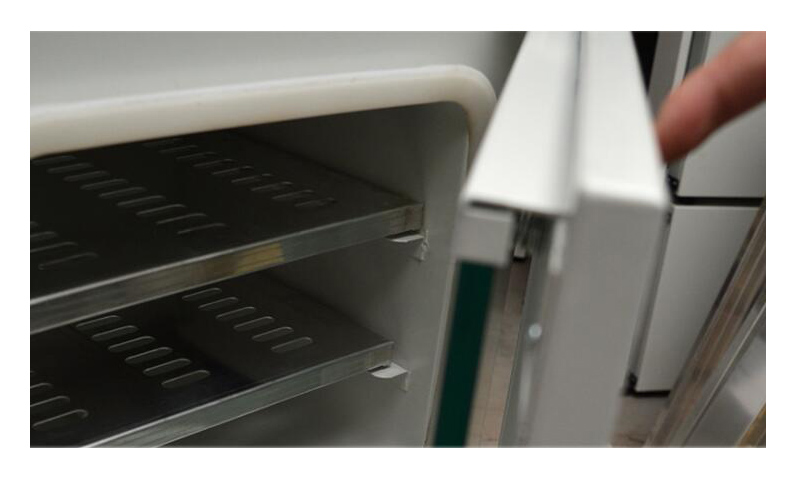

Shelf

1pcs

1 Solid stainless steel shelf, guarantee the oven temperature

2 Mesh stainless steel shelf can be also chosen

Ambient temperature

+5~40℃

Application

The product is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’ disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.

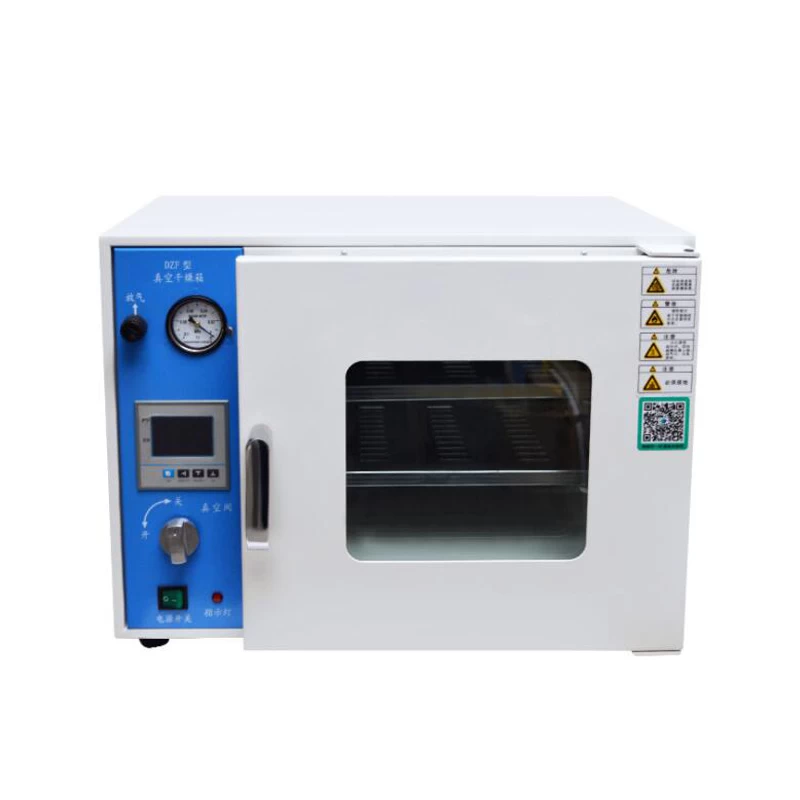

Vacuum Drying Oven DZF-6020

Vacuum oven for battery material baking

Vacuum Oven DZF-6020

DZF-6020 small vacuum drying oven for lab
