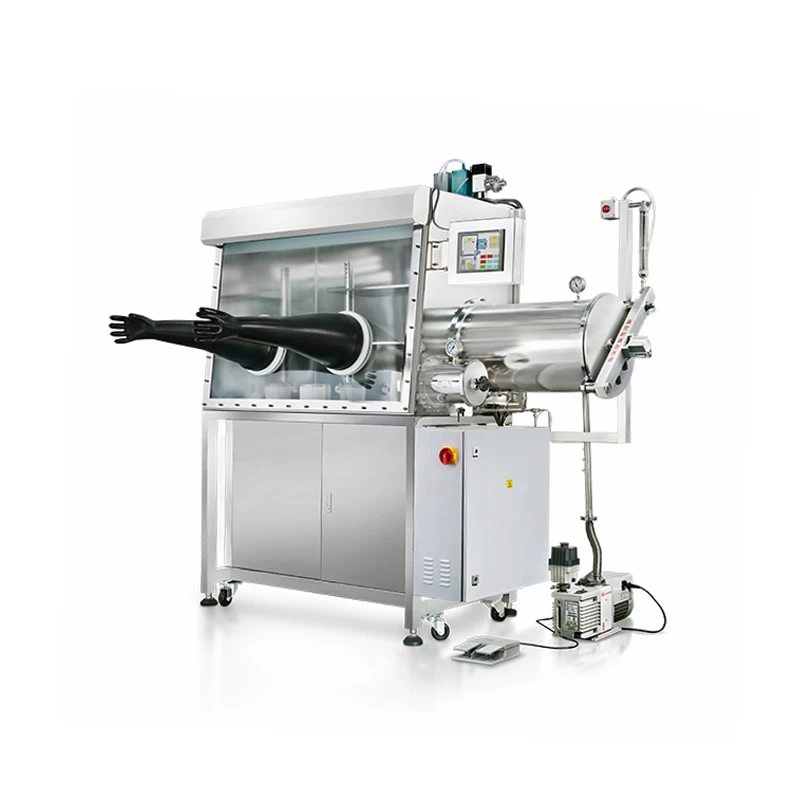

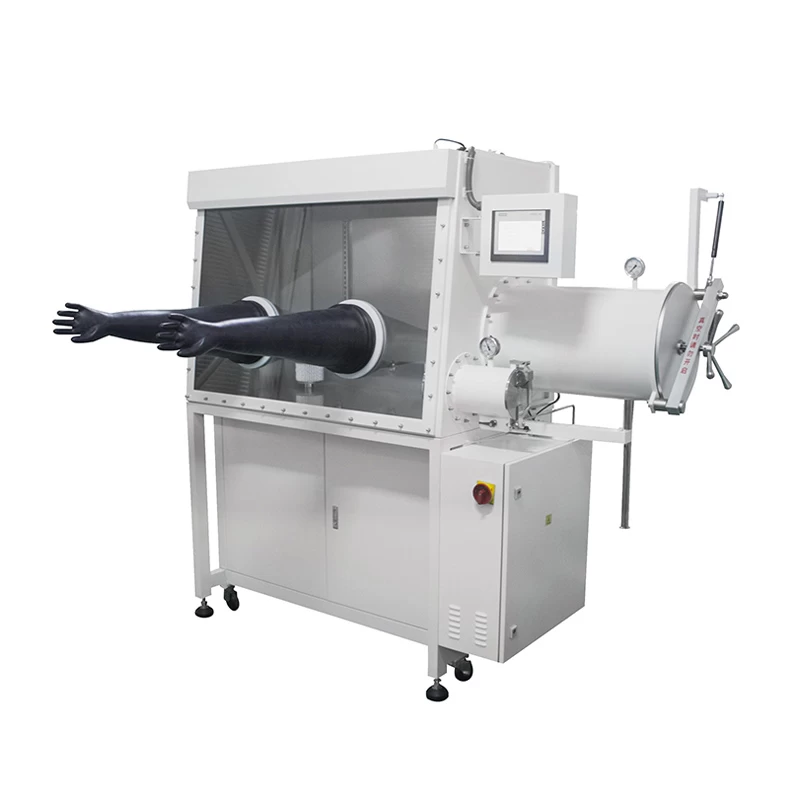

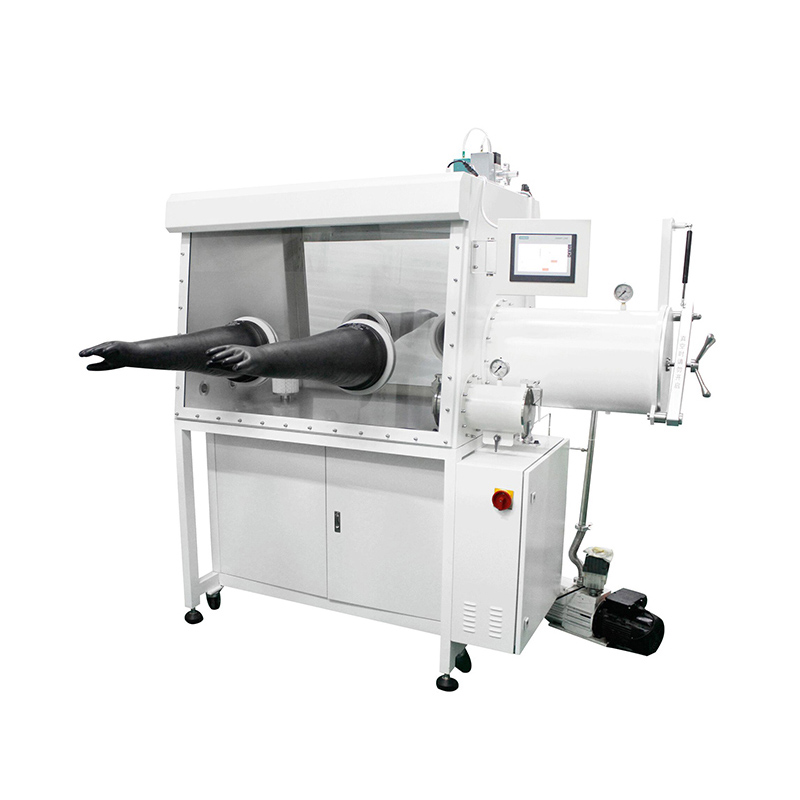

Build-in Purify System Stainless Steel Glove Box for Lab Coin Cell R&D

Lab vacuum glove Box with air circulation and vacuum system, gas purification system to control water and oxygen index less than 1ppm.



Build-in Purify System Stainless Steel Glove Box for Lab Coin Cell R&D


Basic configuration

1 set 304 stainless steel box, acid-resisting, thickness : 3mm

1 stainless steelvacuum transitional chamber, φ360*600mm

1 small stainless steel transitional chamber,φ150*300mm.

1frontwindow with 2 glove ports.

1 pairs of butyl rubber gloves.

1 set of lighting system

1 power interface inside the box

1 set of high-performance circulating fan

1 set of purification system

1 set of organic solvent adsorber

1 vacuum pump

1 set of PLC control and touch screen operating system

3 KF40backup interface (can be customized number)

1 set of water analyzer and oxygen analyzer

1 bracket and trundle

1 foot pedal

Key components

Parts

Origin

Vacuum Pump

EDWARDS (UK)

CirculatingFan

DARGANG(TAIWANG,CHINA)

Water Analyzer

Germany OEM

Oxygen Analyzer

Germany OEM

PressureSensor

HALSTRUP-WALCHER(Germany)

Purification Materials

BASF、BAYER(Germany)

ButylRubberGloves

PIERCAN(USA)

ElectromagneticValve

BURKET(Germany)

PipeFittings

LEGRIS(France)

PLC & Touch Screen

SIEMENS(Germany)

Pressure Gauge

WIKA(Germany)

Integrated Valve Base

Customized

Technology parameters

Item

Parameter

Glove box

Box

Box size: (L*W*H)=1220×750×900mm

Box material: stainless steel 304, thickness 3mm

Inner surface: stainless steel wire drawing treatment

Outside surface: paint, white

Front window

Tilt windows, transparent tempered safety glass, thickness 8 mm

Glove ports

The material is polyoxymethylene, O-ring seal, self-lubricating performance, easy to maintain, and good sealing performance

Gloves

Butyl rubber, diameter 8", length 32"

Filter:

0.3 microns, a gas inlet and a gas outlet

Shelf

Stainless steel, 2 layers

Lighting

LED lights, installed in front of each glass window

Connector

Standby interface 3pcs, DN 40 KF, Power interface 1pc (220V)

Bigger transitive cabin

Chamber

Size: diameter 360mm, length 600mm

Material: 304 stainless steel

Surface: inner surfacewire drawing process, outer surface painting (white)

Accessories

Sliding tray: 304 stainless steel

Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: Analog display

Control

Solenoid valve touch screen automatic operation

Smaller transitive cabin

Chamber

Size: diameter 150mm, length 300mm (100mm lengthinto the glove box)

Material: 304 stainless steel

Surface: inner: wire drawing process, outer: painting (white)

Accessories

Standard configuration: smallcabin tray

Door: double door, thread lock

Pressure gauge: Analog display

Control

Manual valve manual operation

Gas purification circulation system

Purification column

Function: gassealed, remove water, remove oxygen

Container material: 304 stainless steel

Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg

Purification capacity: oxygen: 60L, water: 2Kg

Water and oxygen indicators: less than 1ppm

Circulatory system

Working gas: nitrogen, argon

Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)

Vacuum pump

8m³ / h, rotary vane pump, with oil mist filter, air vibration control

Valves

Main valve: DN 40 KF, electrically operated angle valve

Control valve:electromagnetic integrated valve (stainless steel integrated valvebase, single column for the six valve integration)

Control System

Function

Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function

Automatic control, cycle control, password protection

Pressure control

Control box, transition chamber pressure, cabinet working pressure +/- 10mbar can be set freely, beyond +/- 12mbar system automatic protection

Pedal

Control the box pressure, easy to operate boost and buck

Display system

Using Siemens PLC touch screen, display running status, box pressure, system records etc

Vacuum system control

Vacuum pump, can be manually or through the PLC to start, flow 8m³/h,vacuum of the transitionchamber, and keep the box pressure balance, vacuum pump limit vacuum ≤ 2x10-1pa

Optional components

Water analyzer

Measuring range: 0 ~ 500ppm

A wide range of applications, especially for lithium manufacturing and metal organic and other users, the water probe can be cleaned by the regeneration process to restore the initial state, can be reused

Oxygen analyzer

Measuring range: 0 ~ 1000ppm

The use of ZrO2 sensor, to avoid the fuel cell life is short,and avoid the problem of itcan not be exposed in the air

Organic solvent adsorption

Size: diameter 136mm, height 256mm, filled with 2kg activated carbon, placed inside the box, can quickly replace the material, and does not destroy the high purity atmosphere
