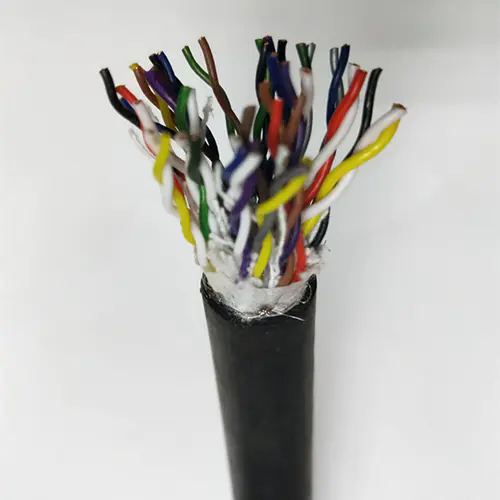

Radiation resistant 26 Core PEEK Jacket cable for nuclear industry
PEEK insulated wires with Silver-plated or Nickel-plated conductors
0.35MMSQ/22AWG 26 conductor Hi Temperature cables for use in the nuclear industry with the following specs:
Environmental conditions:
a)Temperature Up to 316°C (600°F)
b)(Moisture 95% relative humidity Liquid Present
c) Radiation rate : 10 9 Mrad
Normal: up to 1 Gy/h (100 R/h)
[up to 263 kGy (26 Mrads)]
LOCA* up to 5 Gy/h (500 R/h)
(d) Atmosphere traces of ozone slightly
Acidic
Conductor Material:
All strands used in the manufacture of the conductors shall be soft annealed silver or nickel-coated
copper conforming to ASTM B298 or ASTM B355.
Shield/Briad
The shield material shall be either stainless steel, silver tin-coated or nickel-coated copper
Insulation Material Polyetheretherketone (PEEK) insulation material is suggested, and the primary and jacket
insulation material shall be to MIL-P-46183(peek jacket)
Key Features
Halogen free and low toxicity
Excellent radiation resistance
PEEK cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion
Key Properties
• High continuous operating temperature 500°F (260°C)
• Outstanding abrasion resistance
• Excellent dielectric strength
• Exceptional chemical resistance
• Protects against corrosion Technical Notes
• Can be spliced using PEEK Annealed, solid, round bare copper wire and others
