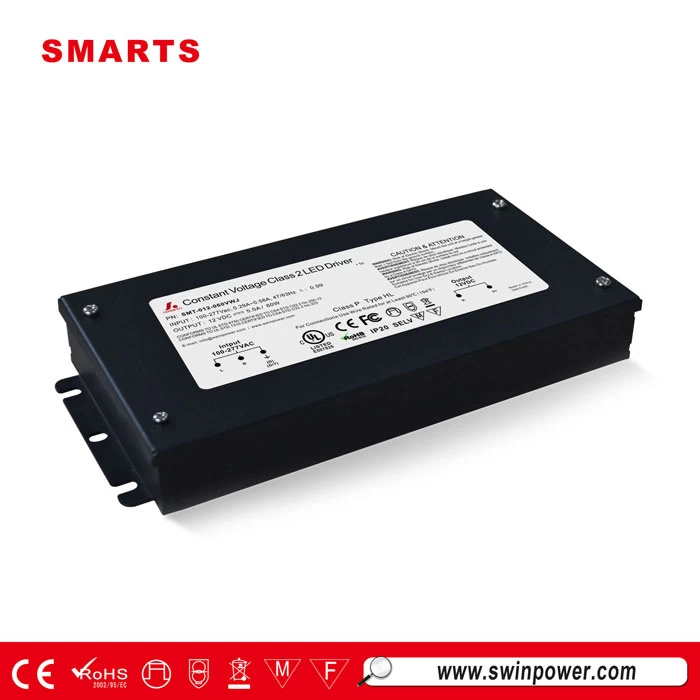

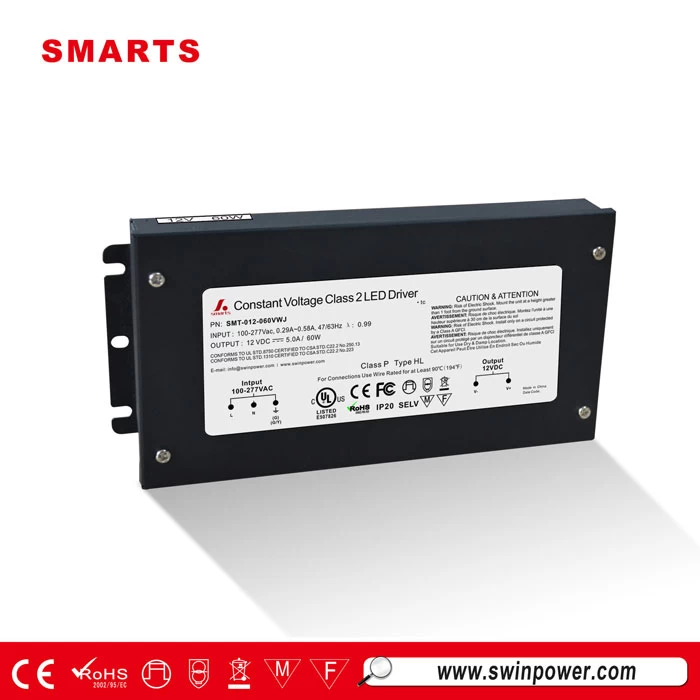

277v 12 volt 60 watt constant voltage led driver manufacturers

100-277vac 12vdc 5a 60w constant voltage led driver, suitable to work with kinds of constant voltage LEDs like LED strips, LED module, LED mirrors etc. UL/cUL certificated.


  • CertificationUL/cUL,FCC,CE,ROHS
  • Size188*92*26mm
  • Dimming modenon dimmable
  • Working Modeconstant voltage
  • Output Current5a
  • Output Voltage12v
  • Input Voltage100-277vac

277v 12 volt 60 watt constant voltage led driver manufacturers


This 12v 60w UL constant voltage led driver are following the UL class 2, class p, type HL standard, suitbale for indoor LED applications. Long life time with 7 years warranty, pf 0.99 and efficency 95% high standard power supply.


  Specification


model

SMT-012-060VWJ

SMT-024-060VWJ

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

5.00A

2.50A

Load Regulation

±1%



Rated power

60W

60W

Input

Voltage Range

100-277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC  0.94@277VAC

0.98@120VAC  0.95@277VAC



Full Load Efficiency(Typ.)

>83%@110V, >85%@277VAC

>85%@110V, >86%@277VAC

AC Current(Typ.)

0.93A/120VAC

Inrush Current (Typ.)

14A,50% ,780us @120v ;50A,50% 176us@230V ;15A 50% 660us@277V

Leakage current

<0.50mA

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over voltage

≦140VAC(90~135V) , ≦285VAC(170~277V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2.2KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 1.1Kg

Size

188*92*26mm(L*W*H)

packing

10PCS/CTN

 (L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Label
60 watt led driver


Triac dimmable led driver
dali led power supply
0-10v led driver
waterproof led driver


  Dimension:  (188*92*26mm)

60 watt led driver

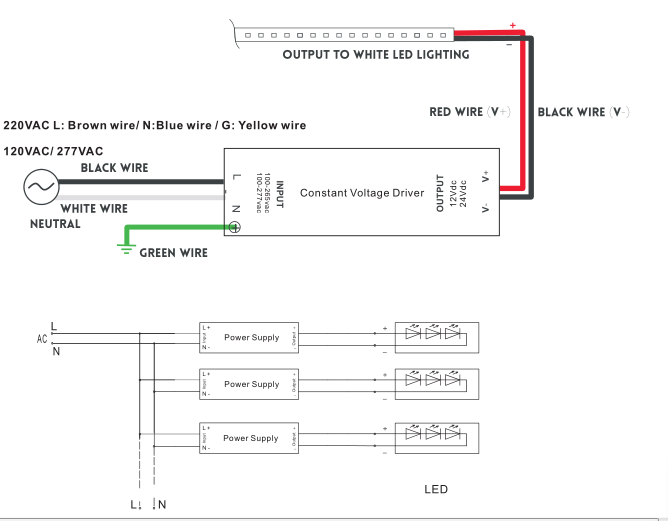

  Connecting diagram

60 watt led driver


  FAQ:  What is a Constant Voltage LED Driver?

The Constant Voltage drivers are designated for a single direct current (DC) output voltage, usually 12VDC or 24VDC. An LED light rated for a constant voltage requires a consistent amount of output voltage to ensure a proper operation, Hence, if your LEDs is 12vdc constant voltage type, choose 12vdc led drivers to work with.


If any quesitons on choosing suitable LED driver/ power supply to LEDs, contact us freely.
