277VAC waterproof led power supply ip67 300W ac to dc lighting power supply
We're passionate about UL/ETL listed ac to dc LED DRIVER—which means we always have something new and exciting available to give you a competitive edge.If you don't see what you're looking for, we also love to co-create industry leading solutions with our customers. Please feel free to contact us if any other technical supports you have, our engineers and sales team will help you timely.
Specification sheet
|
Model
|
SMT-012-300VWN
|
SMT-024-300VWN
|
SMT-036-300VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
±1%
|
±1%
|
±0.85%
|
|
Rated current
|
25.00A
|
12.50A
|
8.33A
|
|
Rated power
|
300W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor(Typ.)@full load
|
0.98@120VAC 0.97@277VAC
|
|
THD（Typ.）@ full load
|
<20%
|
|
Inrush Current （Typ.）
|
20A, 50%, 1.4ms
|
|
Full Load
Efficiency（Typ.）
|
>88%
|
>89%
|
>90%
|
|
AC Current（Typ.）
|
3.162A@110VAC
1.76A
1.76A
.A
1.74A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition
is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 3.00KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to FCC Part 15 B
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge 4KV）
|
|
Others
|
Weight
|
1.75Kg
|
|
Size
|
276*78*47mm (L*W*H)
|
|
packaging
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|
|

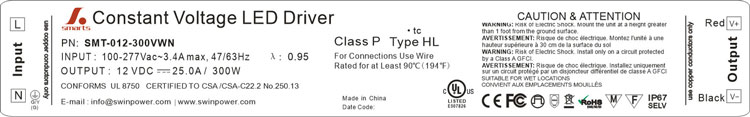

Label
|
|
Features
·Output constant voltage type
·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.97 / Efficiency >88%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor or outdoor installations
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warrant
·UL/cUL listed, Class P, Type HL approval

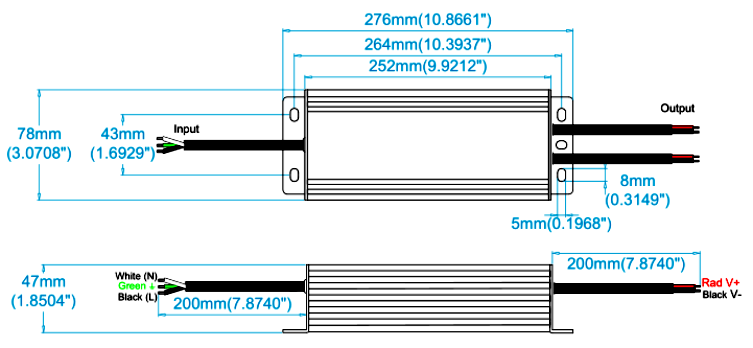

Mechanical Specification
FAQ
1. what is the HS code for this Power supply?
Answer: HS code is 8504401400.
2. If we found any defective products within warranty ,what Smarts should us do for the defective product ?
Answer: We give 3 years warranty for dimmable led driver. If clients use properly, hardly any of feedback from our clients about the led drivers can not work or damaged during warranty time..
If you have received feedback about defective led driver from your clients, pls. ask your engineer help us verify the things as following:
--What kind of led light they used ?? What specifications of this led light?? output power / output voltage / output current??
--Check the label and ensure the driver has the proper input voltage and wattage for the job. Pls. not install overload / overvoltage / overcurrent. That will great damage lifetime of led drivers.
--Do clients have correct connection? and if they use proper dimmer ?
--what is environment temperature when led driver working on?
Install only in dry or damp locations. Do not install in wet locations. / Install in a well-ventilated area free from explosive gases and vapors.
--How long does the led drivers working everyday? Do not let the led drivers working 24/7(24hours and a week).
