UL Slim LED Driver Surge Protection 24v 30 watt

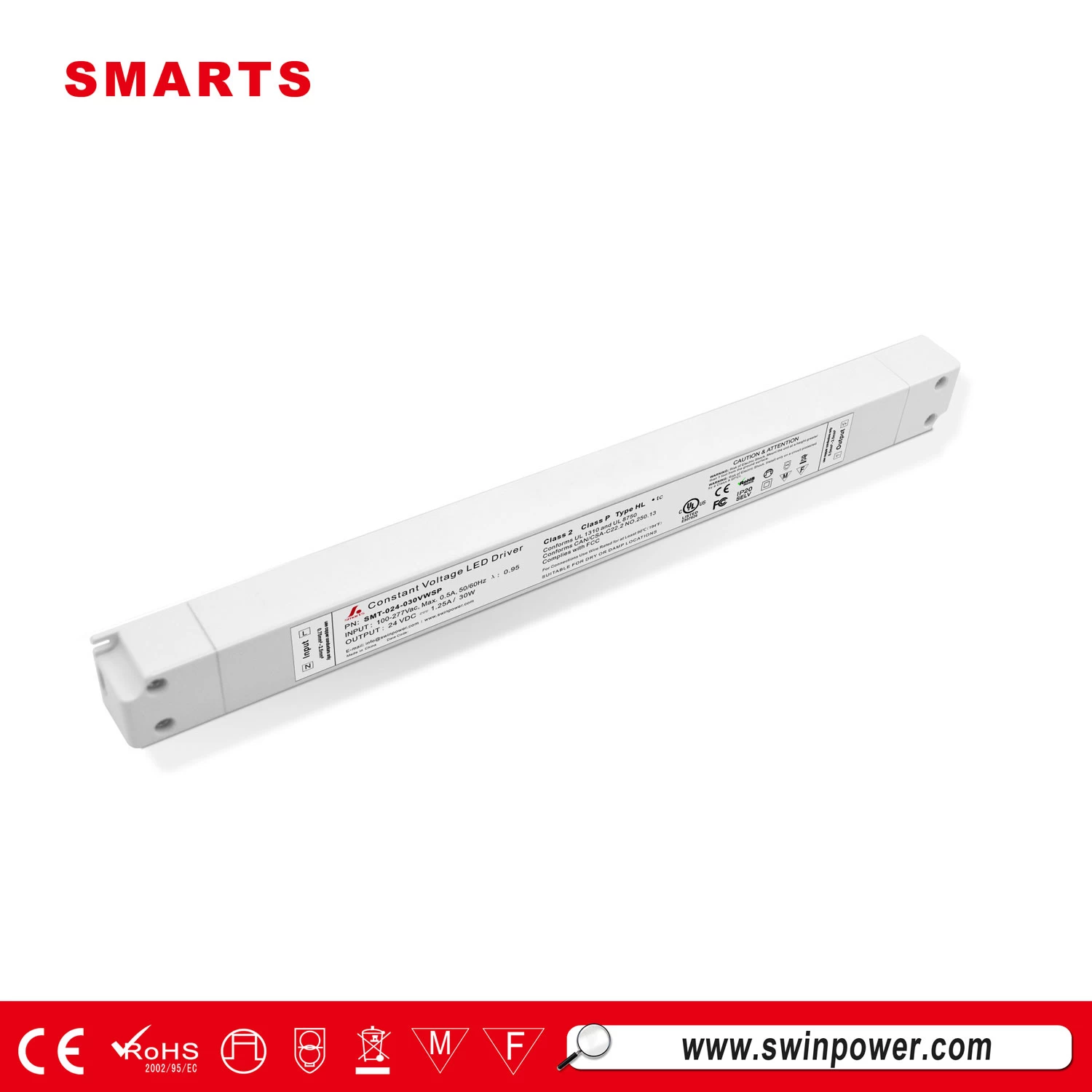

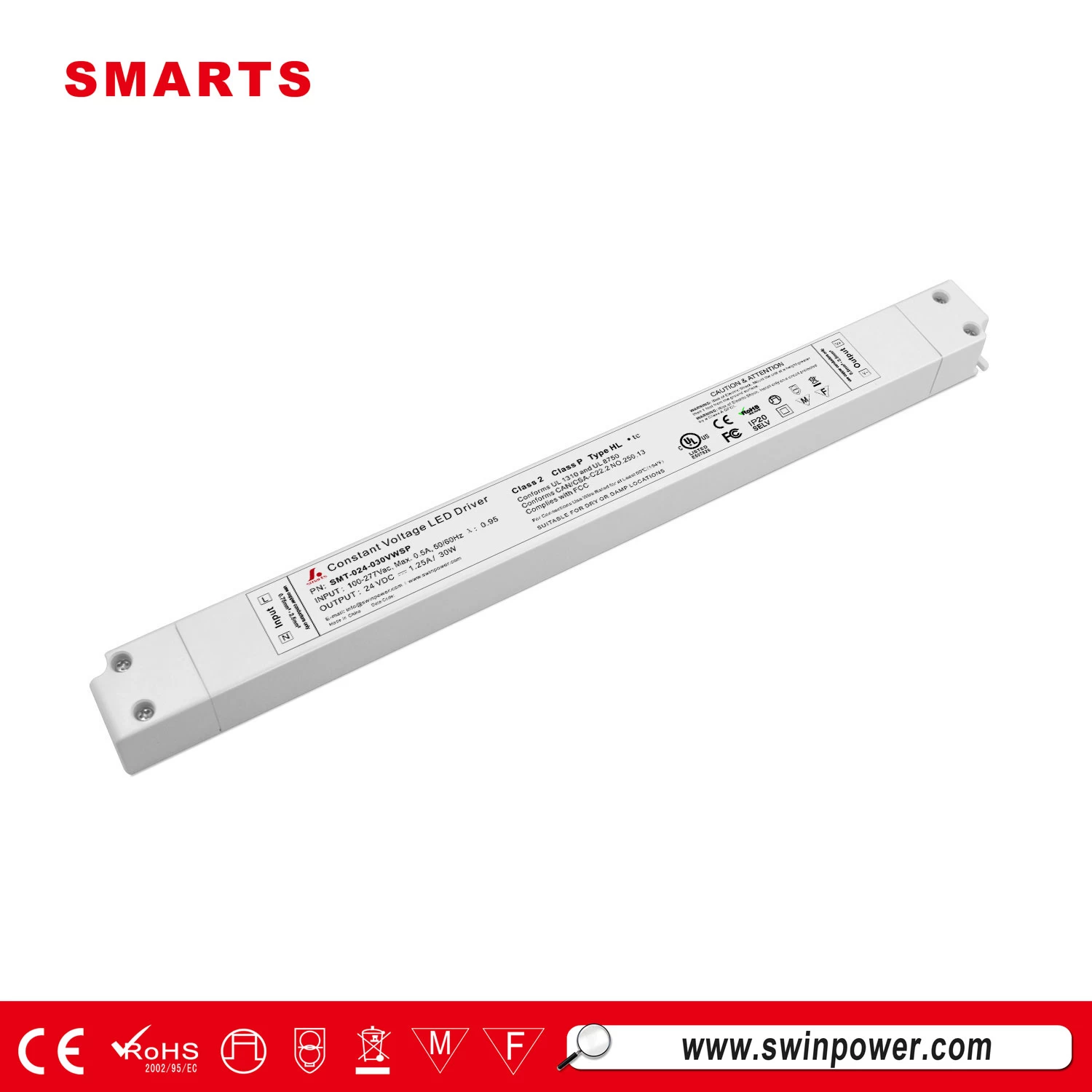

Smarts Electronics's SMT-024-030VWSP is a range of 30W Single Output IP20 Rated LED Lighting UL led driver 24v with wide-ranging universal AC input of 100~ 277Vac. These LED power supplies have built-in active PFC and are of IP20 design for indoor installations. Other features of SMT-024-030VWSP include short circuit, over current, over voltage and over temperature protections.
Can the power supplies be made with cords attached? We need them to have a 1.8m 18AWG cord with 3-prong USA plug for the AC input.
Answer: The power supplies we offered can be made with 1.8m 18AWG cord with 3-prong USA plug for the AC input.
Send us as more as details about the customized cables you need, then our purchasing department will search the right one for you.
Features for 30w led driver:
Output constant voltage type
Input voltage range 100-277VAC
UL/cUL listed, Class 2, Class P approval
Built-in PFC function / Efficiency > 84% / PF> 0.95
Protections:short circuit/over voltage/over heat
IP20 design for indoor dry environment installations
Cooling by free air convection
PWM output, does not change the color index
Full protection aluminum housing, for dry, damp, wet location
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
7 years warranty
|
model
|
SMT-012-030VWSP
|
SMT-024-030VWSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.98@230VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
82%@120VAC ; 83%@230VAC; 84%@ 277VAC
|
|
AC Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;
12A,50%480us@277VAC
12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.20Kg
|
|
Size
|
260*32*18mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Mechanical Specification for led driver surge protection:
Ø Input with Live Wire(L) Neutral Wire (N)
Ø Output terminals "Red" to LED Positive side (+) and "Black" to LED Negative side (-).
Derating Curve for led driver 24v:
l Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life
Connecting Diagram for slim led driver :
