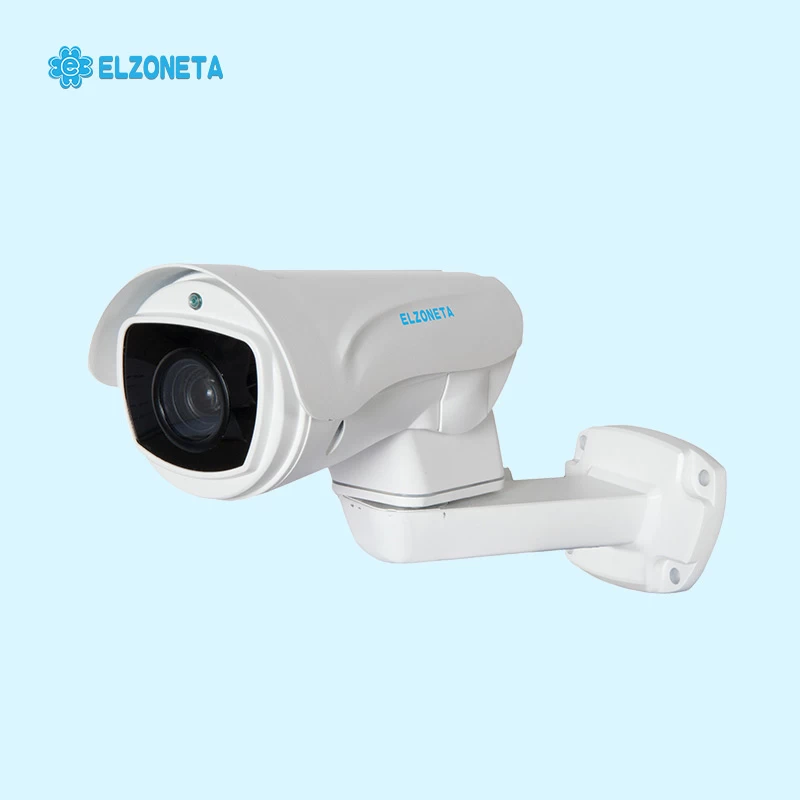

EC-G11 PTZ Bullet Camera
PTZ IP Bullet Camera is one of the important products in CCTV Security System. Compare with others, it has the same features as other PTZ CCTV Cameras, but the advantage of this kind of PTZ Bullet Camera is smaller than the speed dome camera, so it would be more flexible and lighter. It is suitable to install in the corner of the malls, shops, hotels and so on.
Features:
* Total Metal housing, IP66
* A-B scan, tour available
* Support audio ( optional)
* Support built-in POE(optional)
* Support Onvif;Support P2P function
* Support H.265/H.264/MJPEG compression,triple stream, video output
* Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform
Specifications:
|
Camera
|
|
Item No
|
EC-G11S-5
|
EC-G11X-5
|
EC-G11S-10
|
EC-G11X-10
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS 5MP AR0521
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS 5MP AR0521
|
|
Output pixel
|
1920x1080/30fps
1920x1080/25fps
|
2592x1944@15fps
2592x1520@22fps
|
1920x1080/30fps
1920x1080/25fps
|
2592x1944@15fps
2592x1520@22fps
|
|
Lens
|
5X f=2.7mm~13.5mm
|
5X f=2.7mm~13.5mm
|
10X f=5.1mm~51mm
|
10X f=5.1mm~51mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/manual
|
|
WB
|
Auto/manual/indoor/outdoor
|
|
S/N Ratio
|
>50dB
|
|
Technical Parameters
|
|
Communications Protocol
|
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
|
|
Software Control
|
IE, CMS, Management Platform
|
|
Video compression
|
H.264/H.265/M-JPEG
|
|
audio compression
|
G711，PCM
|
|
Mobile View(optional)
|
Android iPhone
|
|
Rotation Range
|
Pan:0º~200º , Tilt:-45º~40º
|
|
Rotation Speed
|
Pan:0~30°/s , Tilt:0~25º/s
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
Guard Tours
|
3 groups( Max.16 points, dwell time user selectable)
|
|
AB scan range
|
Any point in range:-45º~40º and 0º~200º
|
|
AB scan speed
|
1-9 grades
|
|
Operating temperature
|
Outdoor: -40℃~+60℃
|
|
Operation menu
|
English
|
|
Consumption
|
≤15W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Related validation
|
IP66,CE,FCC,RoHs
|
|
IR parameters
|
|
IR distance
|
Up to 100 meters
|
|
LEDs
|
6 PCS Array 42Mil IR LED
|
4 PCS Array 42Mil IR+2 PCS Laser LED
|
