3+3 Pins POT30 Electronic Transformer Bobbin 6 Pins Phenolic Vertical Bobbin

3+3 Pins POT30 bobbin for transformer. Phenolic bobbin.

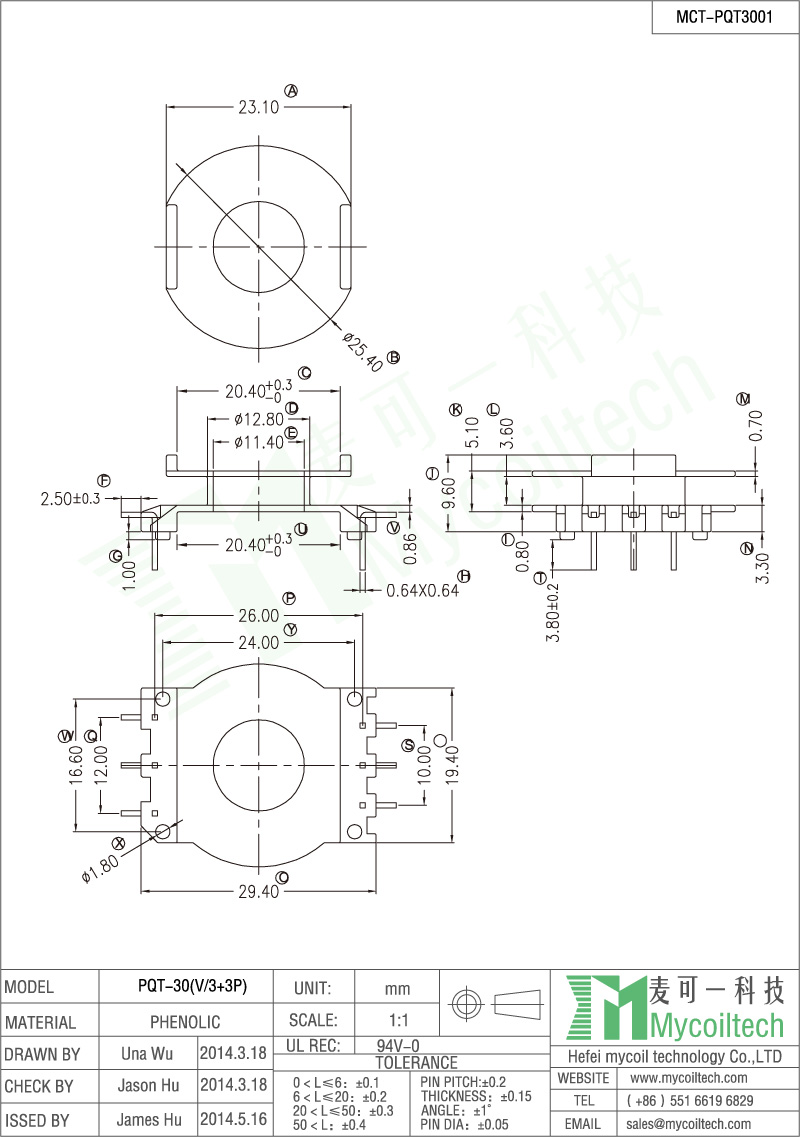

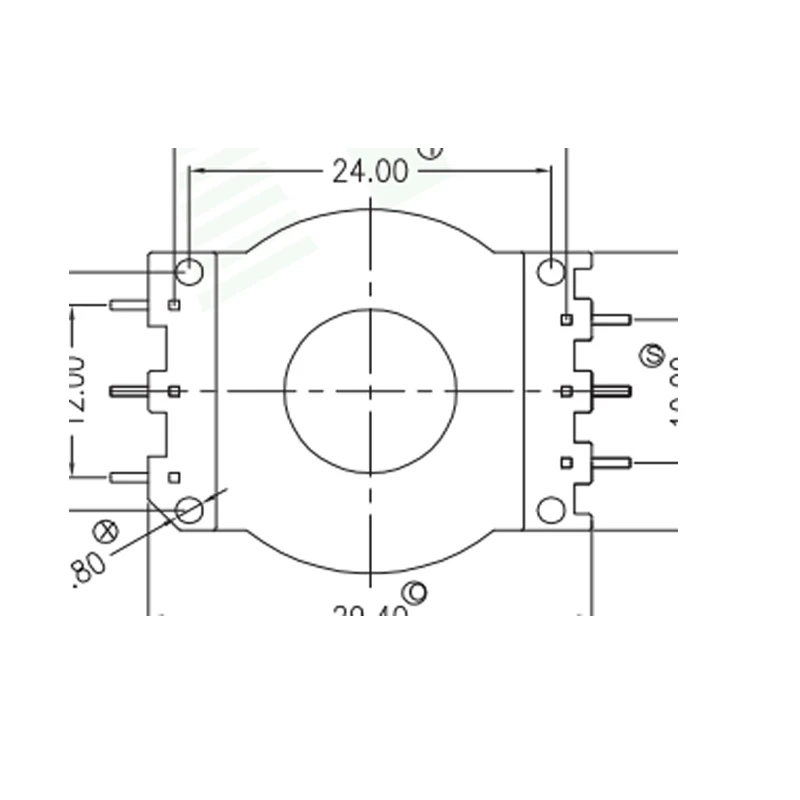

6 Pins vertical transformer bobbin.Parallel Distance=26mm.

Bobbin Size=29.4mmX25.4mmX9.6mm. UL REC:94V-0.



Hot selling POT30 3+3 Pins vertical transformer bobbin. We are professional transformer bobbin factory. If you are looking for customized transformer bobbins, welcome to contact us.


Quick Details

Part Number: MCT-POT3001(V3+3P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 3+3 Pins POT30 Electronic Transformer Bobbin 6 Pins Phenolic Vertical Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

High quality 3+3 Pins POT30 vertical bobbin for electronic transformer
