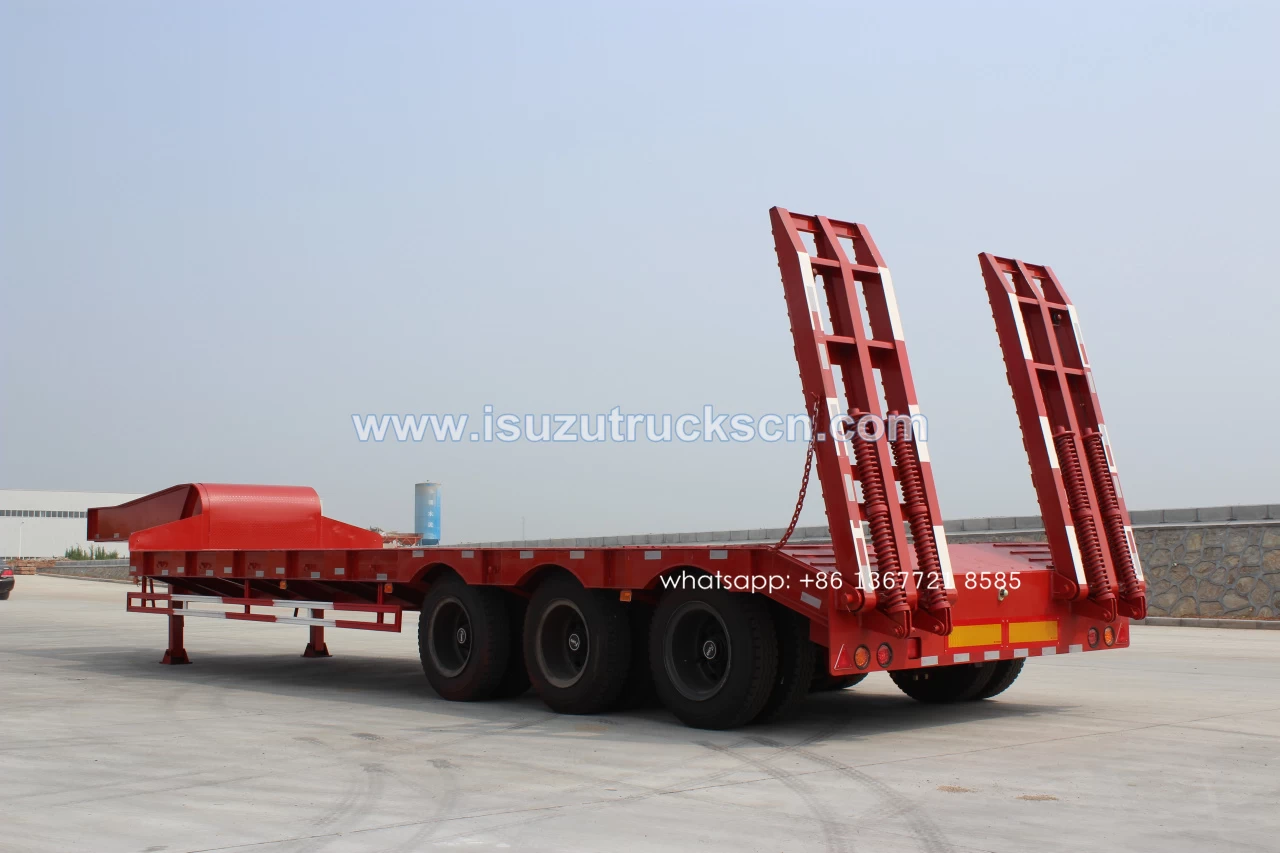

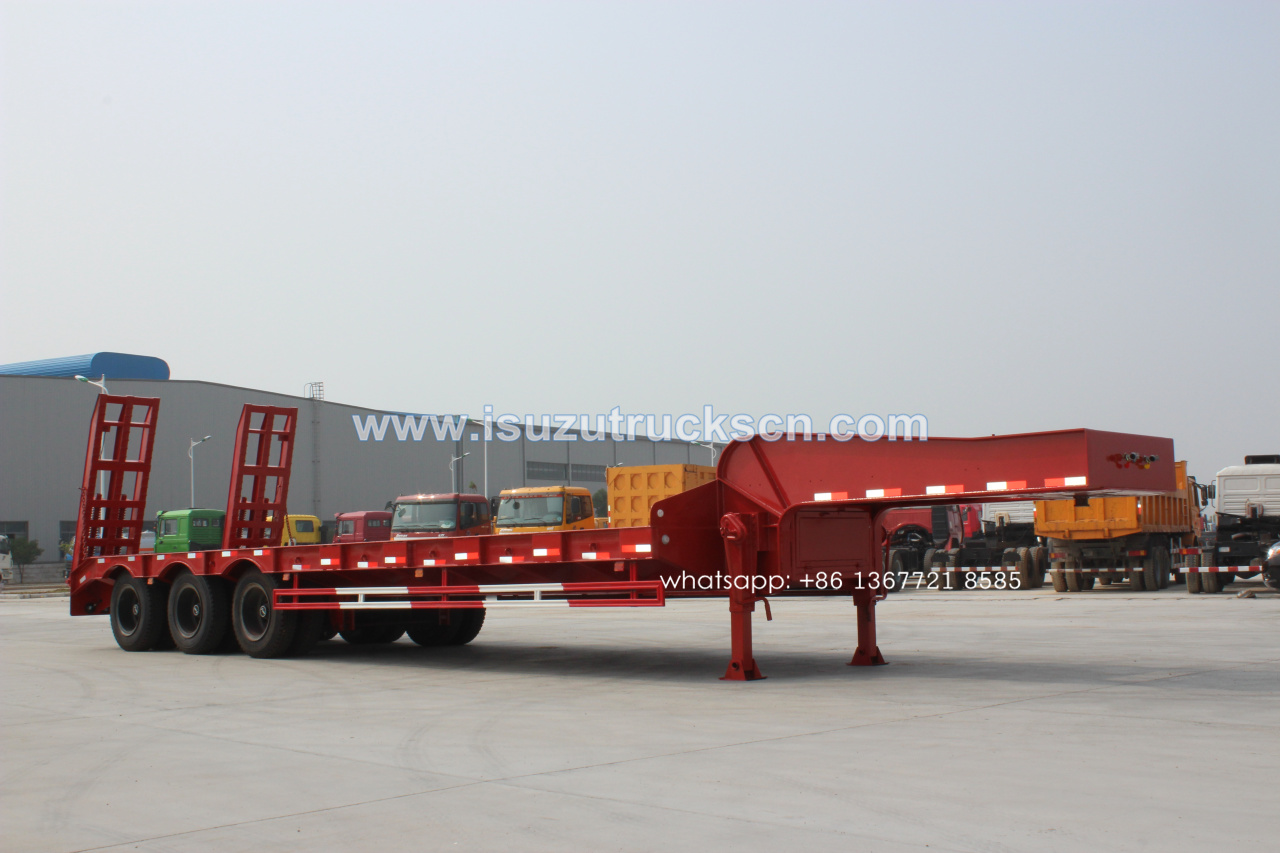

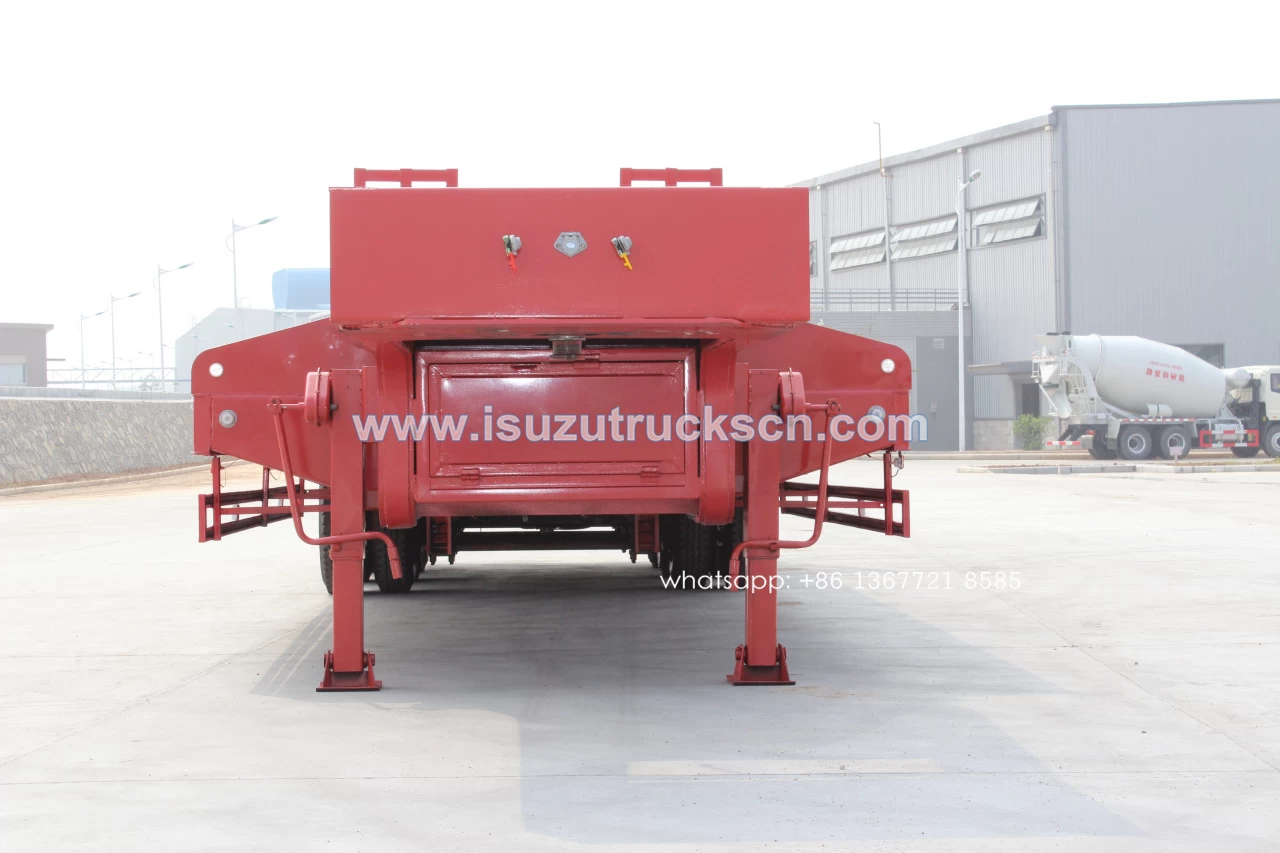

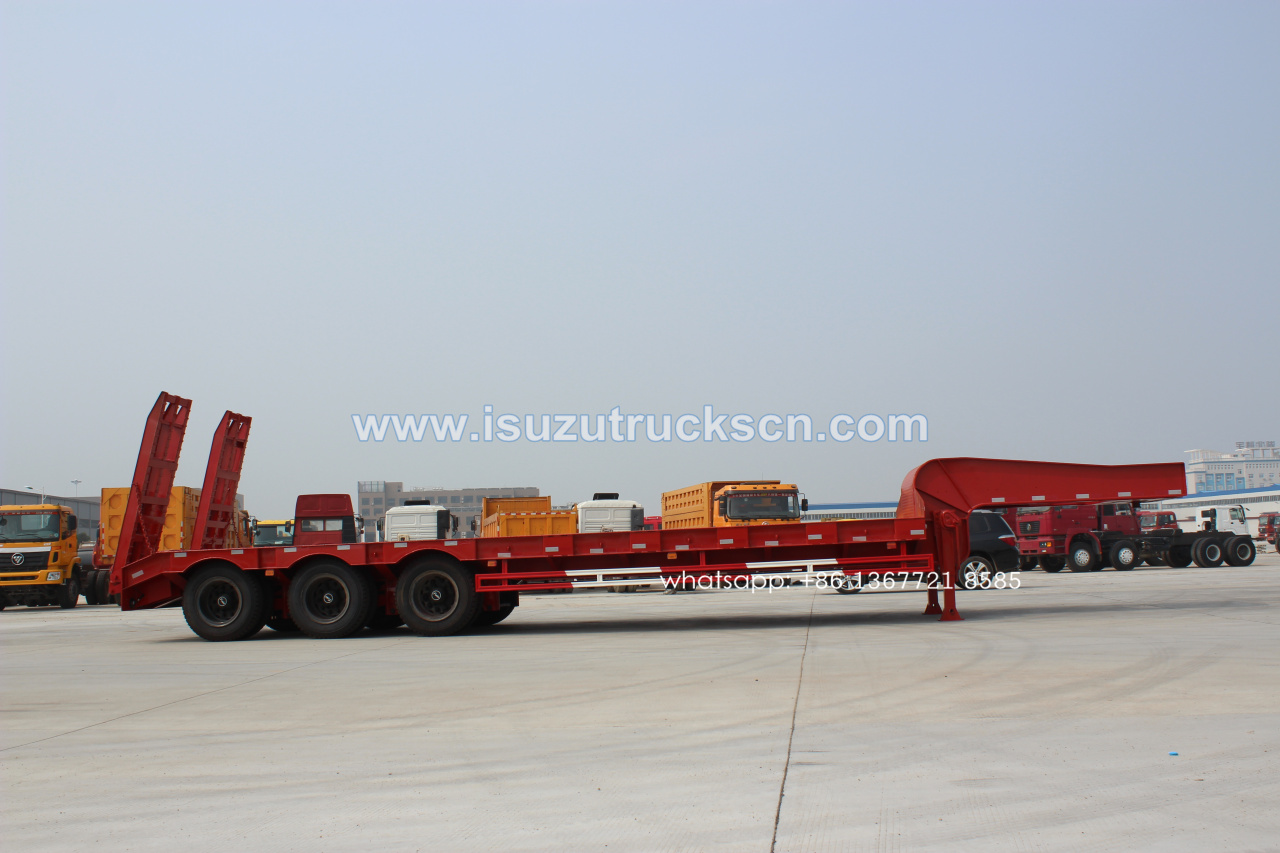

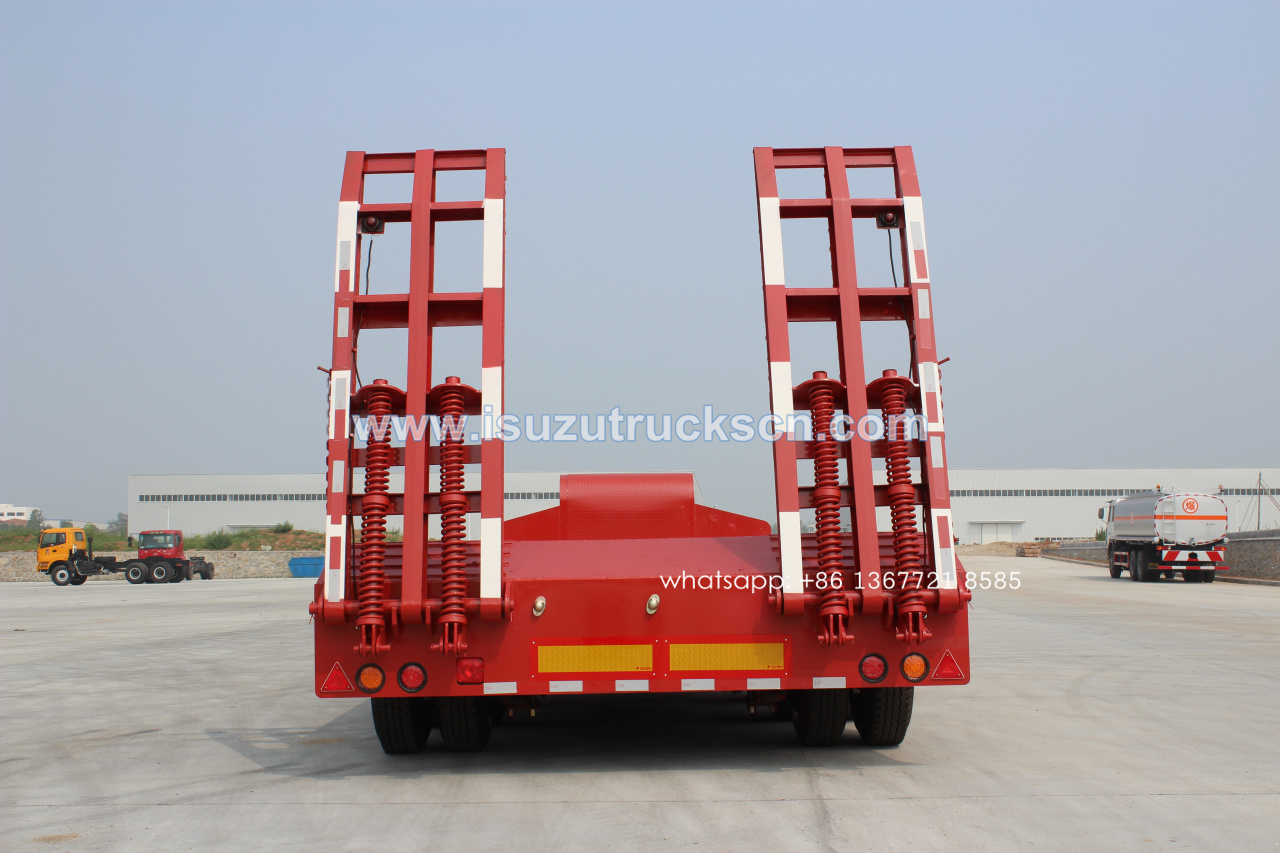

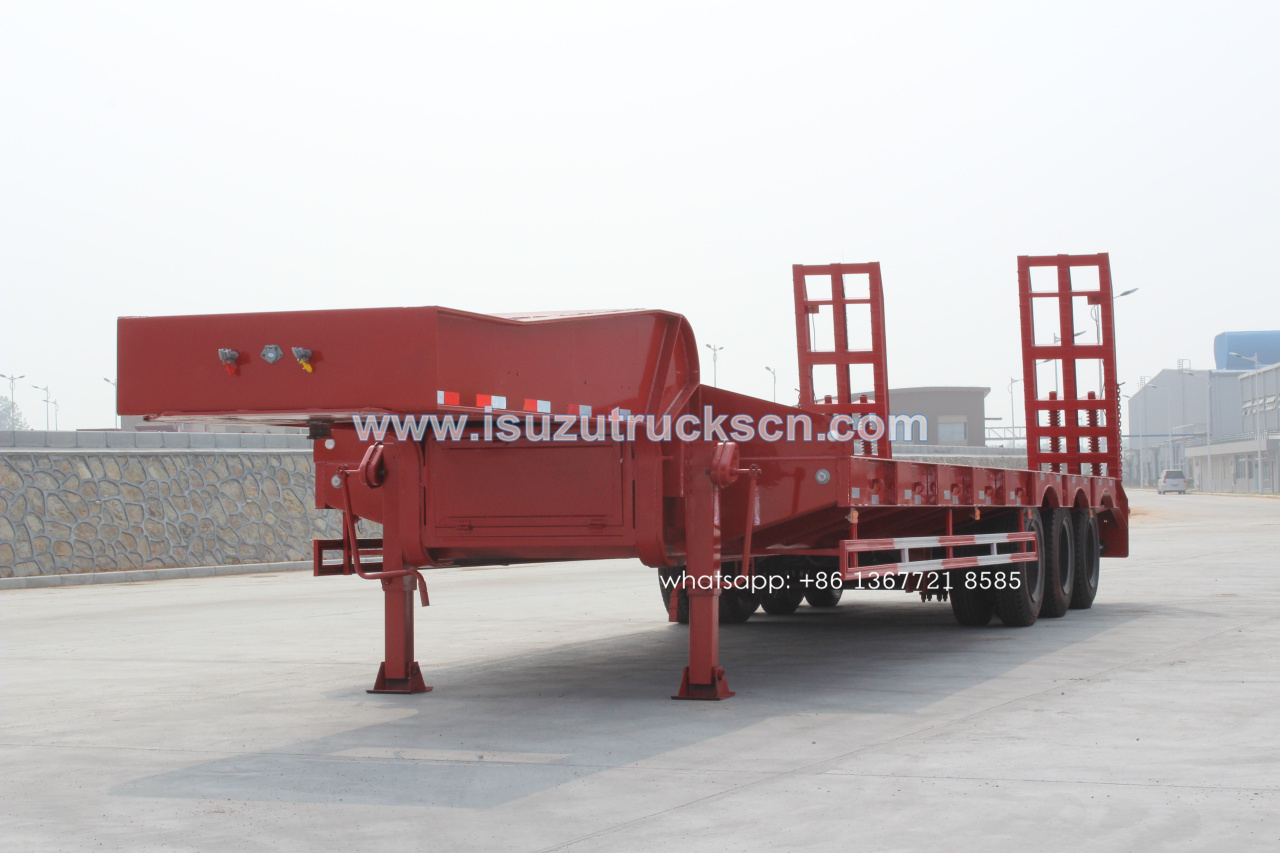

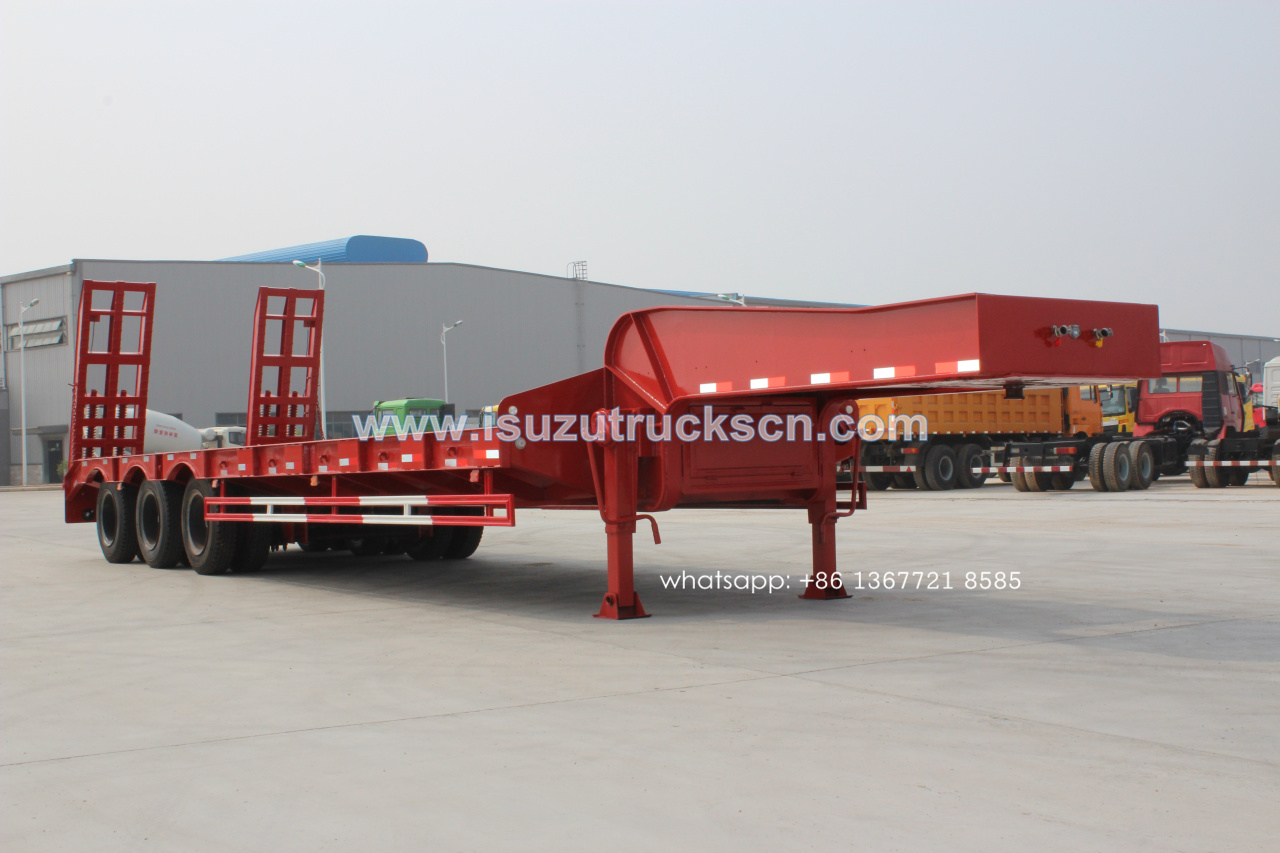

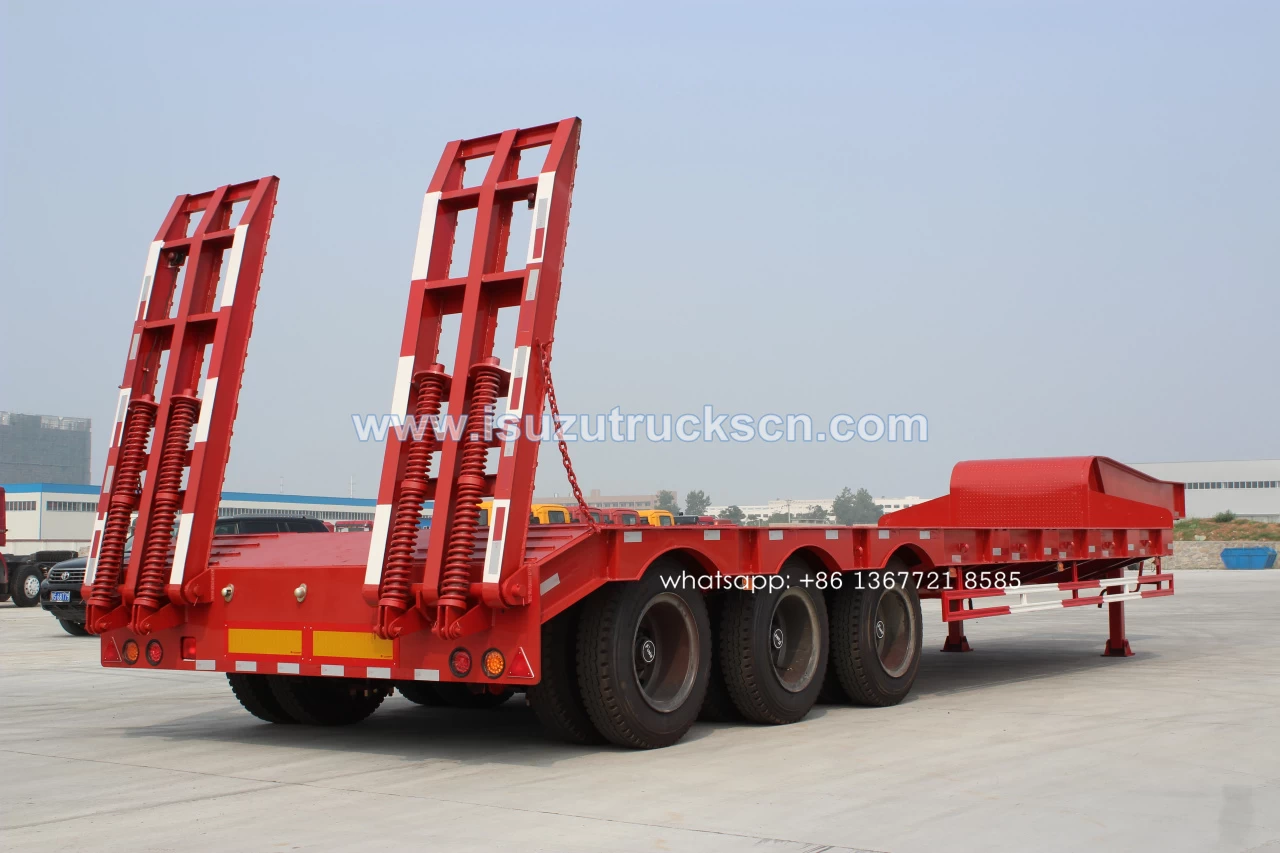

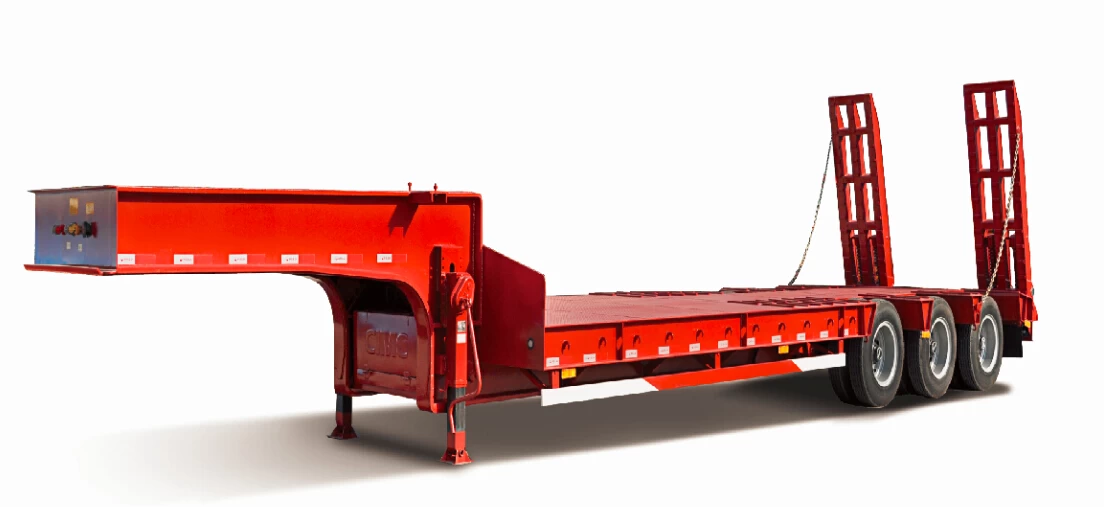

Powerstar lowbed semi trailer used to transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc
| DIMENSIONS |
| Tare Weight |
8500kg |
| Payload |
40000kg |
| Total Weight |
48500kg |
| Overall Length |
12000mm |
| Overall Width |
3000mm |
| Overall Height |
3100mm |
| |
|
| Wheel Track |
2160mm |
| Wheel base |
7400mm+1300mm+1300mm |
| SPECIFICATION |
| Main Frame |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes
500mm Height “I” beam, Top Flange 14mm,width 140mm; Middle Flange 8mm ; Bottom Flange 20mm,width 140mm |
| Floor |
Steel Sheet 3mm thickness |
| Axle |
3Units of FUWA13Ton axle |
| Suspension |
A couple of FUWA style mechanical 3-axle suspension |
| Leaf Spring |
6 sets of reliable local brand, 9Pcs leaf spring,16x90mm |
| King Pin |
One unit of 3.5`` standard bolted-in kingpin |
| Landing Gear |
JOST-D200 Two-speed, manually operating, heavy duty landing leg |
| Wheel Rim |
13 units of 8.25-22.5 rim |
| Tyre |
13 units of 11R22.5 tubeless tyre |
| Twist Lock |
8sets, front rear 4 sets stable, middle 4 sets moveable up & down, of ISO twist lock |
| Spare Wheel Carrier |
One set of spare wheel carrier including a riser. |
| Pneumatic Braking System |
Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; four units of T30 brake chamber two units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. |
| Electrical System |
One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; tail lamp with turn signal, brake light & reflector ,side lamp etc.
One set of DAFA (brand ) 6-core standard Cable. |
| Painting |
Sand blasting processing clean rust
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as customer choice |
| Accessory |
One tooling box with whole set of standard trailer tool |
| |
|
|
For the specification above , we reserve the right to make any changes without notice
