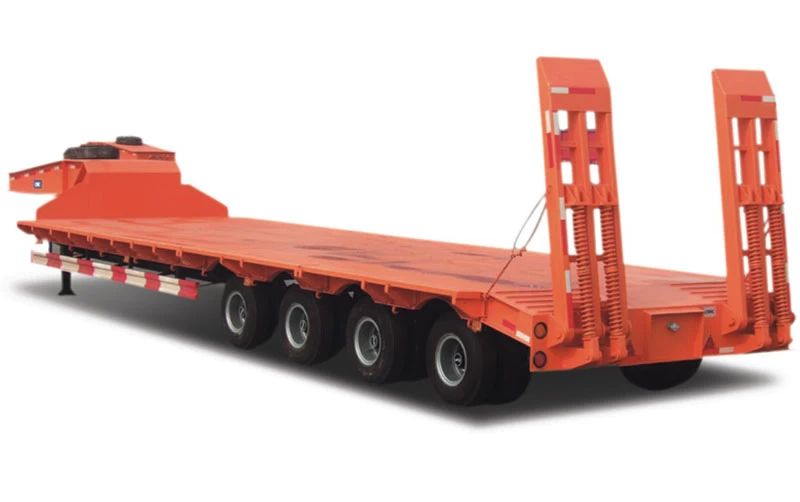

4 Axles Heavy Lowbed trailer

China Heavy Cargo 40ft Lowbed Semi Trailer With Best Quality,Heavy duty 3 axle low bed trailer lowbed semi trailer for sale,Algeria Import Lowbed Semi Trailers, 3 Axles Low Bed Trailer For Sale

Facebook Twitter Pinterest LinkedIn 分享



Technical parameters



Model number SCD9400TDP
Total size 13,000x3,000x1,650 mm
Working size 9,000x3,000x1,300 mm
Loading weight 80,000 kg
Departure angle 16
Axle brand 16 ton FUWA Brand axle
Axle number 4
Wheelbase 8,580+1,310+1,310 mm
Suspension system mechanical suspension
Steel spring 10/10/10/10 leaf spring suspension
Main beam

Beam height 500 mm

Upper plate  18 mm

Down plate  20 mm

middle plate  12 mm
Platform plate 5 mm diamond plate
Tire type and quantity Radial tire 11.00R20 x 16 units
Ladder with ladder
Tration pin 2" or 3.5"
Landing gear Standard 28T
Brake system Dual line braking system
Brake air chamber Six big dual chamber
Spare wheel bracket 2 pieces
Painting One coat anti-rust prime, two coats final paint
Light Tail lamp with turn singal, brake light& reflector, side lamp, etc
