3 Cores Medium Voltage Power Cables
MAIN KEYWORDS
3 cores medium voltage power cable, N2XSY power cable, BS 6622 XLPE-PVC power cable,
BS 7835 XLPE-LSZH power cable, 8.7/10kV 8.7/15kV 26/35kV and other MV power cable with voltage rate.
APPLICATION CHARACTERISTICS

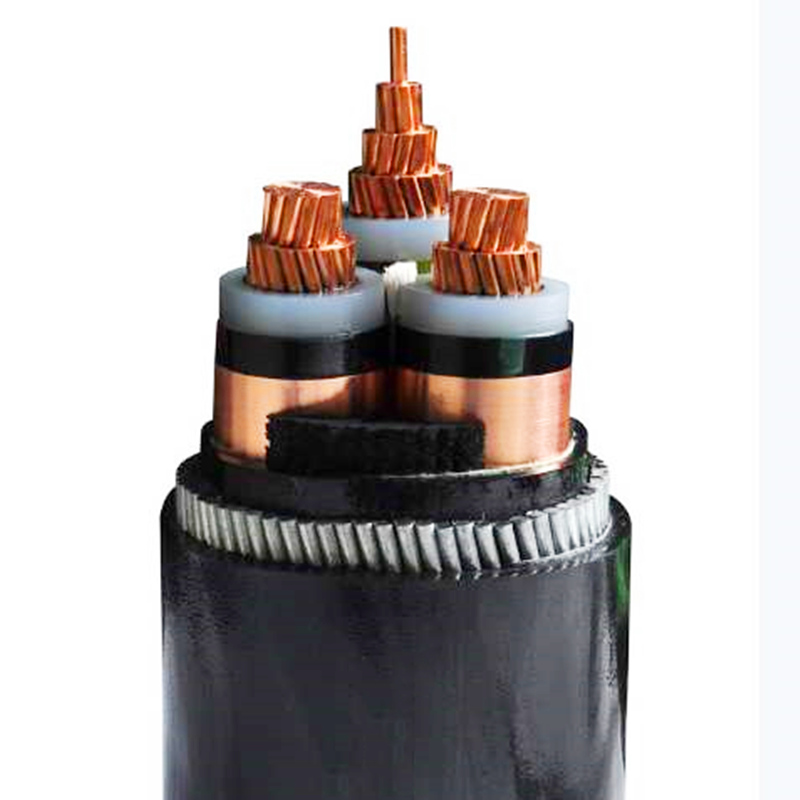

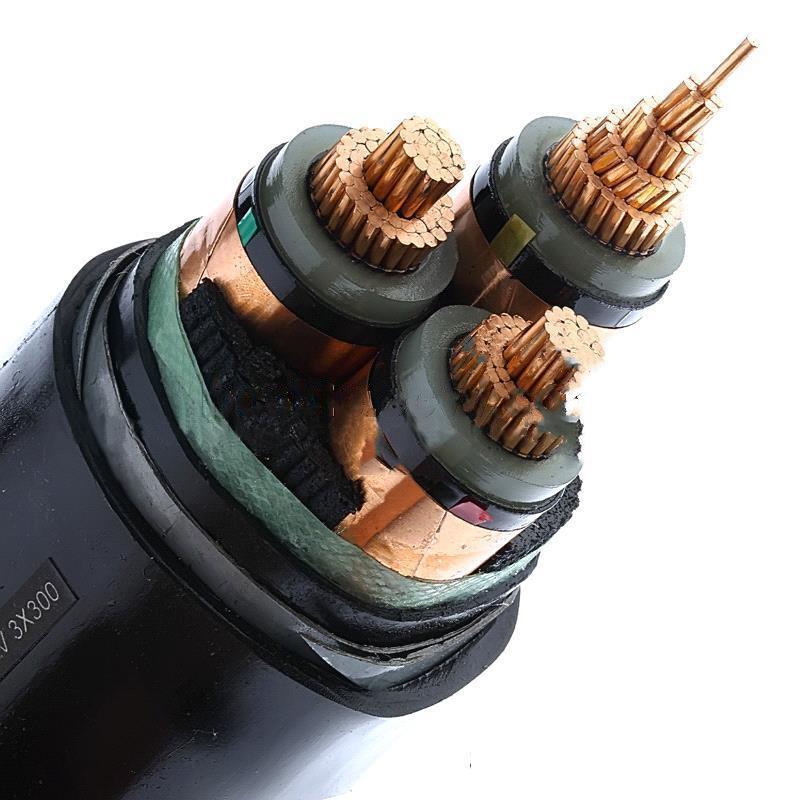

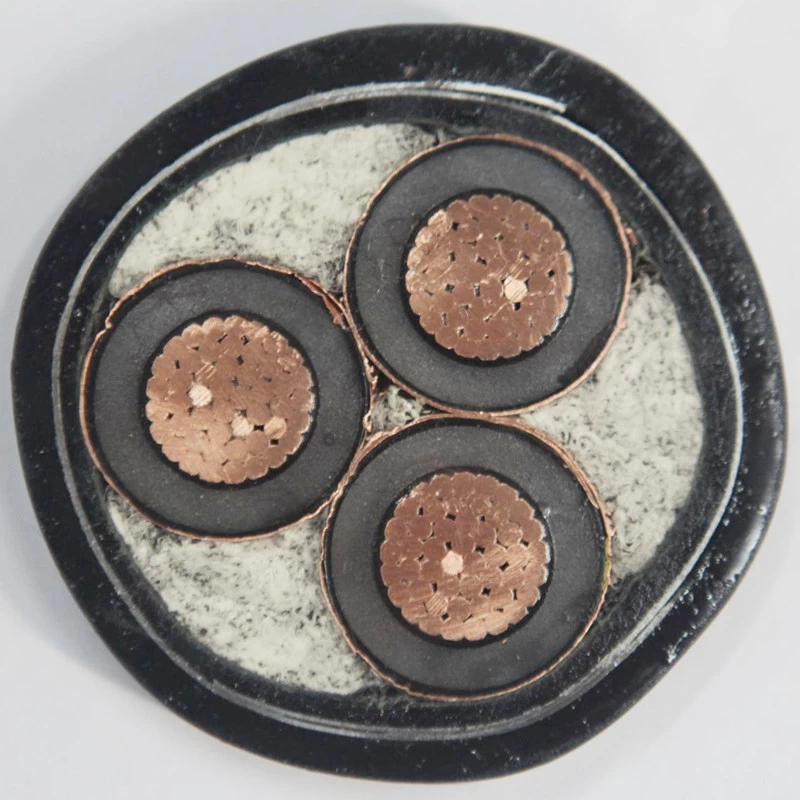

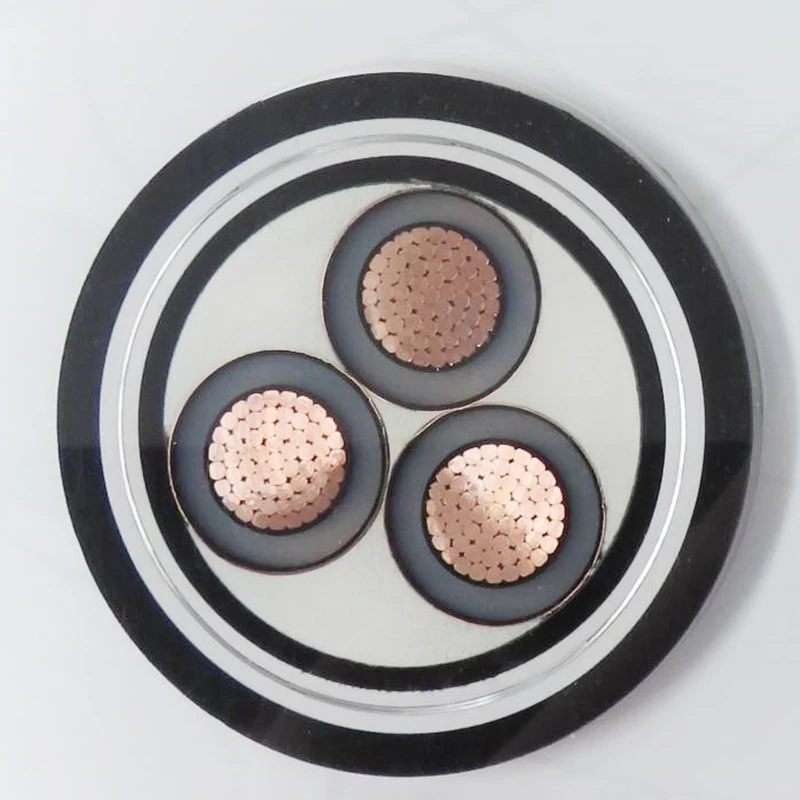

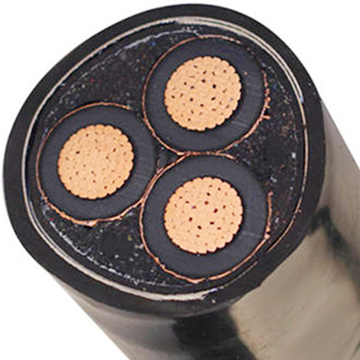

3 cores medium voltage power cable, copper
wire or aluminum wire conductor, semi-conductive screened tape, XLPE insulated,
semi-conductive screened tape, PVC inner sheath, copper tape screened, PVC
inner sheath, steel tape or steel wire armored (armored material is optioned), PVC
out sheath, U0/U: 3.6/6kV～26/35kV.
Medium
voltage power cable is applied to the transmission and distribution lines with rated
voltage from 3.6/6kV to 26/35kV, to be laid directly in ground, outdoors,
indoors and in cable ducts.
PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed compacted stranded copper wire.
---Conductor Identification
Colored tape under the screen
---Insulation Material
XLPE (cross-linked
polyethylene).
---Screen Material
Semi-conducting
layer with a copper tape screen covering each core
---Bedding Material
PVC (Polyvinyl
chloride)
---Armored Material (option)
Galvanized steel
tape, or galvanized steel wire.
---Out Sheath Material
PVC (Polyvinyl
chloride)
---Sheath Color
Black, or
others.
---Core Number
3 cores, 3C.
---Voltage Rate (U0/U)
3.6/6kV～26/35kV
---Working Temperature
-15℃～+90℃.
---Minimum Bending Radius
20 x Out
Diameter
---Production Standard
GB/T 12706, IEC
60502, BS 6622, BS 7835, VDE 0276.
---Products Delivery
Within 15-20 working days as soon as we received the deposit.

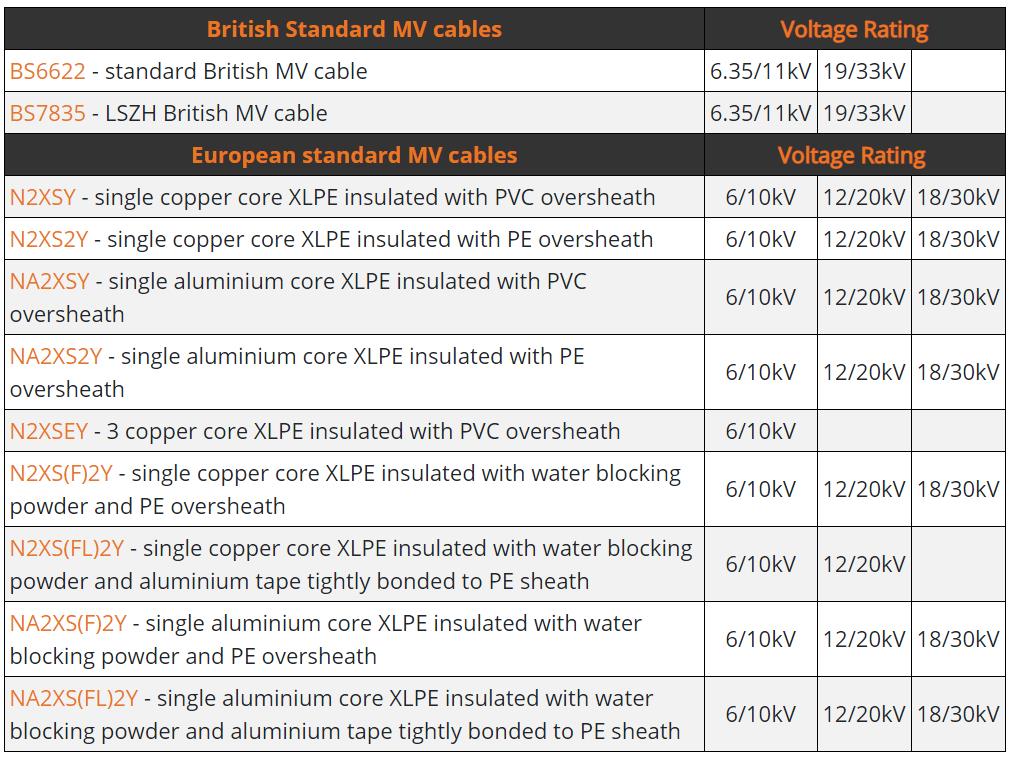

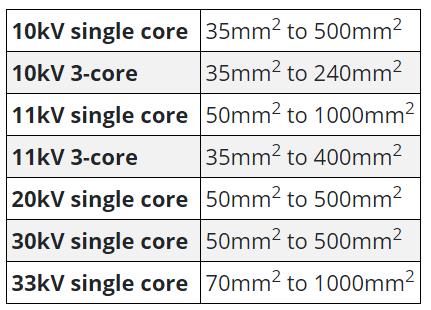

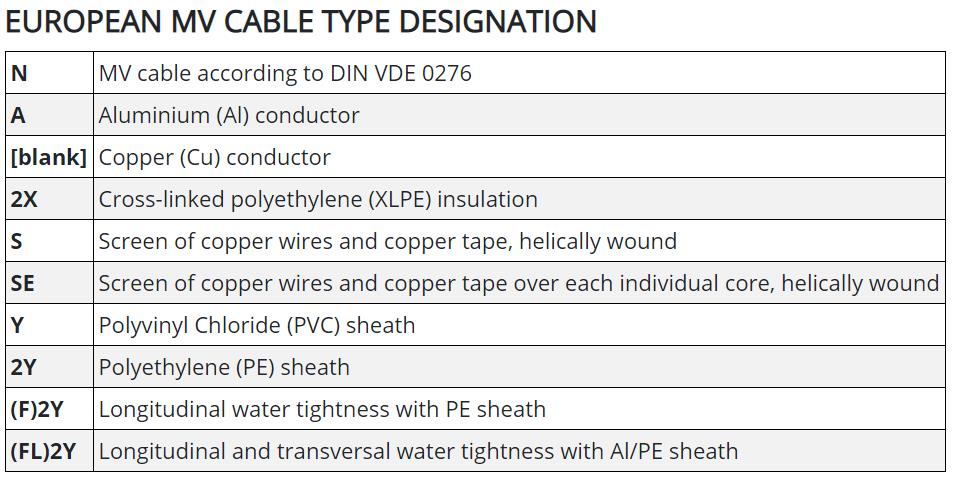

PRODUCTS TYPES
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has
a few of different.
---Fore the single core medium voltage power cable, according
to the practice, the common specification is 95～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
