Single core Medium Voltage Power Cables

Single core Medium Voltage Power Cables, 3.6/6kV~26/35kV, CU/XLPE/PVC/PVC, CU/XLPE/PVC/STA/PVC, CU/XLPE/PVC/SWA/PVC. Compacted stranded copper conductor, Colored tape under the screen, XLPE insulation,

Semi-conducting layer with a copper tape screen covering each core, PVC inner sheath, steel tape or steel wire armored

(is optioned), PVC out sheath. The cable can be complied with GB/T 12706, IEC 60502, BS 6622, VDE 0276 and other standard.



Single Core Medium Voltage Power Cables


MAIN KEYWORDS

Single core medium voltage power cable, N2XSY power cable, BS 6622 XLPE-PVC power cable,

BS 7835 XLPE-LSZH power cable, 8.7/10kV 8.7/15kV 26/35kV and other MV power cable with voltage rate.


APPLICATION CHARACTERISTICS

Single core medium voltage power cable, copper wire or aluminum wire conductor, semi-conductive screened tape, XLPE insulated, semi-conductive screened tape, PVC inner sheath, copper tape screened, PVC inner sheath, steel tape or steel wire armored (armored material is optioned), PVC out sheath, U0/U: 3.6/6kV~26/35kV. Medium voltage power cable is applied to the transmission and distribution lines with rated voltage from 3.6/6kV to 26/35kV, to be laid directly in ground, outdoors, indoors and in cable ducts.

Notice: For the single core power cable, their metallic armored material should be used non-magnetic steel tape or steel wire.

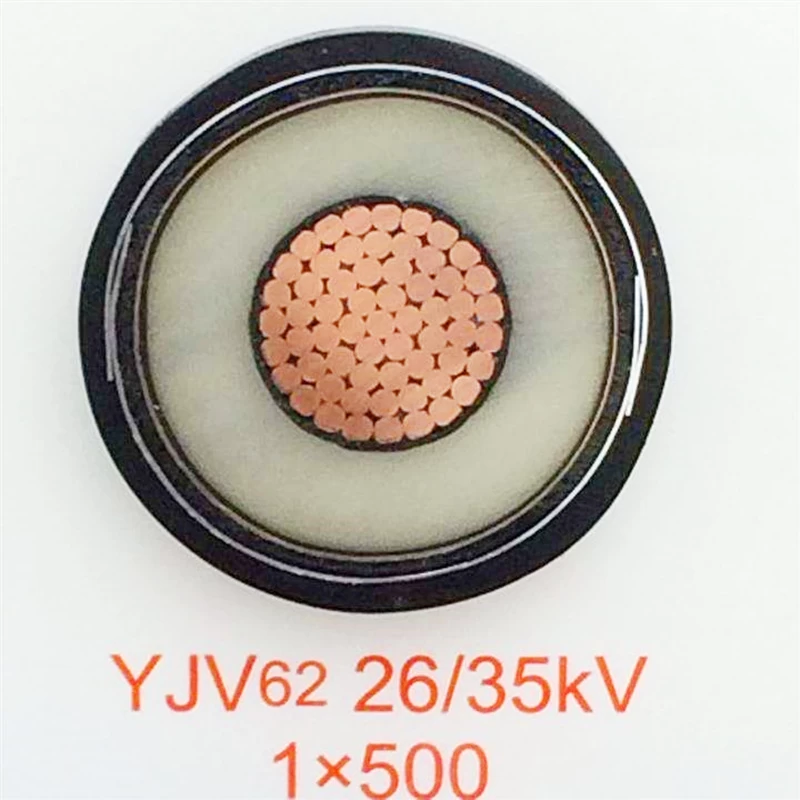

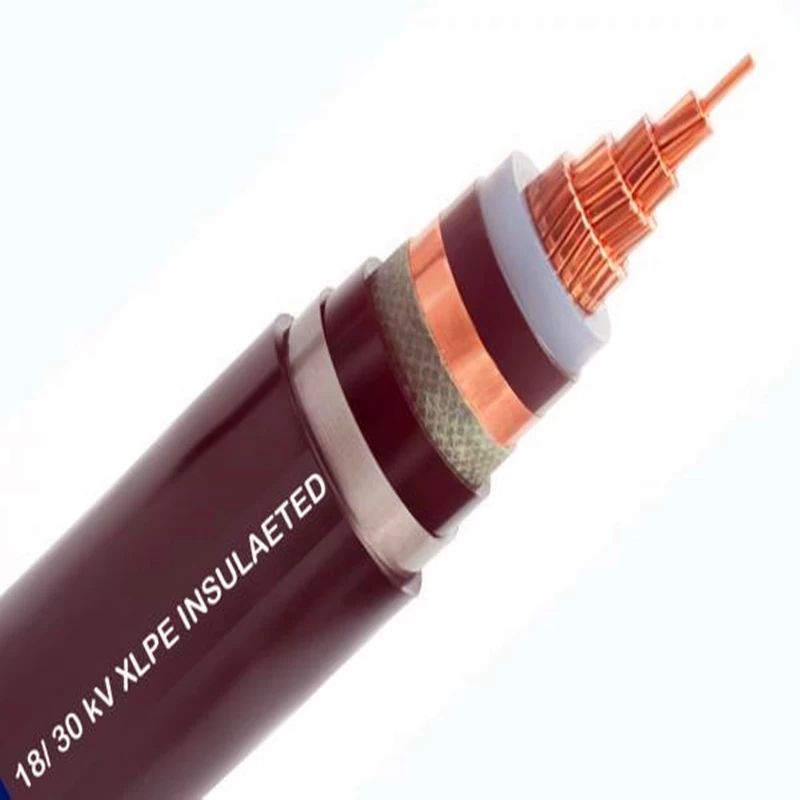

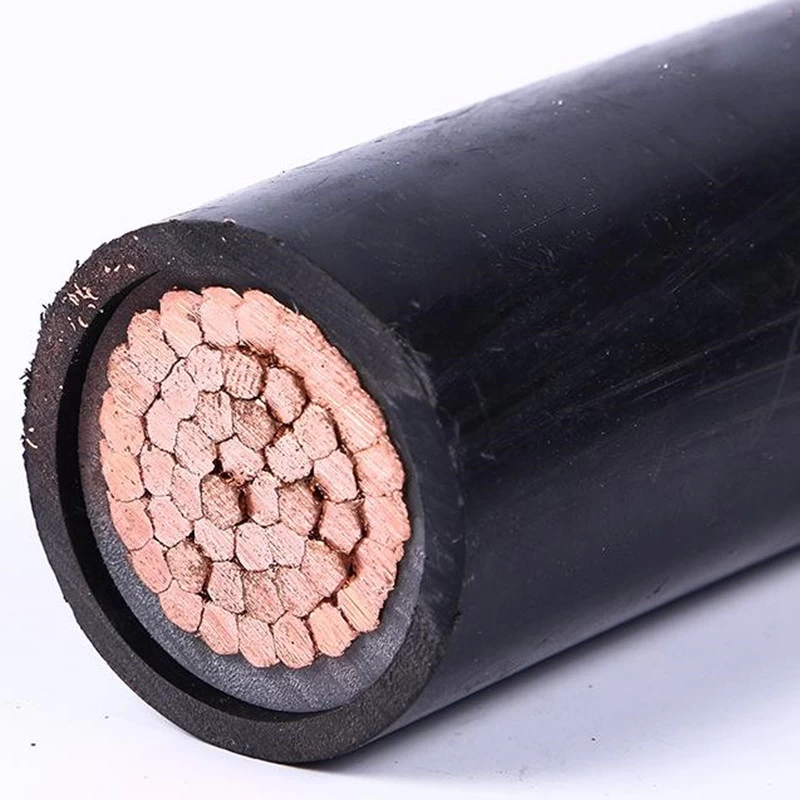

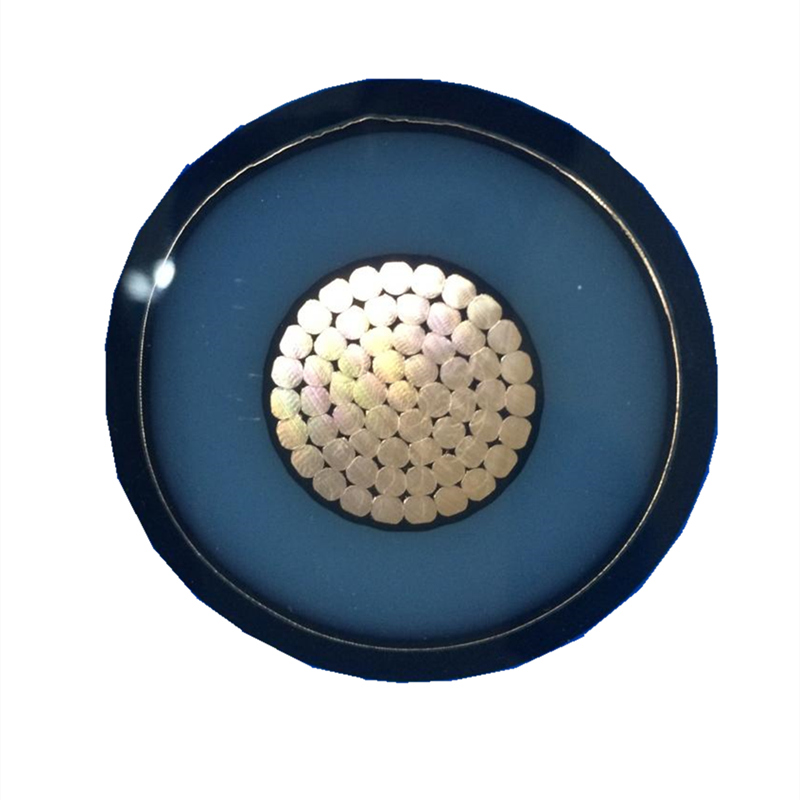

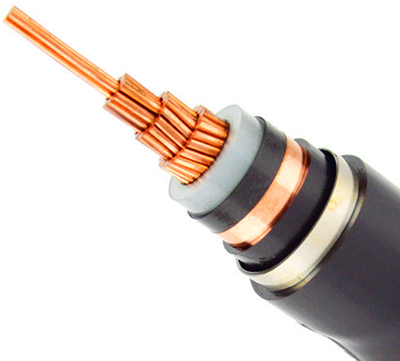

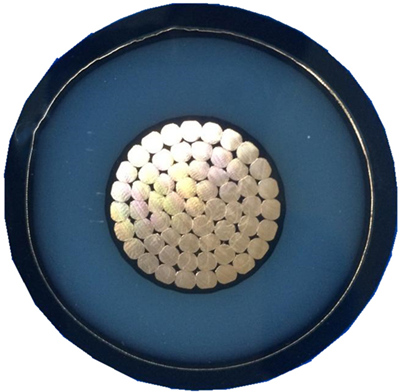

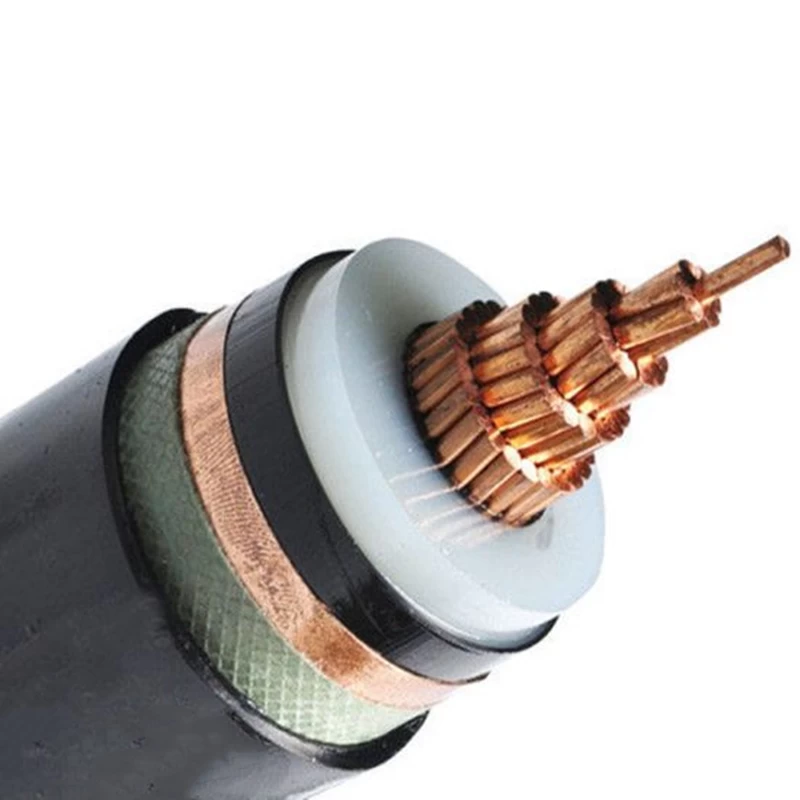

PRODUCTS STRUCTURE

---Conductor Material

 Plain annealed compacted stranded copper wire.

---Conductor Identification

    Colored tape under the screen

---Insulation Material

    XLPE (cross-linked polyethylene).

---Screen Material

    Semi-conducting layer with a copper tape screen covering each core

---Bedding Material

    PVC (Polyvinyl chloride)

---Armored Material (option)

    Galvanized steel tape, or galvanized steel wire.

---Out Sheath Material

    PVC (Polyvinyl chloride)

---Sheath Color

    Black, or others.

---Core Number

    Single core, 1C.

---Voltage Rate (U0/U)

    3.6/6kV~26/35kV

---Working Temperature

    -15℃~+90℃.

---Minimum Bending Radius

    20 x Out Diameter

---Production Standard

    GB/T 12706, IEC 60502, BS 6622, BS 7835, VDE 0276.

---Products Delivery

    Within 15-20 working days as soon as we received the deposit.



REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has a few of different.

---Fore the single core medium voltage power cable, according to the practice, the common specification is 95~300 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.



MAIN ADVANTAGE


HOT-SELLING PRODUCTS


RAW MATERIAL


PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
