Functions
● Various label width, can be 16mm-82mm
● Label paper auto detection
● Temperature control function
● Modularity design and meet with various applications
|
Printing
|
|
Printing method
|
Direct thermal
|
|
Resolution
|
203DPI
|
|
Print width
|
16-82mm
|
|
Printing speed
|
MAX: 127mm/s;MIN: 50.8mm/s
|
|
Memory
|
DRAM: 4M FLASH: 4M
|
|
Print head temperature sensor
|
Thermal sensitive resistance
|
|
Paper exists detection
|
Photosensor
|
|

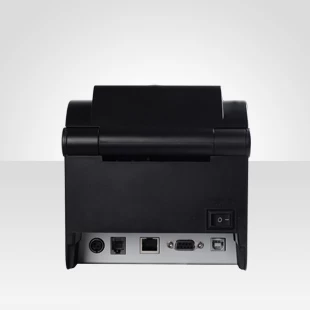

Interface
|
USB/Serial+USB+Lan
|
|
Character size
|
ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
|
|
Barcode Character
|
|
Barcode
|
CODE128,EAN128,ITF,CODE39,CODE93,EAN13,
|
|
EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,
|
|
CODABAR,POSTNET,UPC-A,UPCA+2,UPCA+5,
|
|
UPC-E,UPCE+2,UPC-E+5,CPOST,MSI,MSIC,
|
|
PLESSEY,ITF14,EAN14
|
|
Internal font
|
FONT 0 to FONT 8
|
|
Enlargement & rotation
|
(0°,90°,270°, 360°) 1 to 10 times enlargement in both direction; 0°,90°,270°, 360°
rotation
|
|
|
Monochromatic PCX, BMP image files can be load to FLASH, DRAM
|
|
Media type
|
|
|
Paper type
|
Paper roll, sticker, adhesive sticker, etc
|
|
Paper width
|
16mm~82mm
|
|
Roll external diameter
|
MAX 100mm
|
|
Roll inner diameter
|
MIN 25mm
|
|
Paper off type
|
Peel off
|
|
Power
|
|
|
Power supply input
|
24VDC, 2.5A
|
|
Physical characteristics
|
|
|
Weight
|
1.44KG
|
|
Dimensions
|
220(D) x 148(W) x 150(H)mm
|
|
Environmental Requirements
|
|
Work environment
|
5~45℃, 20-80%RH(no condensation)
|
|
Storage environment
|
-40~55℃,≤93%RH(40℃)
|
