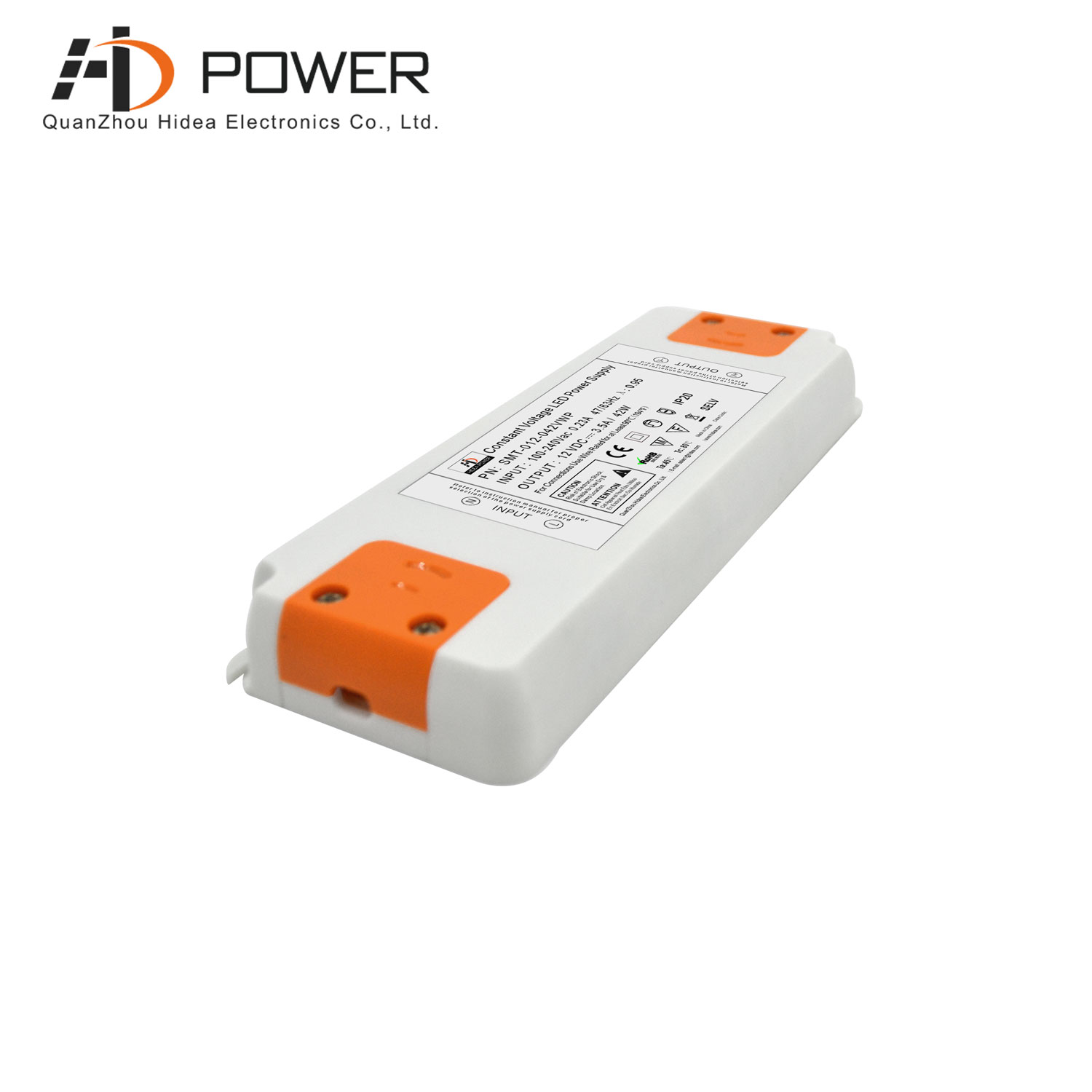

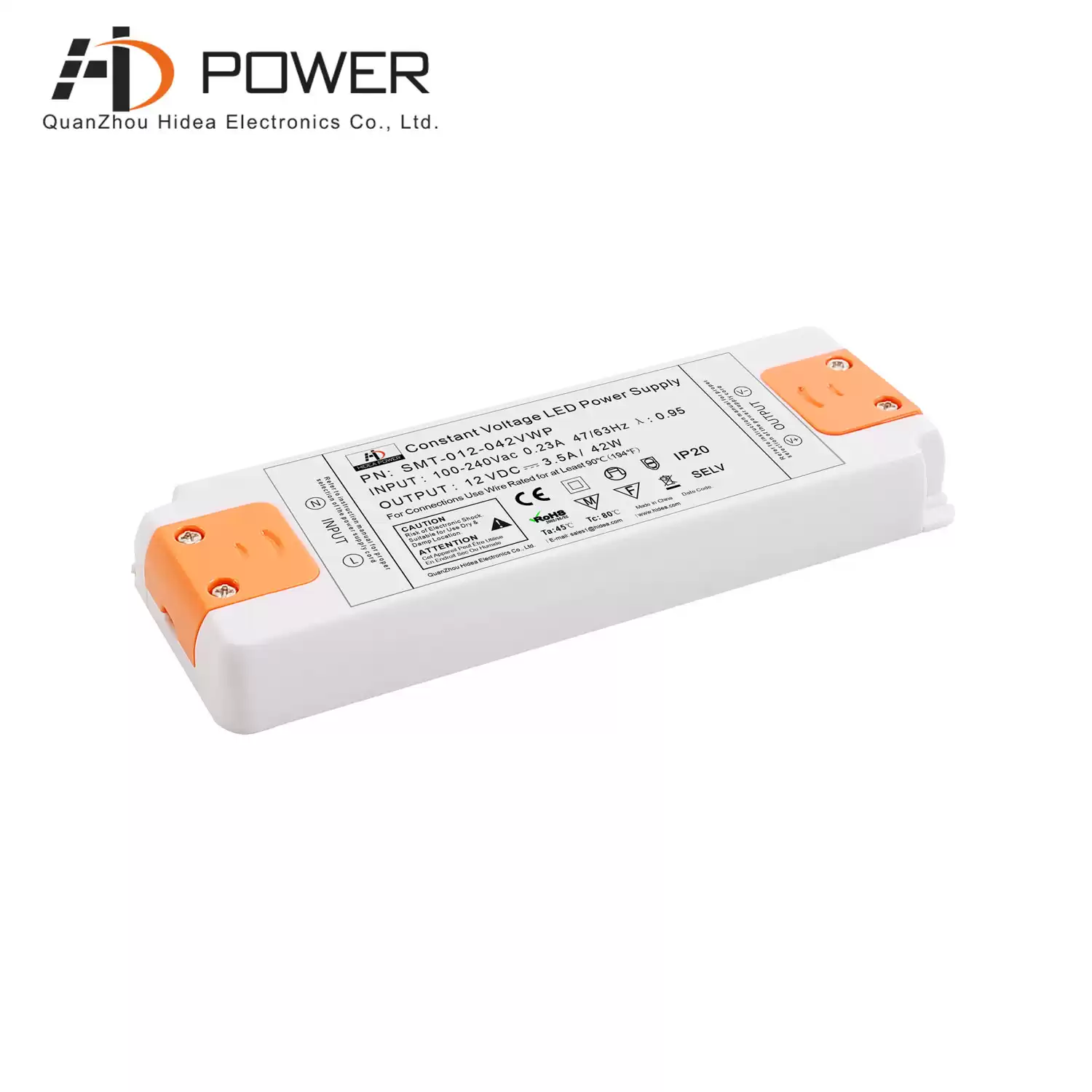

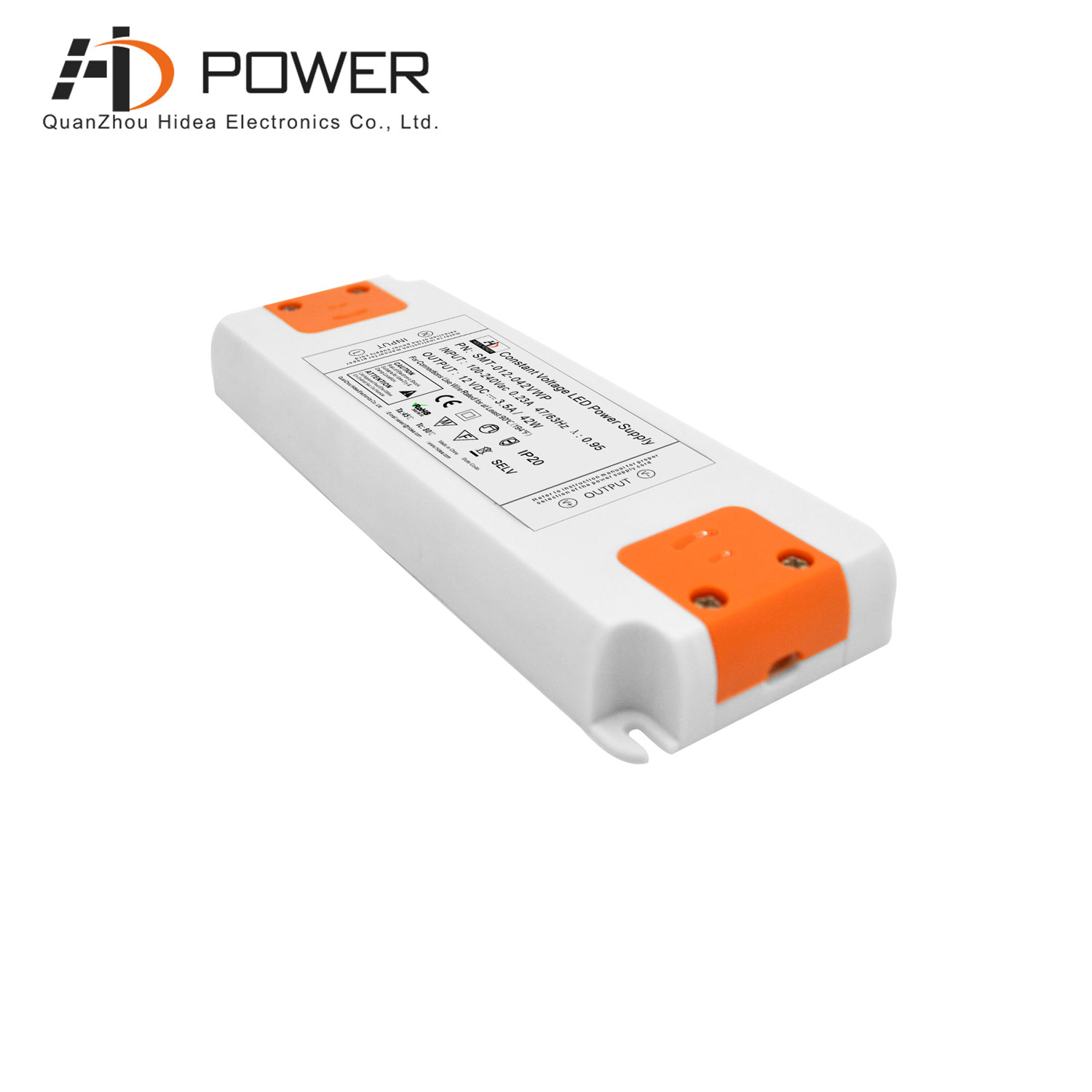

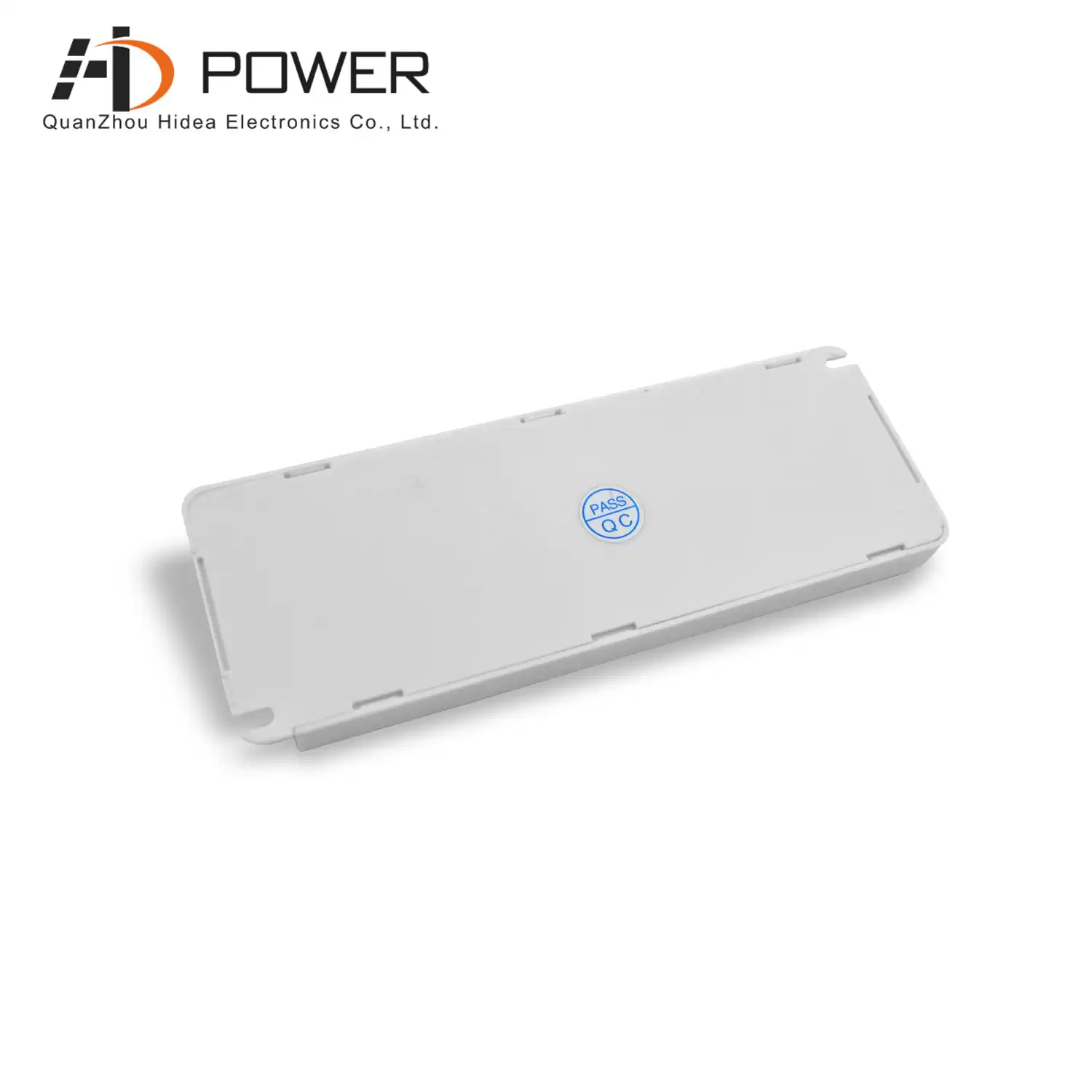

3 years warranty 12vdc 42w led driver for ceiling light
The led driver 42w 12V led driver will make your led lighting to be a "crative” to assess lighted environments from a human health perspective. They are green, efficency and heathy.
Specification
|
MODEL
|
SMT-012-042VWP
|
SMT-024-042VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
3.5Amp
|
1.75Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
42Watt
|
42Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWERFACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥84%
|
|
AC CURRENT(Typ.)
|
0.48A/110VAC, 0.25A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on toremoved
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGETEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

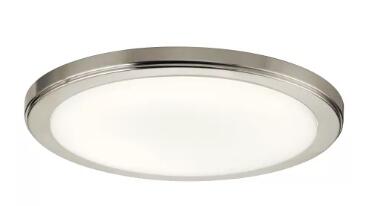

The 12vdc 42w led driver for ceiling light which is Wide Edge Lit LED Flush Mount Drum Ceiling Fixture - 4000K.
Related Products
|

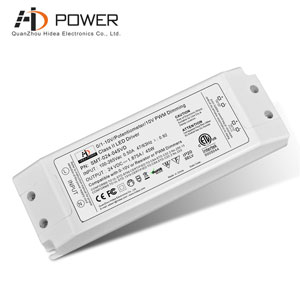

 The 12vdc 45w 0-10v dimmable led driver supply is 5 years warranty and wide input voltage for the universal using.
