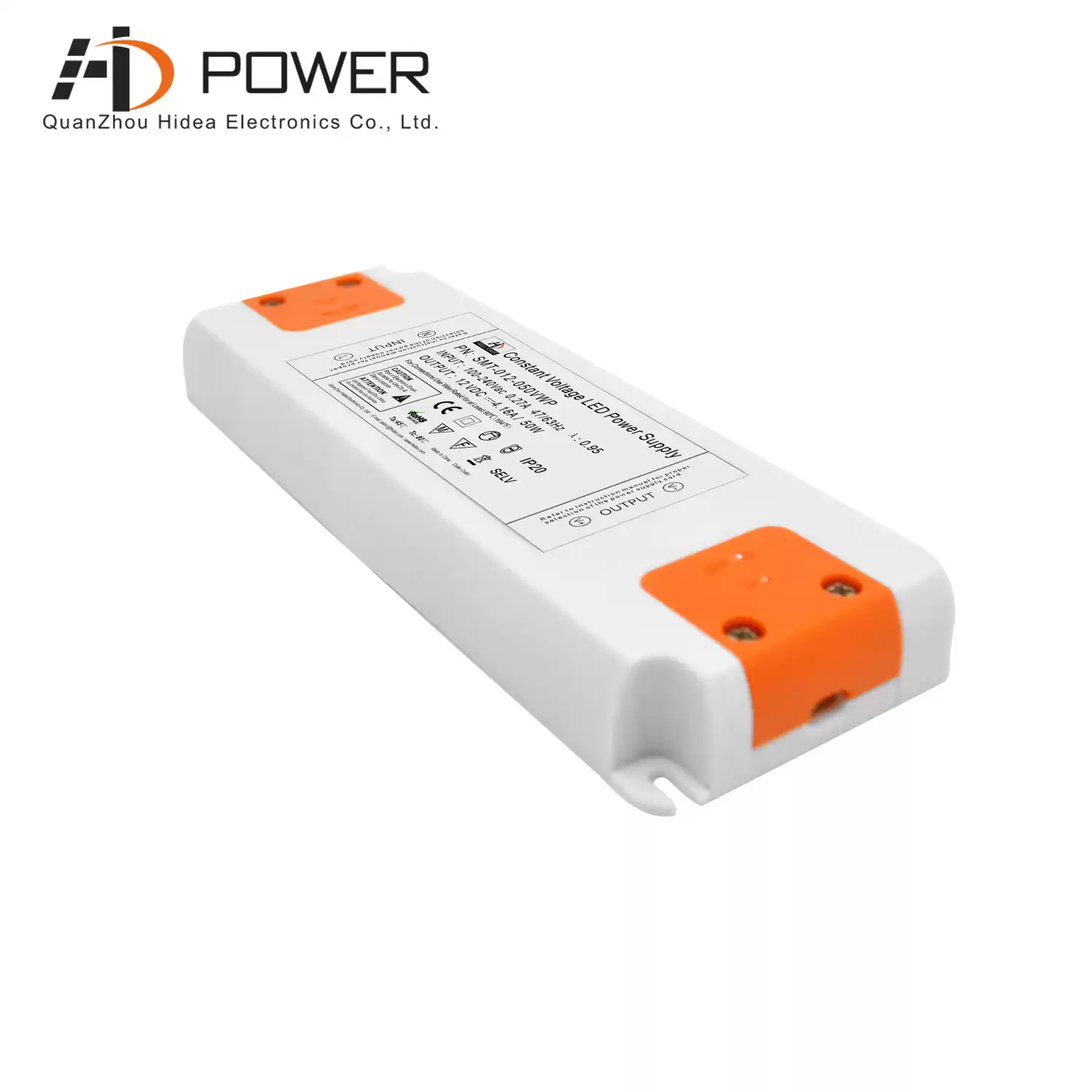

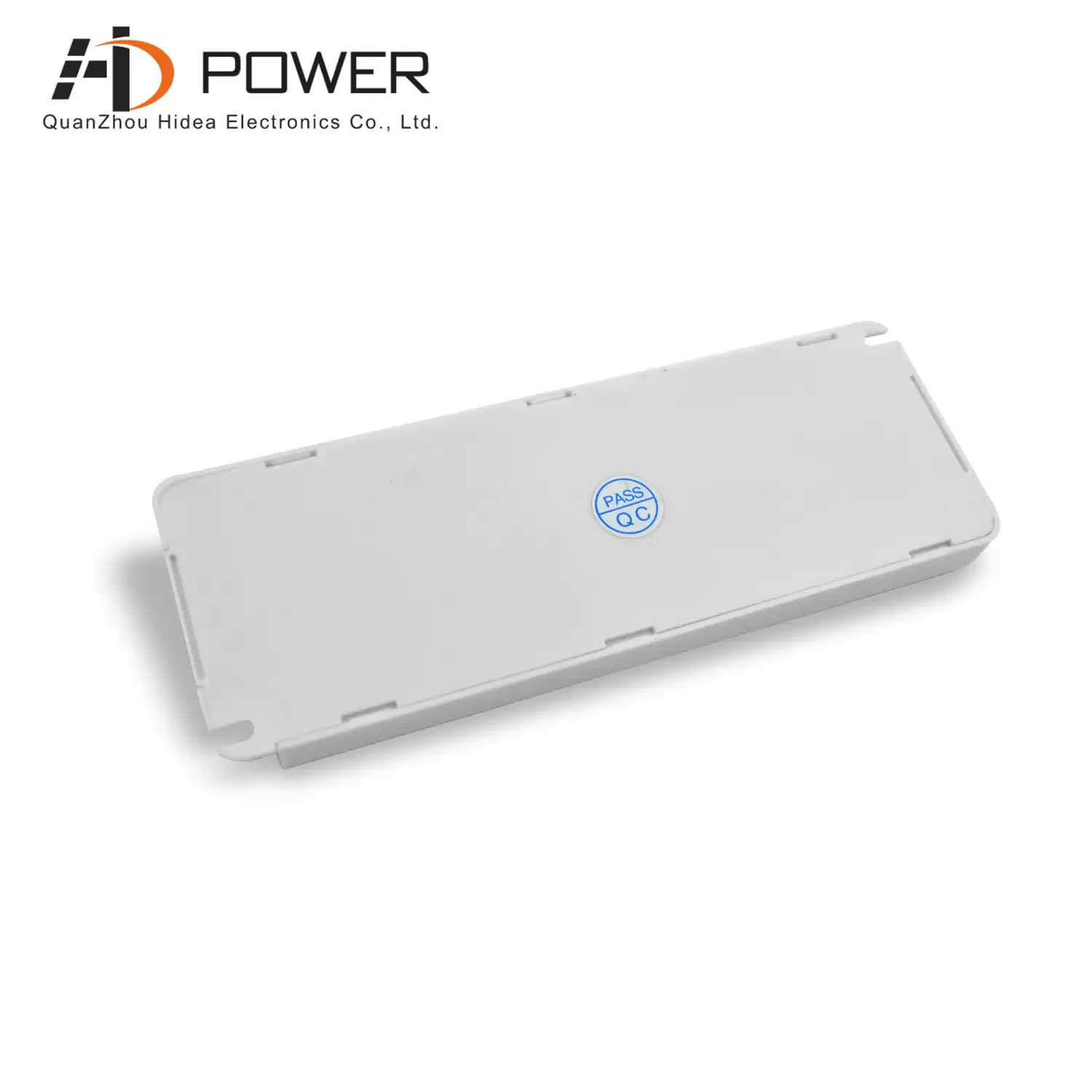

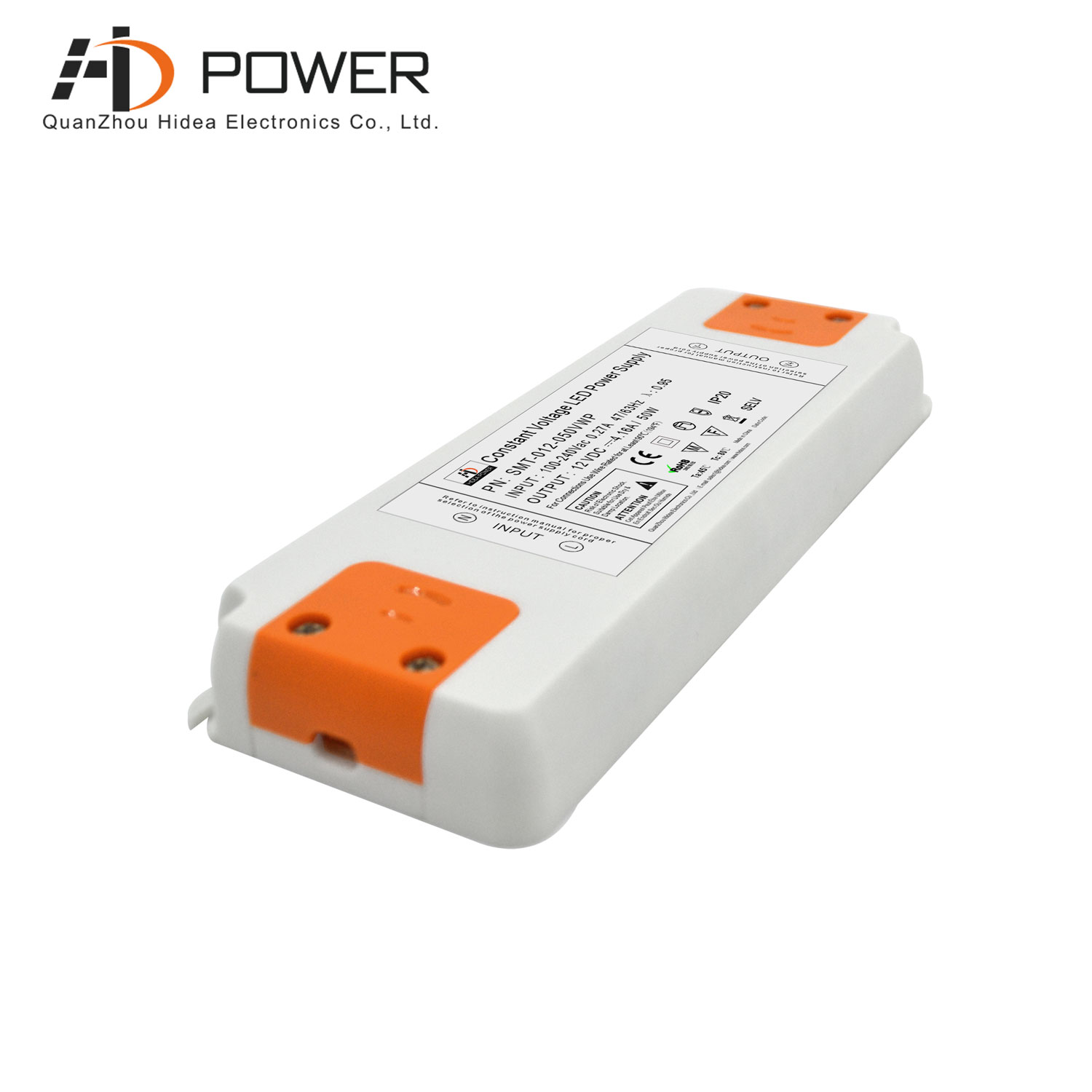

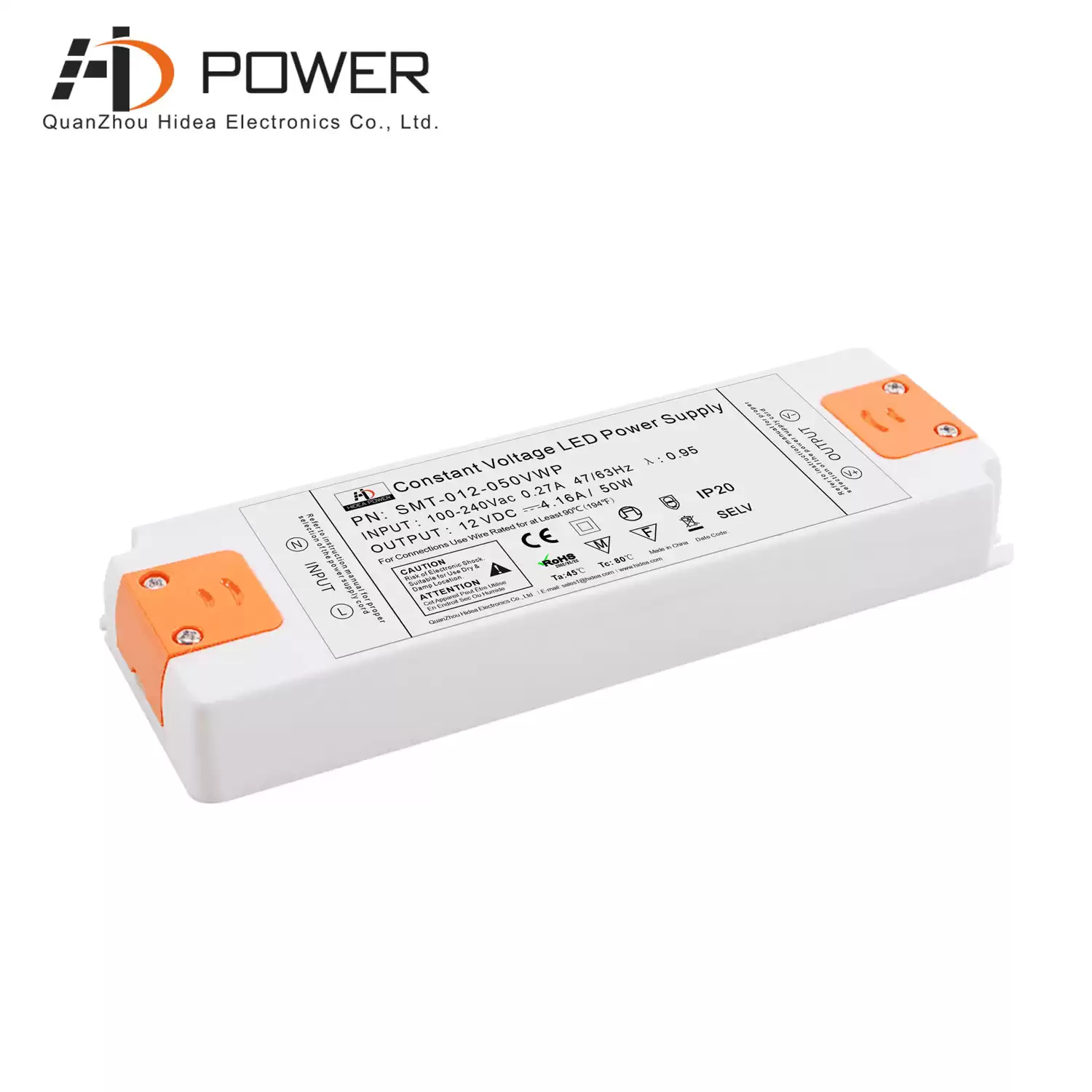

CE ROHS listed 12VDC 50w 60w non dimmable led lights
This led light strip power supply is your must-have decor for holidays and parties. Versatile, affordable, easy to use and install. Suitable for decorating or illuminating your home or business, ceilings, staircases, decks, driveways, boats, galleries, clubs and parties.
Specification
|
MODEL
|
SMT-012-050VWP
|
SMT-024-050VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
4.2Amp
|
2.1Amp
|
|
VOLTAGE RANGE
|
0-4.2A
|
0-2.1A
|
|
RATED POWER
|
50Watt
|
50Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGETOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWERFACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.57A/110VAC, 0.28A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
4.8A
|
2.5A
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTANDVOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
It is ultra thin led driver for the Illuminated diameter 50cm and lead wire 8m in length. They are suitable for Outdoor or Indoor Use.
