INFORMATION
|

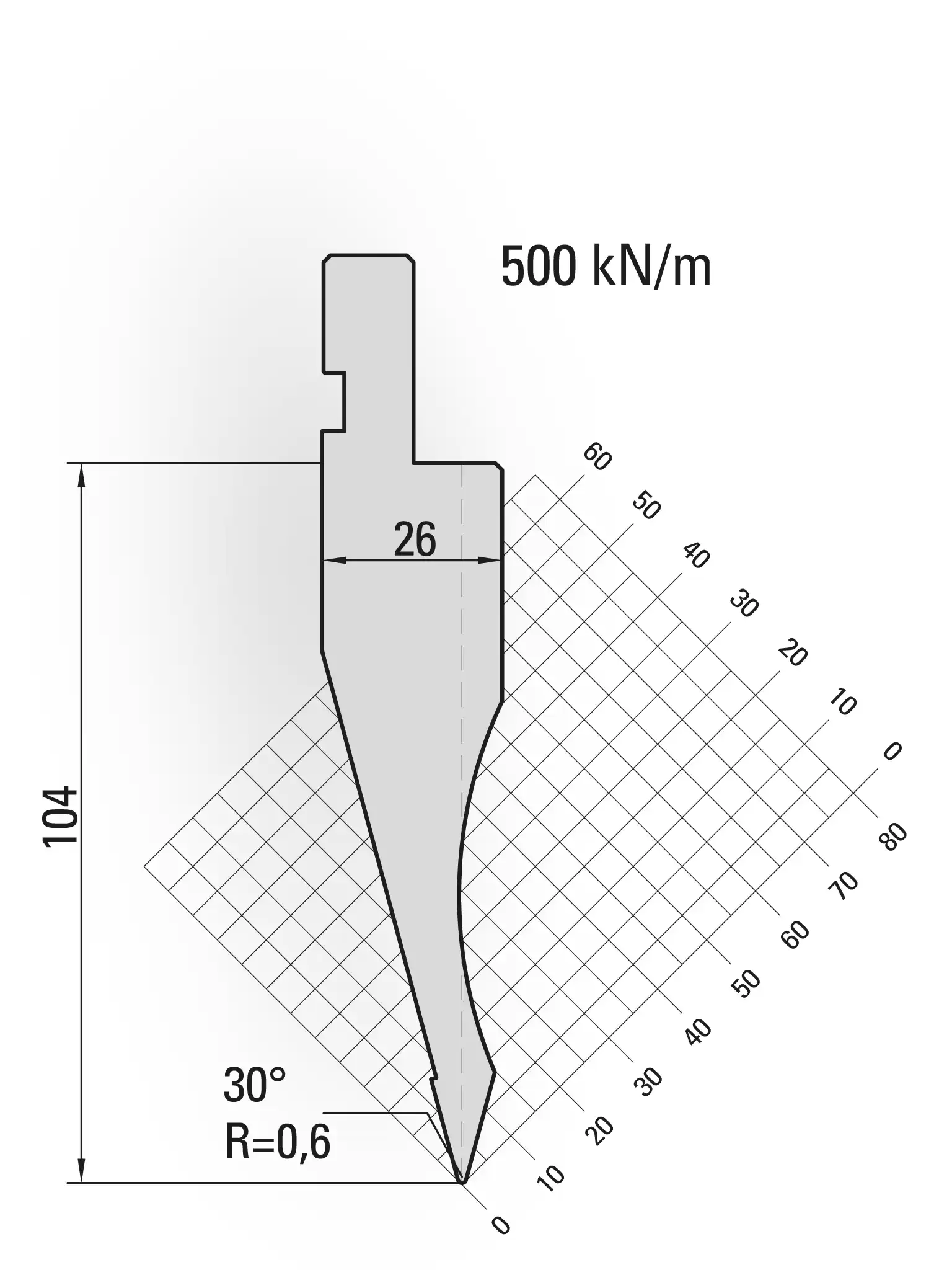

JM - 11514
|
|
|
Tooling system
|
JM - System Amada
|
|
Angle
|
30°、45°
|
|
Radius
|
0.2mm、0.6mm、0.8 mm、1.5mm、3mm
|
|
Effective Height
|
104 mm
|
|
Load
|
1000 kN/m max.
|
|
Material
|
C45、42CrMo, 650 - 800 N/mm²
|
|
Length and weight
|
835mm/13.2kg、415mm/6.6kg
|
Quality And Precision
▶Optimum materials
▶42 CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
TOOL LENGTHS
PUNCHES/TOP-TOOLS

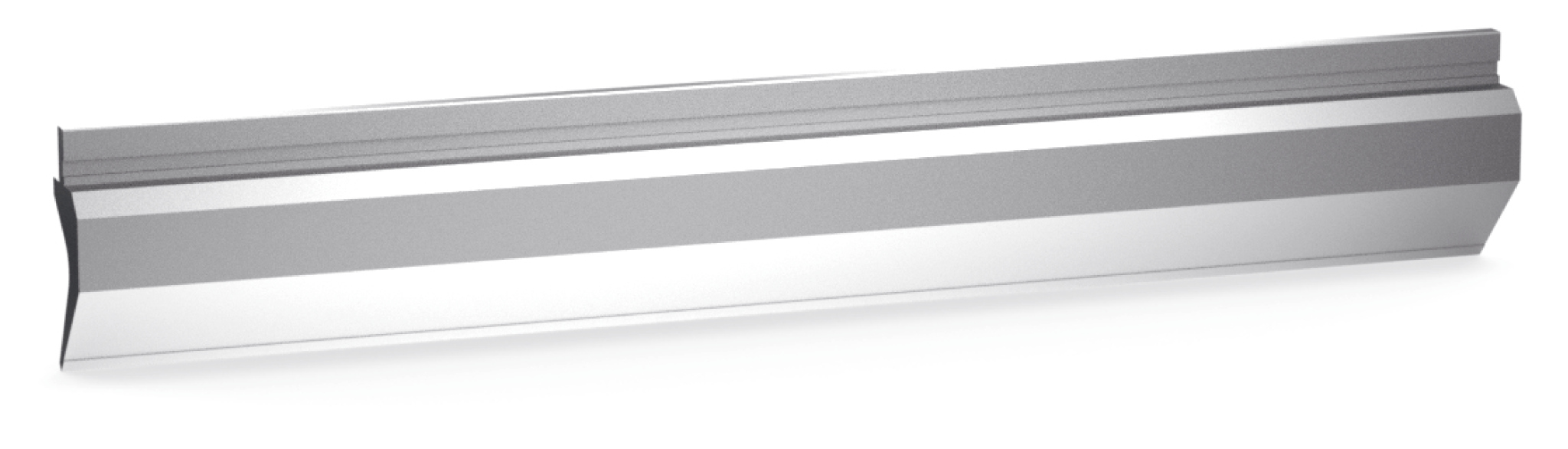

835 mm

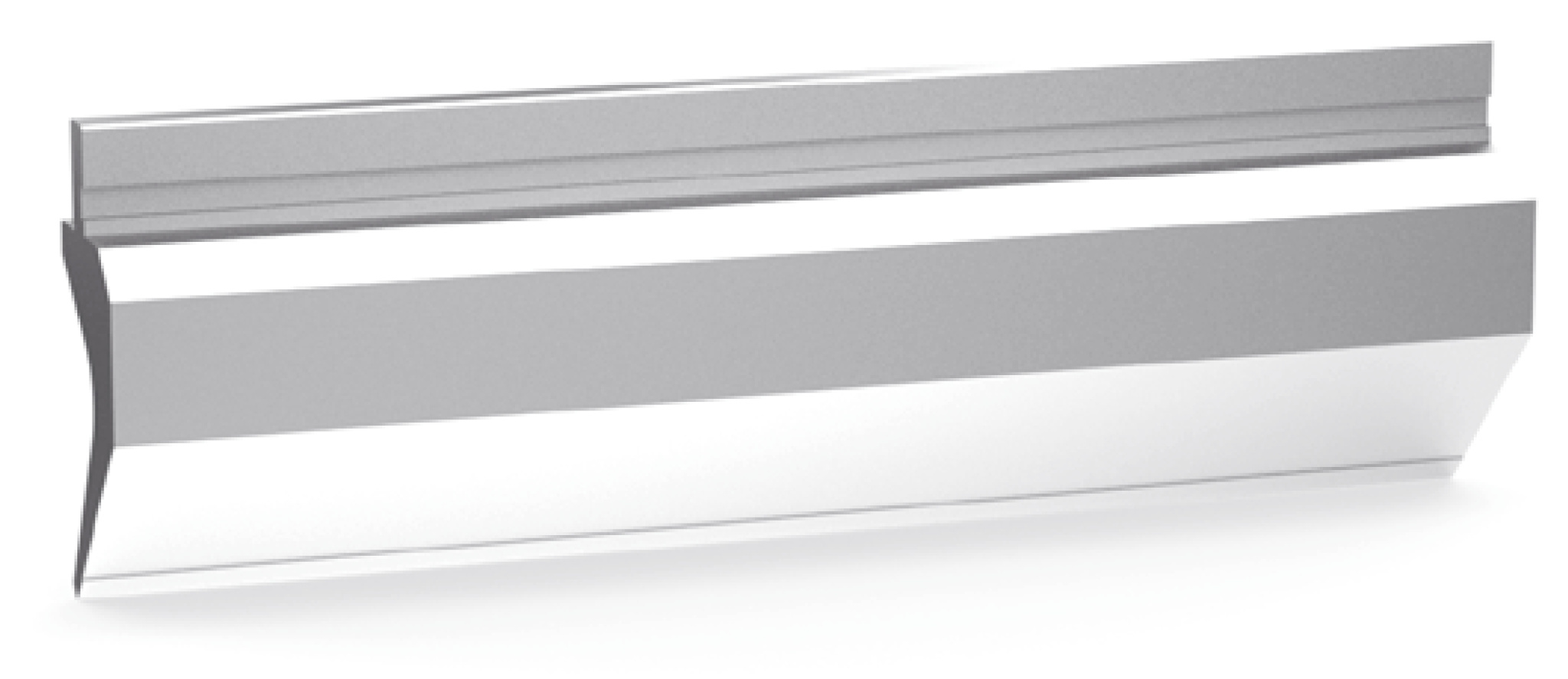

415 mm

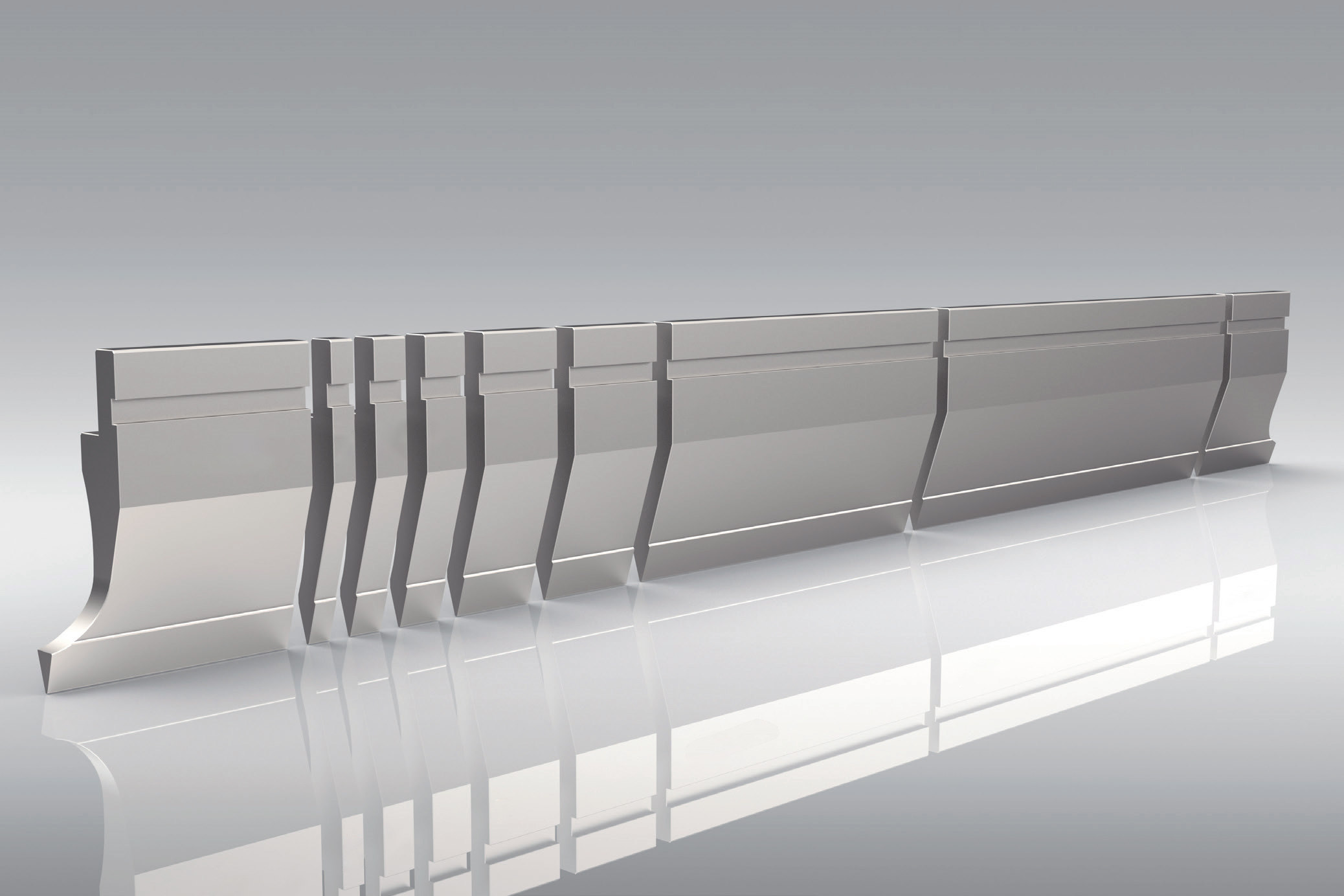

835 mm sectionalized

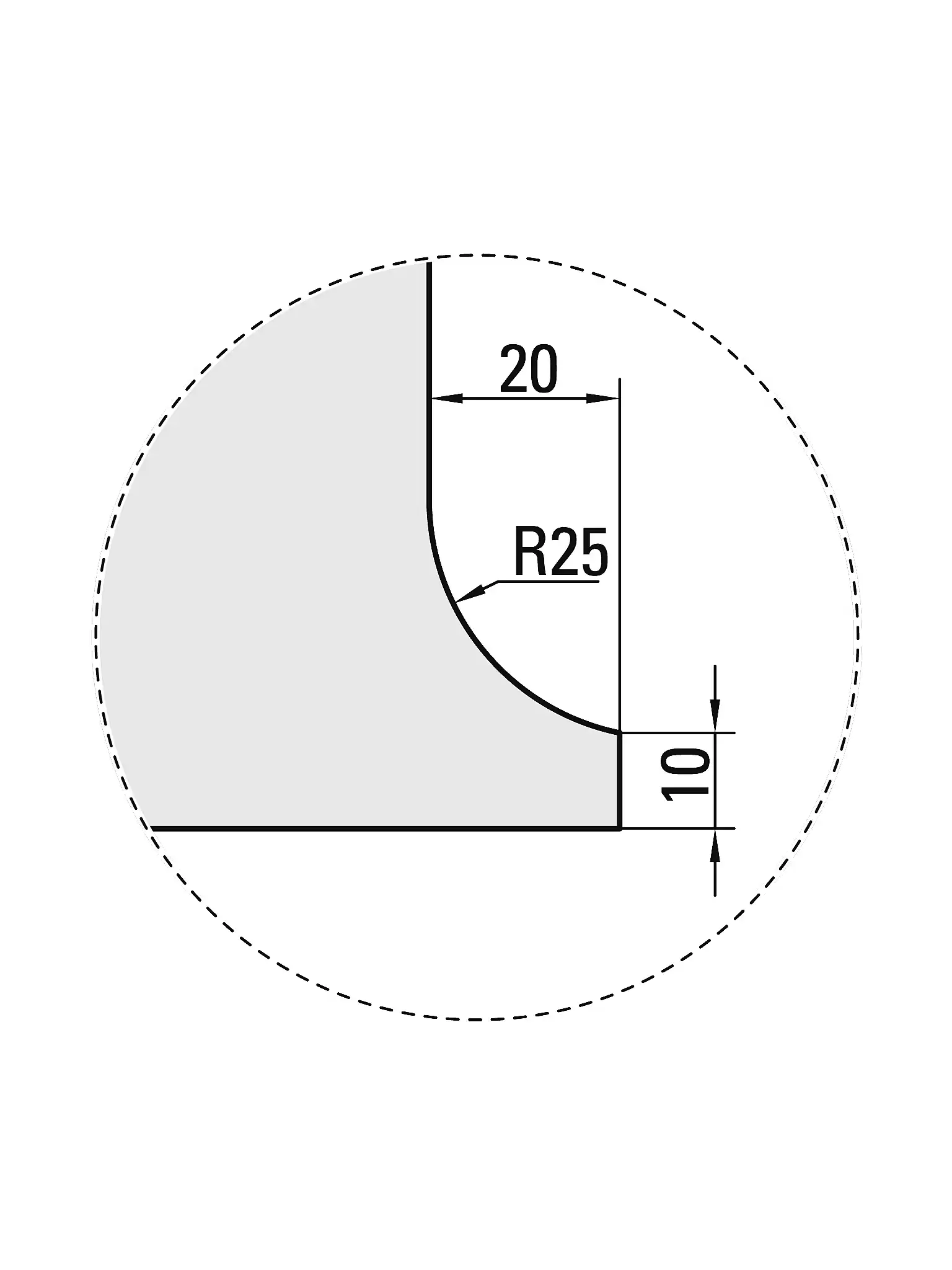

▶ 9 Segments with horn extension left and right
▶ Sectionalized punches/top-tools are delivered as a complete set
▶ Upper punch: 100 (left horn) 10, 15, 20, 40, 50, 200, 300, 100 (right horn) = 835mm (set)
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
