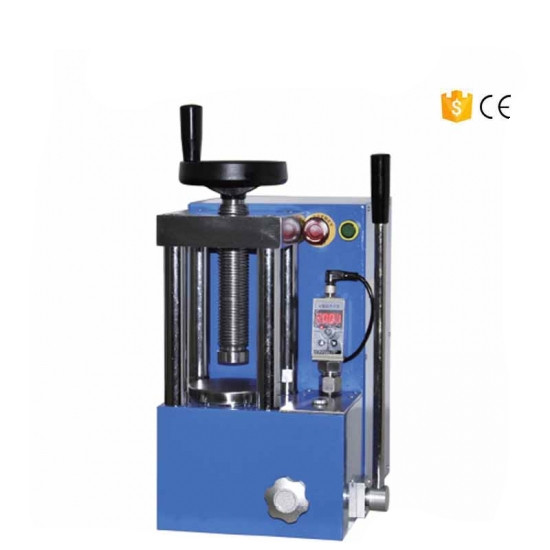

30T Small Volume Lab Electric Hydraulic Press

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • WarrantyOne year limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

30T Small Volume Lab Electric Hydraulic Press



Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products


Design Advantages

a.Small size, light weight,No oil, easy to carry.

b.High speed steel imported from Japan

c.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

d.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

E.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

F.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

G.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

H.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

I.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage



Specification

Product Name

Lab Pressing Machine

Type

TMAX-electric30T

Pressure range

0-30T(0-31.5MPa)

Piston diameter

Chrome plated cylinder 110 mm

Overall structure

Unsealed connection of equipment to reduce leakage

Pressure gauge

Digital Display0.00-40.00MPa

Maximum piston stroke

40mm(T)

Protecting mask

Plexiglass

Pressure stability

≤1MPA/10Min

Press the way

Electric pressure manually pressurized

Pressure compensation method

Automatic pressure relief and Manual pressure relief

Worktable diameter

120mm(D)

Number of columns

4 pillars

Column spacing

92*160mm

Over dimension

275*430*420mm

Weight

72kg

Product Images

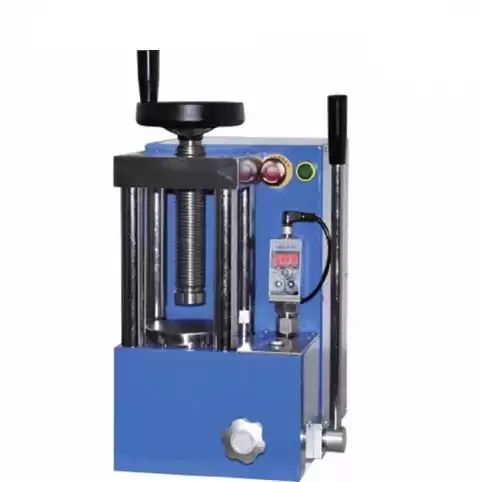

electric hydraulic press


Conversion

Actual pressure

System pressure

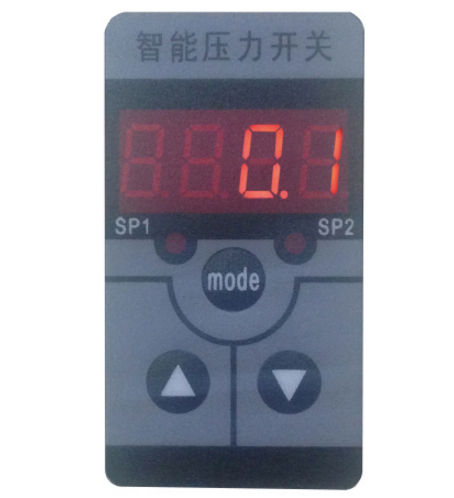

Double display pressure gauge

1[Tons]

1.05[MPa]



2[Tons]

3.1[MPa]

5[Tons]

5.2[MPa]

8[Tons]

8.4[MPa]

10[Tons]

10.5[MPa]

15[Tons]

15.7[MPa]

20[Tons]

21[MPa]

25[Tons]

26.3[MPa]

30[Tons]

31.5[MPa]

It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
