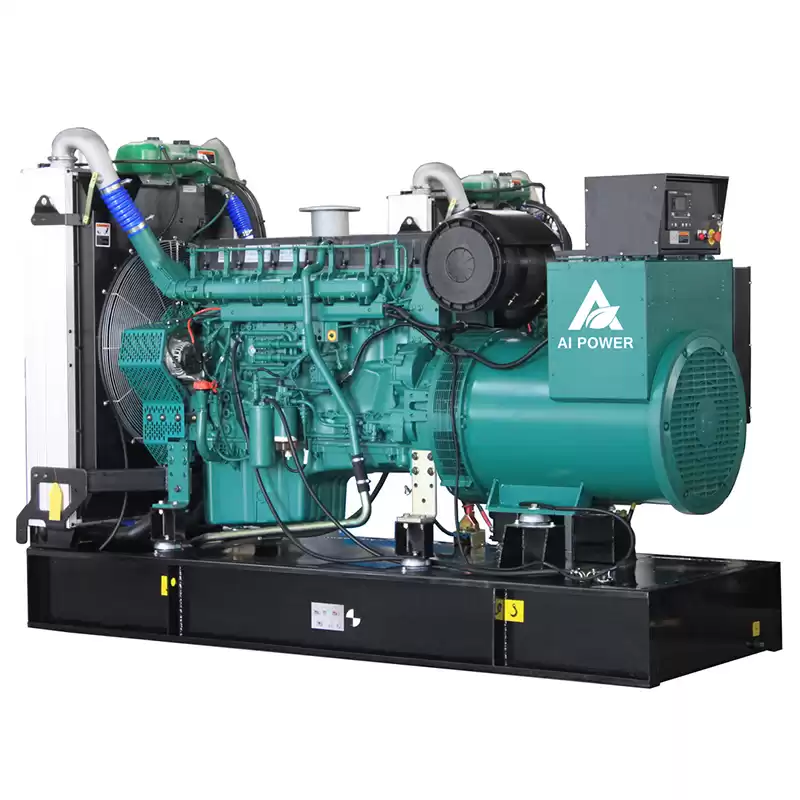

Sweden Volvo Penta Diesel Generator Set TAD1344GE 320kw 400kva Silent Diesel Genset
The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. The technical data applies to an engine without cooling fan and operating on a fuel with calorific value of 42.7 MJ /kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US gal), also where this involves a deviation from the standards. Power output guaranteed within 0 to +2% attrated ambient conditions at delivery. Ratings are based on
ISO 8528. Engine speed governing in accordance with ISO 3046/IV, class A1 and ISO 8528-5 class G3
Exhaust emissions
The engine complies with EU stage 2 emission legislation according to the Non Road Directive EU 97/68/EEC. The engine also complies with TA-luft -50% exhaust emission regulations.
TWD1645GE is a reliable, powerful and compact in-line 6 cylinder diesel engine. It´s designed to power a wide range of stand-by and prime power generator sets.This 16 liter diesel engine utilizes dual-stage turbochargers and heavy-duty steel pistons to provide excellent power
density.It features a proven combustion technology with highpressure unit injectors, resulting in high fuel efficiency and low exhaust emission levels.
The engine also features a compact and low weight design that is well-balanced, providing smooth operation with low noise and vibration. It´s designed for easily accessible service points. A wide range of options is available, including a heavy-duty frame, cooling package and air-filter that will suit a variety of installations.
|
Diesel generator Details
|
|
Model
|
AI-350GF
|
|
Power
|
350kw/437.5kva
|
|
Frequency
|
50Hz/60Hz
|
|
Voltage
|
380/220v(voltage can be customized)
|
|
Optional Type
|

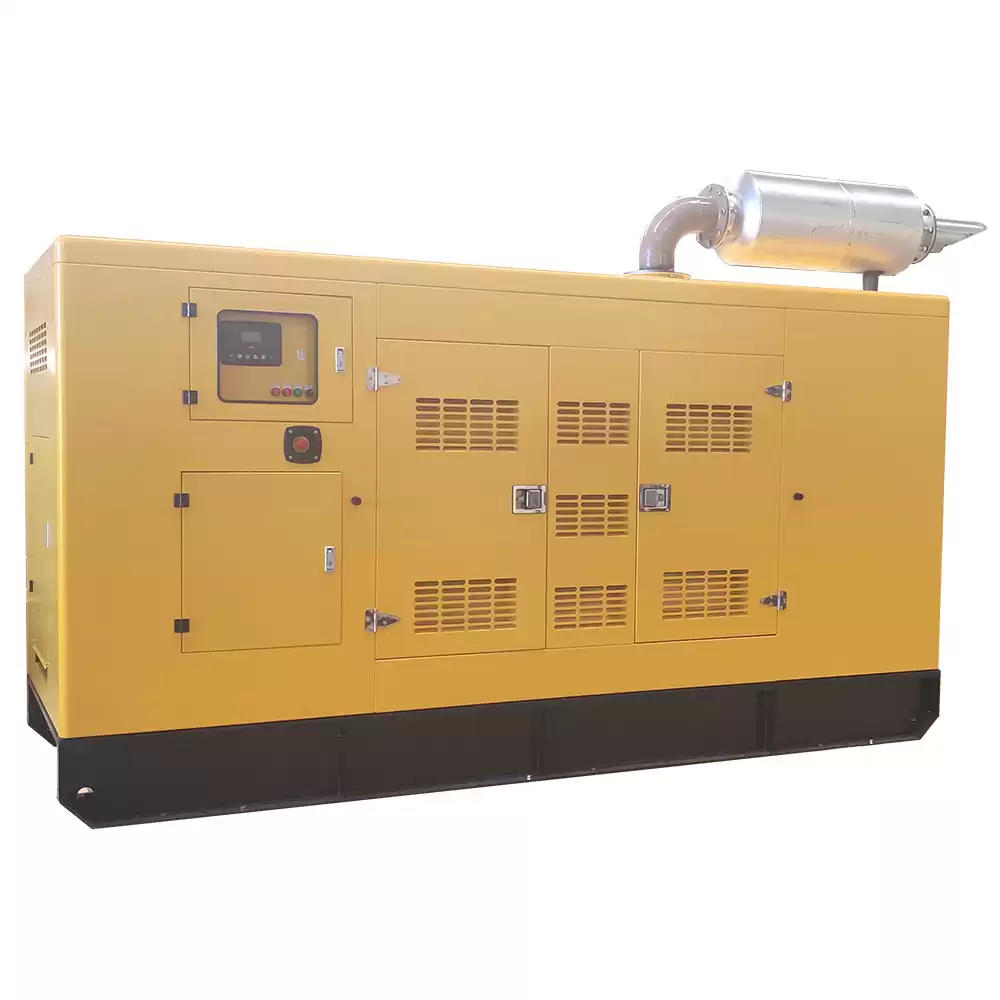

Open/soundproof/trailer
|
|
Size of Open type
|
3100*1150*1600mm
|
|
Weight of Open type
|
3050kg
|
|
|
|
With Diesel Engine
|
|
Brand&model
|
With genuine Volvo engine TAD1344GE
|
|
Standby Power
|
389kw
|
|
Cylinders
|
6 in line arrangement
|
|
Bore*Stroke
|
131*158mm
|
|
Displacement
|
12.78L
|
|
Lubrication Oil Capacity
|
35L
|
|
Fuel Consumption at 100% Load
|
199g/kw.h
|
|
Speed Governor
|
ECU
|
|
|
|
With Alternator
|
|
Optional Brands
|
Stamford/Leroy Somer/Mecc Alte/Marathon
|
|
Exciter type
|
Single bearing,brushless,Self-excited
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
|
|
|
With Controller
|
|
Optional brands
|
Deepsea/ComAp/Smartgen
|
Power standards The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. The technical data applies to an engine without cooling fan and operating on a fuel with calorific value of 42.7 MJ / kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US gal), also where this involves a deviation from the standards. Power output guaranteed within 0 to +2% att rated ambient conditions at delivery. Ratings are based on ISO 8528. Engine speed governing in accordance with ISO 8528-5.
