365-385W Flexible Monocrystalline Silicon High-Efficiency Photovoltaic Modules-Optimize Your Solar Generation
Lightweight, ultra-thin design:The components is light to 5.7kg and thin to 2.5mm to meet the needs of various low load.

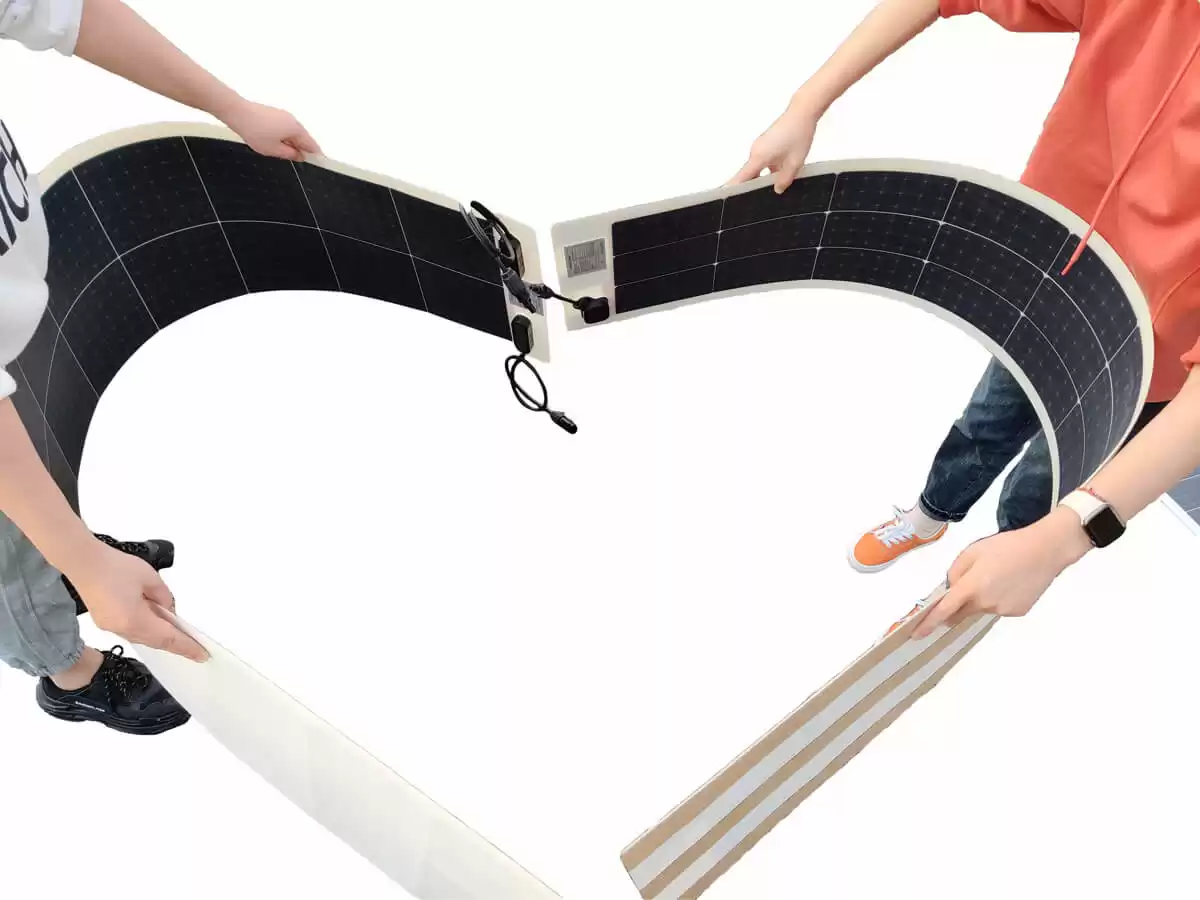

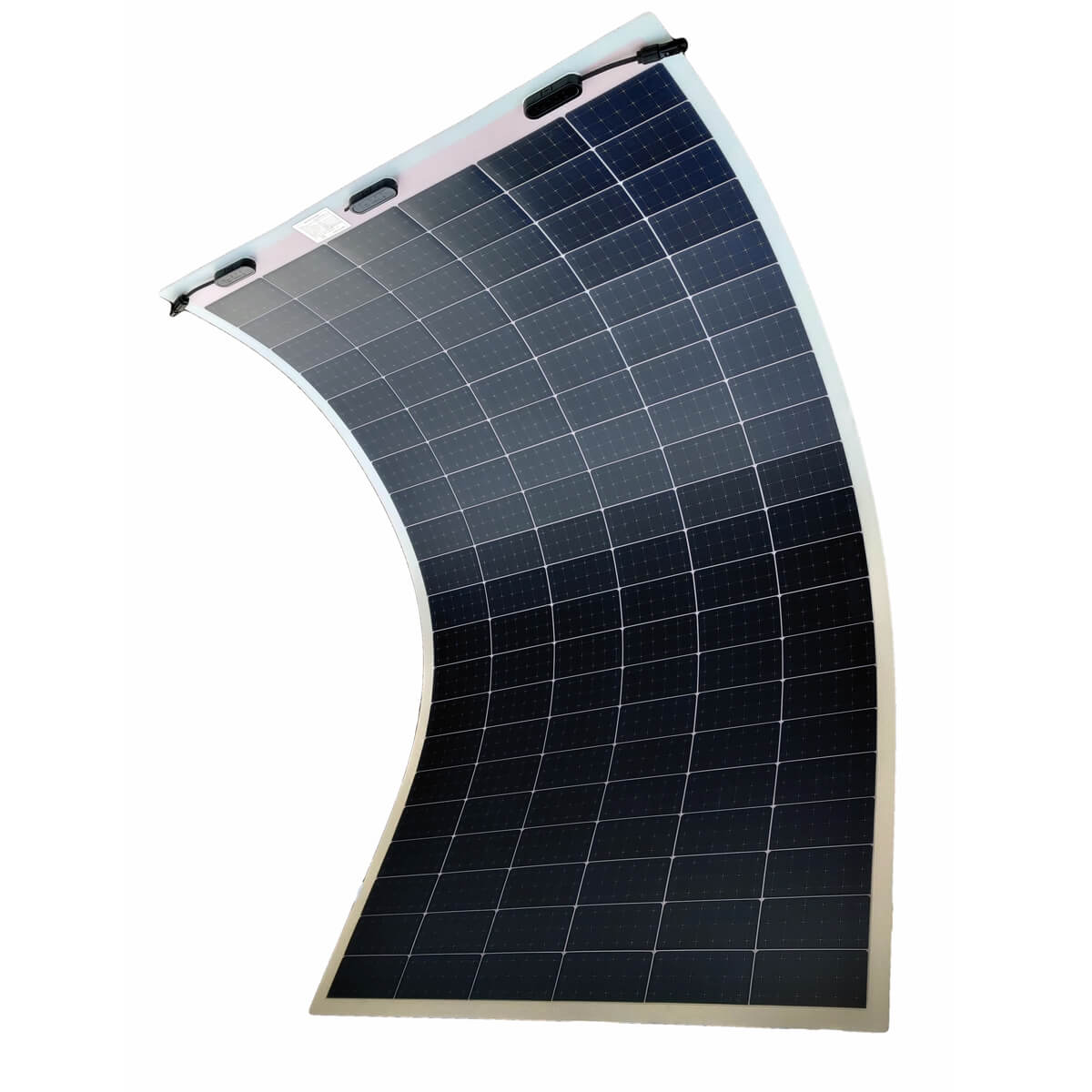

Ultra high flexibility:Using ultra-thin silicon wafer and advanced organic polymer packaging materials, the minimum bending radius can be up to 0.30m, which can perfectly fit all kinds of curved roof.
High reliability:Conductive panel twodimension sealing tech,zero welding, strict environmental test,excellent anti-aging performance.

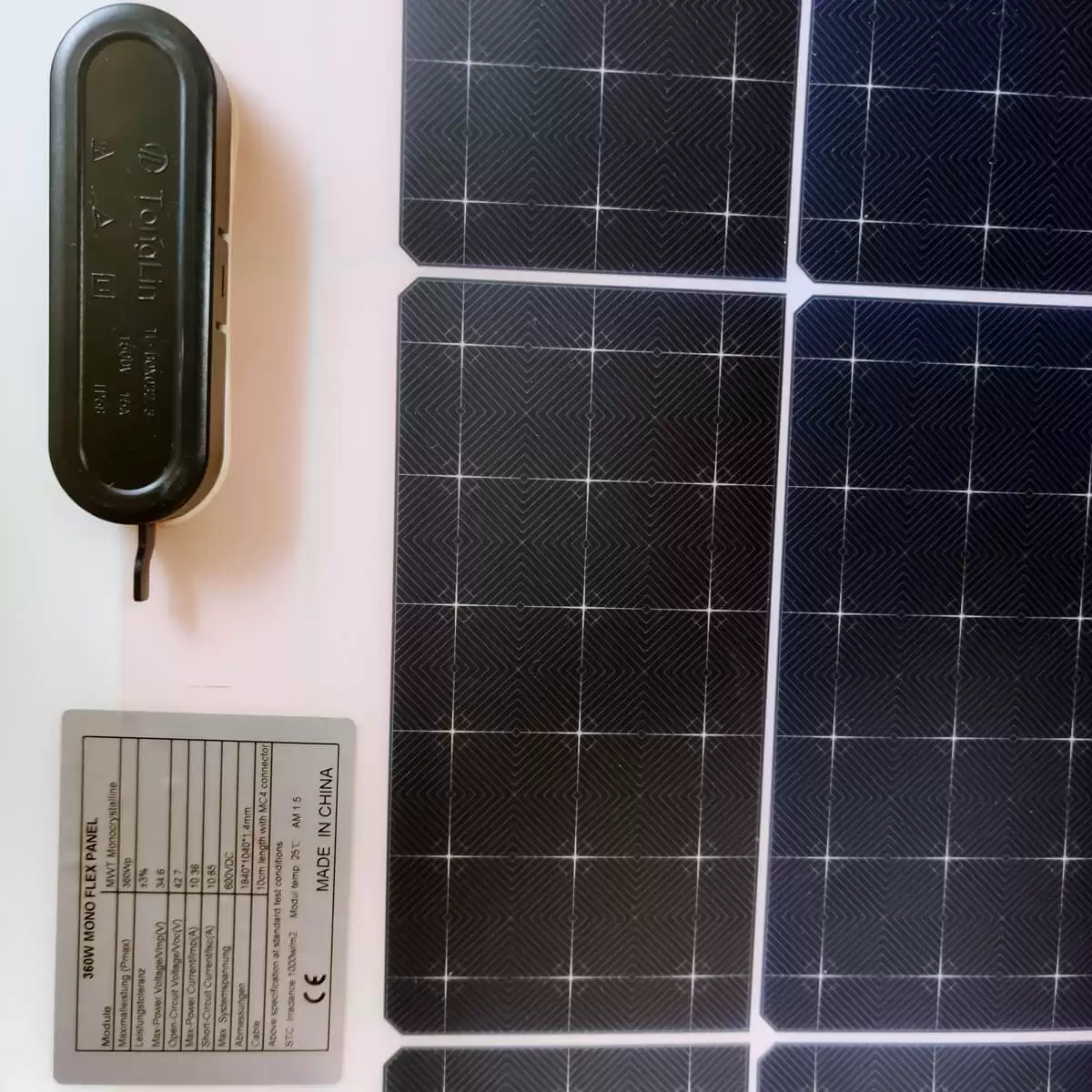

High efficiency:MWTtech.Solar cell, without busbar, much high module efficiency
Lead-free environmental protection:Adhering to the green photovoltaic design concept, to achieve the module process, material without lead.
| Electrical Performance Parameters (STC) |
|
Specifications / Model
|
Unit |
AJ 365QHES |
AJ 370QHES |
AJ 375QHES |
AJ 380QHES |
AJ 385QHES |
| Maximum power (Pm) |
W |
365 |
370 |
375 |
380 |
385 |
|
Power, tolerance
|
W |
0~ +5 |
| Best operating current (Im) |
Vm |
34.9 |
35.1 |
35.3 |
35.5 |
35.7 |
| Best operating current (Im) |
A |
10.40 |
10.50 |
10.62 |
10.70 |
10.78 |
| Open-circuit voltage (Voc) |
V |
42.4 |
42.6 |
42.8 |
43.0 |
43.2 |
| Short-circuit current (Isc) |
A |
11.09 |
11.16 |
11.23 |
11.30 |
11.35 |
| Assembly effective efficiency % |
m |
20.7 |
21.0 |
21.2 |
21.5 |
21.8 |
|
STC: AM=1.5, irradiance 1000W / m², component temperature 25℃ maximum
power test Tolerance ± 3%
|
|
| Electrical performance parameters (NMOT) |
| Specifications / Model |
Unit |
AJ 365QHES |
AJ 370QHES |
AJ 375QHES |
AJ 380QHES |
AJ 385QHES |
| Maximum power (Pm) |
W |
274 |
278 |
232 |
236 |
240 |
| Optimum operating voltage |
Vm |
32.8 |
33.0 |
33.2 |
33.4 |
33.6 |
| Best operating current (Im) |
A |
8.35 |
8.42 |
8.49 |
8.56 |
8.64 |
| Open-circuit voltage (Voc) |
V |
39.9 |
40.1 |
40.3 |
40.5 |
40.7 |
| Short-circuit current (Isc) |
A |
8.91 |
8.98 |
9.05 |
9.12 |
9.19 |
| NMOT: irradiance 800W / m², ambient temperature 20℃, wind speed 1m / s |
|
|
Flexible Design: The modules are flexible, allowing for easy installation on various surfaces, including curved or uneven structures, providing flexibility in solar system design.
Monocrystalline Silicon Technology: The use of monocrystalline silicon technology enhances the efficiency of the modules, resulting in higher energy conversion and optimized solar generation.
Improved Energy Efficiency:The high-efficiency photovoltaic modules enable you to generate more electricity from your solar system, improving overall energy efficiency and reducing reliance on traditional power sources.
High Power Output: The 365-385W Flexible Monocrystalline Silicon Photovoltaic Modules offer a high power output, ensuring efficient solar generation and maximizing energy production.
Durable and Weather-Resistant: The modules are built with durable materials and feature a weather-resistant design, ensuring long-lasting performance even in harsh environmental conditions.
Versatile Application: The flexible design and high power output make these modules suitable for various solar applications, including rooftops, facades, and other unconventional installations.
High Efficiency: The modules boast high-efficiency photovoltaic cells, ensuring efficient conversion of sunlight into usable electrical energy and maximizing solar generation.
Optimal Solar Generation: By utilizing the 365-385W Flexible Monocrystalline Silicon High-Efficiency Photovoltaic Modules, you can optimize your solar generation and harness the maximum amount of energy from the available sunlight.
