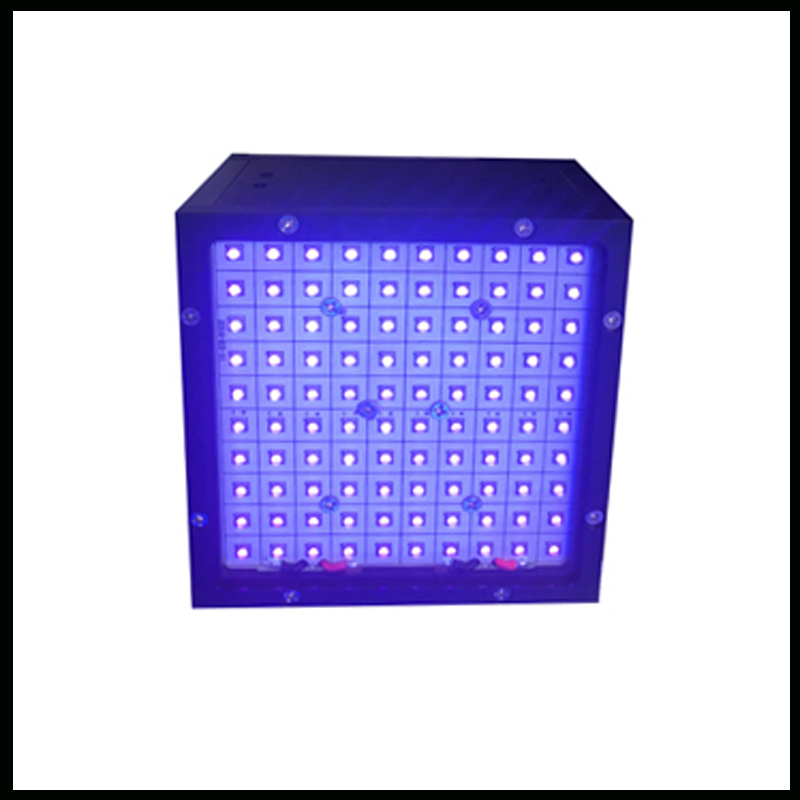

Top Quality 365nm UV LED Curing Equipment Drying UV Glue

100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.



High Power Top Quality Power Saving 365nm UV LED Curing Machine to Curing UV Glue. It can be customized.This curing area is 100*100mm. As we know 365nm is the best wavelength to cure UV GLUE.That is it.


Description of Customized UV LED Curing Facility for Industry :

Long life span



25000-30000H



Energy saving

save 80% electrical than Mercury lamp

Environment friendly

NO Mercury. NO Ozone. NO warm-up time. Low temperature



UV output adjustment



From 1%-100%.


UV Glue Curing 100*100mmHigh Power UV LED Curing MachineUV LED Top Quality 100*100 Manchine


Main data of Stabilized LED Ultraviolet Curing Equipment for UV Adhesive :

Wavelength

365nm

 Cooling way

air cooling

emitting area

100*100

Irradiation intensity

1200mw/c

Irradiation distance

10-20mm





UV LED Curing Machine Saving 365nm

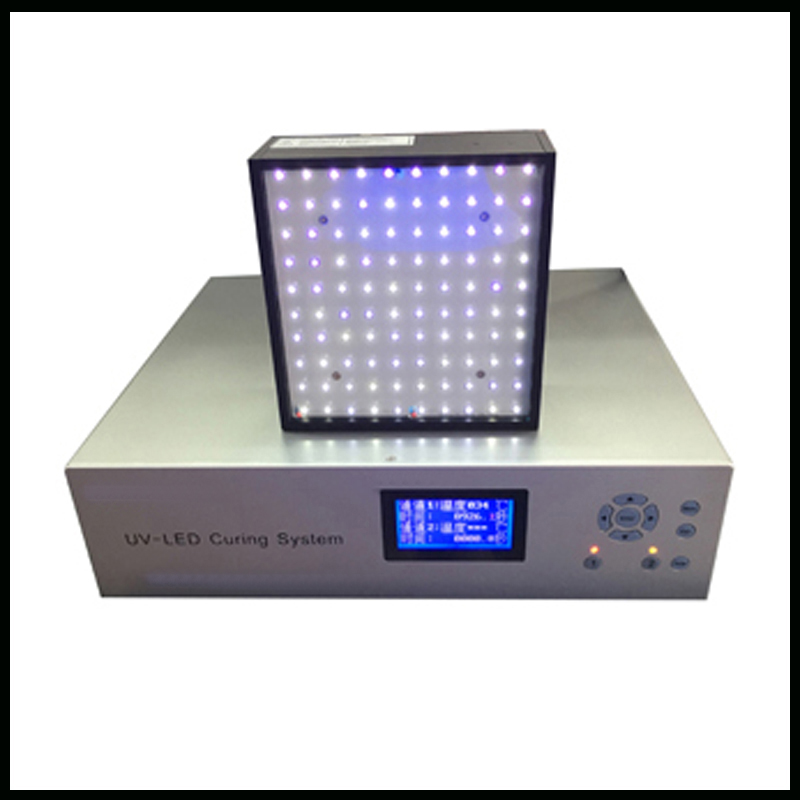

Contorller Specification of High Quality UV LED Paint Curing Systems

Model

       UVLED-CURE100100

Channel

         two

The size of controller

   L384*W284*H90mm

Terminal I/O

Input

   Pedal switch & serial RS-232

   communication signals

Output

serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Key Panel

Ambient temperature and

humidity

Ambient temperature:-10℃—50℃

Relative humidity:25%—85%RH



Dimming/Exposure control

Digital Debugging,Manual exposure

control,Foot control or timing control

(0.1~9999S)

Setting operation

Using the operating switch is set,Power key parameter switch,RS-232









External Control





External input

Enter irradiation alone

Irradiation stop input,

Interlocking,All lights

illuminated input,Query

switch





External output

READY signal,Error

signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator use


Irradiation Specification 100*100mm Small Area UV Curing Equipment :

Product model wavelength curing area peak irradiance cooling method irradiation distance
HTLD-S100-100X100 395nm 100x100mm 1000mw/cm2 air cooling 10-20mm


Product Application of Home Made UV Exposure Light Source Drying UV Coating :

High Power Curing UV Glue


Product Advantages of 100*100mm LED UV Curing Ink Equipment :

1.Low energy consumption, about 55%-80% of the traditional type. It can reduce the cost.

2.Long life expectancy can reach over 25000h hours;

3.  Eco-friendly: No lead and Hg(mercury) element , friendly to environment

4.No warm-up time;

5.Low temperature;

6.Easy to install and operate.

7.The company this anxious customers the way to do a good job in each case ,customers cost-effective products and services.
