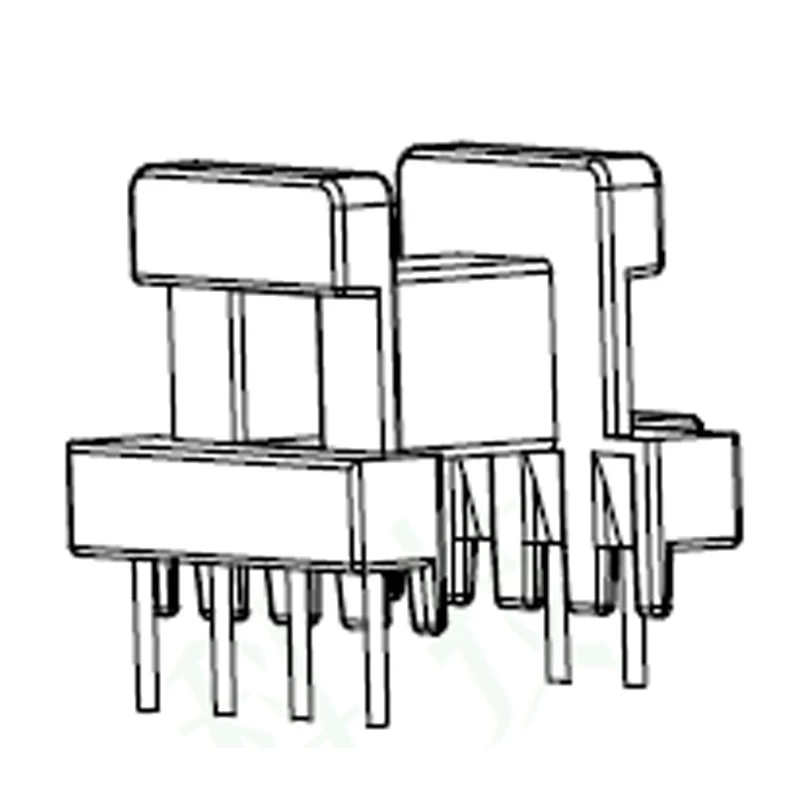

4+2 Pins EE19 Horizontal Coil Former for High Frequency Transformer

EE19 single slot transformer bobbin. Phenolic bobbin.

Pin Pitch=5mm. 4+2 pins EE19 coil former.

Bobbin Size=21.3mmX14mmX16mm. UL REC: 94V-0



We are professional transformer bobbin factory. Competitive price and good quality EE19 winding bobbin, 4+2 pins horizontal coil former. We have well-equipped facilities and excellent product quality control throughout production. If you need samples, we can provide 5 free samples for the testing. Any requests, welcome to contact us.



Quick Details

Part Number: MCT-EE1915(H4+2P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 4+2 Pins EE19 Horizontal Coil Former for High Frequency Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

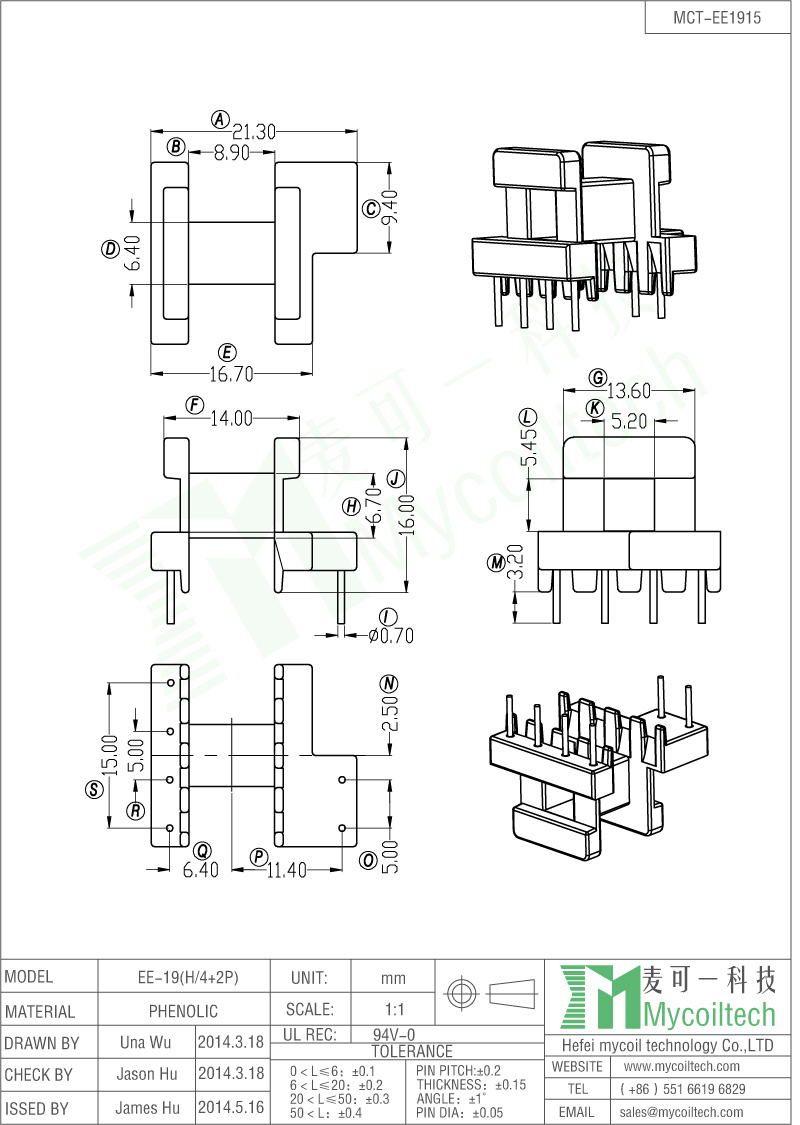

Product Specification

Coil former EE19 4+2 pins transformer
