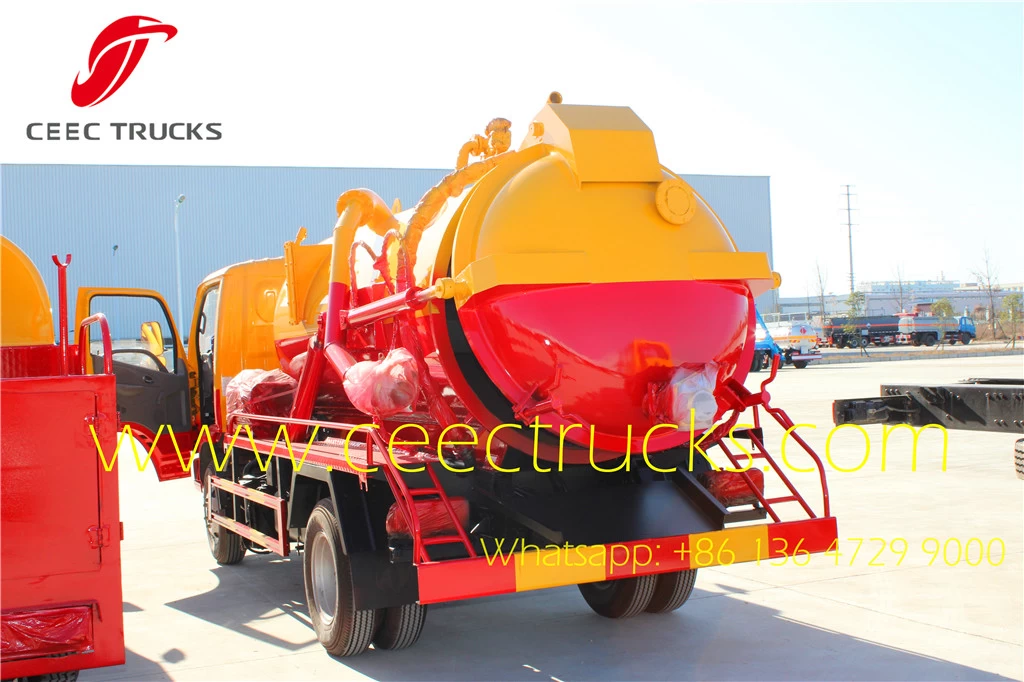

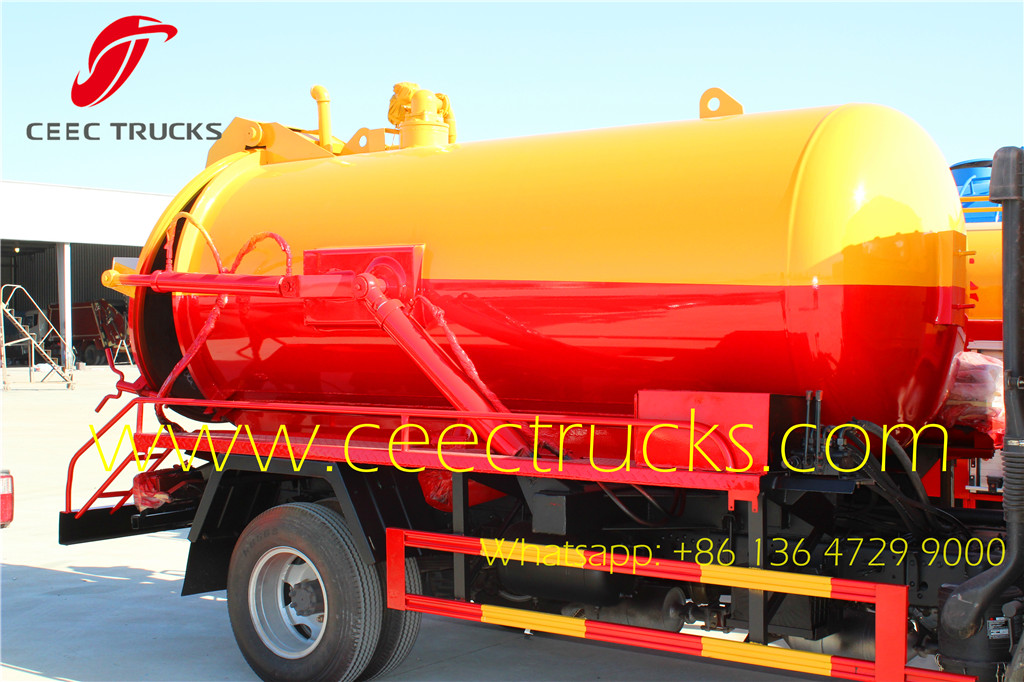

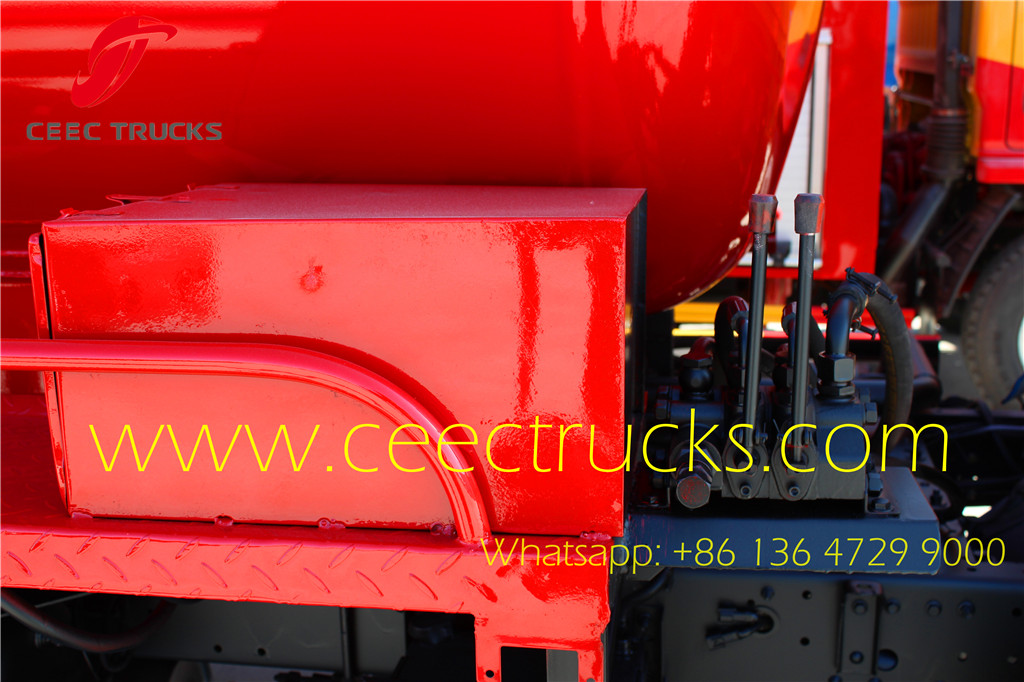

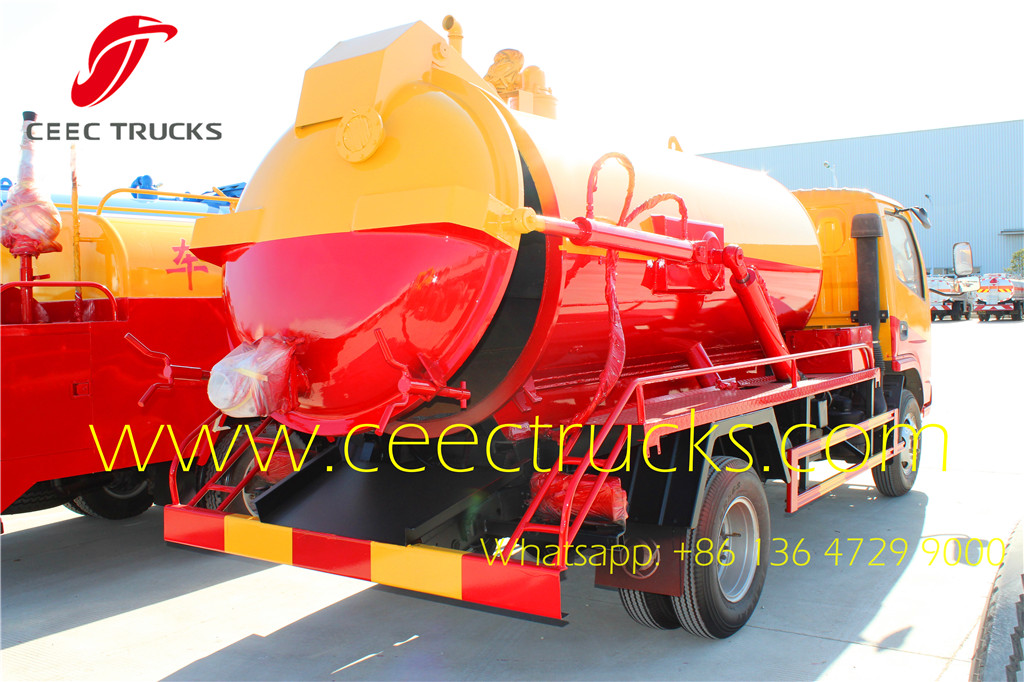

Dongfeng vacuum suction truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.

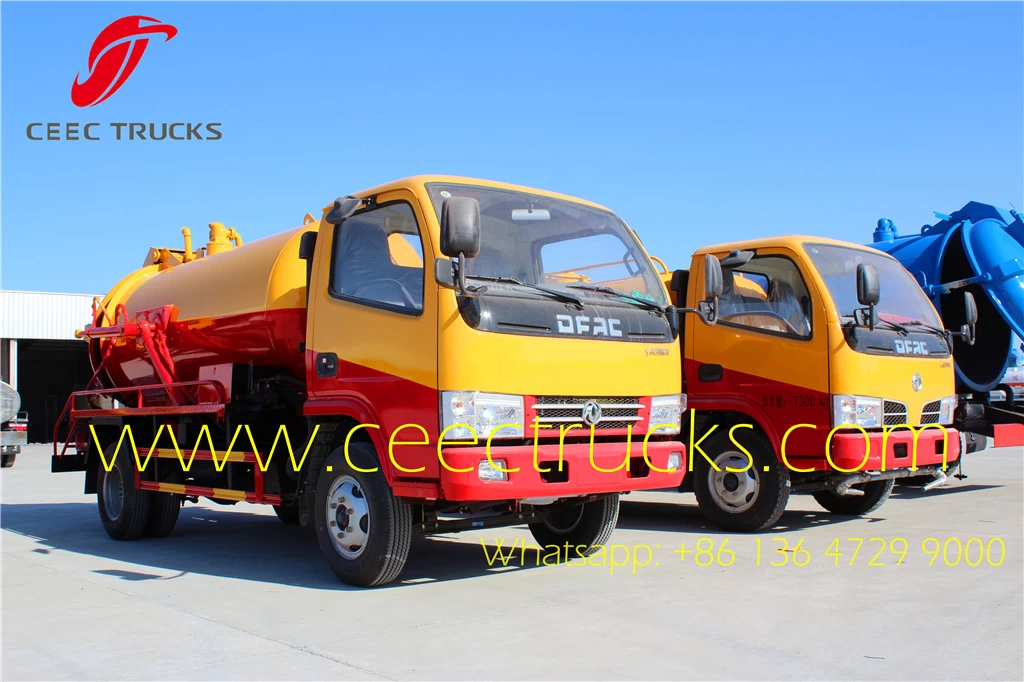

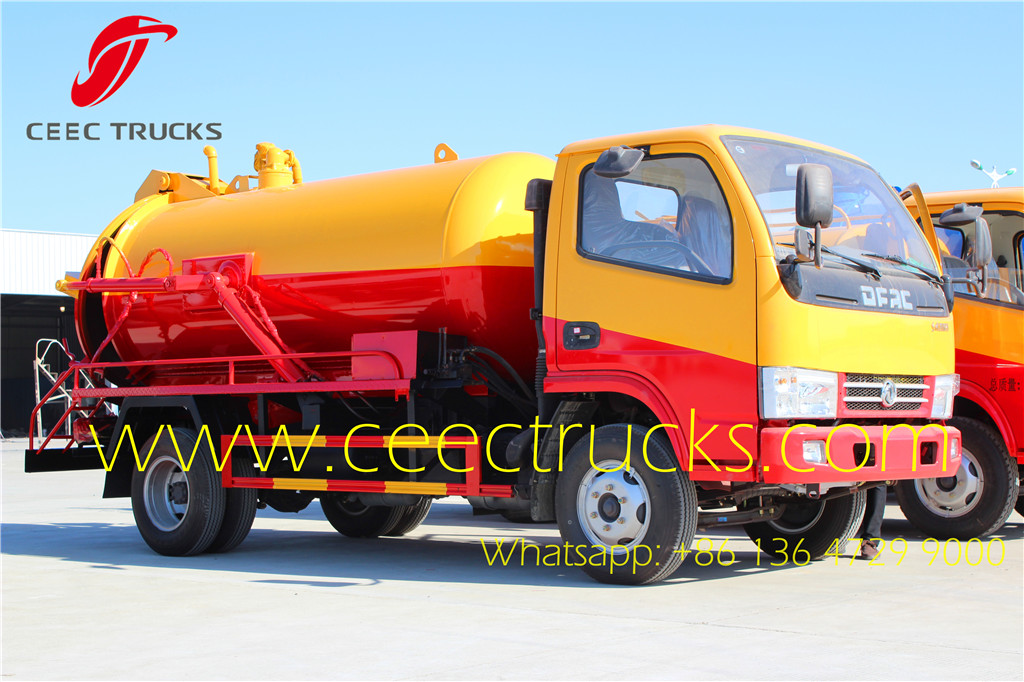

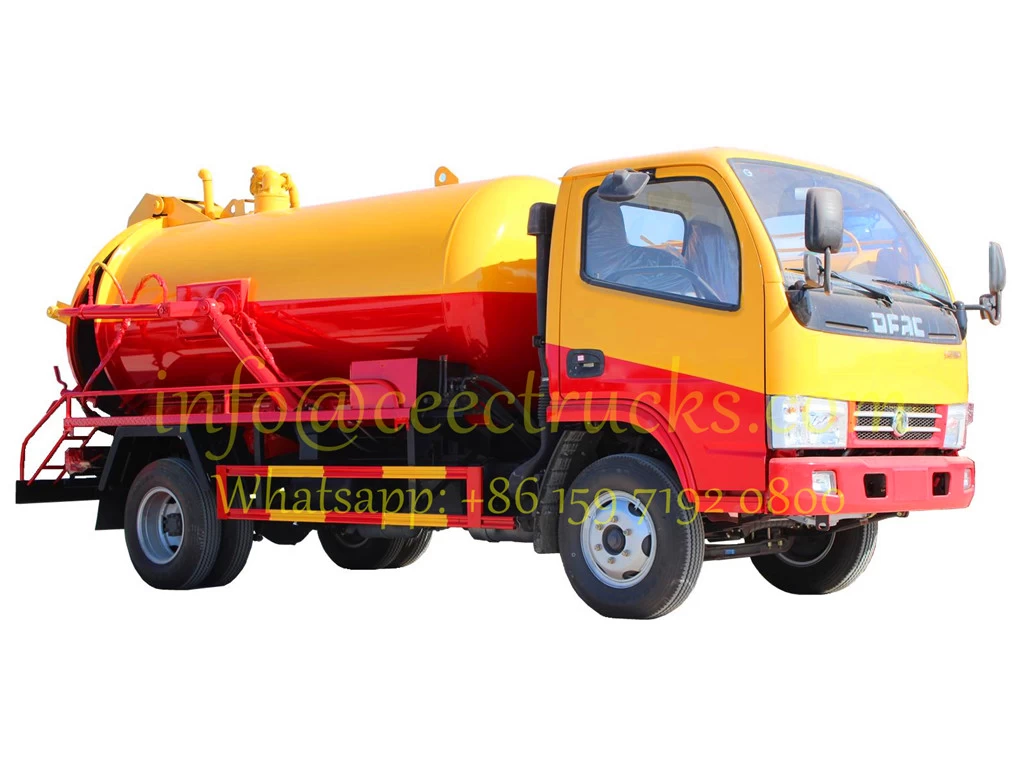

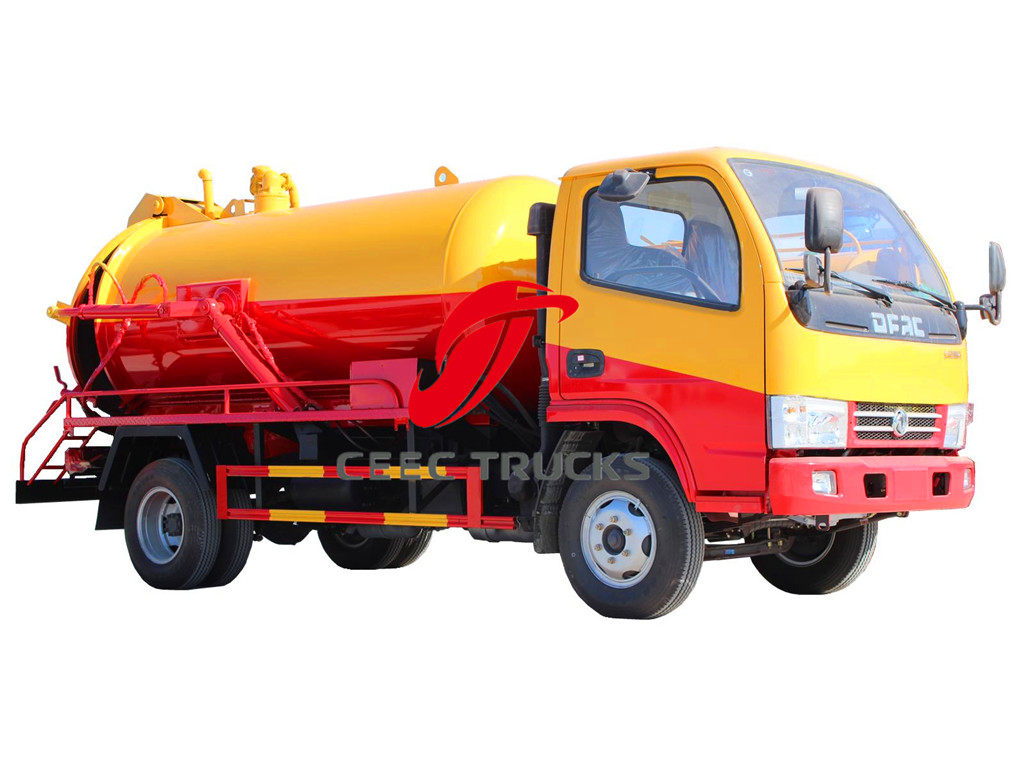

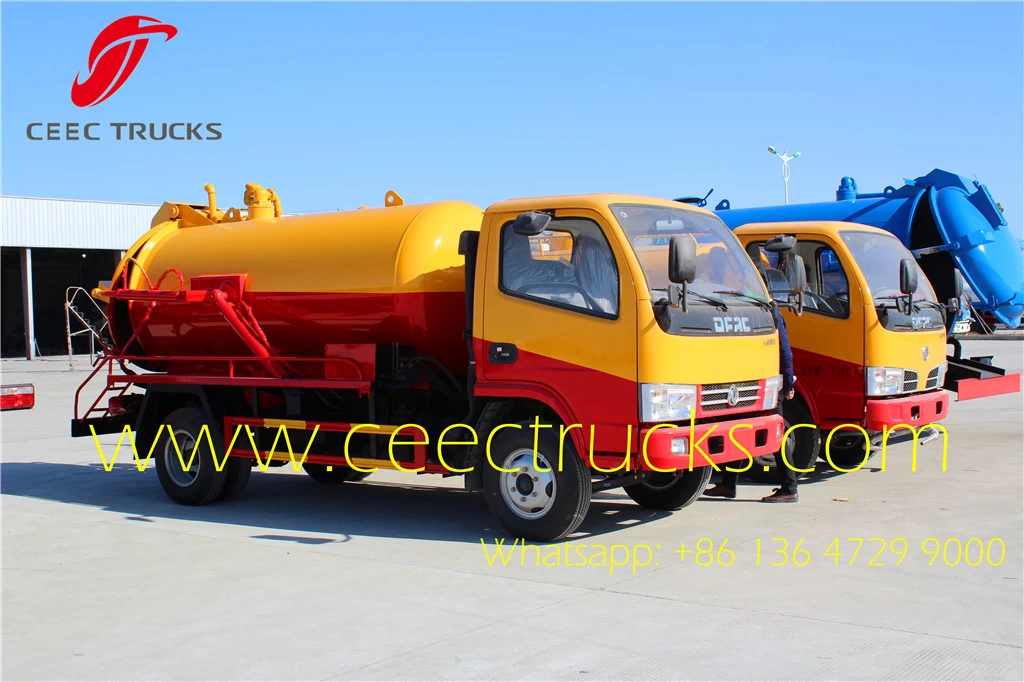

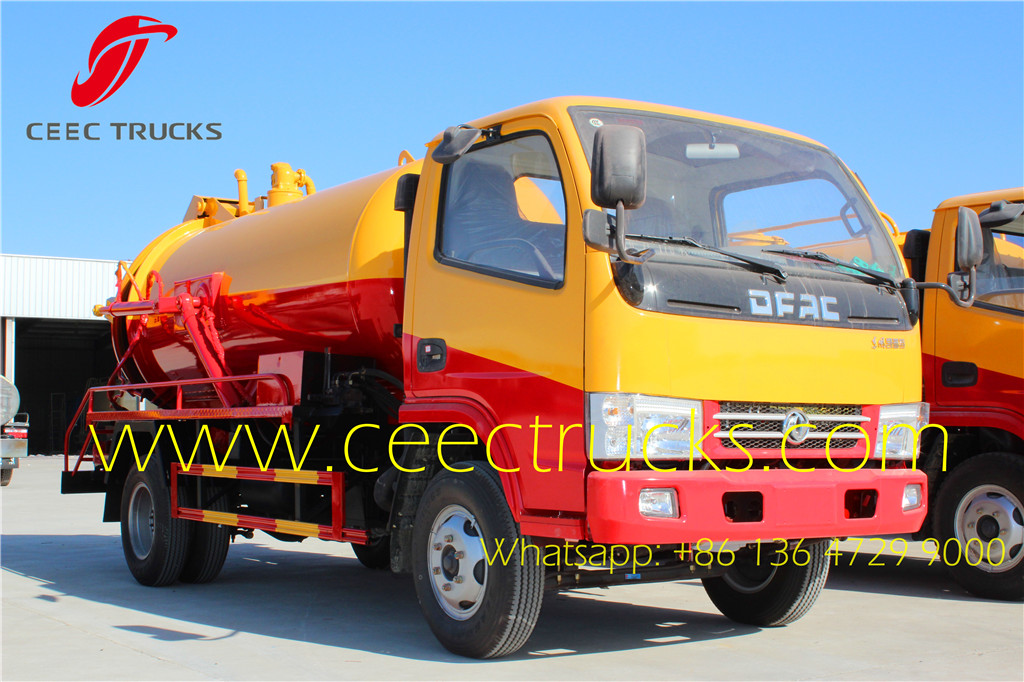

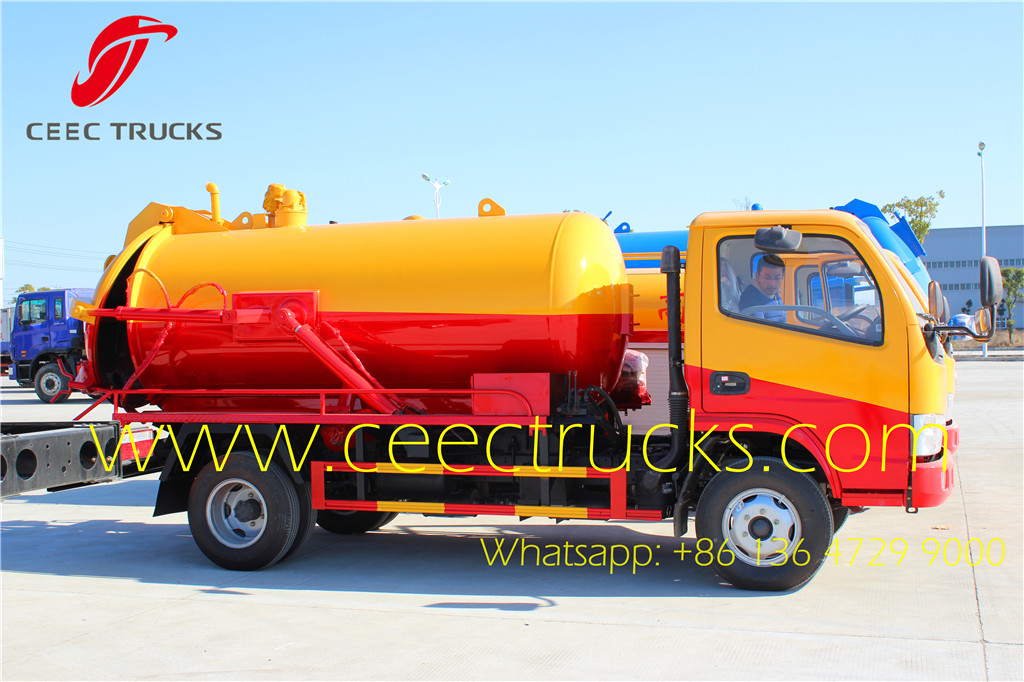

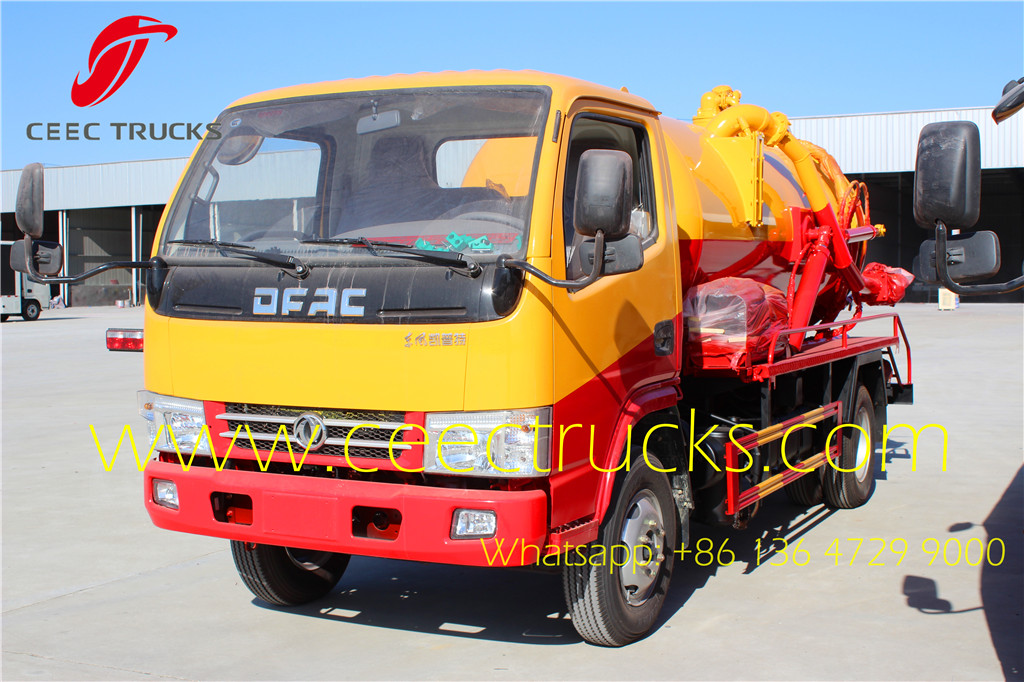

Export Model mini 4,000 liters cesspit emptier DONGFENG
TOP design 2016 model 4CBM septic pump truck Dongfeng features:
1. We CEEC TRUCKS are professional manufacturers for the special vehicles,locate in Suizhou City,Hubei province,which is the birthplace of special purpose vehicle. We coulld supply all kinds of brand of special trucks, such as ISUZU, Dongfeng , Faw, Jmc, Shacman, north Benz(beiben), Foton, Sinotruck, Jac, etc.
2.The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3.LHD (left hand drive) or RHD (right hand drive) vehicles are optional .
4.We can customize the truck according to your requirement, such as material, tanker capacity, color, paint, logo, etc.
Similar Keywords: septic
suction truck, sludge tipper, sewer scavenger, vacuum tank, truck
vacuum, sucker machine, sewage disposal truck, gully emptier, cesspool
emptier, sewer suction truck, dongfeng mini cesspit emptier…
| ITEM
|
PARAMETER
|
DATA
|
| Vehicle
|
Vehicle model
|
CEEC5060GXW
|
| Overall dimension
|
5990*2000*2600 MM
|
| Curb weight
|
3405 KG
|
| Max Loading capacity
|
4000 KG
|
| Max speed
|
95
|
| Drive wheel
|
4*2
|
| Chassis
|
Chassis model
|
EQ1090T9ADJ3AC
|
| Wheelbase
|
3300 mm
|
| Tire Specification
|
7.00-16
|
| Nos of tire
|
6+1 Pcs
|
| Engine
|
Engine model
|
CY4102
|
| Engine Horse power
|
95
|
| Displacement
|
3856
|
| Emission Standard
|
EURO III
|
| Upper
|
Brand
|
CEEC TRUCKS
|
| Manufacturer
|
CEEC TRUCKS INDUSTRY CO., LIMITED
|
| Material
|
Carbon steel
|

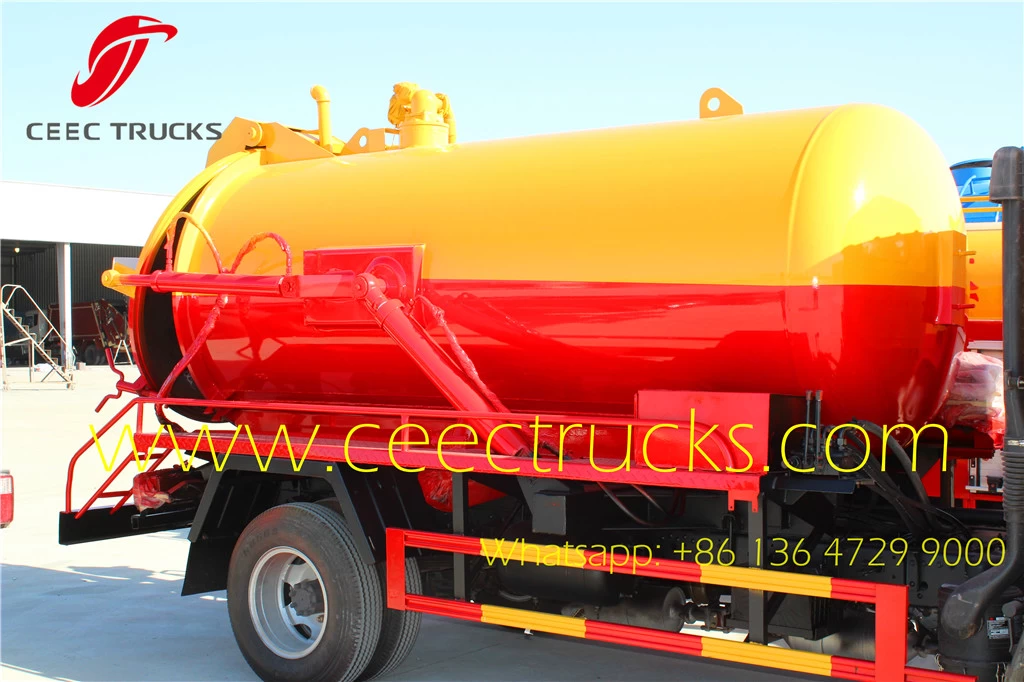

| Volume
|
4cbm
|
| Thickness
|
5MM
|
| Vacuum pump
|
Equipped
|
| Vacuum
|
>500mm HG
|
| Suction time
|
6m/min
|
| Rotation time
|
1400 r/m
|
| Mini rotation speed
|
>800 r/m
|
| Cabin
|
Brand
|
DongFeng
|
| Model
|
Single cabin
|
| Seats
|
3
|
| Steering
|
Left hand drive
|
| A/C
|
According to you
|
