About this item
Shell material: Nylon/Polypropylene & Sealing material: EPDM/VITION
Diaphragm material: Santoprene & Motor: Copper Motor
Wires: Double Core Wire & Pump Bracket: Anti-vibration rubber
Specification
|
Type
|
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|
|
Control Type
|
Pressure switch & By pass control
|
|
Max Recommended Temperature
|
60° C（140° F）
|
|
Priming Capabilities
|
6 feet (1.8 m) suction lift
|
|
Inlet/Outlet Ports
|
3/4" QUICK ATTACH
|
|
Weight
|
5.4 lbs (2.4 kg)
|
|
eads
|
16 AWG, 11" (28 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Max.Amp Draw
|
15.0 A
|
|
Fuse
|
22.5 A
|
|
Model
|
Voltage
|
Open Flow
(GPM/LPM
|
Control Type
|
Max Draw
|
Shut-off Pressure
(PSI/BAR
|
Valves
|
Diaphragm
|
Ports
|
Wire Connections
|
|
NMDP41-G33-35-12
|
12V
|
3.3 / 12.5
|
switch & By pass
|
8.0
|
35 / 2.4
|
EPDM
|
Santoprene
|
QUICK ATTACH
|
2-Pin/Leads
|
|
NMDP41-G33-35-24
|
24V
|
3.3 / 12.5
|
switch & By pass
|
4.0
|
35 / 2.4
|
EPDM
|
Santoprene
|
QUICK ATTACH
|
2-Pin/Leads
|

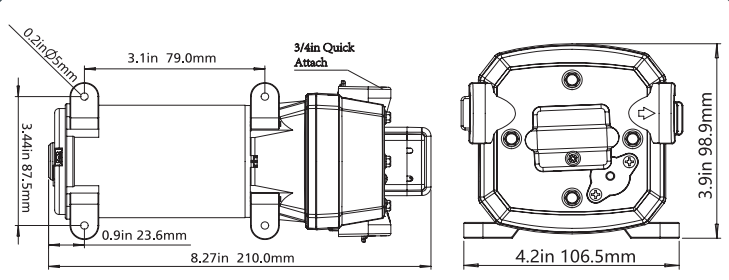

Dimensions
