53L Vacuum Drying Oven DZF-6050 for Lab Battery Raw Material Baking

The Vacuum Drying Oven DZF-6050 adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing vacuum embedding, and plating applications.



53L Vacuum Drying Oven DZF-6050 for Lab Battery Raw Material Baking


This product is mainly used for scientific research units, specialty universities, laboratories, industrial mining enterprises etc. and production field for materials drying and heat treatment under the vacuum state.


The product is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.


This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.


Vacuum Lab Oven for material heating drying under vacuum states has advantages :

1. It canshort the drying temperature process

2.Avoid heating to oxidation

3.Avoid heating air to kill living cells

4. There is no dust damage


Model

AOT-DZF-6050 Vacuum Drying Oven

Source voltage

AC 110VAC or 220V 50Hz/60Hz

Power

1400W

Warranty

One Year Limited Manufacture Warranty with Life Time Support

Temperature range

RT+10-250℃

Temperature fluctuation

±0.5℃

Vacuum degree

-0.1MPa

Volume

50L

Inner box size(L*W*H)

415*345*370mm

Dimension(L*W*H)

730*560*550mm

Temperature controller

1 High precision microcomputer temperature controller, accurate temperature control

2 Working temperature can be set and working time can be set for 0-9999min.

3 When time reach, sound alarm, and when any error, also alarm. function

Inner box material

304 stainless steel

Outside shell material

High quality cold-rolled steel plate electrostatic spray

Box door

Toughened bulletproof double glass door

Safety device

With over temperature protection, grounding etc

Shelf

2pcs

1 Solid stainless steel shelf, guarantee the oven temperature

2 Mesh stainless steel shelf can be also chosen

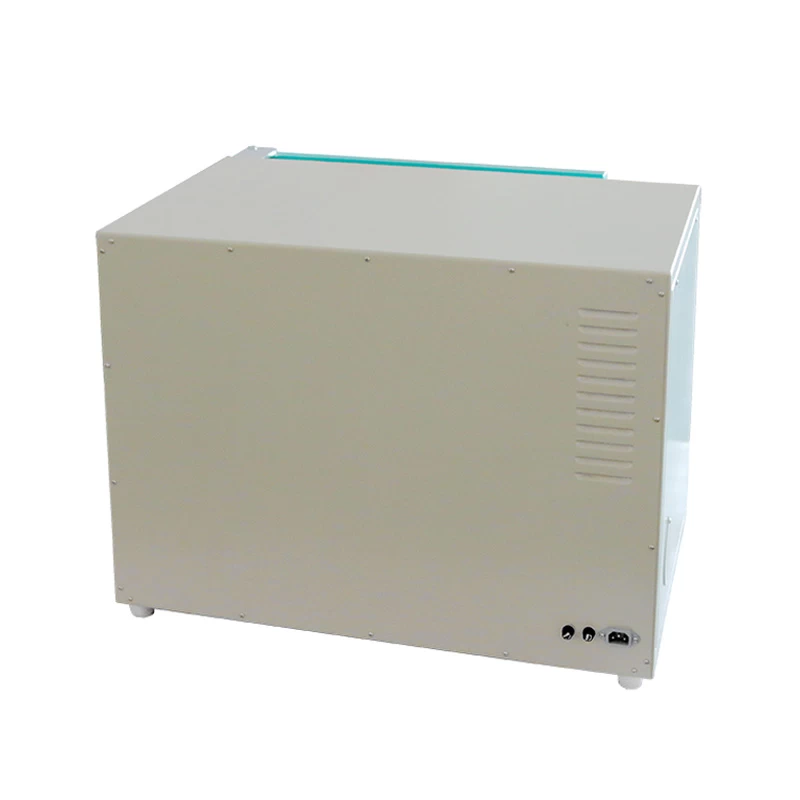

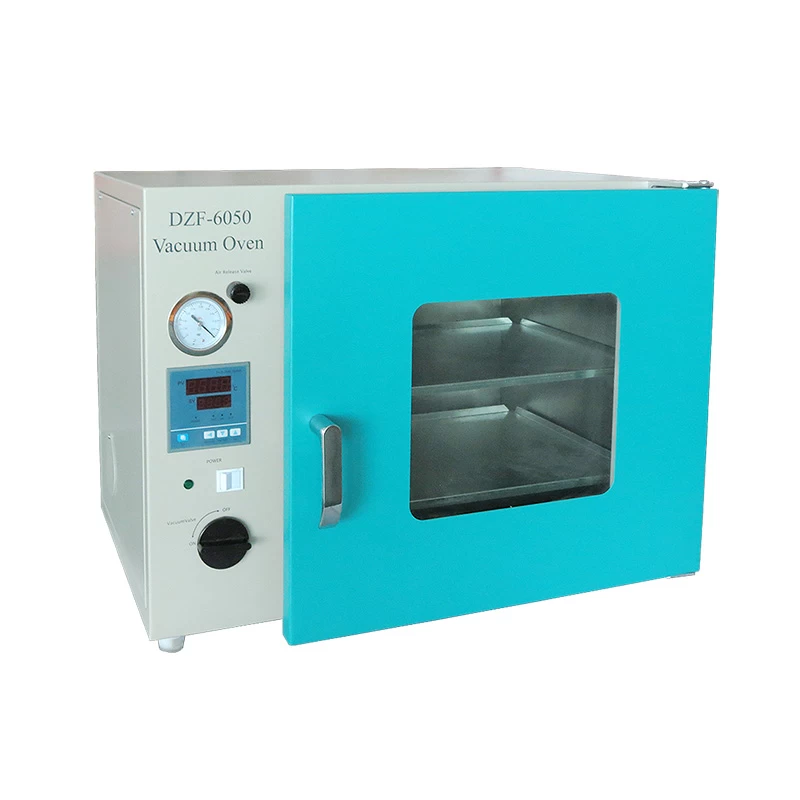

Lab vacuum drying oven DZF-6050

Laboratory vacuum drying oven DZF-6050
