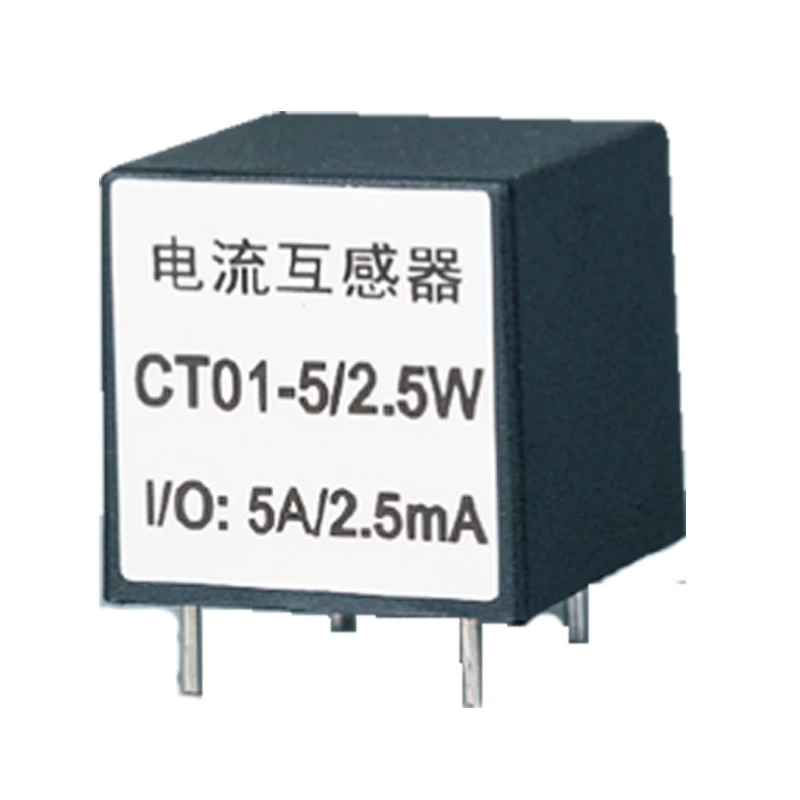

5A Magnetic Core Current Transformer for Monitoring Meter

Current transformer has small size and easy to installation. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact. Good linearity.



Hefei Mycoil Technology Co.,LTD is professional manufacture in designing, producing electronic transformers, common mode choke coils, relays, EMI filters. Our current transformers mainly used in high frequency power supplies, new energy, monitoring devices, relay protection devices and other power correction devices. All 5A current transformers are RoHS certification products.


Quick Details

Part No: MCT01A055ACT



Brand name: MCT

Operating temperature-40°C~50°C



Custom made: Available

Storage temperature:-40°C~70°C



Logo: Can be customized

Relative humidity:10~95%



Packing: Carton, can custom

Rated input current:5A



MOQ: Any quantity

Certification: ISO9001,ROHS,CE



OEM: Available

Lead time: 25 days after payment



Shipping: Air, Ship, etc



Part Information

Product Name:5A Magnetic Core Current Transformer for Monitoring Meter

ProductsRange: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.



Product Specification

MCT PN

Rated IN/OUT

Accuracy

Linearity Range

Phase shift

Load resistance

Isolated withstand voltage

Threading aperture,

Unit:mm

MCT01A05A

5A/2mA

0.2

0~20A

10

200Ω

300V

MCT01A05B

5A/2.5mA

0.2

0~20A

10

200Ω

300V

MCT01A05C

5A/5mA

0.5

0~10A

15

50Ω

300V

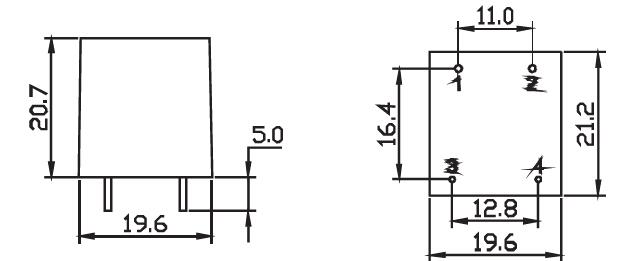

Dimension:mm

current transformer with rated input current 5A

Notification

Power supply is needed when the operational amplifier is added to the transformer, etc. ±15V,±12V or according to the actual operation.

OP07 series of operational amplifier is recommended.

The fixed temperature coefficient of resistance in the circuit must be over 50PPM.

Welcome customized type requirements.


If you have any questions, please contact us or leaving your comments, we will give you fast reply.
