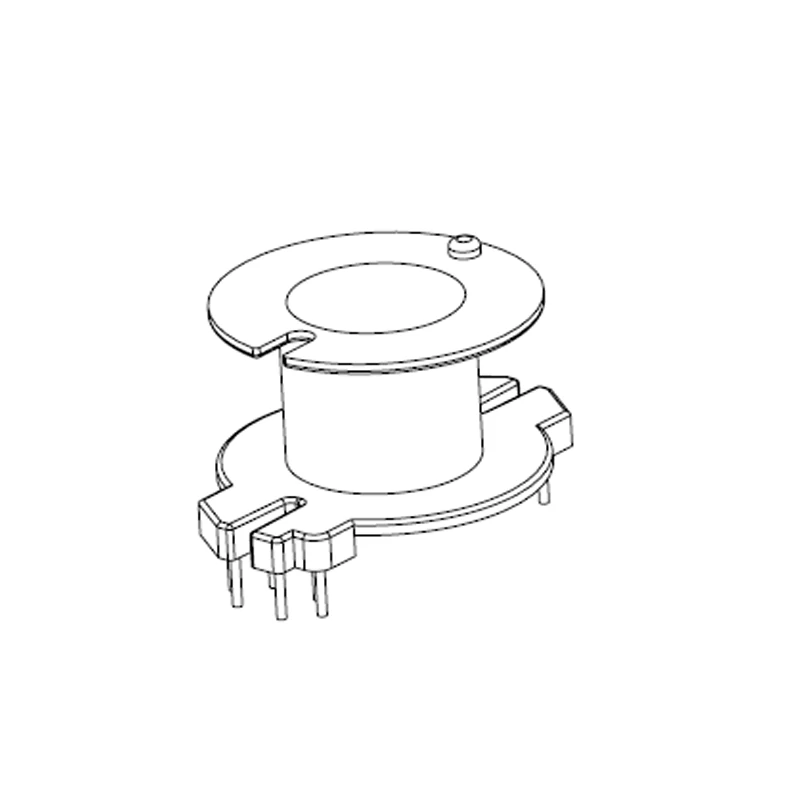

6+6 Pin RM10 Electronic Transformer Bobbin Phenolic Vertical Bobbin

RM10 Vertical Bobbin 6+6 Pins transformer Bobbin,

DIP Bobbin, Phenolic Material, UL REC:94V-0

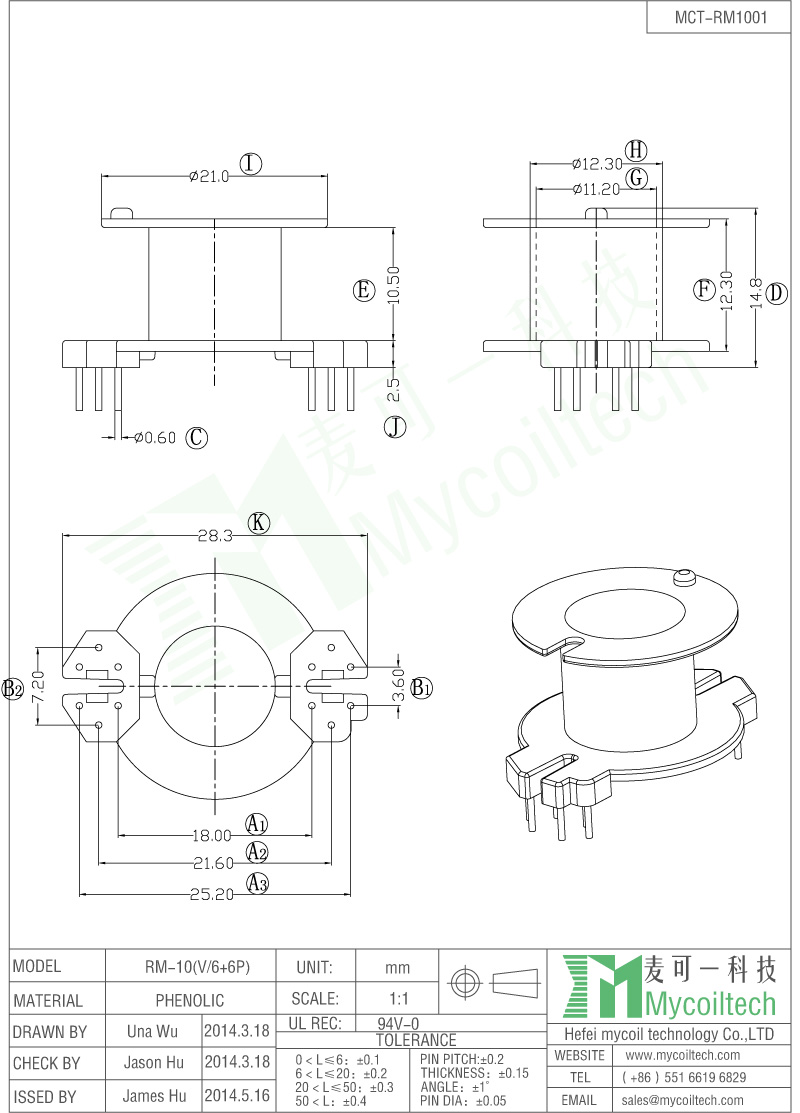

Bobbin Size=28.3mmX21mmX14.9mm



Electronic transformer bobbin supplier Hefei Mycoil Technology Co., LTD. We produced various RM10 transformer bobbins, we accept custom made and OEM service.



Quick Details

Part Number: MCT-RM1001(V6+6P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 6+6 Pin RM10 Electronic Transformer Bobbin Phenolic Vertical Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

Vertical bobbin RM10 electronic transformer bobbin
