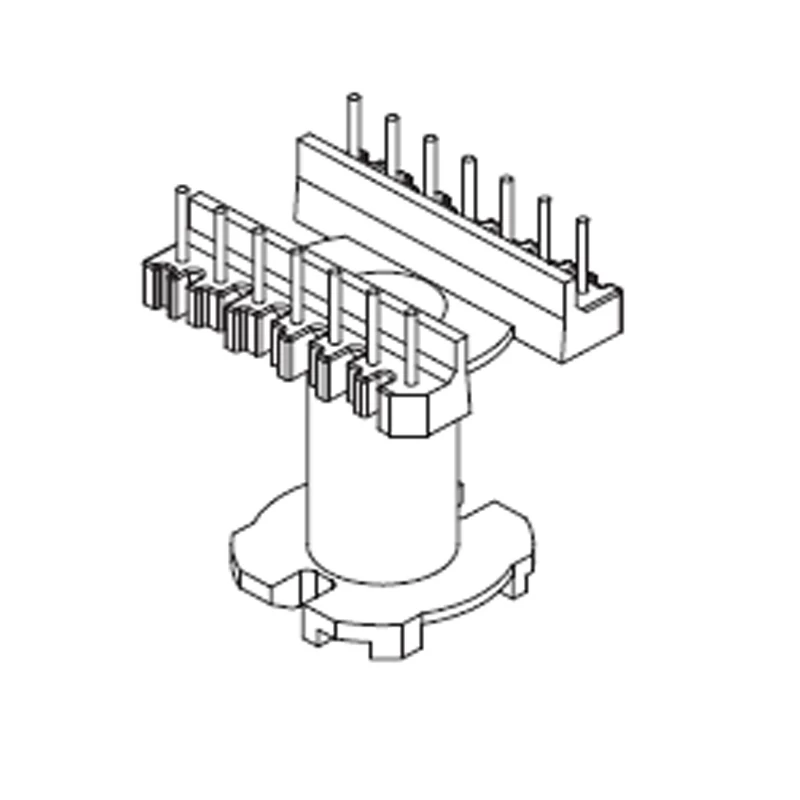

7+7 Pins Bobbin ERL35 ​Vertical Electronic Transformer Bobbin

14 pins phenolic ERL type bobbin. Vertical transformer bobbin.

Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0

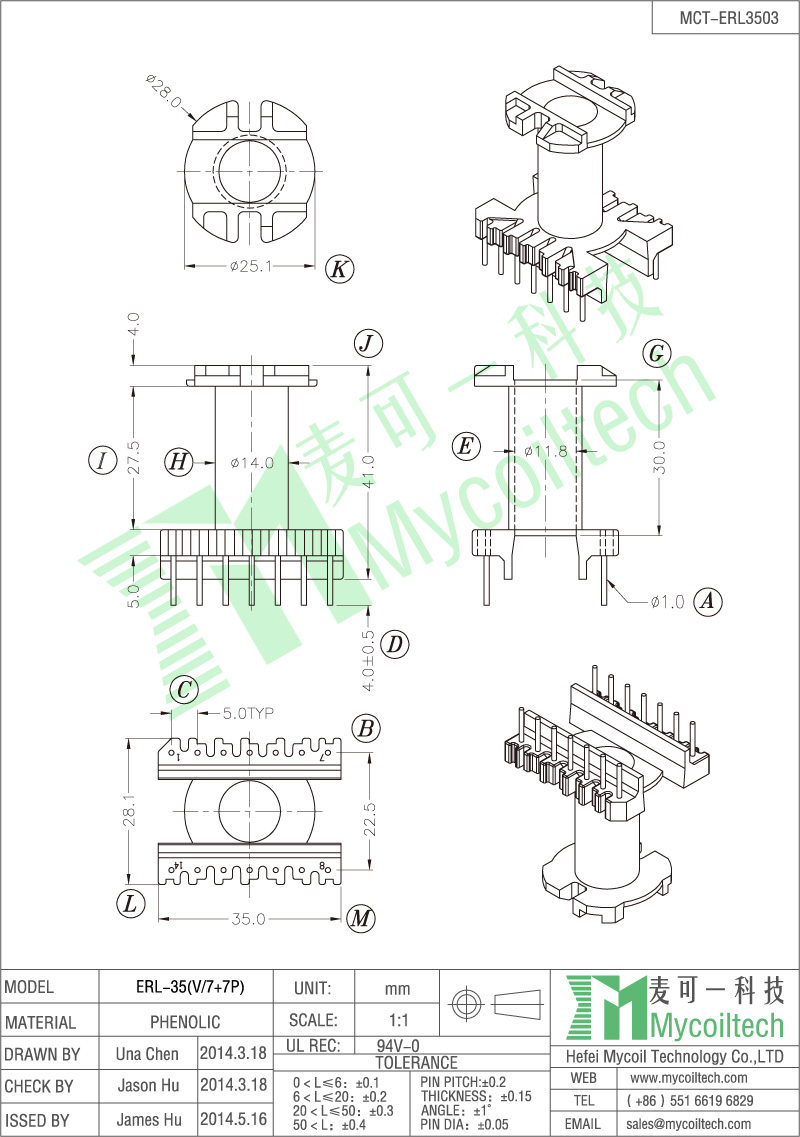

Bobbin Size=35mmX28.1mmX41mm. Accept make bobbin tooling.



Bobbin factory hot selling 7+7 pins vertical ERL transformer bobbin. The bobbin materials we used are RoHS and REACH compliant. We have our own quality control department, our engineering and technical personnel can quickly respond to make bobbin drawings and samples.


Quick Details

Part Number: MCT-ERL3503(V7+7P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 7+7 Pins Bobbin ERL35 Vertical Electronic Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

14 pins electronic transformer bobbin vertical ERL bobbin
