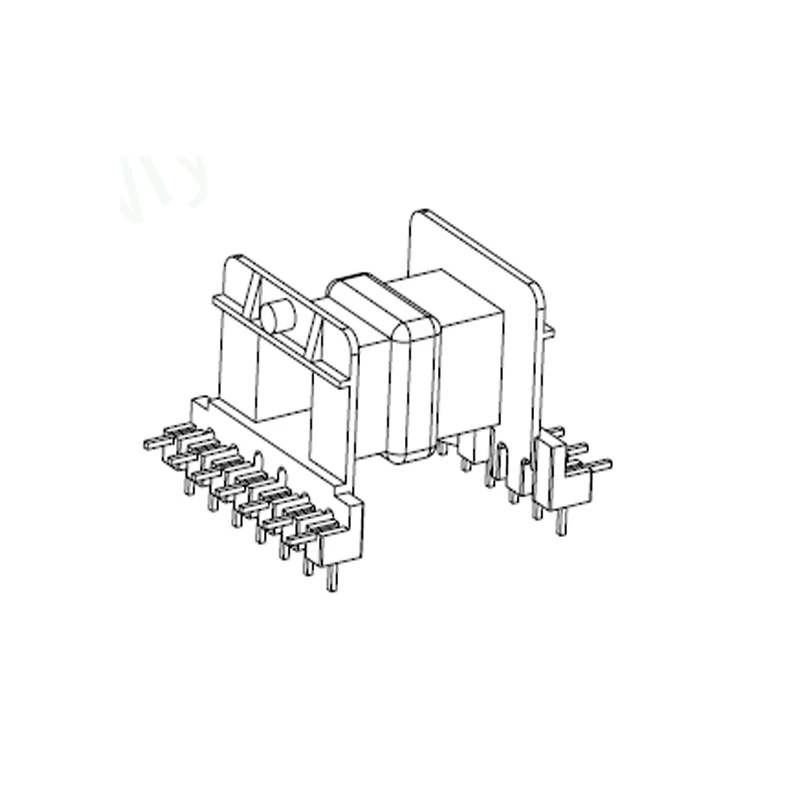

7+7 Pins EF35 High Frequency Transformer Bobbin for Magnetic Cores

7+7 pins horizontal EF35 transformer bobbin. Phenolic bobbin.

DIP bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm.

Bobbin Size=40.8mmX34.4mmX22.3mm. UL REC:94V-0.



China transformer bobbin factory hot selling EF35 series bobbins for transformer, 7+7 Pins horizontal bobbins. Any request, welcome to contact us.


Quick Details

Part Number: MCT-EF3501(H7+7P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 7+7 Pins EF35 High Frequency Transformer Bobbin for Magnetic Cores

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

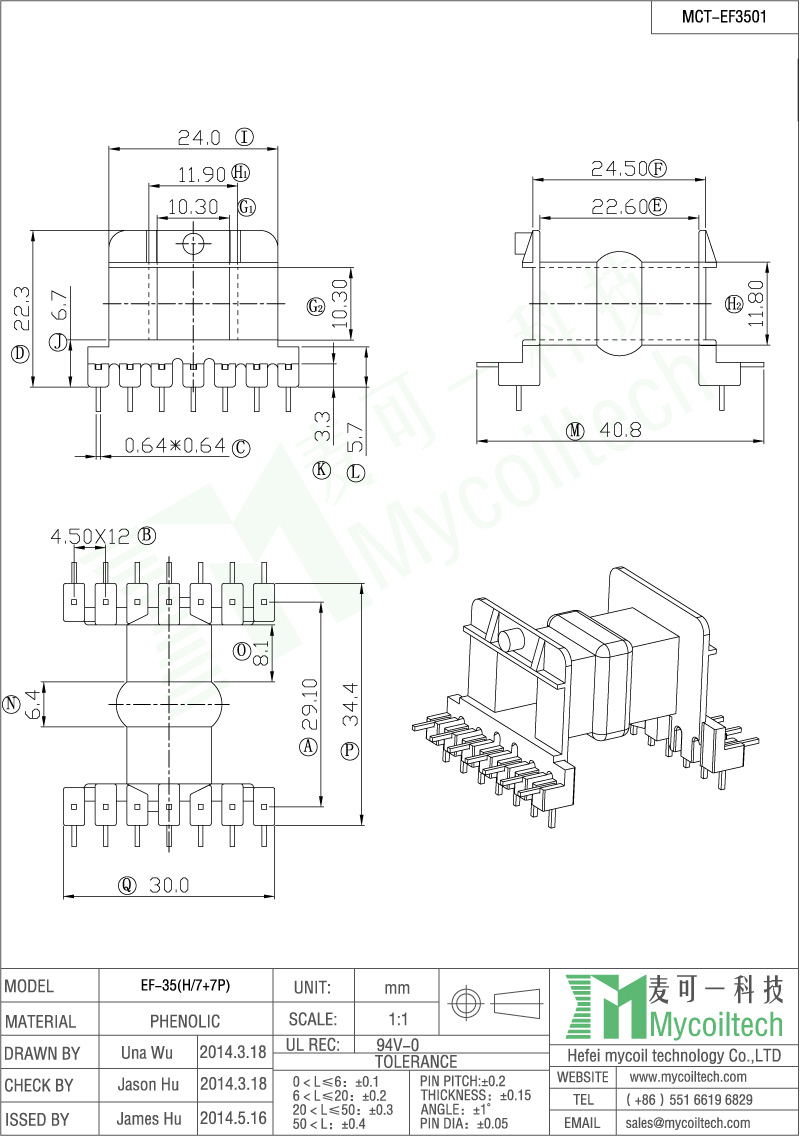

Product Specification

Best quality EF35 high frequency transformer bobbin factory MCT
