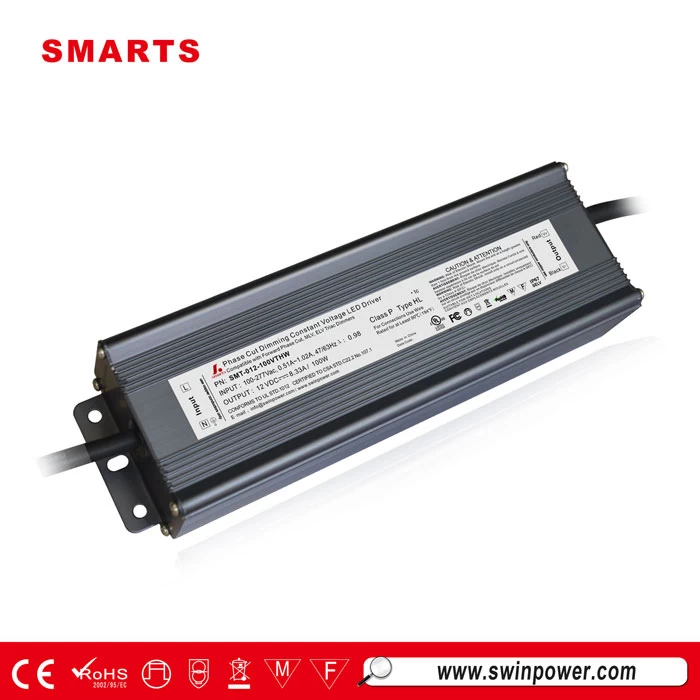

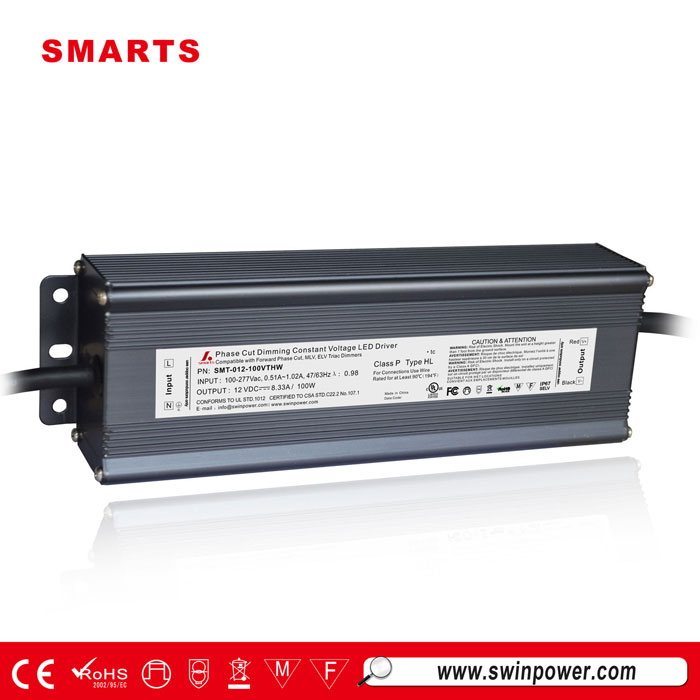

7 years warranty 12v 100w triac dimmable constant voltage led driver with UL
12v 100w triac dimmable led driver are high efficiency,high reliability,save energy.built-in active PFC function: PF>0.90 for 86% of load or higher. 100% full load burn-in test.
Destription
|
model
|
SMT-012-100VTHW
|
|
Output
|
DC Voltage
|
12V
|
|
|
Voltage Accuracy
|
±0.5V
|
|
|
Rated current
|
8.33A
|
|
|
Rated power
|
100W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.95/110V,PF≧0.97/277V
|
|
|
Full Load Efficiency(Typ.)
|
>82%
|
|
|
AC Current（Typ.）
|
1.33A/110VAC
|
|
|
Inrush Current （Typ.）
|
20A, 50%, 1.6ms
|
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Net Weight
|
1.1Kg
|
|
|
Size
|
230*70*46mm（L*W*H）
|
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|
Mechanical Specification
Simple Connection Diagram
Connecting Diagram
Problem analysis
Question:
Why does the 100W-PWM driver (SMT-012-100VT) have 2 x output cables ?
I need a driver with a single 100W output.
Can I draw the entire 200W from one cable ? Internally is it a single output ? just 2 x wires ?
Answer:
Yes, the internally dimmable led driver for SMT-012-100VTHW is single output type and just 2 wires.
