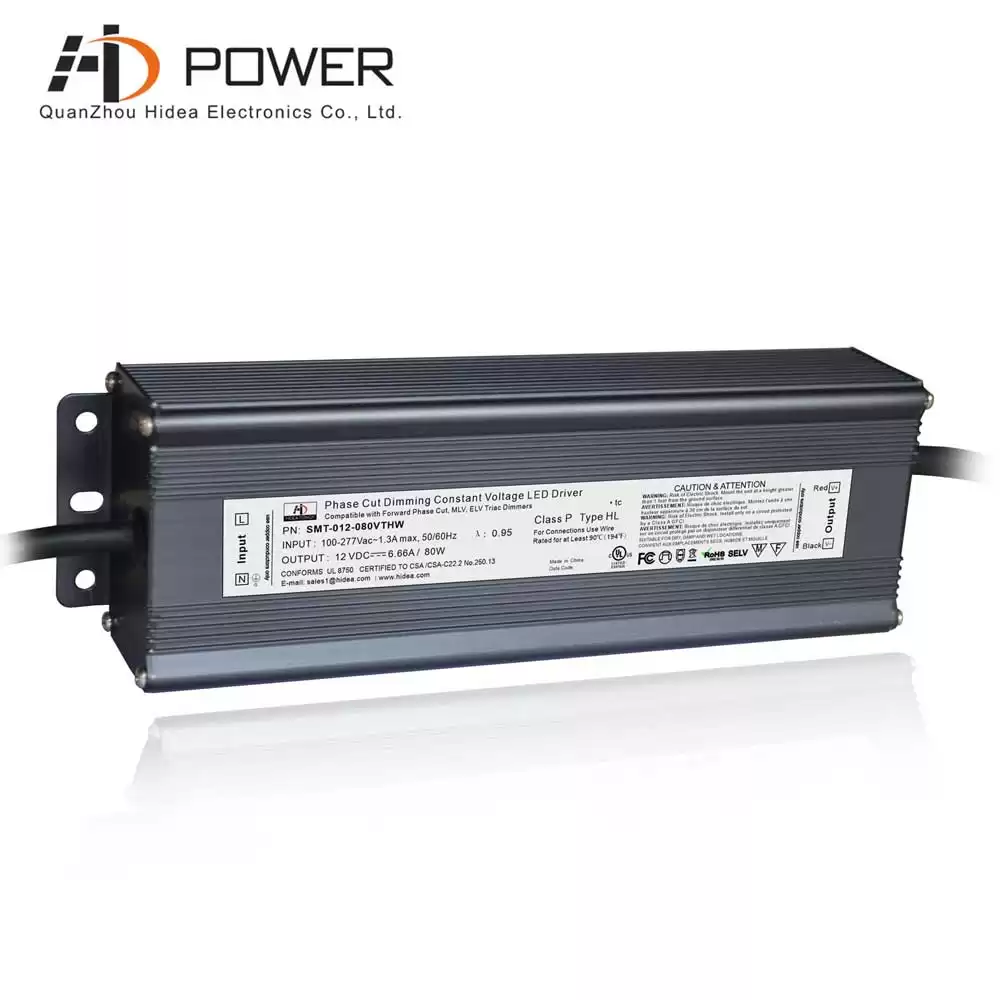

80 watt selv led power supply 12v 24 volt dimmable led driver
The 12v 80w led power supply performs well in a wide range of lighting applications up to 80W. It is compatible with trailing edge and leading edge dimmers such as CLIPSAL dimmer.
Specification
|
Model
|
SMT-012-080VTHW
|
SMT-024-080VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
6.66A
|
3.33A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100~277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>82%
|
|
AC Current(Typ.)
|
1.33A/110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.05Kg
|
|
Size
|
230*70*43mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible LED Stripe Type
This 80w triac dimmable led power supply is easy to install, mount, and wire. This high quality triac dimmable driver controls 12V LED lights with smooth consistent dimming, free of flicker. AQ lighting LED strip is alternative.
Related Products

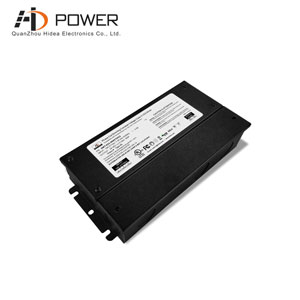

 12v 80w triac dimmable power supply UL/cUL FCC listed, compatible with MLV & ELV dimmers.
