80A 100A Specialized For Household Appliance DC EMI Noise Filter

DC EMI filter mainly used in electric power supply, data system, testing equipment, digital system and other consumer electronics. Always designed for DC power line.



Our EMI power DC filters are available for electronic equipments, measuring instruments (DC side), such as switching power supply, private branch exchange(PBX), data communication, sports equipment, other consumer electronics products. Hefei Mycoil Technology Co.,LTD is professional manufacture in designing, producing electronic transformers, choke coils, full range of SMD power inductors, EMI filters. We are ISO9001:2008 certification factory, we have a research team consists of five engineers, we can design filter products to meet customer's requirement and provide custom made service. We also have quality control department, we use environmental protected materials and high quality components to ensure DC EMI noise filters more safety and reliability.


Quick Details

Part No: MCT7DC-6

Brand name: MCT

Rated Voltage: 80VDC/250VDC

Custom made: Available

Rated Current: 50A~140A

Logo: Can be customized

Temperature range: HPF 25/085/21

Packing: Carton,can custom

Operating Frequency: DC

Certification: ISO9001,ROHS,CE

Test Voltage(1min): Line to Ground: 350VDC

OEM: Available

Test Voltage(1min): Line to Line: 500VDC

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: 80A 100A Specialized For Household Appliance DC EMI Noise Filter

DC EMI Filters Features: Designed for DC power line. Excellent differential and common-mode attenuation. High performance, easy to install. Custom design acceptable.

Applications: Switching power supply, Private Branch, Exchange(PBX), Data communication, Communication system, Industrial equipment power supply, Medical equipment, Testing equipment.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Details

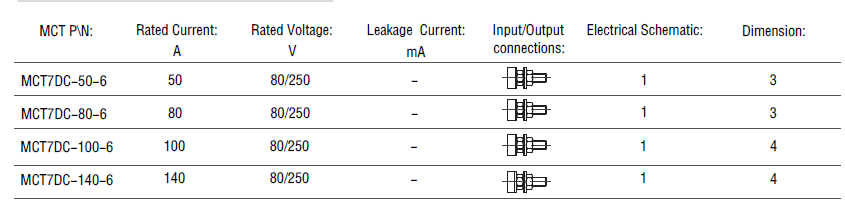

Data Table

High quality EMI filters

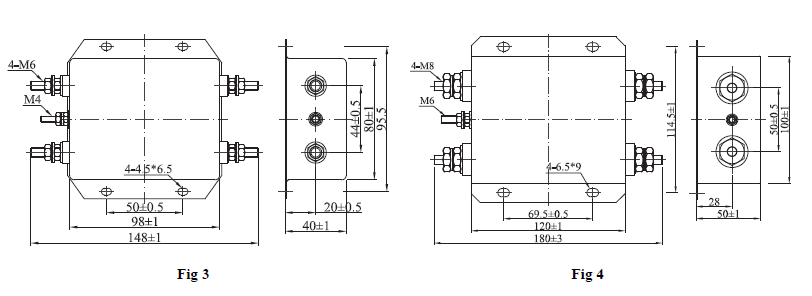

nsion:  unit :mm




 Dimension: unit :mm

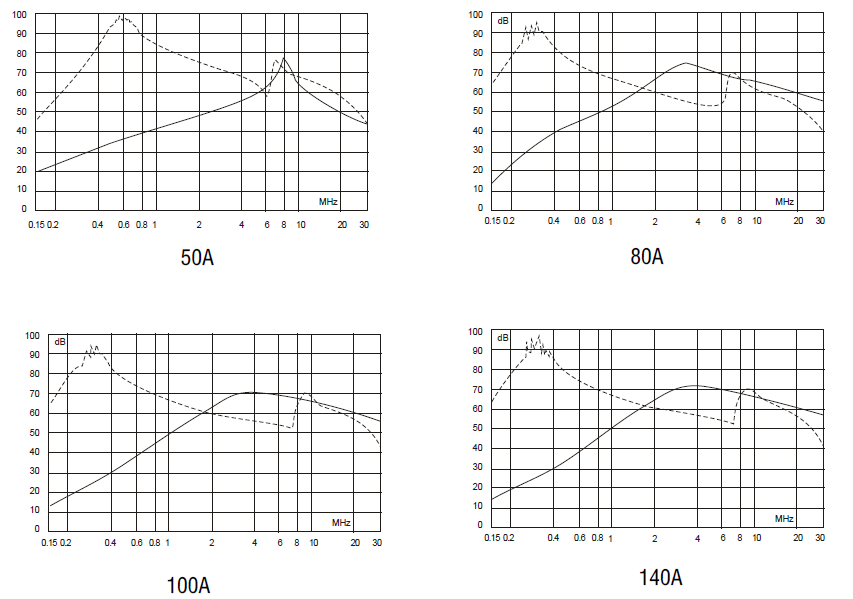

Insertion Loss in dB

EMI filter factory MCT

If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

QQ: 2783136957

Contact: Lily Yu


Product Tags emi dc filter          dc emi filter          dc dc emi filter          emi filter dc dc converter          emi filter for dc dc converter          dc emi suppression filter          emi filter dc power          dc emi filter design          dc emi filter circuit
