Hefei Mycoil Technology Co., LTD supply all kinds common mode chokes, samples are available for testing, welcome customized inductors.
Quick Details
|
Part No: Power Line Chokes MCTQ19S
|
|
Brand name: MCT
|
|
Rated voltage 250 V AC
|
|
Custom made: Available
|
|
Rated current 0.45 ...1.6 A(+40 °C)
|
|
Logo: Can be customized
|
|
Rated inductance 10 ... 100 mH
|
|
Packing: Carton, can custom
|
|
Hi-pot Test voltage Vtest:2000 V AC, 2 s (line/line)
|
|
MOQ: Any quantity
|
|
PHENOLIC coil former (UL94 V-0)
|
|
OEM: Available
|
|
Sector winding
|
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
|
Certification: ISO9001,ROHS,CE
|
Part Information

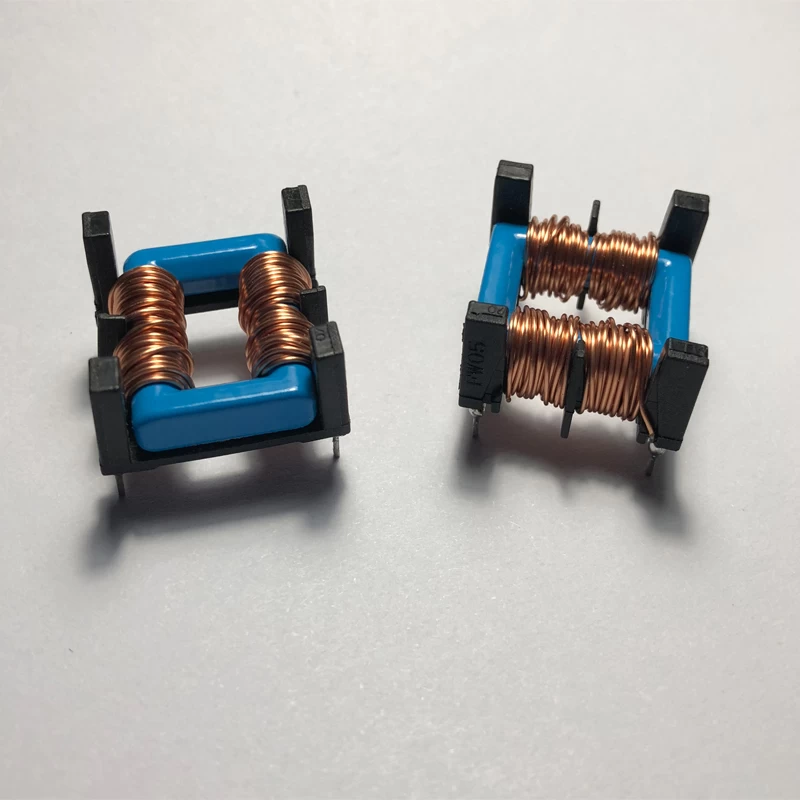

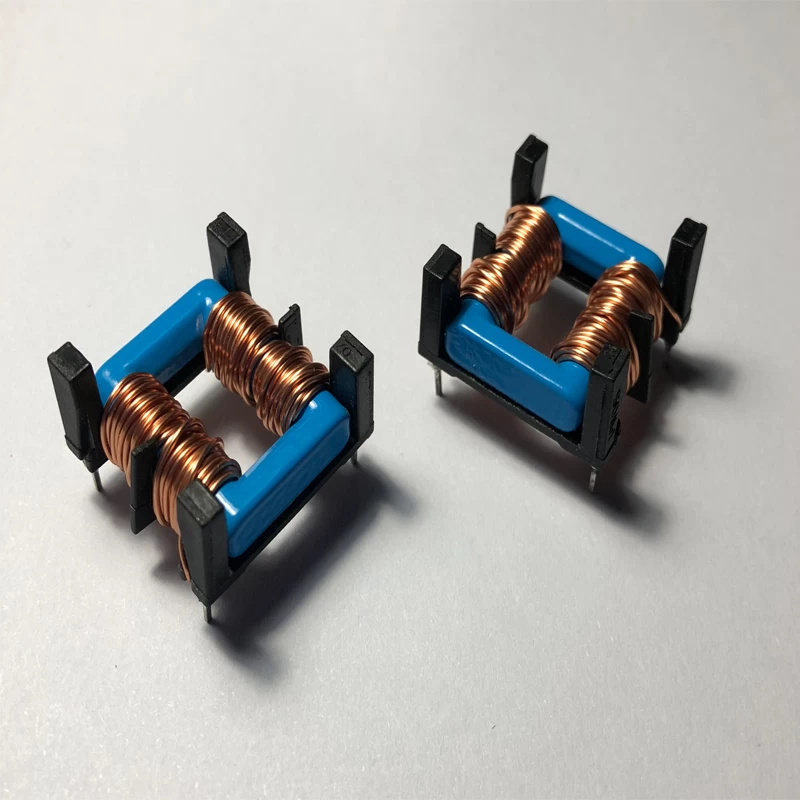

Product Name: AC Power Line Common Mode Chokes Filter Inductor
Terminals: Base material CP wire. Hot dipped. Pins 0.7×0.7 mm. Lead spacing 10×19 mm
Product Construction: Current-compensated frame core double choke. Closed magnetic circuit with frame construction made of ferrite. 4-section winding with direct winding on the core. Clearance and creepage distances >3 mm
Product Specification

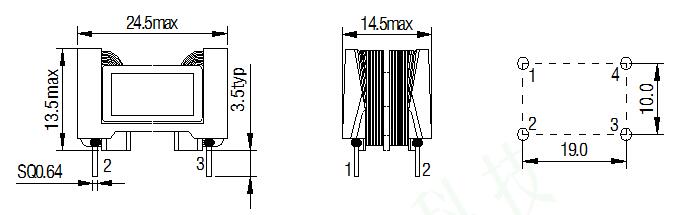

1.Dimensional drawing and layout recommendation
2.Technical data and measuring conditions
Rated voltage VR:250 V AC (50/60 Hz)
Hi-pot Test voltage Vtest:2000 V AC, 2 s (line/line)
Rated temperature TR:+40 C
Rated current IR:Referred to 50 Hz and rated temperature,see the data table
Rated inductance LR:Measured with LCZ1062 at 10 kHz/0.1 mA, +20°C.Inductance is specified per winding.
Inductance tolerance:
Solderability (lead-free):Sn96.5Ag3.0Cu0.5: +(245±5)°C, (3±0.3) s
Wetting of soldering area≥95%
Resistance to soldering heat(wave soldering)：+(260±5) °C, (10±1) s
3.Characteristics table
|
MCT PN
|
IR:A
|
LR:mH
|
Lstray typ：uH
|
DCR:mΩ
|
|
MCTQ19S102M
|
0.45
|
100.0
|
1937
|
2931
|
|
MCTQ19S682M
|
0.60
|
68.0
|
1346
|
1974
|
|
MCTQ19S472M
|
0.70
|
47.0
|
924
|
1261
|
|
MCTQ19S392M
|
0.80
|
39.0
|
761
|
1100
|
|
MCTQ19S272M
|
0.90
|
27.0
|
520
|
771
|
|
MCTQ19S152M
|
1.30
|
15.0
|
291
|
432
|
|
MCTQ19S101M
|
1.60
|
10.0
|
204
|
291
|
The core M10 with AL=4500±30% and M12 with AL=5400±30% can be selected.

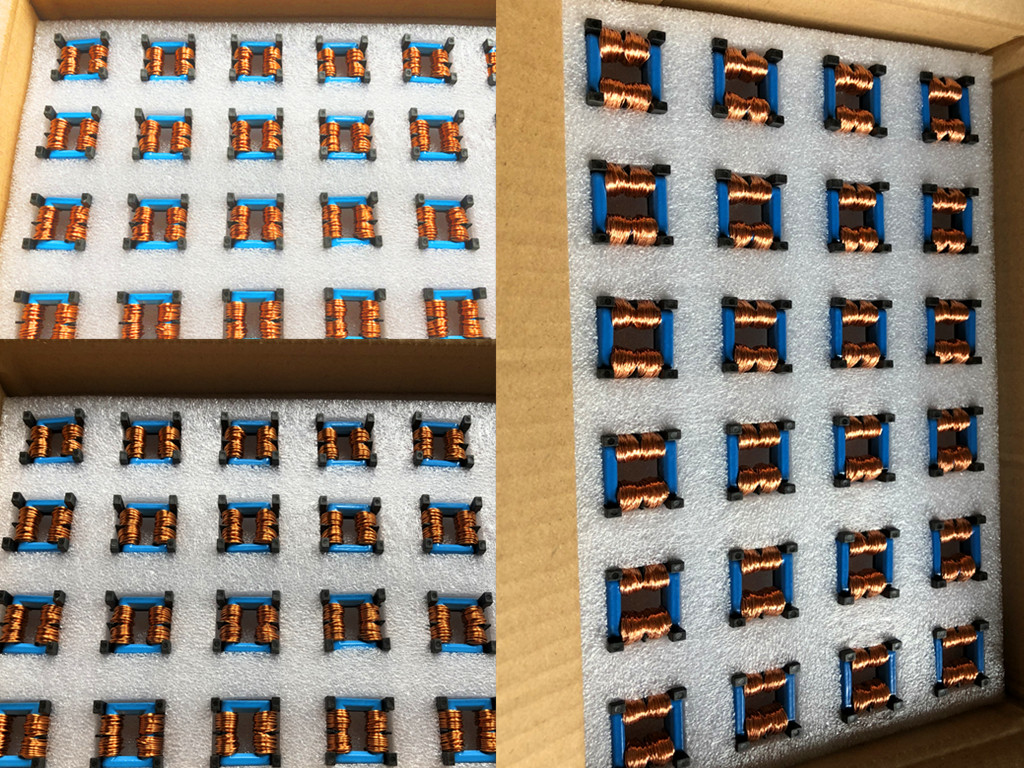

Packing Details and Delivery
1. Neutral Packing: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton
2.As customer requirement: Customized CTN, Polystyrene tray,etc.
3. The delivery time is 25-30 working days after the payment.
