Adapter Sleeves AH/AHX2200(3100,3200),AN/KM Series

AH/AHX2200(3100,3200),AN/KM Series Quit sleeves and lock nuts

Facebook Twitter Pinterest LinkedIn 分享

Description

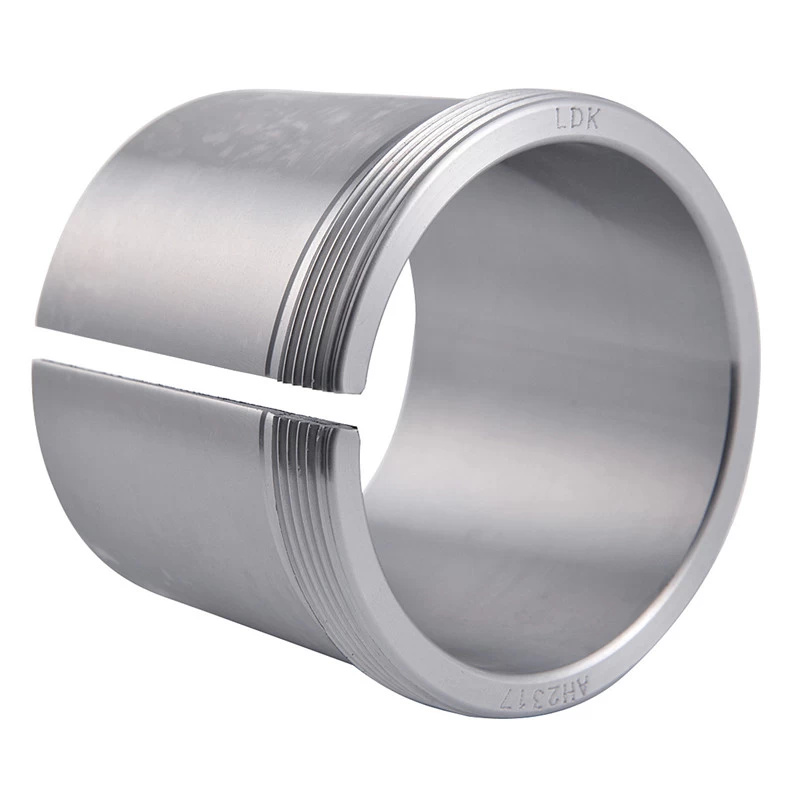

LOCK NUTS AHX3124

Bearing No.	d	d1	L	b	a	d2	Weight (kg)
AHX3120	100	95	64	11	4	M110x2	0.650
AHX3122	110	105	68	11	4	M125x2	0.760
AHX3124	120	115	75	12	4	M130x2	0.950
AHX3126	130	125	78	12	4	M140x2	1.08
AHX3128	140	135	83	14	5	M150x2	1.28
AHX3130	150	145	96	15	5	M165x3	1.79
AH3132	160	150	103	16	5	M180x3	3.21
AH3134	170	160	104	16	5	M190x3	3.40
AH3136	180	170	116	19	6	M200x3	4.22
AH3138	190	180	125	20	6	Tr210x4	4.89
AH3140	200	190	134	21	6	Tr220x4	5.49
AH3144	220	200	145	23	6	Tr240x4	10.4
AH3148	240	220	154	25	7	Tr260x4	12.0
AH3152	260	240	172	26	7	Tr290x4	16.2
AH3156	280	260	175	28	8	Tr310x5	17.5
AH3160	300	280	192	30	8	Tr330x5	20.8
AH3164	320	300	209	31	8	T350x5	24.5
AH3168	340	320	225	33	9	Tr370x5	29.0
AH3172	360	340	229	35	9	Tr400x5	33.0
AH3176	380	360	232	36	10	Tr420x5	35.7
AH3180	400	380	240	38	10	Tr440x5	39.5
AH3184	420	400	266	40	10	Tr460x5	46.5
AHX3188	440	420	270	42	11	Tr480x5	49.8
AHX3192	460	440	285	43	11	Tr510x6	57.9
AHX3196	480	460	295	45	12	Tr530x6	63.1
AHX3218	90	85	63	10	4	M100x2	0.576
AHX3219	95	90	67	11	4	M105x2	0.655
AHX3220	100	95	73	11	4	M110x2	0.767
AHX3222	110	105	82	11	4	M125X2	1.04
AHX3224	120	115	90	13	4	M135x2	1.30
AHX3226	130	125	98	15	4	M145x2	1.58
AHX3228	140	135	104	15	5	M155x3	1.84
AHX3230	150	145	114	17	5	M165x3	2.22
AH3232	160	150	124	20	6	M180x3	4.08
AH3234	170	160	134	24	6	M190x3	4.80
AH3236	180	170	140	25	6	M200x3	5.32
AH3238	190	180	145	25	7	Tr210x4	5.90
AH3240	200	190	153	34	7	Tr220x4	6.68
AH3260	300	280	228	34	8	Tr330x5	26.0
AH3264	320	300	246	36	8	Tr350x5	30.6
AH2236	180	170	105	17	5	M200x3	3.73
AH2238	190	180	112	18	5	Tr210x4	4.25
AH2240	200	190	118	19	5	Tr220x4	4.68
AH2244	220	200	130	20	6	Tr240x4	9.10
AH2248	240	220	144	21	6	Tr260x4	11.1
AH2252	260	240	155	23	6	Tr290x4	14
AH2256	280	260	155	24	8	Tr310x5	15.2
AH2260	300	280	170	26	8	Tr330x5	18.1
AH2264	320	300	180	27	10	Tr350x5	20.2

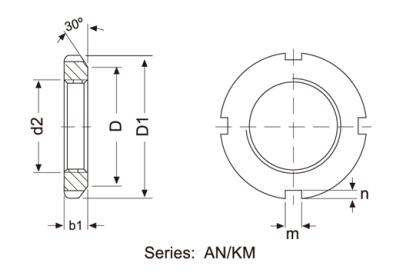

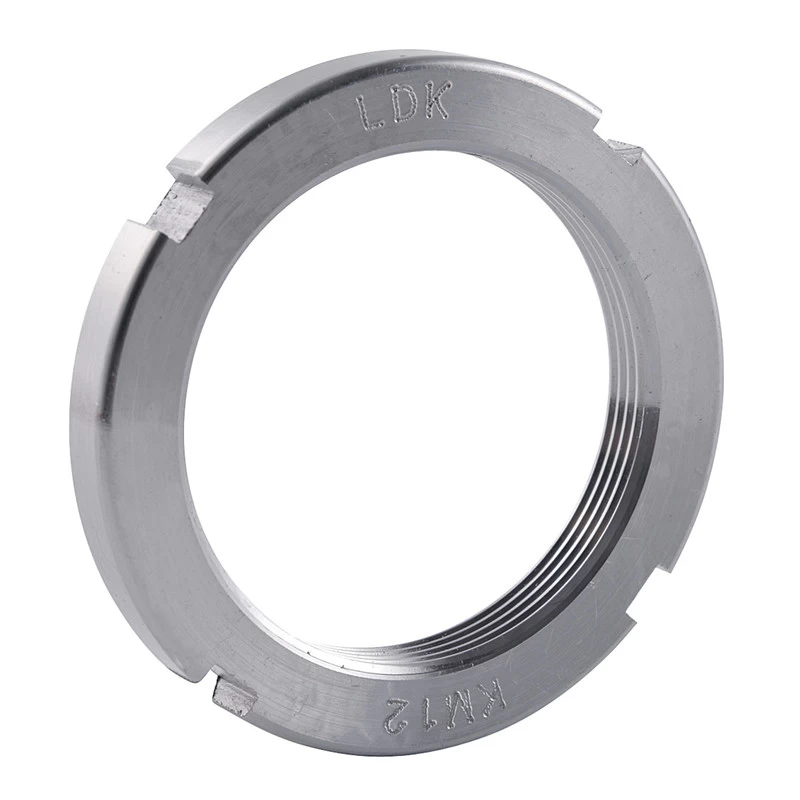

LOCK NUTS KM05

Bearing No.	d2	D1	b1	D	m	n	Weight (kg)
AN/KM0	M10X0.75	18	4	13.5	3	2	0.004
AN/KM1	M12x1	22	4	17	3	2	0.007
AN/KM2	M15X1	25	5	21	4	2	0.010
AN/KM3	M17x1	28	5	24	4	2	0.013
AN/KM4	M20x1	32	6	26	4	2	0.019
AN/KM5	M25X1.5	38	7	32	5	2	0.025
AN/KM6	M30X1.5	45	7	38	5	2	0.043
AN/KM7	M35X1.5	52	8	44	6	2	0.053
AN/KM8	M40X1.5	58	9	50	6	2.5	0.085
AN/KM9	M45X1.5	65	10	56	6	2.5	0.119
AN/KM10	M50X1.5	70	11	61	6	2.5	0.148
AN/KM11	M55X2	75	11	67	7	3	0.158
AN/KM12	M60x2	80	11	73	7	3	0.174
AN/KM13	M65x2	85	12	79	7	3	0.203
AN/KM14	M70x2	92	12	85	8	3.5	0.242
AN/KM15	M75x2	98	13	90	8	3.5	0.287
AN/KM16	M80x2	105	15	95	8	3.5	0.397
AN/KM17	M85x2	110	16	102	8	3.5	0.451
AN/KM18	M90x2	120	16	108	10	4	0.556
AN/KM19	M95x2	125	17	113	10	4	0.658
AN/KM20	M100x2	130	18	120	10	4	0.698
AN/KM21	M105x2	140	18	126	12	5	0.845
AN/KM22	M110x2	145	19	133	12	5	0.965
AN/KM23	M115x2	150	19	137	12	5	1.01
AN/KM24	M120x2	155	20	138	12	5	1.08
AN/KM25	M125X2	160	21	148	12	5	1.19
AN/KM26	M130x2	165	21	149	12	5	1.25
AN/KM27	M135x2	175	22	160	14	6	1.55
AN/KM28	M140x2	180	22	160	14	6	1.56
AN/KM29	M145x2	190	24	172	14	6	1.80
AN/KM30	M150x2	195	24	171	14	6	2.03
AN/KM31	M155x3	200	25	182	16	7	2.30
AN/KM32	M160x3	210	25	182	16	7	2.59
AN/KM33	M165x3	210	26	193	16	7	2.70
AN/KM34	M170x3	220	26	193	16	7	2.80
AN/KM36	M180x3	230	27	203	18	8	3.07
AN/KM38	Ml90x3	240	28	214	18	8	3.39
AN/KM40	M200x3	250	29	226	18	8	3.69
AN/KML24	M120x2	145	20	135	12	5	0.780
AN/KML26	M130x2	155	21	145	12	5	0.880
AN/KML28	M140x2	165	22	155	12	5	0.990
AN/KML30	M150x2	180	24	170	14	5	1.38
AN/KML32	M160x3	190	25	180	14	5	1.56
AN/KML34	M170x3	200	26	190	16	5	1.72
AN/KML36	M180x3	210	27	200	16	5	1.95
AN/KML38	M190x3	220	28	210	16	5	2.08
AN/KML40	M200x3	240	29	222	18	8	2.98
